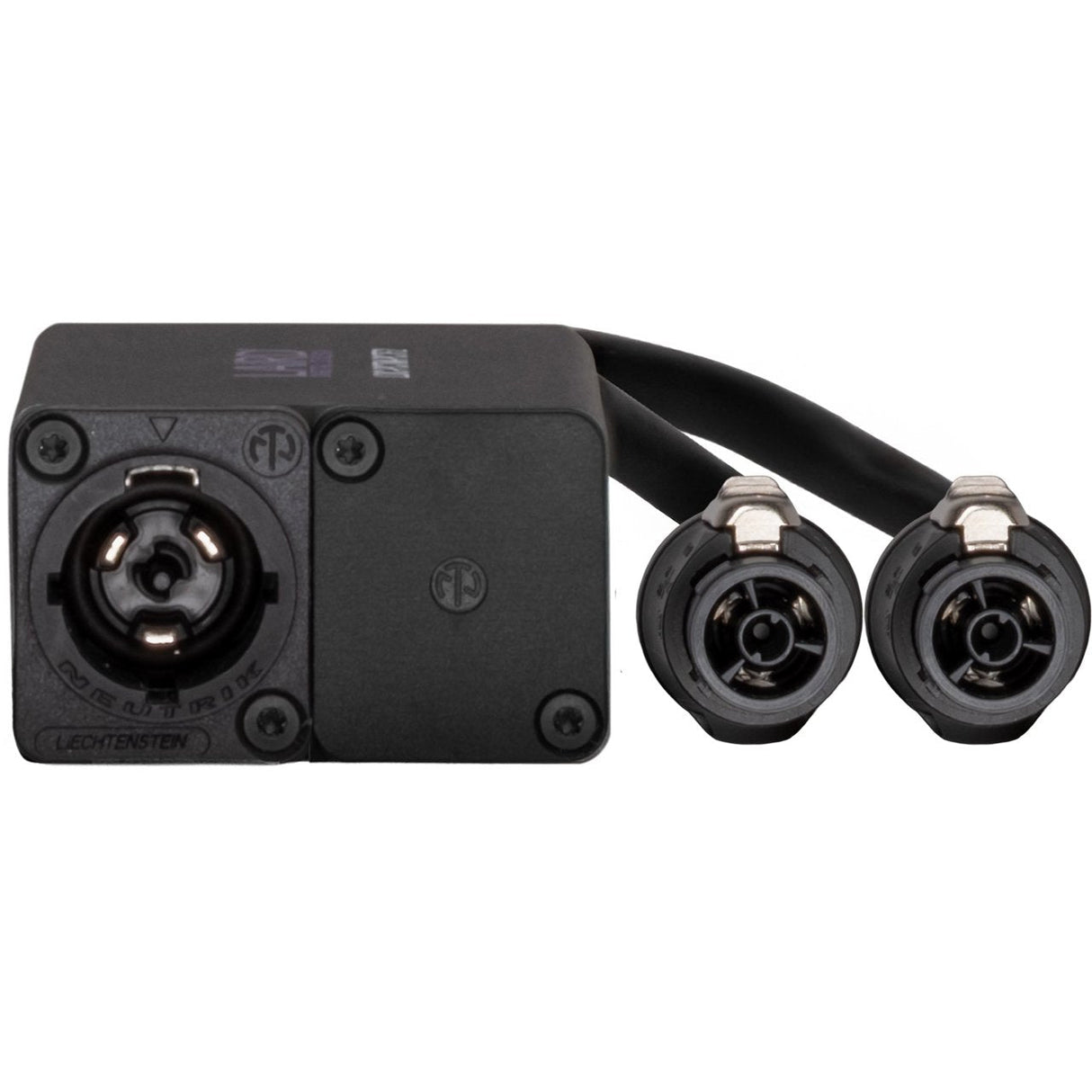

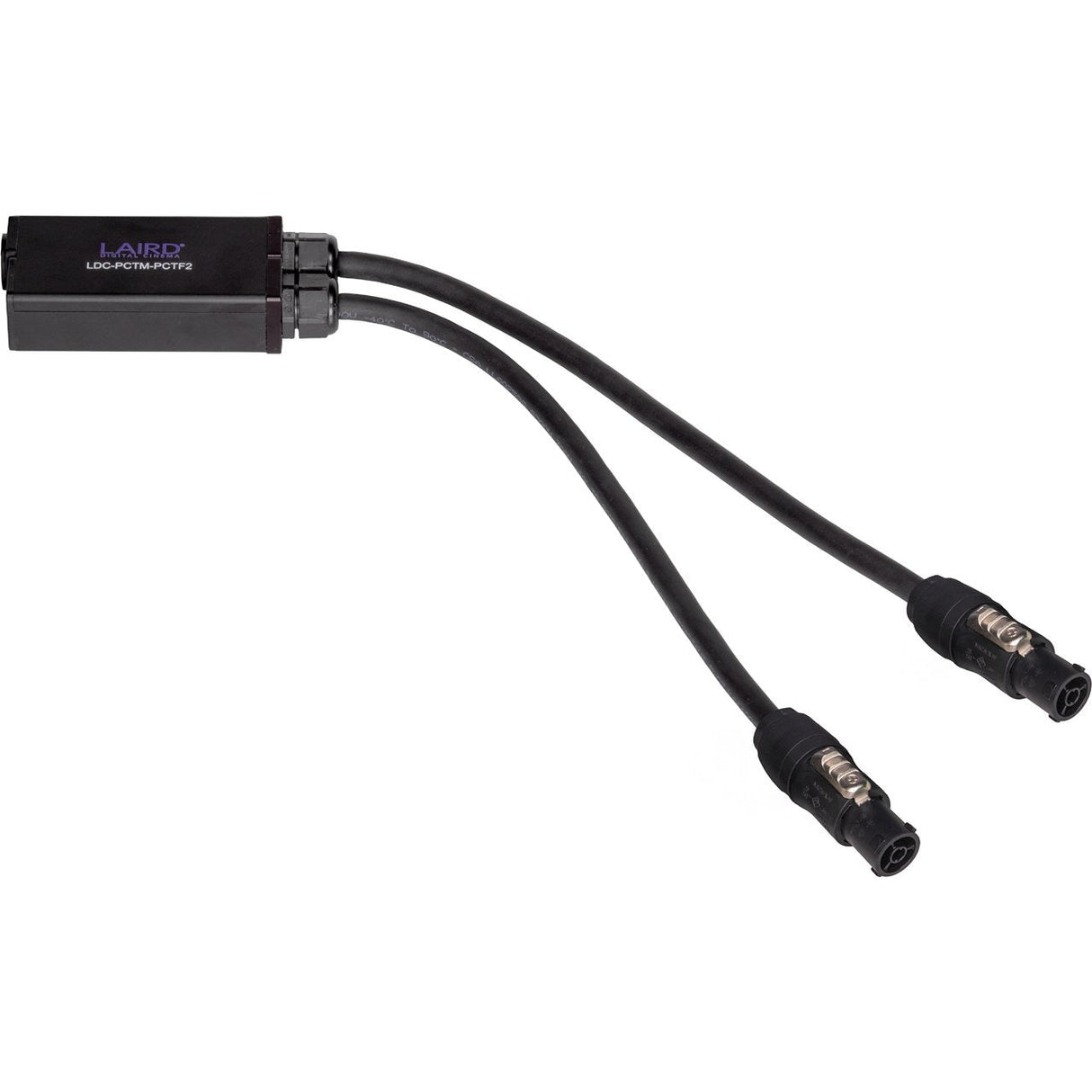

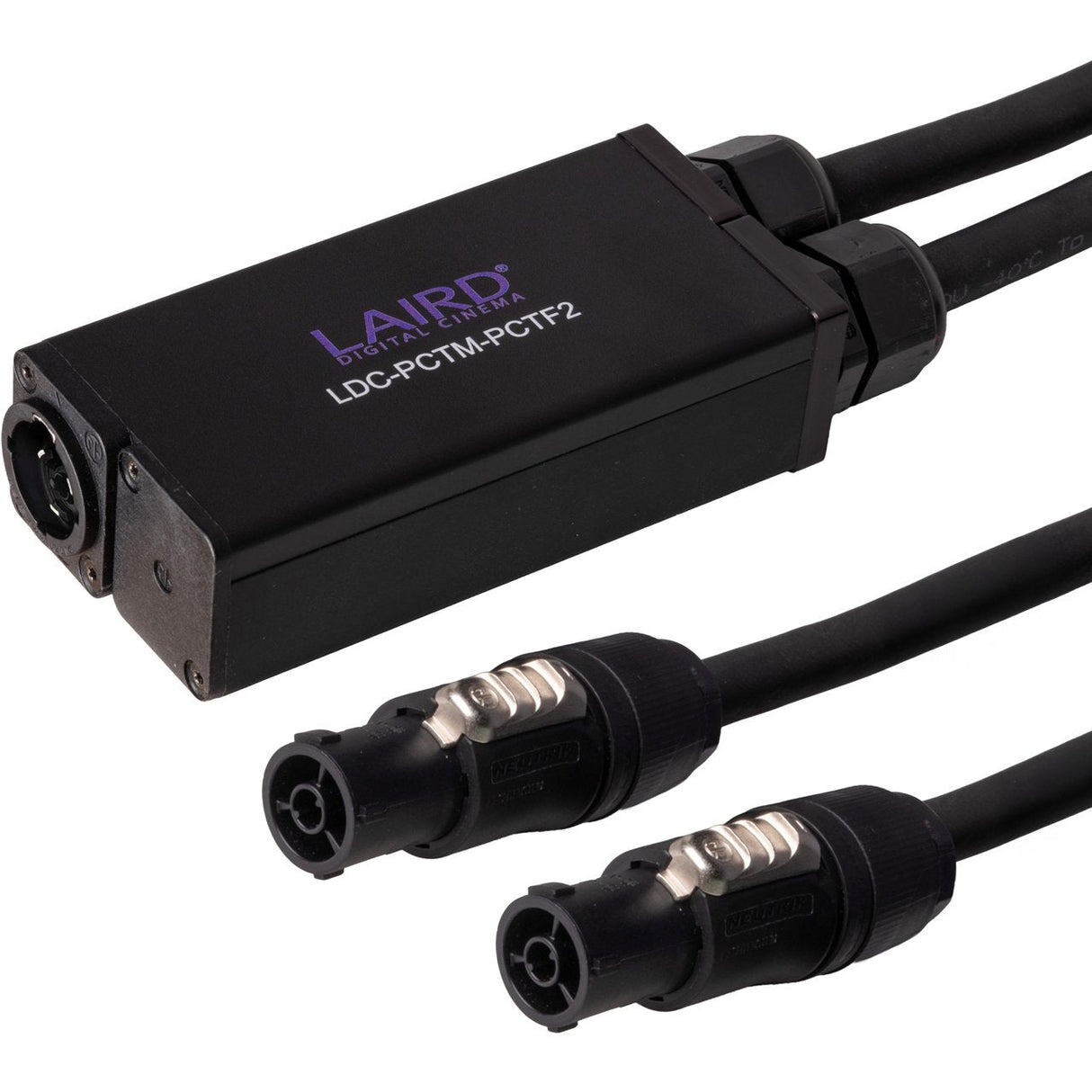

Laird LDC-PCTM-PCTF2 powerCON TRUE1 Power Distribution Splitter Cable
The Laird LDC-PCTM-PCTF2 is a compact power distribution splitter designed to route power from a Neutrik powerCON TRUE1 male source to dual locking TRUE1 outputs. It is built for professional audio, lighting, and live event systems where secure and reliable power delivery is required.
This LDC-PCTM series splitter supports feed thru power distribution, allowing multiple units to be daisy chained while maintaining uninterrupted power flow. High quality Neutrik connectors and Laird cabling are used to support consistent electrical performance in demanding production environments.
Ideal for touring rigs, stage power drops, and production racks, this splitter simplifies power management in space constrained setups. Its rugged aluminum enclosure and professional grade components support dependable operation in live event and AV workflows.
Key Features
- Power Distribution: Routes power from a powerCON TRUE1 male input to dual locking TRUE1 outputs.
- Dual TRUE1 Outputs: Provides two powerCON TRUE1 female connectors for flexible power routing.
- Daisy Chain Support: Feed thru connectors enable chaining multiple power distribution boxes.
- Rugged Power Cable: Built using Laird PWR-12-3-TP rugged yet flexible power cable.
- Durable Enclosure: Rugged aluminum enclosure designed for professional field use.
Technical Specifications
- Input Connector: 1 Neutrik powerCON TRUE1 male.
- Output Connectors: 2 Neutrik powerCON TRUE1 female.
- Enclosure Dimensions: 4 x 2.04 x 1.24 in.
- Cable Type: SJOOW.
- Conductors: 3 x 12 AWG.
- Current Carrying Capacity: 25 A.
- Cable Outer Diameter: 0.42 to 0.47 in.
- Outer Jacket: Rubber CPE black.
- Cable Insulation: Rubber EPR.
- Connector Rated Amperage: 20 A.
- Connector Rated Voltage: 250 VAC.
