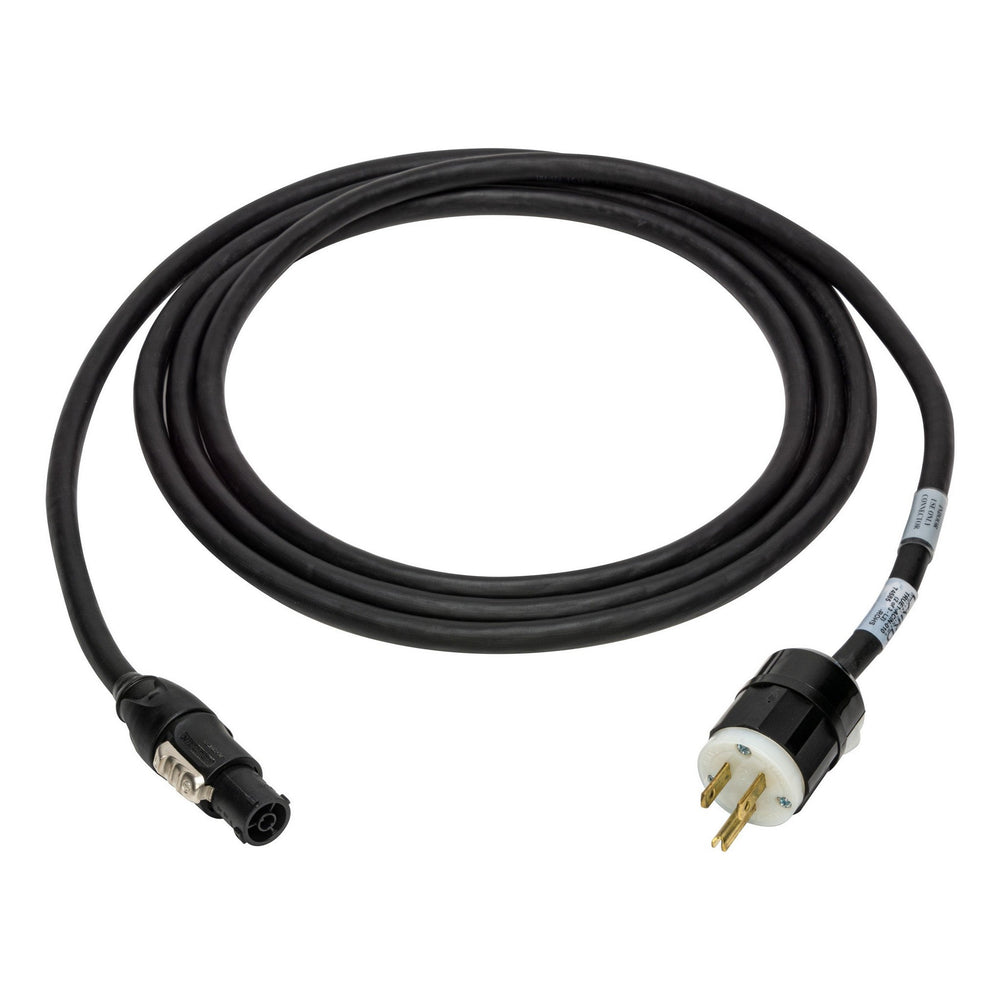

Laird TRUE1-ACIN-010 TRUE1 powerCON Female to NEMA 5-15P 15-Amp 3-Prong Plug Power Cable, 10-Foot
Laird TRUE1-ACIN-010 TRUE1 powerCON Female to NEMA 5-15P 15-Amp 3-Prong Plug Power Cable, 10-Foot
The Laird Locking TRUE1-ACIN Power In Cable assembly allows interconnection of electronic devices that utilize powerCON TRUE1 devices for live events, and motion picture and television production. The high-quality UL recognized components ensure durability and long life. For indoor use only.
Key Features
- Neutrik powerCON TRUE1 Locking Connector
- NEMA 5-15P AC Plug
- Flexibility in Low Temperatures
- Dust and Water Resistant According to IP65 Rating
- Water and Oil Resistant
- Fully Annealed Stranded Bare Copper Conductors for Strength and Abrasion Resistance
Technical Specifications
PWR-12/3 - SJOOW - 300V 12 AWG Heavy Duty Power Cable
UL Listed 3 Conductor Jacketed Heavy Duty Power Cord
TPrene Jacket - Black
3 conductor colors
Black, White and Green
Leviton 5266-C AC Plug Cable End
15 Amp
125V
NEMA 5-15P
NAC3FX-W-TOP
Contact Resistance
ā¤ 2 mā¦
Dielectric Strength
4 kVdc / 2.8 kVac
Insulation Resistance
> 0.1 Gā¦ (after damp heat test IEC 68-2-30)
Number of Electrical Contacts
2 + PE
Lifetime
> 5000 mating cycles
Flammability
UL 94 V-0
Protection Class
IP65, UL50E Enclosure Type 4 (Mated)
Temperature Range
-22 Degrees F to 176 Degrees F
Rating Europe
EN 60320-1: 16 A 250 V AC
Rating USA
UL 498: 20 A 250 V AC
Warranty
1 Year
