Chauvet DJ Swarm Wash FX ILS ā 4-in-1 Lighting Fixture

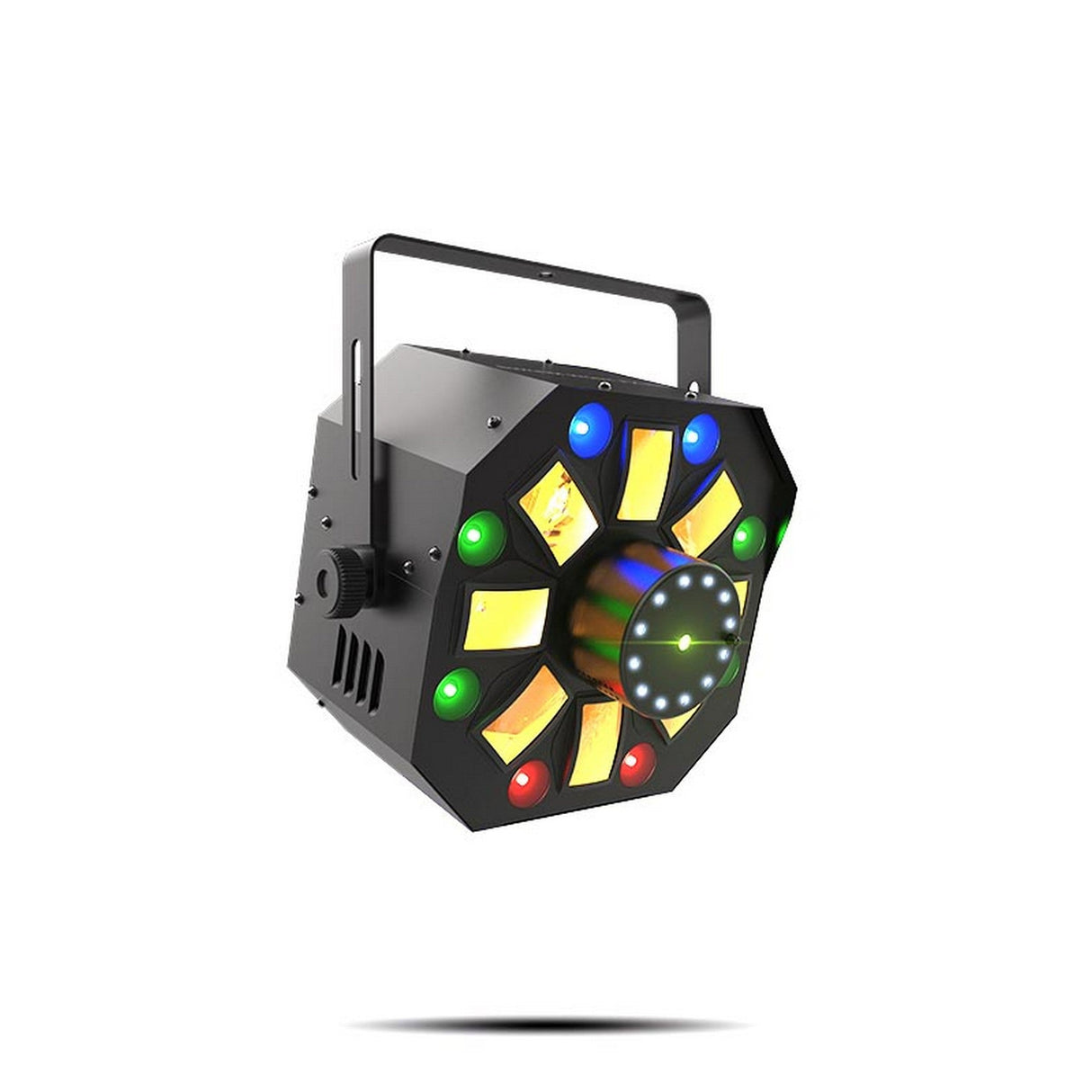

The Chauvet DJ Swarm Wash FX ILS is a compact, professional 4-in-1 LED fixture that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes. Designed for DJs, clubs, and event spaces, it delivers thousands of laser beams and rich wash colors with flexible control options including ILS, DMX, IRC-6, and D-Fi USB (sold separately).
Key Features
- 4-in-1 Effects: Rotating derby, RGB+UV wash, red/green laser, and white SMD strobe ring in a single compact unit
- RGBAW Derby & RGB+UV Wash: Quad-color wash LEDs plus UV for vivid color mixing and bright washes
- Red/Green Laser: High-output red and green laser diodes that project thousands of beams
- SMD Strobe Ring: White SMD strobe array with adjustable rate (0ā20 Hz)
- ILS Compatibility: Seamless syncing with other ILS fixtures for coordinated shows
- Multiple Control Modes: DMX (2 or 18 channels), IRC-6 remote, Master/Slave, sound-active, and auto programs
- Power Linking: Power link multiple units to simplify setup
- Transport Friendly: Fits inside the CHS-40 VIP gear bag
Specifications
ā General
ā DMX Channels: 2 or 18
ā DMX Connectors: 3-pin XLR
ā Light Source: (Wash) 8 LEDs (quad-color RGB+UV) 1.5 W each, (Strobe) 12 white SMD LEDs 1 W each; (Laser) 650 nm/100 mW (red) & 520 nm/30 mW (green)
ā Strobe Rate: 0 to 20 Hz
ā Power & Connectivity
ā Input Voltage: 100ā240 VAC, 50/60 Hz (auto-ranging)
ā Power & Current: 51 W, 0.7 A @ 120 V, 60 Hz; 50 W, 0.4 A @ 230 V, 50 Hz
ā Power Linking: 11 units @ 120 V; 20 units @ 230 V
ā Connections: IEC power input/output, 3-pin DMX in/out (XLR)
ā Physical & Compliance
ā Size: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
ā Weight: 9.5 lb (4.3 kg)
ā Approvals: CE, FDA, RoHS, UKCA
ā Coverage Angles: Laser 82Ā°; Swarm 65Ā°; Strobe 71Ā°; Wash 46Ā°
ā Classification: EN/IEC 60825-1 (2014); Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
Package Contents
- 1x: Chauvet DJ Swarm Wash FX ILS
- 1x: Power cord
- 1x: User manual
