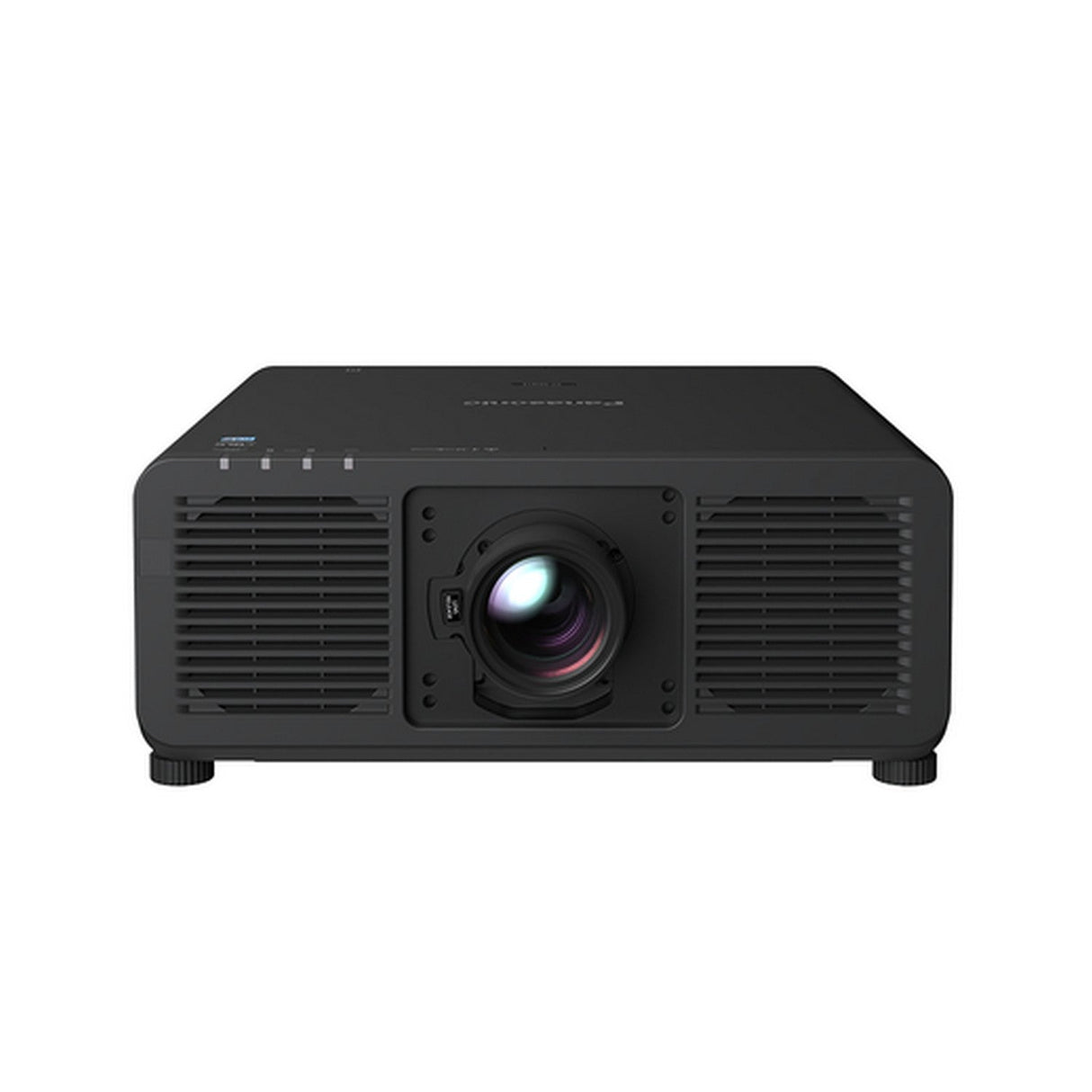

Panasonic PT-REQ10LBU 10000-Lumen WQUXGA 4K 1-Chip DLP Laser Projector, No Lens, Black

Panasonic PT-REQ10LBU 10000-Lumen WQUXGA 4K 1-Chip DLP Laser Projector, No Lens, Black

As the world enters a new era of engagement, entertainment venues are looking for AV technology that captivates audiences with exceptional, elevated levels of experiences by visually stimulating their senses to create emotional and lasting connections. The next-generation PT-REQ10 1-Chip DLP 4K Laser Projector is designed to streamline productions and expand the endless possibilities of entertainment by delivering exceptional, highly engaging immersive experiences with up to 10,000lm brightness, 4K resolution, and 240 Hz projection capability.

Key Features

• Dynamic Visuals Take Production to New Heights
• Effortless Workflow, Improved Expandability
• New Cabinet Design for Maintenance-Free Operation
• TAA Compliant

Technical Specifications

Dimensions (W x H x D)
498 x 212 x 538 mm (19 5/8” x 8 11/32” x 21 3/16”) (with feet at shortest position, not including protruding parts)
LENS
Powered zoom (throw ratio 1.36-2.19:1 for supplied lens), powered focus (optional lenses also available)
Resolution
4K (3840 x 2400 pixels) (Quad Pixel Drive: ON)
Operating environment
Operating temperature: 0-45 Degrees C (32-113 Degrees F) *7, operating humidity: 10-80 % (no condensation)
Keystone correction range
Vertical: ±40 °, Horizontal: ±40 ° (with supplied lens)
Installation
Ceiling/floor, front/rear, free 360-degree installation
Cabinet materials
Molded plastic
Screen Size (Diagonal)
70-700 inches (with supplied lens)
Applicable software
Logo Transfer Software, Multi Monitoring & Control Software, Projector Network Setup Software, Real-Time Tracking Projection-Mapping System,
Early Warning Software, Geometry Manager Pro, Smart Projector Control for iOS/Android
Weight
28.8 kg (63.49 lbs) with supplied lens (TBD)
Contrast Ratio
20,000:1 (Full On/Full O‑, Dynamic Contrast <3>) (TBD)
Note
*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped. *2 When is set to and is set to . *3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast <3>, temperature 35 Degrees C (95 Degrees F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *4 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6. *5 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 Degrees C (77 Degrees F) operating temperature at an altitude of 700 m (2,297 ft). *6 Average value. May differ depending on the actual unit. *7 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0-40 Degrees C (32-104 Degrees F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).
Power supply
AC 100-240 V, 50/60 Hz
Light source
Laser diode
Terminals | SERIAL IN
D-sub-9-pin (female) x 1 for external control (RS-232C compliant)
Terminals | LAN
RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Terminals | DC OUT
USB Type A x 1 (for power supply, DC 5 V, 2 A)
DLP chip | Panel size
0.8 in diagonal (16:10 aspect ratio)
DLP chip | Display method
DLP chip x 1, DLP projection system
Terminals | SERIAL OUT
D-sub-9-pin (male) x 1 for link control (RS-232C compliant)
Terminals | USB
USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory
Terminals | REMOTE 2 IN
D-sub-9-pin (female) x 1 for external control (parallel)
Terminals | Expansion Slot
Open slot for for function boards, Intel SDM compatible
Terminals | REMOTE 1
M3 stereo mini-jack x 1 for wired remote control
Terminals | REMOTE 1 OUT
M3 stereo mini-jack x 1 for link control (for wired remote control)
Operation noise
37 dB (NORMAL/ECO), 33 dB (QUIET)
Projector type
1-Chip DLP projectors
DLP chip | Number of Pixels
2,304,000 (1920 x 1200 pixels)
Center-to-corner zone ratio
90 %
Time until light output declines to 50 %
20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
Lens shift | Vertical (From the origin point of the lens mounter)
±29 % (with supplied lens)
Lens shift | Horizontal (From the origin point of the lens mounter)
±60 % (with supplied lens)
Terminals | Multi Sync Out
BNC x 1
Light Output
10,000 lm
Protocol versions
IPv4, IPv6*4
Control function via LAN
Crestron Connected V2, Crestron XiO Cloud, Art-Net DMX, AMX DD, and PJLink (Class 2)
Terminals | HDMI 1/2 IN
HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
Terminals | DisplayPort
DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input)
Terminals | Multi Sync In
BNC x 1
Power Consumption | Maximum power consumption
980 W (10-4.2 A) (1,000 VA) (TBD)
Power Consumption | On-mode power consumption (Operating mode) Nomal
830 W (TBD)
Power Consumption | On-mode power consumption (Operating mode) ECO
640 W (TBD)
Power Consumption | On-mode power consumption (Operating mode) QUIET
630 W (TBD)
