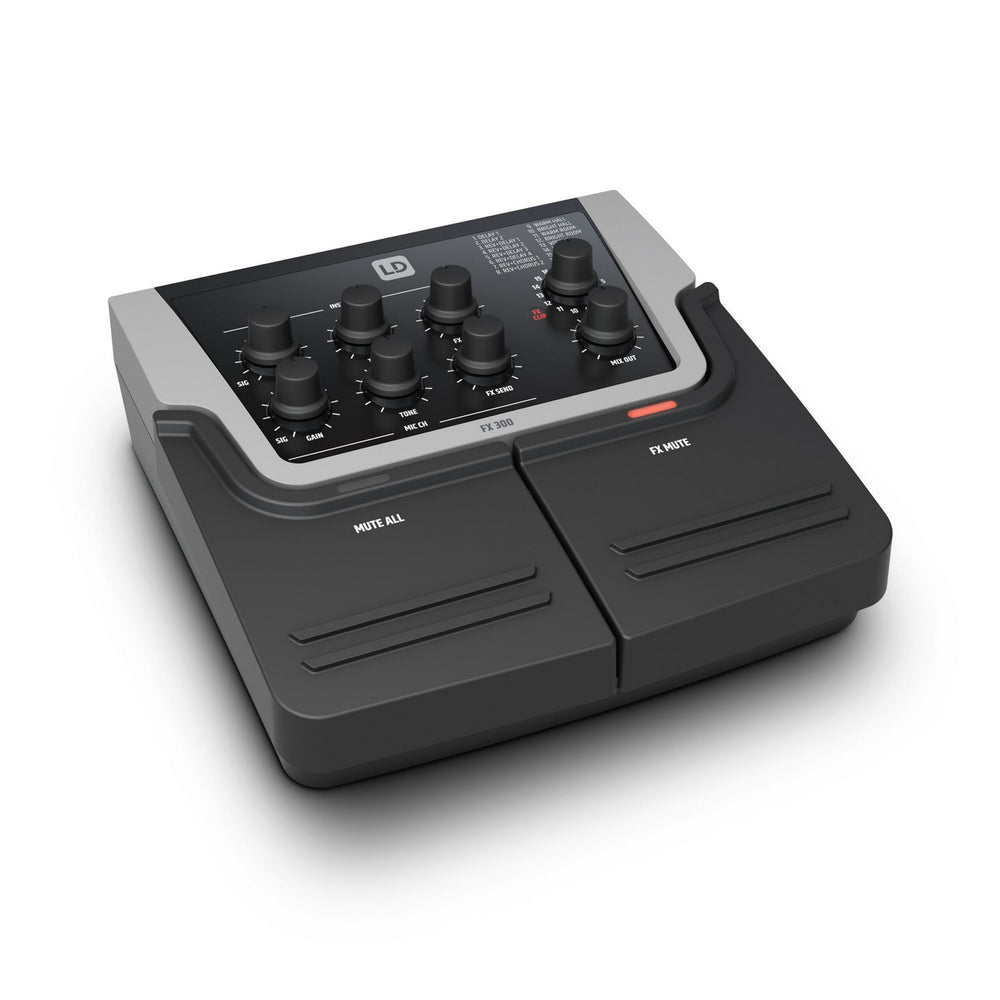

LD Systems FX 300 2-Channel Pedal with 16 Digital Effects
The LD Systems FX 300 is an exceptional 2-channel pedal designed to enhance the sound of your voice and instruments, making it perfect for singer-songwriters performing on stage or in more intimate settings like a living room. From the moment you start your show, you'll notice the superior sound quality, even if you've had little to no time to perform a soundcheck. This compact yet versatile device serves not only as an effect pedal but also doubles as a user-friendly two-channel mixer.
One of the standout features of the FX 300 is its foot-operated mute functions, letting you control the pedals with ease. Whether you need to mute all effects using the FX MUTE pedal for clear, unaltered vocal delivery, or the MUTE ALL pedal to stop the signal reaching the outputs, this device is designed with live performance in mind. This makes it a lifesaver during breaks or when concluding your set.
The FX 300 comes with 16 digital effects presets in 16-bit quality, two inputs with separate gain settings, and balanced and unbalanced outputs. It also provides +48 V phantom power, making it compatible with both condenser and dynamic microphones. The high-impedance, low-noise instrument input is ideal for acoustic and bass guitars as well as other instruments, ensuring you won’t have to worry about signal distortion. With a 9 V battery that lasts up to five hours, the FX 300 is reliable even when an electrical outlet is not available.
Key Features
- 2-channel pedal with dual functionality as an effect pedal and mixer.
- 16 digital effects presets with 16-bit quality.
- Foot-operated mute functions for ease of use.
- Provides +48 V phantom power, suitable for condenser and dynamic microphones.
- High-impedance, low-noise instrument input ideal for various instruments.
- 9 V battery lasting up to five hours for on-the-go reliability.
Specifications
- Product type: Artist Pedal
- Type: Home-Recording, Live
- Channels: 2
- Microphone channels: 1
- Mic inputs: XLR/6.3 mm jack
- Freq. Response Microphone Channel: 50 - 20000 Hz
- Amplification range Microphone channel XLR input: 42 dB
- Input THD-N <0.03%
- Impedance XLR input: 6000 Ohm(s)
- Phantom power: +48V DC to XLR Input
- Microphone channel Jack input type: electronically balanced
- Amplification range Microphone channel Jack input: 20 dB
- THD jack input: <0.045%
- Microphone Equalizer: +5/-8dB @ 8kHz
- Microphone channel controls: FX SEND, Gain, tone
- Instrument channels: 1
- Instrument inputs gain range: 23 dB
- THD: 0.03%
- Equalizer: +7/-8dB @ 10kHz
- Channel Inserts: 1
- Controls: FX SEND, Gain, tone
- Indicators: 3-colour LED (SIG), channel signal
- Line outputs: 2
- Line output connectors: 6.3 mm TRS, XLR
- Output level XLR Max.: +17dBu, balanced
- Impedance XLR output: 150 Ohm(s)
- Output level Jack output Max.: +5dBV, unbalanced
- Impedance jack output: 40 Ohm(s)
- Digital Effects Processor: Yes
- Number of Presets: 16
- Main section controls: DFX Presets, FX MUTE, MIX OUT, MUTE ALL, Power
- Display elements Main section: Effekt-Clip, FX MUTE, MUTE ALL, red LED (FX CLIP)
- Operating voltage: 9 V block, External mains adapter 9VDC / 250mA (not included)
- Ambient temperature (in operation): 0 - 40° °C
- Relative Humidity: < 80% (non-condensing)
- Width: 160 mm
- Height: 55 mm
- Length: 163 mm
- Weight: 0.65 kg
- Features: Preparation for microphone stand mounting
Package Contents
- LD Systems FX 300 2-Channel Pedal
