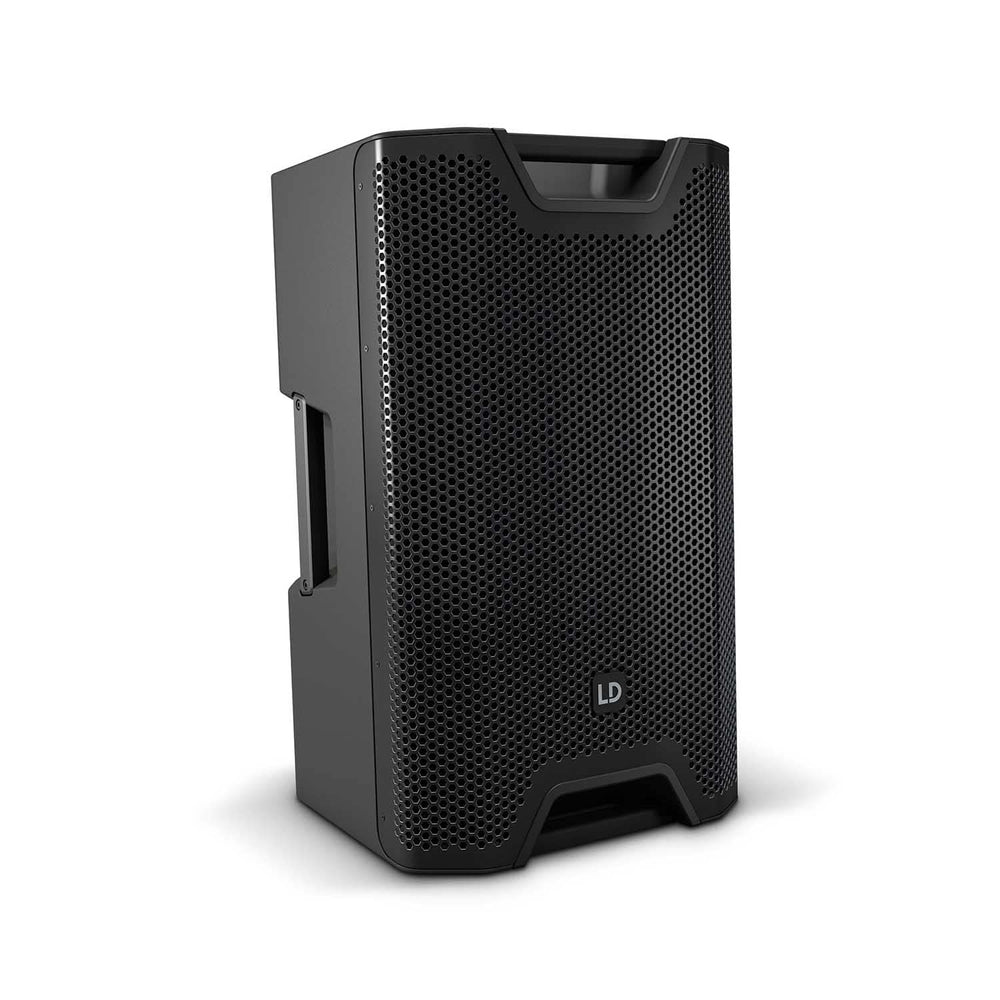

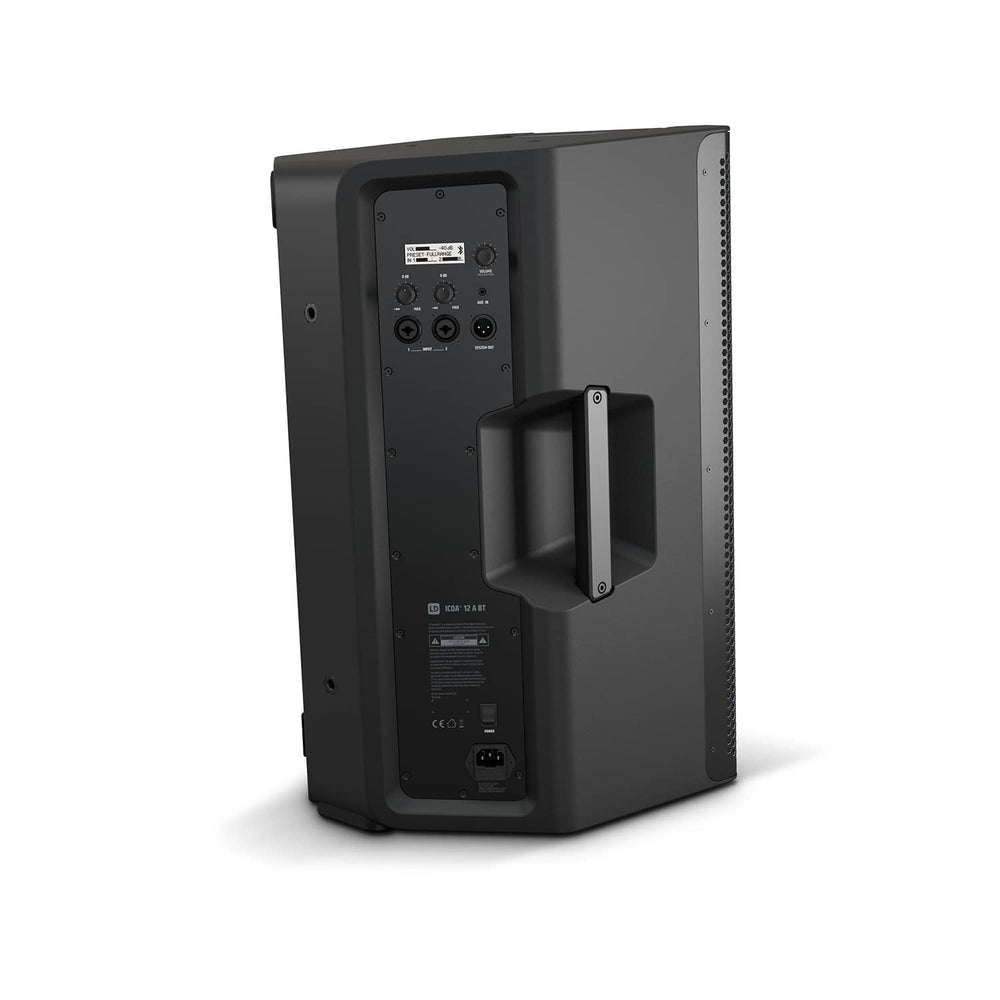

LD Systems ICOA 12 A 12 Inch Active Coaxial PA Speaker
LD Systems ICOA 12 A 12 Inch Active Coaxial PA Speaker
LD Systems ICOA 12 A 12 Inch Active Coaxial PA Speaker
This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 12 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this aktive 12" loudspeaker exceptionally flexible. The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 12 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it's excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 126 dB max. SPL and 300 W RMS performance.
Key Features
- A genuine all-rounder for full-range, satellite and monitor applications
- 126 dB max. SPL and 1200 W peak power
- Vertical and horizontal use thanks to coaxial design with rotating, BEM-optimised CD horn (Patent Pending)
- Horn-loaded woofer
- DynX DSP with 4 presets, 3-band EQ and delay function
- 2 line/mic input channels with individual gain controllers plus mono mix output; Bluetooth streaming with the BT model
- 36 mm dual tilt stand attachment with 0 and 5 tilt angle, 55 monitor angle with sturdy stand
- Shock-resistant front grille for optimal protection of the speaker
- 4 aluminium grips with ergonomic, rubber surface
- Extensive, optionally available accessories for installation and transport
Technical Specifications
Product type
PA loudspeaker
Type
Actives
Low/mid driver dimensions
12"
Woofer size
304.8 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made
Horn
BEM optimized CD Horn
HF driver dimensions
1"
HF Driver Size
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1"
HF Driver Voice Coil
25.4 mm
Amplifier
Class D
Dispersion (H x V)
90 x 50
RMS
300 W
Peak power
1200 W
Frequency response
50 - 20000 Hz
Crossover frequency kHz
2 kHz
Max. SPL (peak)
126 dB
Protection circuits
Multiband limiter , over voltage , over-current , thermal overload
Controls
2 x gain , On / off switch , Rotary/push encoder
Indicators
LC display
Mic/ line inputs
2
Mic-/ Line Input Connectors
6.3 mm jack Combination sockets (symmetrical) , XLR
Line inputs
1
Line input connectors
3.5 mm TRS
Line outputs
1
Line output connectors
XLR
Operating voltage
SMPS
Power consumption
150 W
Ambient temperature (in operation)
0 - 40 C
Operating voltage
100 V - 240 V AC / 50 - 60 Hz
Relative Humidity
< 80 %, not condensing
Fuse
T4AL 250 V
Cabinet material
polypropylene
Cabinet construction
Bass Reflex
Tripod flange
32 F , 36mm flange , 5
Monitor angle
55
Width
375 mm
Height
635 mm
Depth
396 mm
Weight
19,95 kg
Accessories (included)
Power cord
