LD Systems MAUI 11 G3 Portable Cardioid Column PA System, Black
LD Systems | SKU: LDSYS-MAUI11G3-LDSMAUI11G3US
Loading...
$1,19999
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

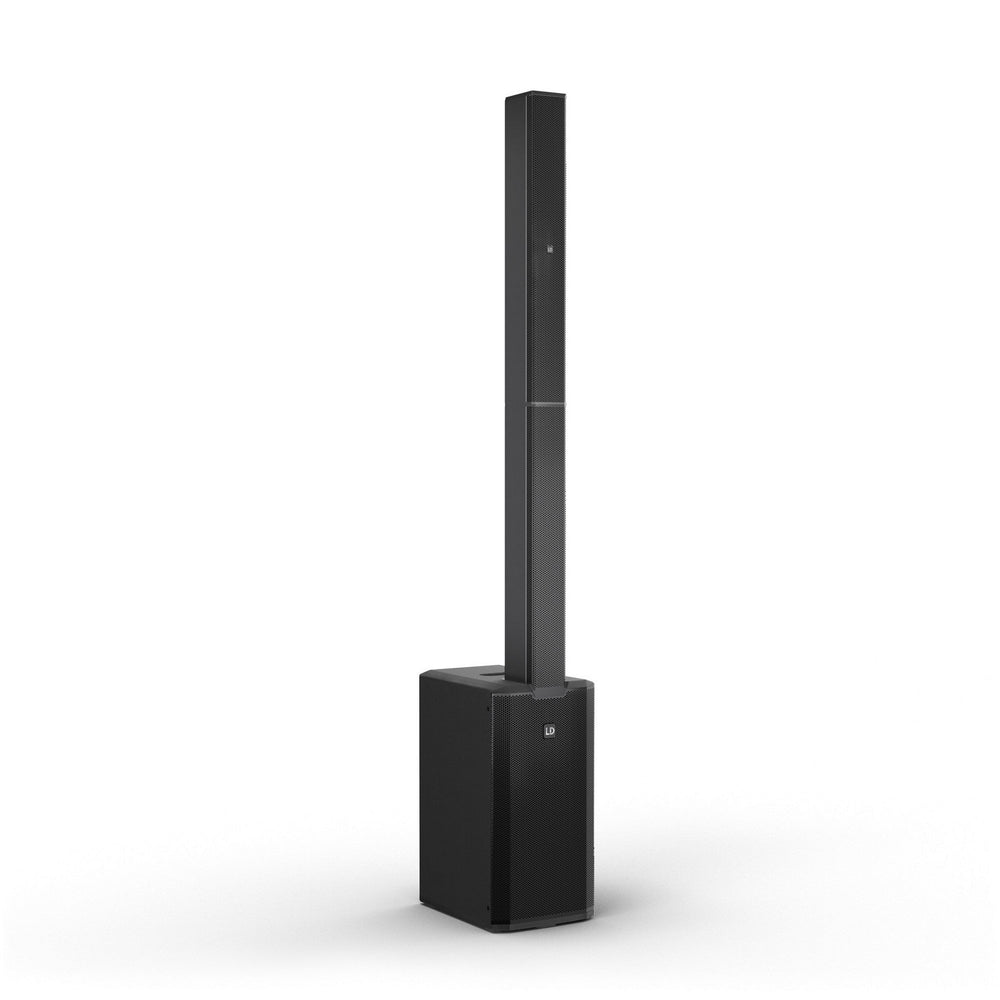

LD Systems MAUI 11 G3 Portable Cardioid Column PA System, Black
The LD Systems MAUI 11 G3 Portable Cardioid Column PA System is a compact, powerful, and easy-to-use solution designed specifically for DJs and smaller bands. This column PA system offers a comprehensive all-in-one package that excels in sound quality, design, technology, and usability. From concerts and mobile DJ setups to public address systems at weddings and corporate events, the MAUI 11 G3 is engineered to deliver exceptional performance and versatility.Featuring 730 W RMS power and 1,460 W peak power, the MAUI 11 G3 offers a powerful and precise sound suitable for a wide range of applications. Its sleek design includes two aluminum column elements positioned at the front edge of the subwoofer, enhancing its seamless visual appeal. The inclusion of 6 x 3.5'' midrange drivers and 2 x 1'' tweeters ensures even sound distribution with constant horizontal dispersion. The innovative phase plug design, combined with a curved waveguide, allows for high-frequency coverage even to the rear audience areas.LD Systems has meticulously worked on the crossover filter between midrange and tweeter speakers to minimize harmonic distortion and interference, resulting in a transparent and vibrant sound. The cardioid column design manages low-mids effectively and minimizes rear sound spill, ensuring a clean stage sound. The subwoofer, equipped with two 8'' woofers and four bass reflex ports, delivers tight and punchy bass down to 39 Hz. Additionally, the subwoofer’s durable polyurea coating ensures it can withstand tough demands, making it ideal for road use.Key Features
- 1460 W Peak-power and 125 dB max. SPL
- Powerful bass reproduction with 2 x 8" subwoofers
- Balanced mids with 6 x 3.5" full-range speakers
- Precise highs from 2 x 1" high-frequency drivers
- Cardioid column for controlled low-mid and midrange sound dispersion
- BEM optimized HF waveguide and midrange phase plugs for even dispersion
- Optimized bass-reflex design for better bass response and reduced air flow noise
- Compatible with an additional MAUI 11 G3 subwoofer for extra low end or cardioid setups
- Dynx DSP (Gen.2) for distortion-free sound at max volume
- AAC coding for HD Bluetooth 5.0 streaming
- Automatic setup detection for quick and easy operation
- Easy and fast assembly without stands or cables
- Rugged birch plywood subwoofer housing with durable polyurea coating
- Lightweight, powder-coated aluminum column housing
Specifications
- Product type: PA Complete Systems
- Type: Powered
- Max. SPL (Peak): 125 dB
- Freq. response (-10dB): 39 Hz - 20000 Hz
- Dispersion (H x V): 120° x 30°
- Total Height: 2052 mm
- Weight: 30.7 kg
- Features: Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/Stereo Application
- Subwoofer: 2 x 8" woofers, Ferrite magnet, Custom-made, 2" voice coil, Bass Reflex construction
- Housing material: 15 mm Birch Plywood, Polyurea coating
- Dimensions Subwoofer (W x H x D): 305 x 607 x 403 mm
- Subwoofer weight: 20.5 kg
- Mid/Hi System: 6 x 3.5" midrange drivers, Custom-made, 0.75" voice coil, 2 x 1" tweeters, Neodymium magnet, 1" voice coil, CD Waveguide
- Loudspeaker inputs: 1 Custom-made multipin
- Mid/Hi system cabinet material: Aluminum, Powder-coated
- Mid/Hi system dimensions (W x H x D): 103 x 1460 x 135 mm
- Mid/Hi system weight: 10.2 kg
- Amplifier: Class D, 730 W RMS, 1460 W Peak
- Protection circuits: DC protection, Multiband limiter, short circuit, thermal protection
- Cooling: Convection
- Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
- Indicators: Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect, Signal, Subwoofer Mode
- Mains connector: IEC power cable (included)
- Operating voltage: 100 V AC - 120 V AC, 220 V AC - 240 V AC, 50-60 Hz
- Fuse: T 3.15AL / 250 V
- Power consumption: 300 W
- Ambient temperature (operating): 0 - 40 °C
- Relative Humidity: < 80% (non-condensing)
- Line Inputs: 2 Combo XLR / TRS
- Line Outputs: 1 x Sub OUT, 2 x THRU
- Line Output Connectors: XLR male
- Number of speaker outputs: 1
- Loudspeaker Output Connectors: Custom-made multipin
- Bluetooth Standard: A2DP
- Bluetooth Audio Decoder: AAC, SBC
- Bit depth AD/DA converter: 24 bit
- Sampling frequency: 48 kHz
Package Contents
- LD Systems MAUI 11 G3 Portable Cardioid Column PA System, Black
- IEC power cable
