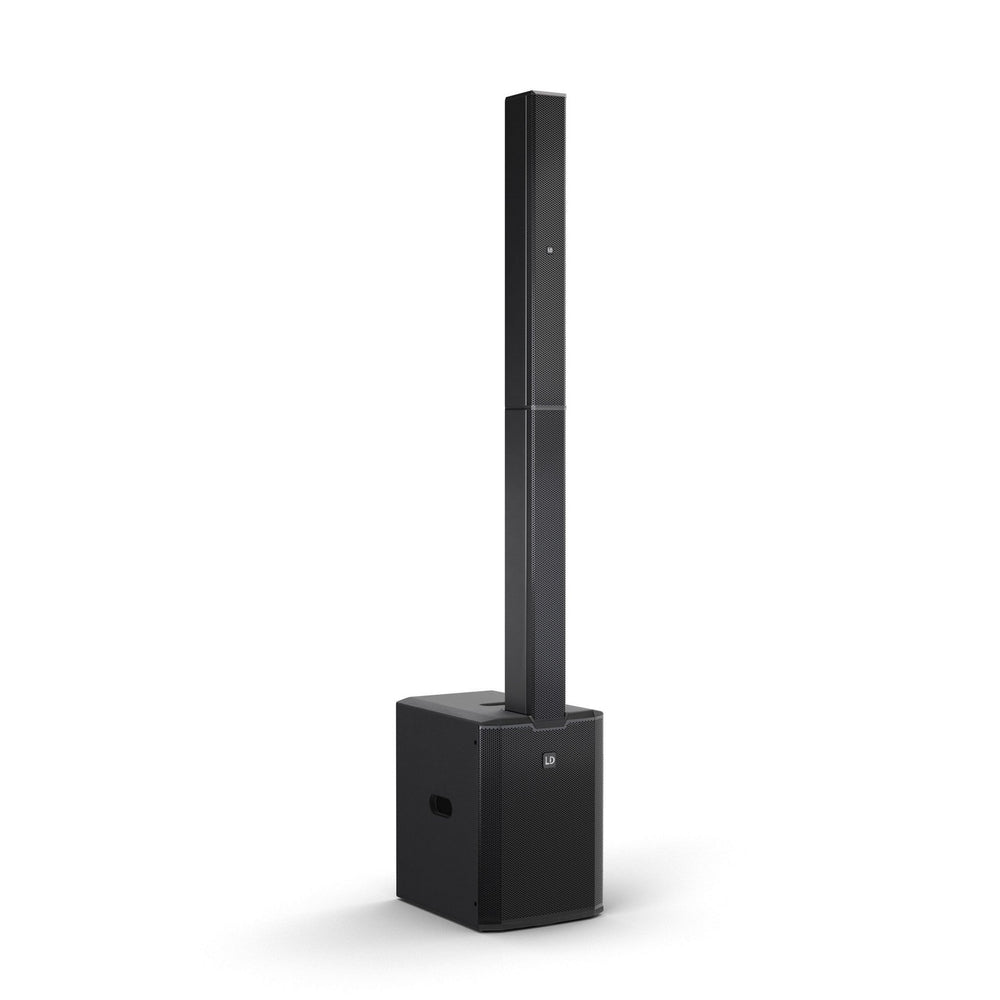

LD Systems MAUI 28 G3 Compact Cardioid Column PA System, Black
Authorized Dealer
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
LD Systems MAUI 28 G3 Compact Cardioid Column PA System, Black
The LD Systems MAUI 28 G3 Compact Cardioid Column PA System in black is the ultimate sound solution for DJs, smaller bands, and various event settings. With an impressive design and advanced technology packed into its compact frame, this PA system guarantees exceptional audio performance and sleek aesthetics that blend seamlessly into any environment.
The MAUI 28 G3 stands out with its powerful and precise sound, driven by 1,030 W RMS power and peaking at 2,060 W. This makes it versatile enough to serve as a main PA for concerts, a reliable sound system for mobile DJs, or a public address system at weddings and corporate events. Its elegant design features two aluminium column elements at the front edge of the subwoofer, presenting a seamless and visually appealing unit.
The sound delivery of the MAUI 28 G3 is equally remarkable. It boasts 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, which ensure even sound distribution with consistent horizontal dispersion. The innovative phase plug design and BEM-optimised waveguide enhance high frequency reach, delivering clear audio to even the farthest audience areas. The column's cardioid speaker design offers controlled low-mids and up to 18 dB attenuation at the rear, ensuring a clean stage sound.
Key Features
- 2,060 W Peak-power and 127 dB max. SPL
- Powerful and deep bass reproduction with 12" subwoofer
- Balanced mids thanks to 12 x 3.5" full-range speakers
- Precise and silky highs with 2 x 1" high-frequency drivers
- Cardioid column for controlled low-mid and midrange sound dispersion
- BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion
- Optimised bass-reflex design improves bass response and reduces air flow noise
- Can be combined with an additional MAUI 28 G3 subwoofer for increased low end or for cardioid subwoofer setups
- New Dynx DSP (Gen.2) for distortion-free sound even at maximum volume
- AAC coding for HD Bluetooth 5.0 streaming
- Automatic setup detection for quick and easy operation
- Fast and simple assembly without stands or cables
- Rugged birch plywood subwoofer housing with durable polyurea coating
- Lightweight, powder-coated aluminium column housing
Specifications
- Product type: PA Complete Systems
- Type: Powered
- Max. SPL (Peak): 127 dB
- Freq. response (-10dB): 37 Hz - 20000 Hz
- Dispersion (H x V): 120° x 30°
- Total Height: 2052 mm
- Weight: 35.4 kg
- Features: Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/Stereo Application
- Subwoofer Woofer dimensions: 12 "
- Subwoofer Woofer dimensions (mm): 305 mm
- Subwoofer Woofer magnet: Ferrite
- Subwoofer Woofer brand: Custom-made
- Subwoofer Woofer voice coil: 3 "
- Subwoofer Woofer voice coil (mm): 76.2 mm
- Subwoofer Cabinet construction: Bass Reflex
- Subwoofer Housing material: 15 mm Birch Plywood
- Subwoofer Cabinet surface: Polyurea
- Subwoofer Dimensions (W x H x D): 370 x 527 x 472 mm
- Subwoofer Weight: 22.8 kg
- Mid/Hi System Midrange dimensions: 12 x 3.5 "
- Mid/Hi System Midrange dimensions (mm): 12 x 89 mm
- Midrange magnet: Ferrite
- Midrange brand: Custom-made
- Midrange voice coil: 0.75 "
- Midrange voice coil (mm): 19 mm
- Tweeter dimensions: 2 x 1 "
- Tweeter dimensions (mm): 2 x 25.4 mm
- Tweeter magnet: Neodymium
- Tweeter brand: Custom-made
- Tweeter voice coil: 1 "
- Tweeter voice coil (mm): 25.4 mm
- Wave Guide: CD Waveguide
- Loudspeaker inputs: 1
- Speaker input connections: Custom-made multipin
- Cabinet construction mid/high: Passive Cardioid
- Mid/Hi system cabinet material: Aluminium
- Mid/Hi system cabinet surface: Powder-coated
- Mid/Hi system width: 103 mm
- Mid/Hi system height: 1540 mm
- Mid/Hi system depth: 135 mm
- Mid/Hi system weight: 12.6 kg
- Amplifier module (integrated in subwoofer): Amplifier Class D
- System output (RMS): 1030 W
- System output (Peak): 2060 W
- Protection circuits: DC protection, Multiband limiter, short circuit, thermal protection
- Cooling: Convection
- Controls: Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
- Indicators: Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
- Mains connector: IEC power cable (included)
- Operating voltage: 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
- Fuse: T 5AL / 250 V
- Power consumption: 400 W
- Ambient temperature (operating): 0 - 40 °C
- Relative Humidity: < 80% (non-condensing)
- Line Inputs: 2
- Line Input Connectors: Combo XLR / TRS
- Line Outputs: 1 x Sub OUT, 2 x THRU
- Line Output Connectors: XLR male
- Number of speaker outputs: 1
- Loudspeaker Output Connectors: Custom-made multipin
- Bluetooth Standard: A2DP
- Bluetooth Audio Decoder: AAC, SBC
- DSP characteristics: Bit depth AD/DA converter - 24 bit
- Sampling frequency: 48 kHz/n
Package Contents
- LD Systems MAUI 28 G3 Compact Cardioid Column PA System
- IEC power cable
