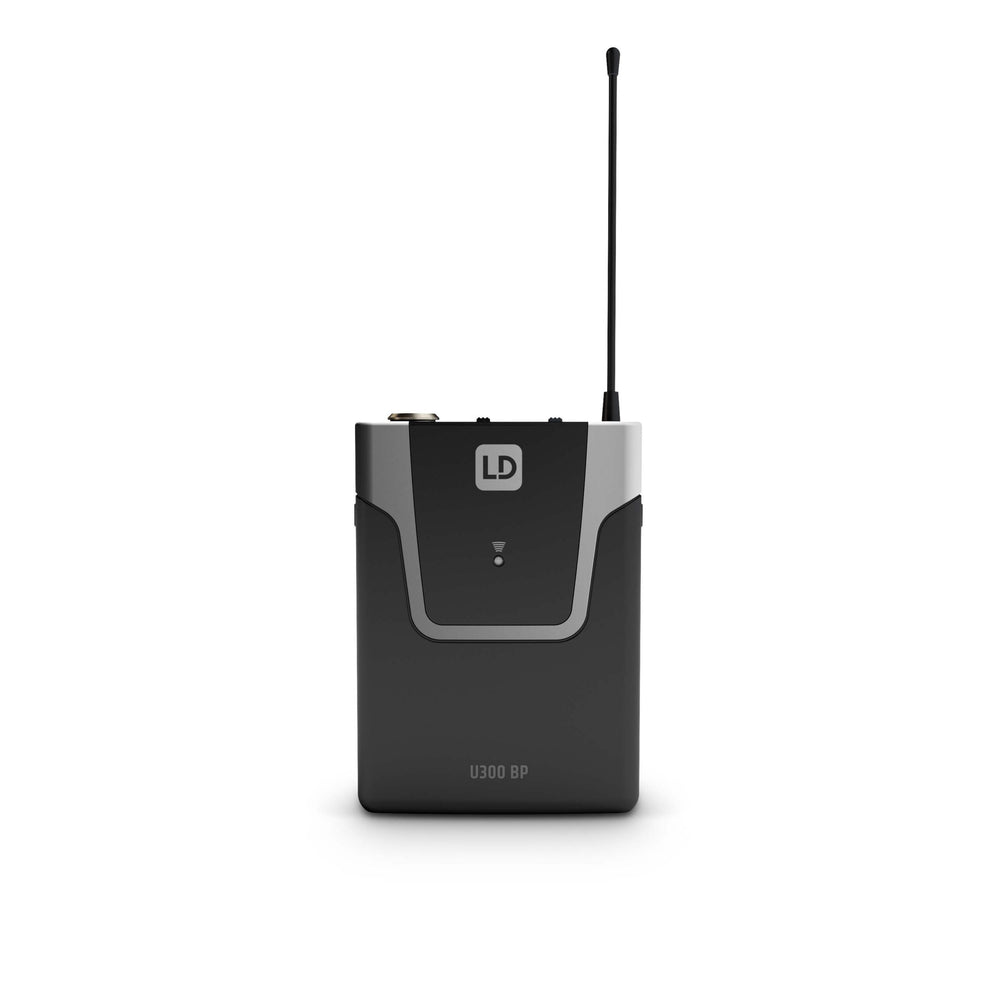

LD Systems U305.1 BP Body Pack Transmitter, 514-542 MHz
LD Systems U305.1 BP Body Pack Transmitter, 514-542 MHz
Free Shipping
LD Systems U305.1 BP Body Pack Transmitter, 514-542 MHz
Operating in the 514 - 542 MHz band, this U300 Series bodypack transmitter features a miniature XLR input with 3-position level selector to accommodate microphones as well as active and passive instrument pickups. It has an output power of 10 mW and 25 Hz - 16 KHz frequency response to handle 5-string bass guitars with a low B string. The U3051 BP provides over 10 hours of continuous operation on two AA batteries, easy IR syncing with the U3051 receiver and pilot tone transmission to eliminate RF interference. The bodypack's on/off switch includes a convenient standby position for temporary muting.
Technical Specifications
Product type
Wireless Microphone System Accessories
Type
Bodypack
Transmission frequency range
514 - 542 MHz
Channels
12
Inputs
Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Frequency response
25 - 16000 Hz
Signal-to-noise ratio
104 dB
Rated HF output power
10 mW
Controls
Gain (3-way switch), Power On/Off
Indicators
ASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)
Operating voltage
2 x AA battery
Operating time
>10 h
Width
65 mm
Height
91 mm
Depth
25 mm
Weight
0,085 kg
Other features
Belt clip, IR frequency synchronization, Pilot tone
