LD Systems U305.1 R U300 Series 12-Channel UHF Receiver, 514-542 MHz

LD Systems U305.1 R U300 Series 12-Channel UHF Receiver, 514-542 MHz

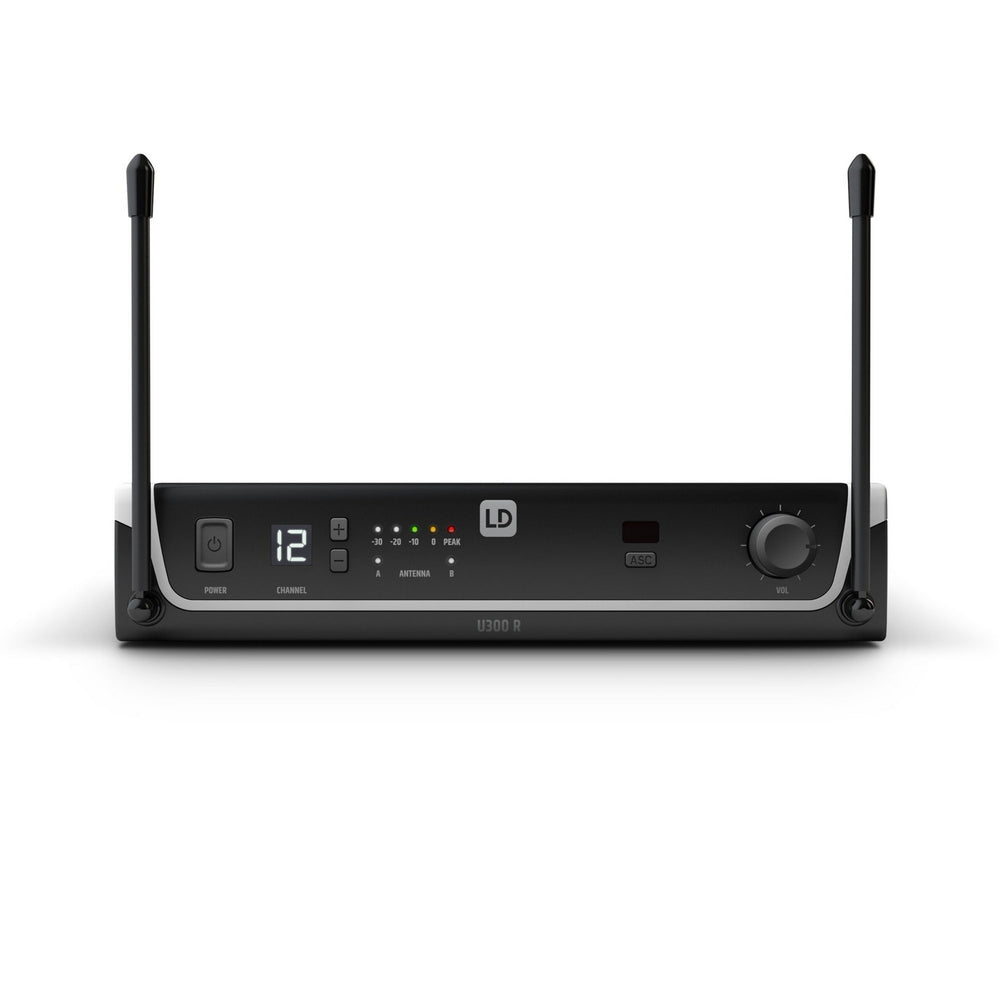

The U300-series 12-channel UHF receiver operates with FM technology in the frequency band 514-542 MHz, and features a 25 Hz to 16 KHz frequency response. Convenient one-touch synchronization via infrared ensures fast, problem-free wireless connection with the handheld transmitter microphone or bodypack from the same series. A squelch with pilot tone ensures disruption-free operation. The U3051 receiver features elegant metal housing with a bright LCD channel display, channel selection keys and LEDs that display audio signal strength and active antenna. The rear side features both a balanced XLR and unbalanced 6.35 mm audio output that is switchable to instrument level for directly connecting to guitar and bass guitar amps. Includes a power adapter and balanced XLR cable.

Technical Specifications

Product type
Wireless Microphone System Accessories
Type
Receivers
Modulation Type
FM
Transmission frequency range
514 - 542 MHz
Channels
12
Antenna inputs
2 x fixed
Frequency response
25 - 16.000 Hz
Noise reduction
Squelch
Transmission optimization
Pilot tone
Total Harmonic Distortion (THD)
< 0.3 %
Signal-to-noise ratio
104 dB
Audio output, balanced
XLR
Audio output, unbalanced
6.3 mm jack, switchable unbalanced output level
Audio mix output, balanced
XLR
Audio mix output, unbalanced
6.3 mm jack
Max. output level
+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Headphones outputs
6.3 mm TRS
Controls
ASC Sync, Channel down, Channel up, Line/Instrument Level, Power, volume
Indicators
5 LED VU meters, Antenna A/B, LC display
Operating voltage
12 V DC - 18 V DC (500 mA), external power supply
Width
211 mm
Height
43 mm
Depth
120 mm
Weight
0,7 kg
Accessories (included)
2 x AA batteries, Audio cable, Power supply
Other features
IR frequency synchronization
