LD Systems WIN 42 AD 4-Way Antenna Split Box
LD Systems WIN 42 AD 4-Way Antenna Split Box
Free Shipping
LD Systems WIN 42 AD 4-Way Antenna Split Box

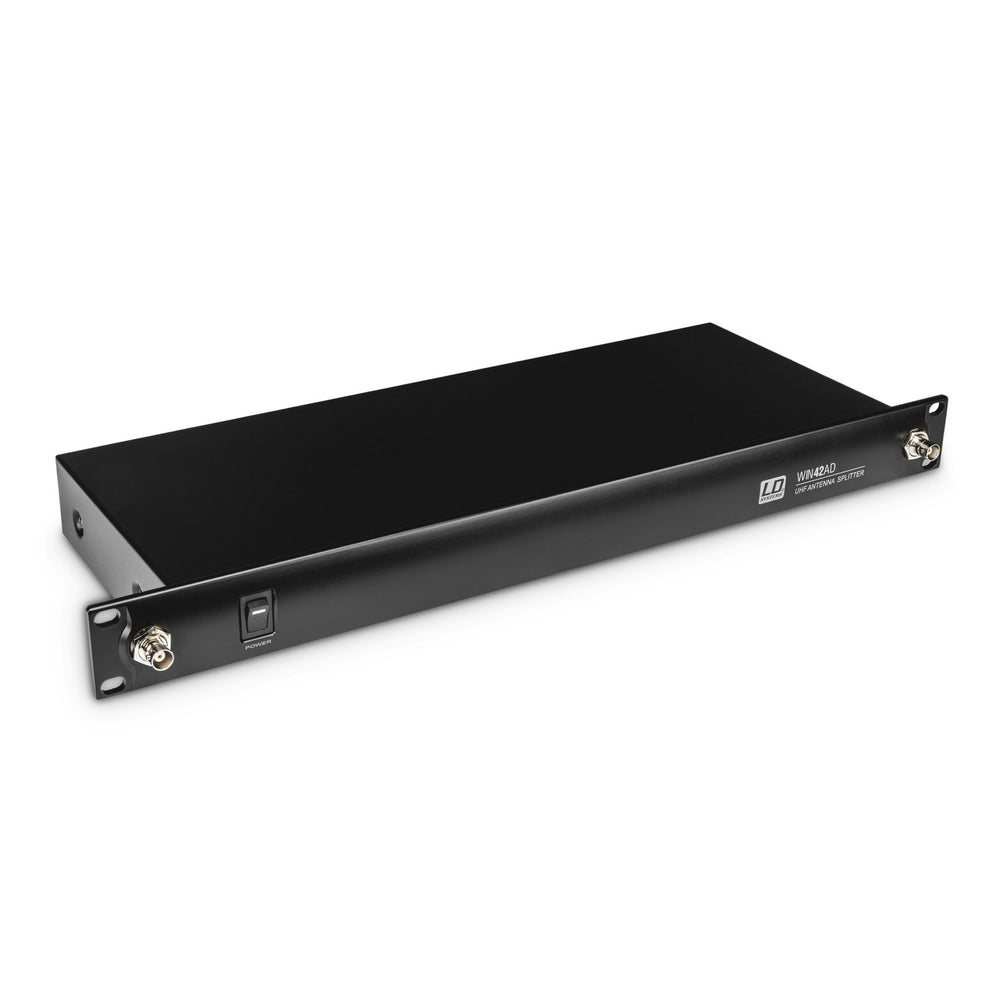

Antenna Split Box 4-way for all types of wireless microphone systems working in a range between 500 and 900 MHz.
Technical Specifications
Product type
Wireless Microphone System Accessories
Type
Antenna Splitter
Frequency band
500 - 900 MHz
Frequency bandwidth
400 MHz
Signal gain
3 dB
Antenna inputs
2
Antenna input connection
BNC
Input impedance
50 Ohm(s)
Power supply for antenna booster
9 V
Antenna outputs
4 x 2
Antenna output connection
BNC
Output impedance
50 Ohm(s)
Power supply for radio receiver
4 x 12 - 18 V DC V
Operating voltage
12 - 18 V DC, 3A
Operating voltage
12 V DC - 18 V DC (100 mA)
Width
482 mm
Height
44.4 mm
Depth
160 mm
Weight
4,672 kg
Accessories (included)
10 x BNC Kabel, 0.5m , 2 x BNC adapter , 4 x DC cable, 0.5m , 4 x Output 600 mA , Plastic case , Power supply
