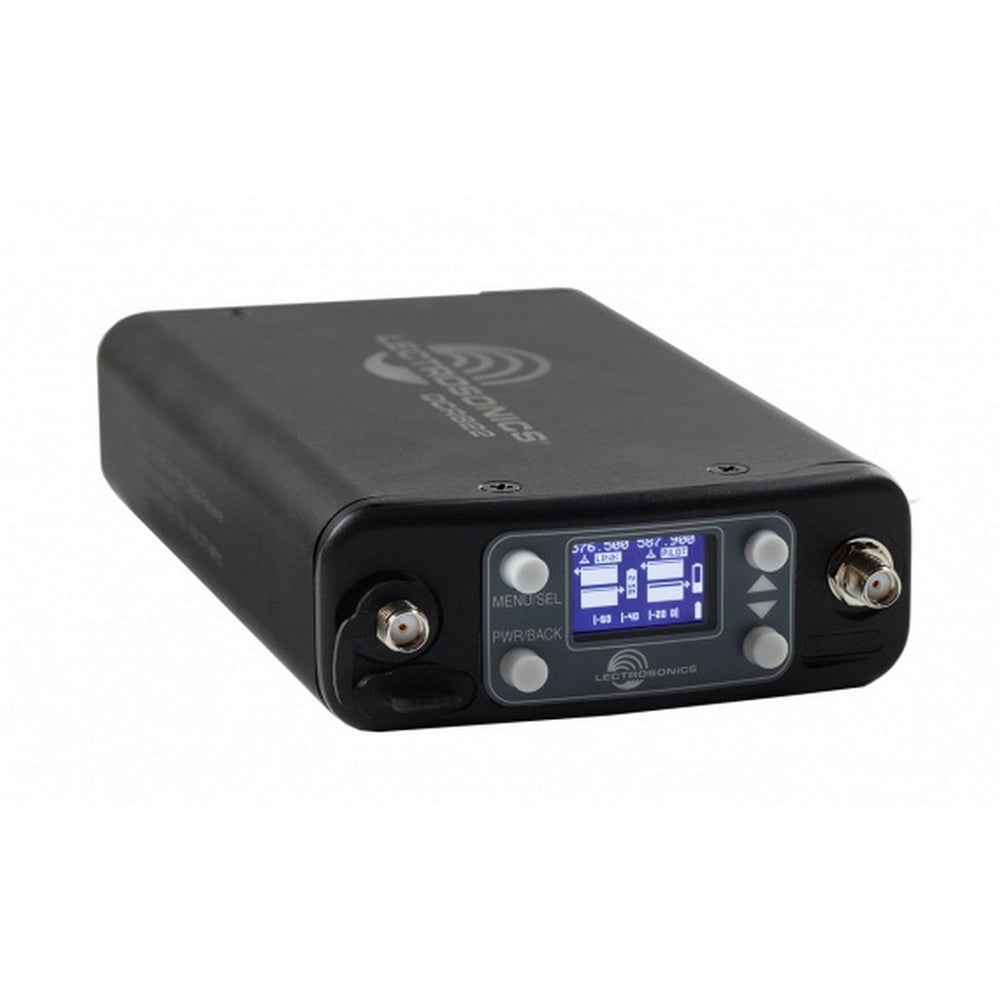

Lectrosonics DCR822-A1B1 Compact Dual Channel Digital Receiver, 470.100 - 607.950 MHz

Lectrosonics | SKU: LEC-DCR822A1B1
$3,86200

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New


Lectrosonics DCR822-A1B1 Compact Dual Channel Digital Receiver, 470.100 - 607.950 MHz

The DCR822 compact 2-channel digital receiver with analog and digital audio outputs utilizes the Lectrosonics signature digital architecture with remarkable audio quality and ultra-low latency. The receiver includes an extended operating range rivaling the best analog and Digital Hybrid WirelessĀ® systems with continuously tunable tracking filters covering the entire frequency band of the unit. The innovative Vector Diversity technology raises the bar for digital transmission integrity with two RF front ends per channel, and a unique phase-matching system. The extremely robust RF front ends of the receiver will hold up in severe RF environments and close carrier spacing, whether analog or digital. The DCR822 has a flexible output routing scheme, allowing a variety of applications including Talkback. And, a digital recorder at 24 bits, 48 kHz is included - and records up to 4 audio tracks on a front-mounted microSD card.

The 822 receiver is compatible with pure digital transmitters from the D Squared line including the DBSM, DBSMD, DBu, DHu, DPR and DPR-A. The 822 is also compatible with stereo digital transmitters including the DCHT and M2T. Finally, the receiver is also backward compatible with any Digital Hybrid Wireless transmitter made in the last 20 years.

Key Features

  • Compatible with D2, Duet and Digital Hybrid WirelessĀ® transmitters
  • Vector Diversity with two receivers per channel for superior digital signal recovery
  • High IP3 and high-current front ends for robust performance even in severe RF environments
  • IR bi-directional port for transmitter setup
  • Analog and Digital audio outputs with TalkBack (in applicable RX modes)
  • USB interface
  • Up to 4 channel recording on microSD card (depending on RX modes)
  • AA Battery or external powering
  • Same cross-section as the UCR411a for mounting using existing hardware
  • Bright, high-density OLED display for clear viewing in any lighting conditions
  • AES 256-bit, CTR mode encryption, with 4 different key policies available

Technical Specifications

Operating Frequencies (MHz)
Model A1/B1
470.100 - 614.375
Frequency Selection Steps
25 kHz
Frequency Response
25 Hz to 20 kHz (+0/-3 dB)
Frequency Stability
Ā±0.001 %
Front end bandwidth
Ā±5.5 MHz, @ -3 dB
Sensitivity
20 dB Sinad 0.9 uV(-108 dBm), A weighted
60 dB Quieting 1.12 uV (-105 dBm), A weighted
AM rejection
>60 dB, 2 uV to 1 Volt
Modulation acceptance
85 kHz
Spurious rejection
85 dB
Third order intercept
+15 dBm
Diversity method
Vector Diversity
Antenna inputs
Dual SMA female jacks; 50 Ohm impedance
Audio output
Rear panel 2 TA3M connectors; can drive 600 Ohm, adjustable from -50 to +5 dBu in 1 dB steps (into nominal 10 k bal. load)
Input Dynamic Range
125 dB (with full Tx limiting)
Overall Latency (time delay)
1.4 ms with digital source, <2.9 ms with Hybrid TX
Audio Test Tone
1 KHz, -50 to +5 dBu, <1%THD
Controls
Front Panel
LCD display
Menu/Sel, Pwr/Back, Up/Down Arrow

Buttons
SD Card Reader
IR Port

Rear Panel
Analog/AES audio output jack (2)
External DC input
Battery compartment
USB port

External Power
Minimum 9 Volts to maximum 17 VDC
2.5 W; 170 mA at 12 VDC
Battery Life
6 hrs. continuous, w/ 4 disposable, 1.5VDC AA
Lithium batteries (recommended)
Weight
408 grams with batteries (14.4 oz.)
Dimensions
3.23ā€ wide x 1.23ā€ high x 4.75ā€ deep 82.042 wide x 31.242 high x 120.650 deep mm

Recorder
Storage media
microSDHC memory card
File format
.wav files (BWF)
A/D converter
24-bit
Sampling rate
48 kHz
Recording modes/Bit rate
24 bit - 144 kbytes/s per channel (up to 4)
Frequency response
25Hz to 20 kHz; +0/-3 dB
Dynamic range
110 dB (A), before limiting
Distortion
< 0.035%
Operating temperature range
Celsius -20 to 50
Fahrenheit -5 to 122
Included Accessories
4x AA Batteries
MicroSD card (part# 55010)
A1B1 version
2x AMJ-19 and 2x AMJ-22 antennas
B1C1 version
2x AMJ-22 and 2x AMJ-25 antennas
941 version
2x AMJ-944 antennas
CCMINI zippered pouch
