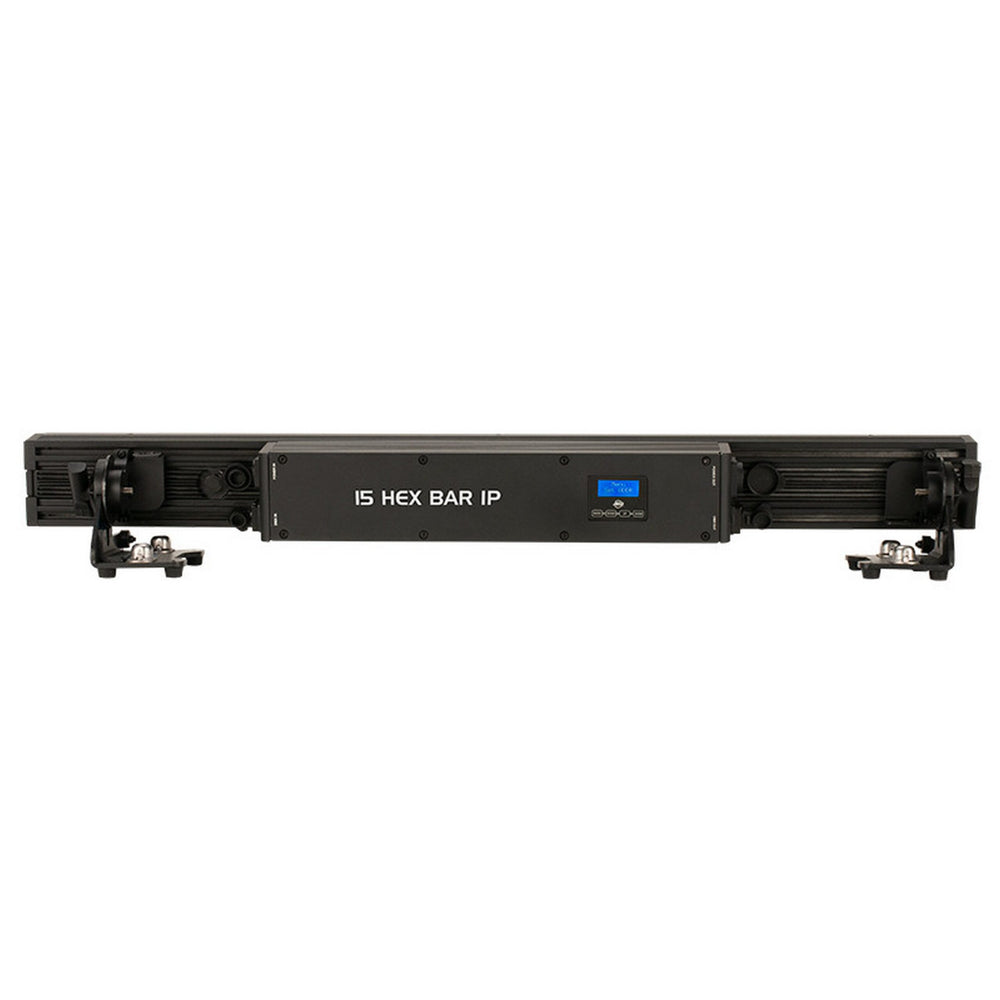

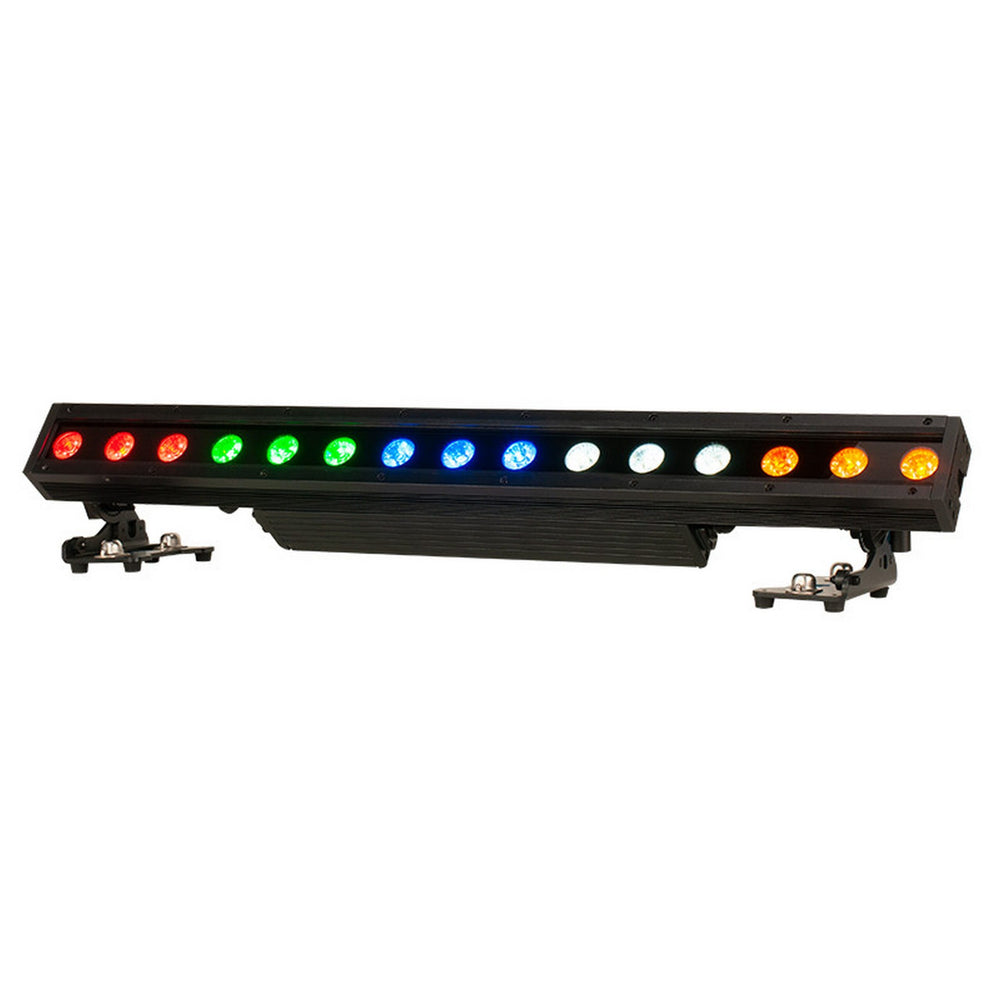

American DJ 15 HEX BAR IP 15x 12 Watt HEX 6-In-1 RGBWA/UV LED Wash Linear Fixture
The ADJ 15 HEX BAR IP is an IP65 rated multi-functional wash linear fixture for indoor or outdoor use. It features 15x 12W HEX LEDs (6-IN-1 RGBWA+UV), 5 individually controlled sections with Zone Control and a 25-degree beam angle. With an all metal, black housing and IP65 outdoor rating, its protected from elements - dust, sand, moisture and liquids. It includes a magnetic removable filter frame to add a diffusion filter to change the beam angle.
Key Features
- 15x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
- IP65 rated - protects from dust, sand, moister, water
- All metal construction with black housing
- Includes heavy duty bracket
- Sure-lock locking bracket system (securely locks every 10-degrees)
- Flicker free for film and broadcast
- 63 Built-in Color Macros
Technical Specifications
Light Source
LED
15x 12W HEX (6-In-1) RGBWA+UV LEDs (50,000 hr.)
Beam Angle
25-degrees
LUX
14541 @ 1M, 582 @ 5M (Full On No UV); 14517 @ 1M, 581 @ 5M (Full On)
Construction
Display
OLED display with function buttons
Data In/Out
Seetronic IP65 rated, 5-pin DMX In/Out (with rubber protective covers over connections)
Power In/Out
Seetronic IP65 rated Power locking In/Out (with rubber protective covers over connections)
Daisy chain up to 6 fixtures @ 120V; 15 fixtures @ 240V
All Metal Heavy-Duty Housing
Built To Last In Outdoor or Touring Applications
Control
Multiple DMX channel modes
WiFLY EXR Wireless DMX (Range: 2,500 ft. /7 00M - line of site)
Built-in internal programs
5 individually controlled sections with Zone Control
0-100% Dimming + smooth 16-bit Dimming
6 Dimming Curve Modes
Control Mode
DMX512, RDM
With Wired Digital Communication Network
Electrical
Power voltage
AC100-240V, 50/60Hz (Multi-voltage)
Power consumption
130W max
Dimensions & Weight
Dimension (LxWxH)
36” x 8” x 7.75” / 915x203x200mm
Weight
20 lbs. / 8.9 kg.
