Chauvet Professional COLORdash PAR H18 XIP LED Wash Light
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

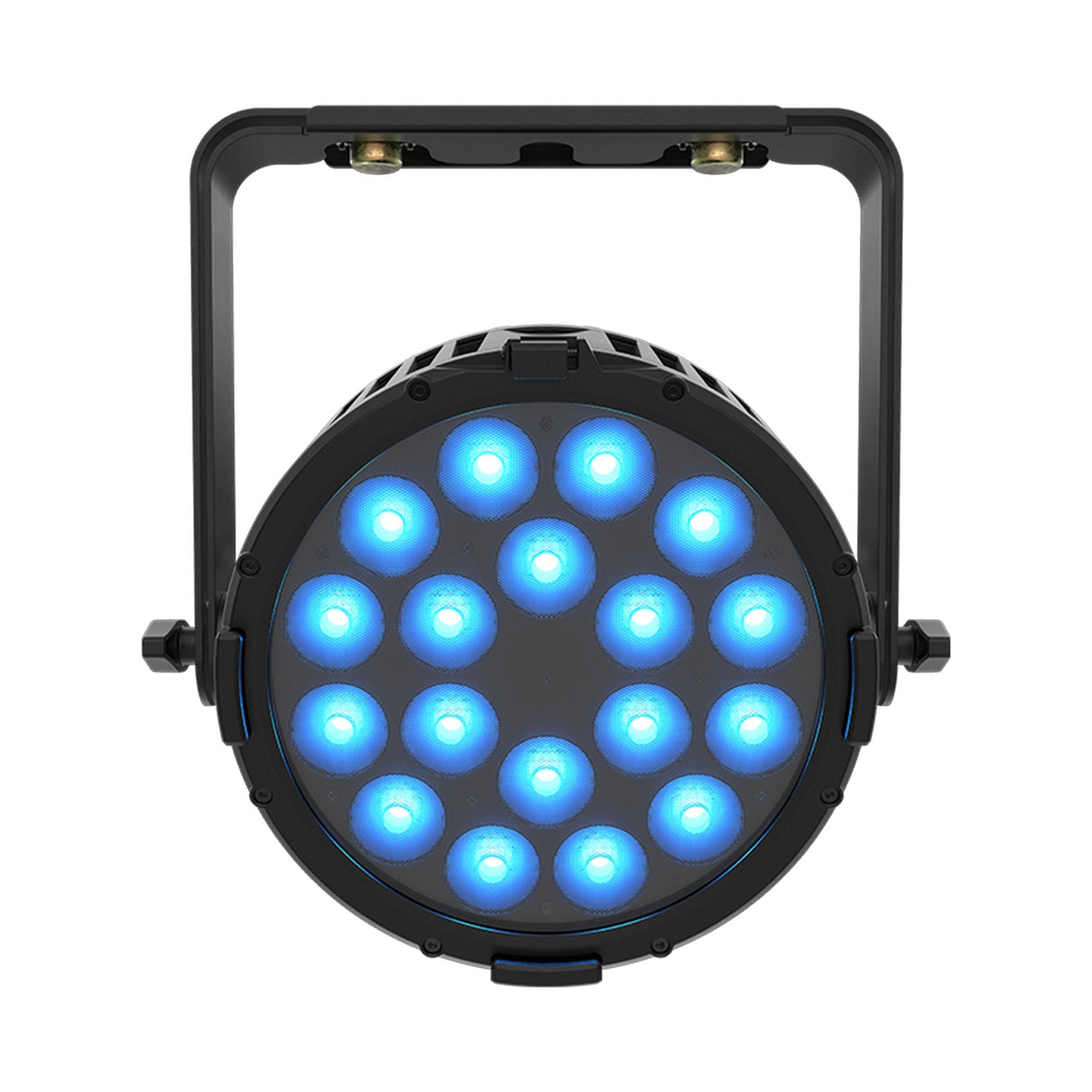

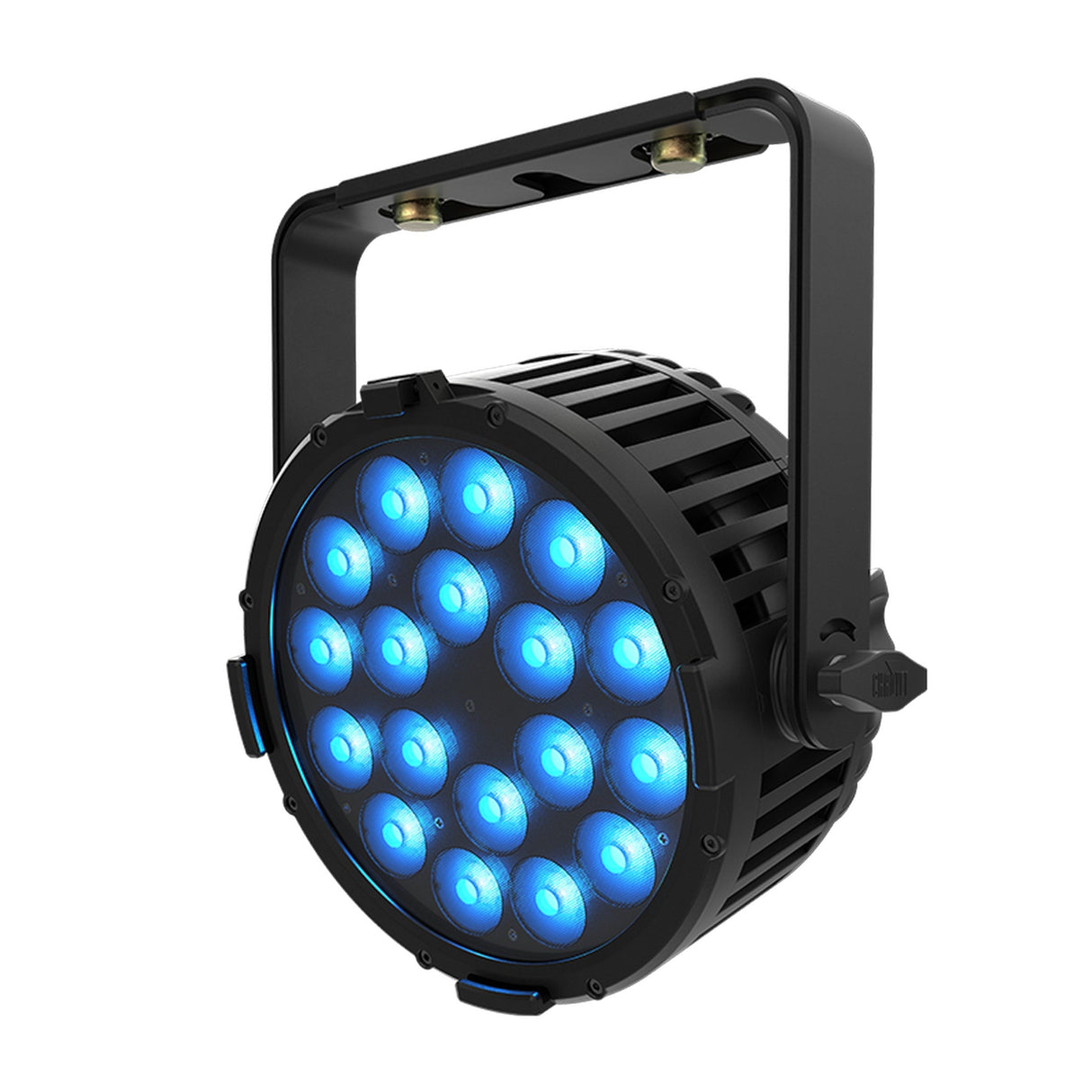

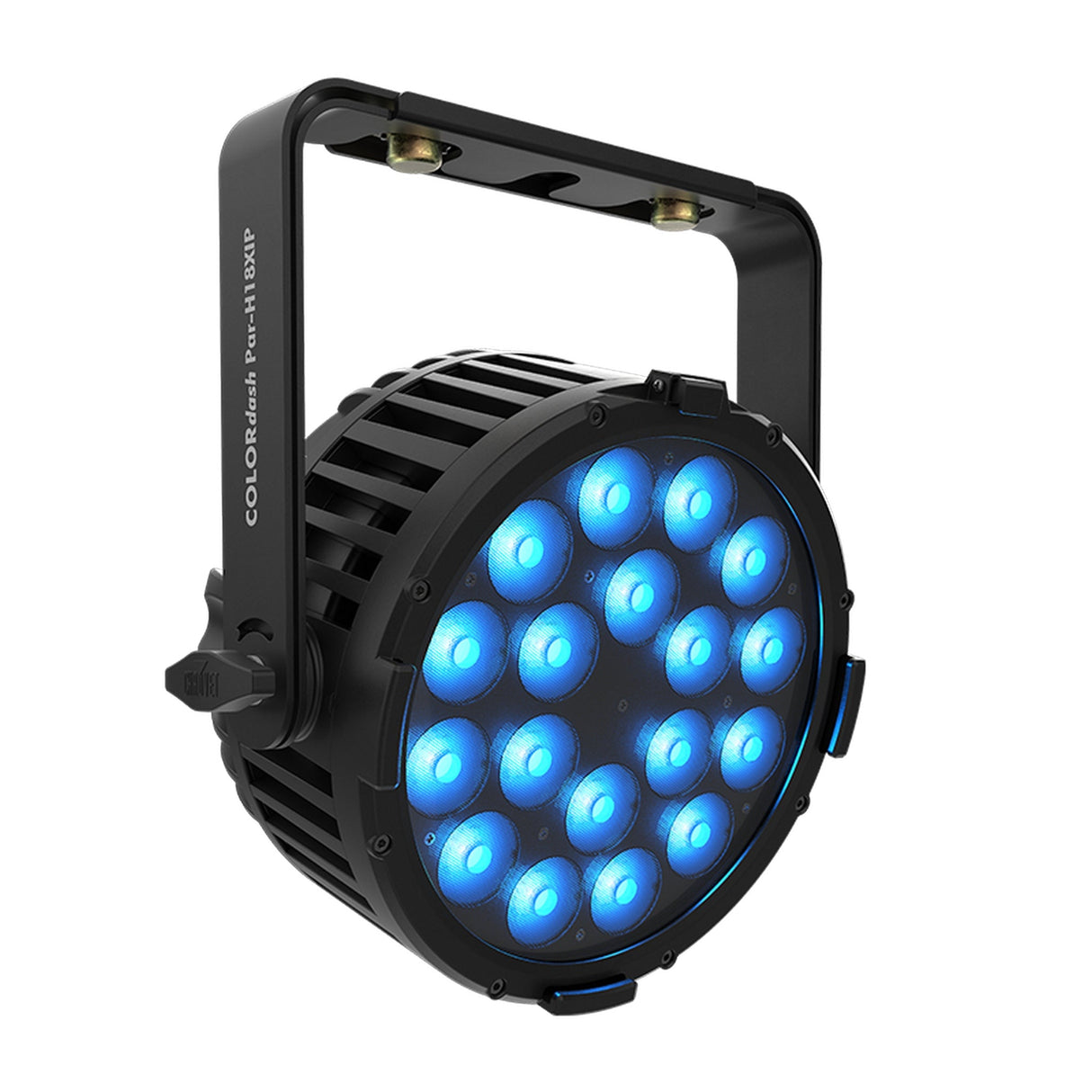

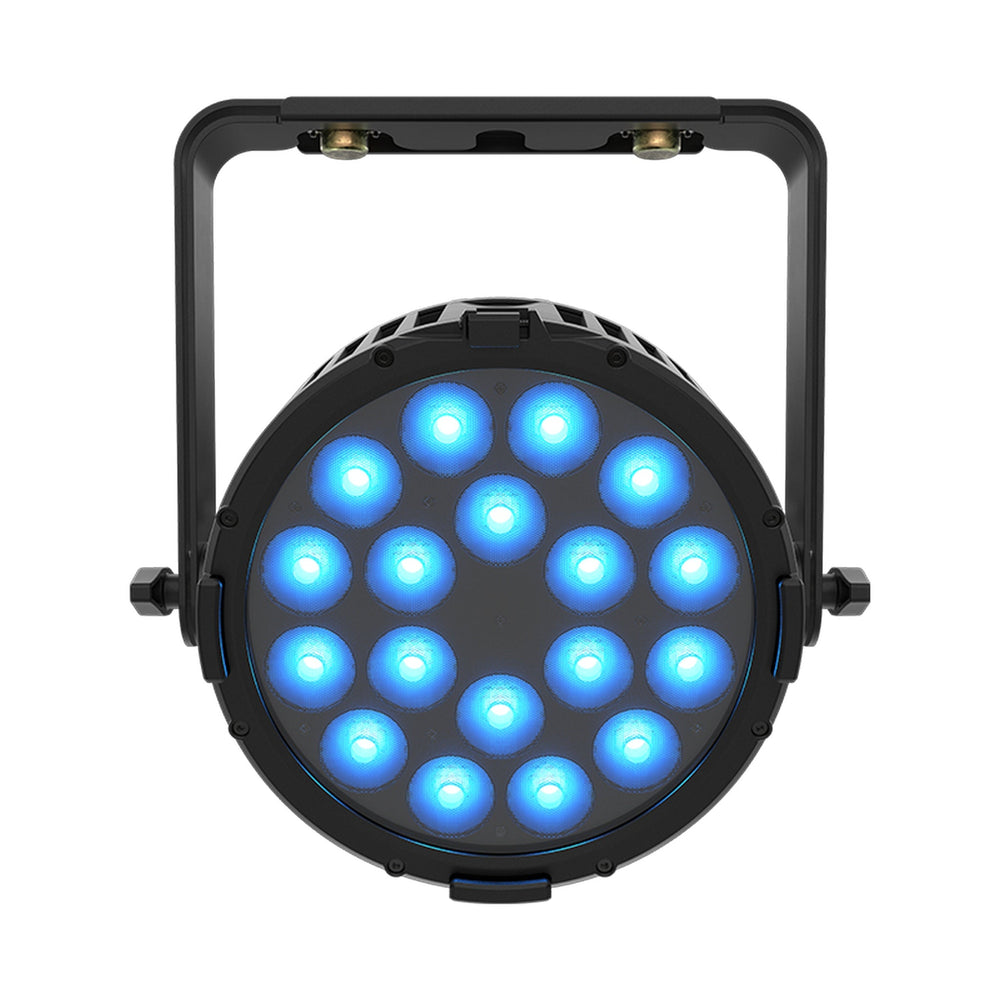

Chauvet Professional COLORdash PAR H18 XIP LED Wash Light
Chauvet Professional COLORdash PAR H18 XIP is an LED wash light designed for indoor and outdoor event environments. It enables precise color mixing and beam output for lighting designers and production teams, supporting live performance and camera-based workflows. This makes it ideal for situations where consistent output and weather resistance are critical.
The fixture uses an RGBWAUV LED array to deliver a wide range of color and white light with selectable color temperature control. Adjustable pulse width modulation and 16-bit dimming support flicker-free operation for on-camera use. RDM and an onboard OLED interface provide access to configuration and DMX personality selection.
This wash light is built for flexible deployment on the floor or in a rig. Its IP65-rated construction supports use in temporary outdoor and wet environments. Integrated mounting hardware allows fast setup while maintaining stable operation across varied conditions.
Key Features
- RGBWAUV LED Engine: Delivers a broad palette of saturated colors, pastels, and calibrated white light.
- Outdoor Rated Construction: IP65-rated design supports indoor and outdoor use.
- Flicker Free Performance: Selectable PWM frequencies and 16-bit dimming support live and on-camera applications.
- RDM Support: Enables remote selection of DMX personalities and configuration.
- OLED Control Interface: Easy to read onboard display with menu navigation.
- Dual Purpose Mounting: Double bracket yoke with omega bracket functions as a floor stand.
Technical Specifications
OpticalLight Source: 18 LEDs (HEX-color RGBAWUV)
Color Temperature (range): 2,800 to 10,000 K
Color Temperature (at full): 8,439 K
Beam Angle: 25.4Ā°
Field Angle: 39Ā°
Lumens: 5,567 lm
Illuminance (total): 1,106 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built in Automated Programs: Yes
Construction / Physical
Dimensions: 13.58 x 12.89 x 6.23 in (344.8 x 327.4 x 158.2 mm)
Weight: 14.4 lb (6.6 kg)
Exterior Color: Black
Housing Material: Aluminum diecast
Accessory Holder Gel Frame Size: 9.5 in (241.3 mm)

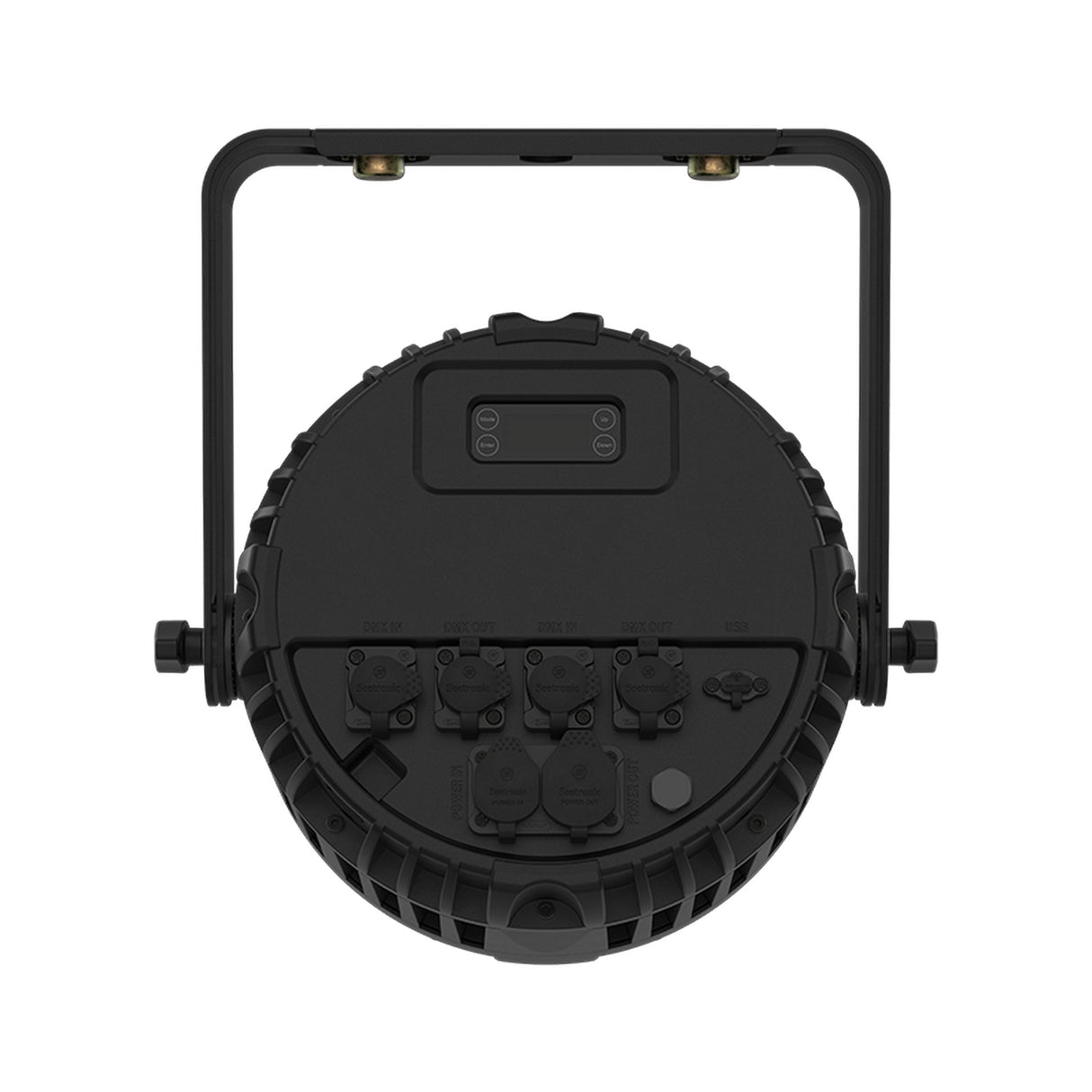

Connections
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3-pin and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Update: USB-C
Control
Control Protocol: DMX, RDM
DMX Channels: 6, 8, 9, 13 or 14
Modes Personalities: 5 personalities (6ch, 8ch, 9ch, 13ch, 14ch)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 16 units @ 208 V; 18 units @ 230 V
Power and Current: 154 W, 1.25 A @ 120 V, 60 Hz
Power and Current: 148 W, 0.72 A @ 208 V, 60 Hz
Power and Current: 150 W, 0.66 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating: IP65, temporary outdoor wet use
Temperature (Ambient): -4 Ā°F to 113 Ā°F (-20 Ā°C to 45 Ā°C)
Whatās in the Box
(1) COLORdash PAR H18 XIP(1) Seetronic Powerkon IP65 power cord
(1) Gel frame
(1) Omega bracket
(1) Quick Reference Guide or User Manual
