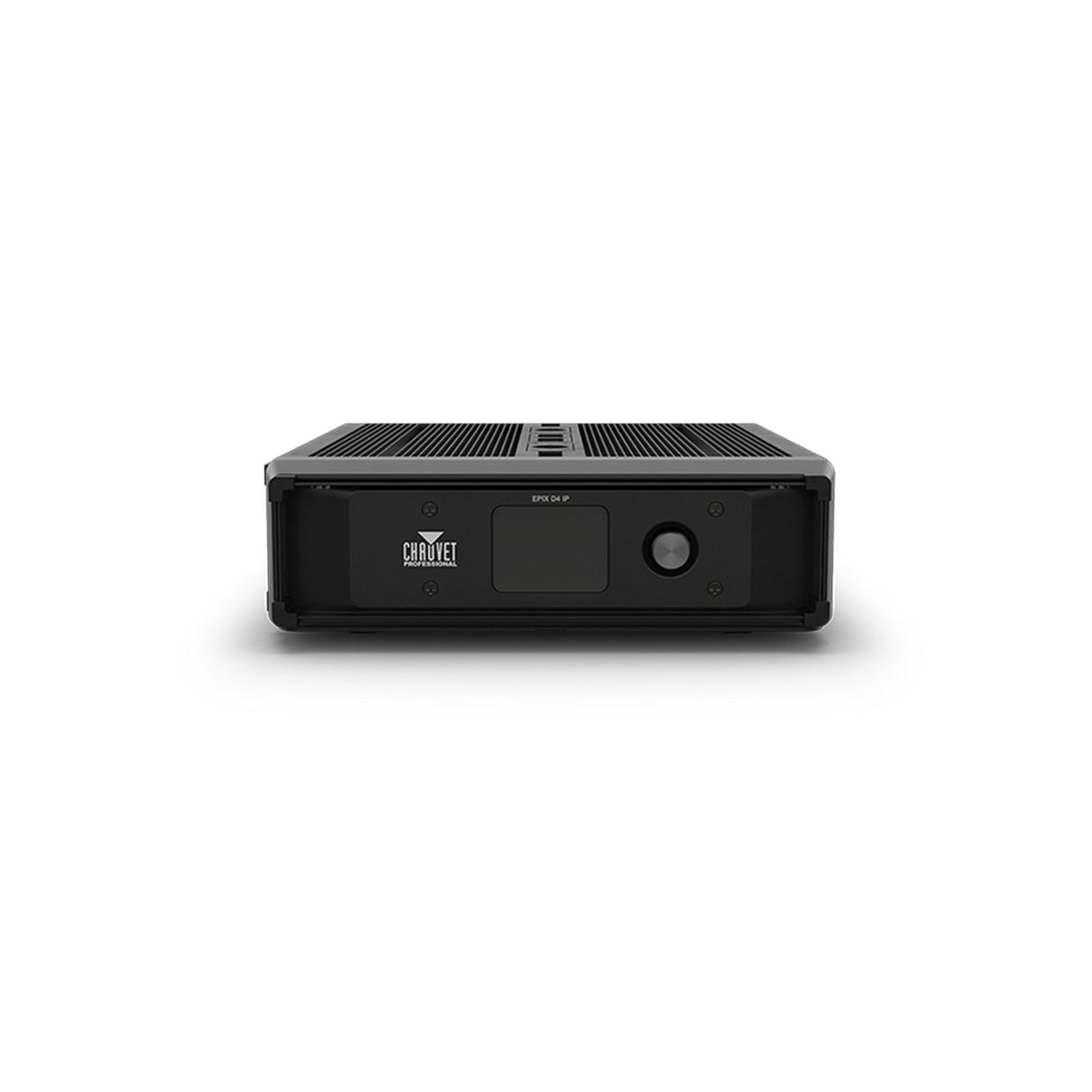

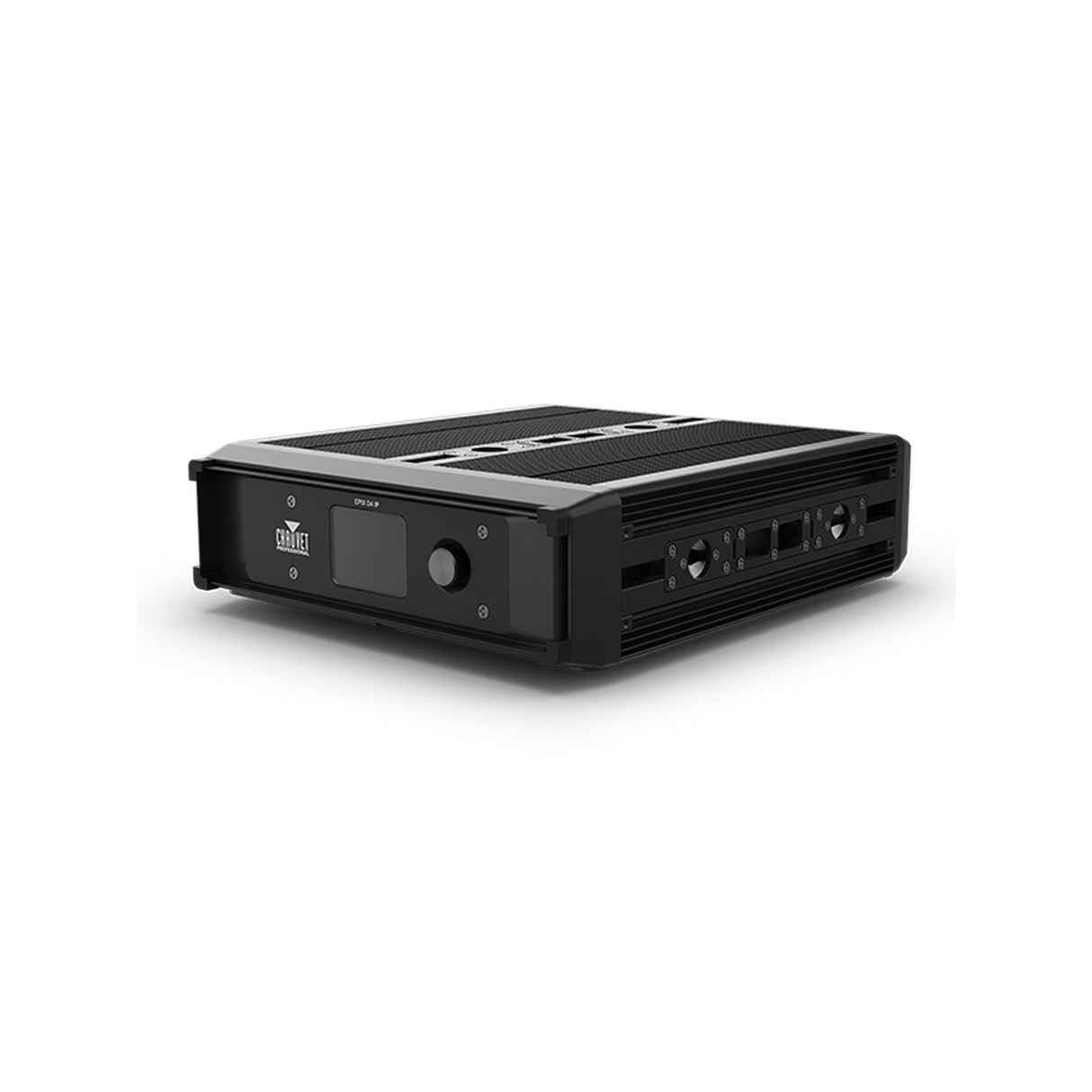

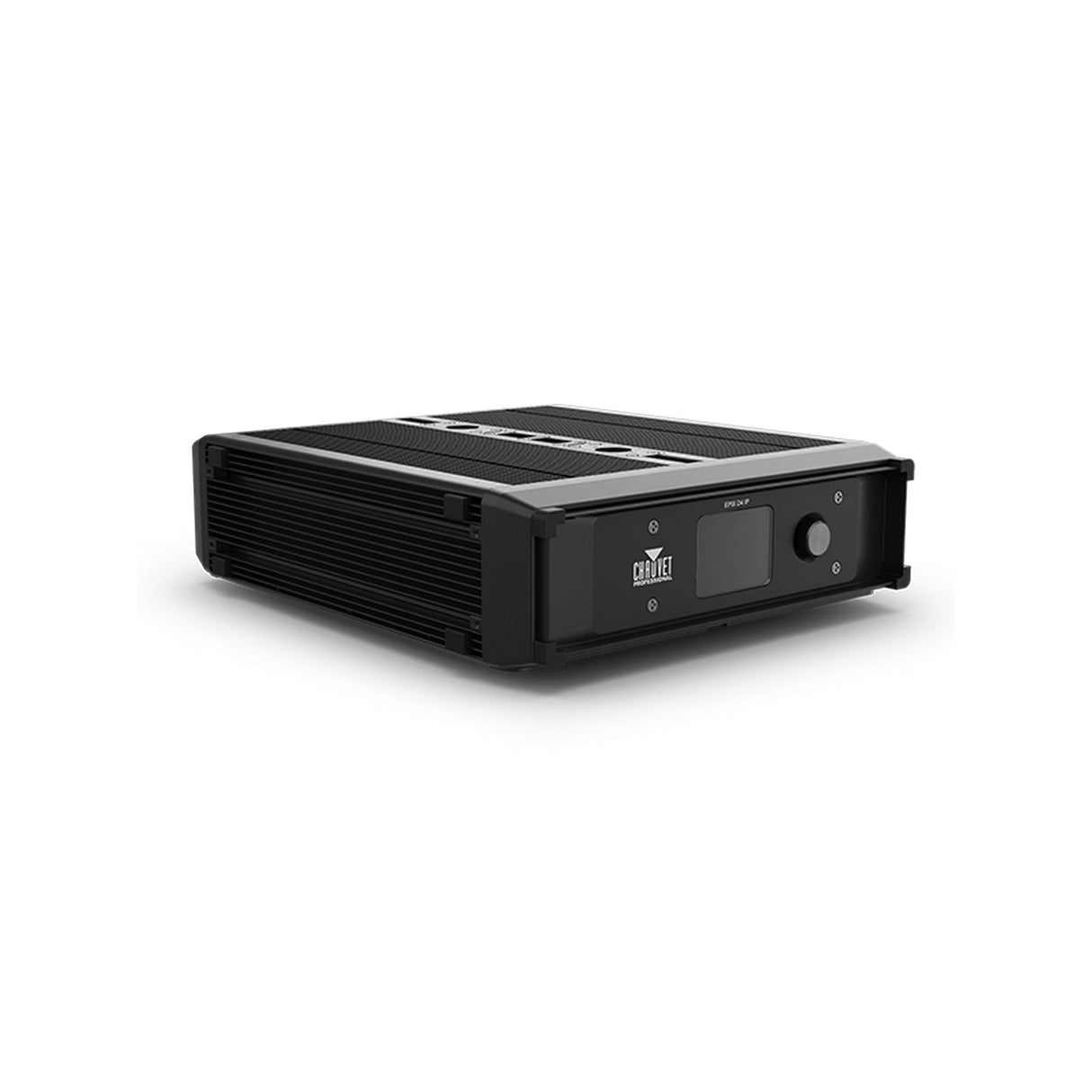

Chauvet Professional EPIX D4 IP Pixel Drive

Chauvet Professional EPIX D4 IP Pixel Drive

Chauvet Professional EPIX D4 IP is a pixel drive designed for outdoor rated linear pixel systems. It enables detection, configuration, and control for lighting designers and system operators, supporting scalable pixel mapping workflows. This makes it ideal for touring, rental, and installation scenarios where robust processing and weather resistance are critical.

The unit houses a powerful processing engine that manages addressing through the KLSTR push and pull mapping system. It supports modern design to playback workflows using MVR with GDTF onboard and integrates with industry standard control protocols. Automatic signal backup is supported through RSTP for system reliability.

This drive is built for modularity and serviceability in demanding production environments. Its industrial design supports rack mounting or standalone deployment. Universal connectivity and IP rated construction allow dependable use across indoor and outdoor applications.

Key Features

• Pixel Drive Processing: Remote power supply and processing module for Epix line products.
• KLSTR Mapping System: Push and pull addressing simplifies layout and configuration.
• MVR Workflow Support: Supports MVR with GDTF onboard for streamlined production flow.
• Outdoor Rated Housing: IP65 construction supports use in wet and outdoor environments.
• Automatic Signal Backup: Supports RSTP for redundancy and reliability.
• Modular Industrial Design: Built for touring, rental, and permanent installation use.

Technical Specifications

Construction / Physical
Dimensions: 14.05 x 11.8 x 11.4 in (357 x 300 x 289 mm)

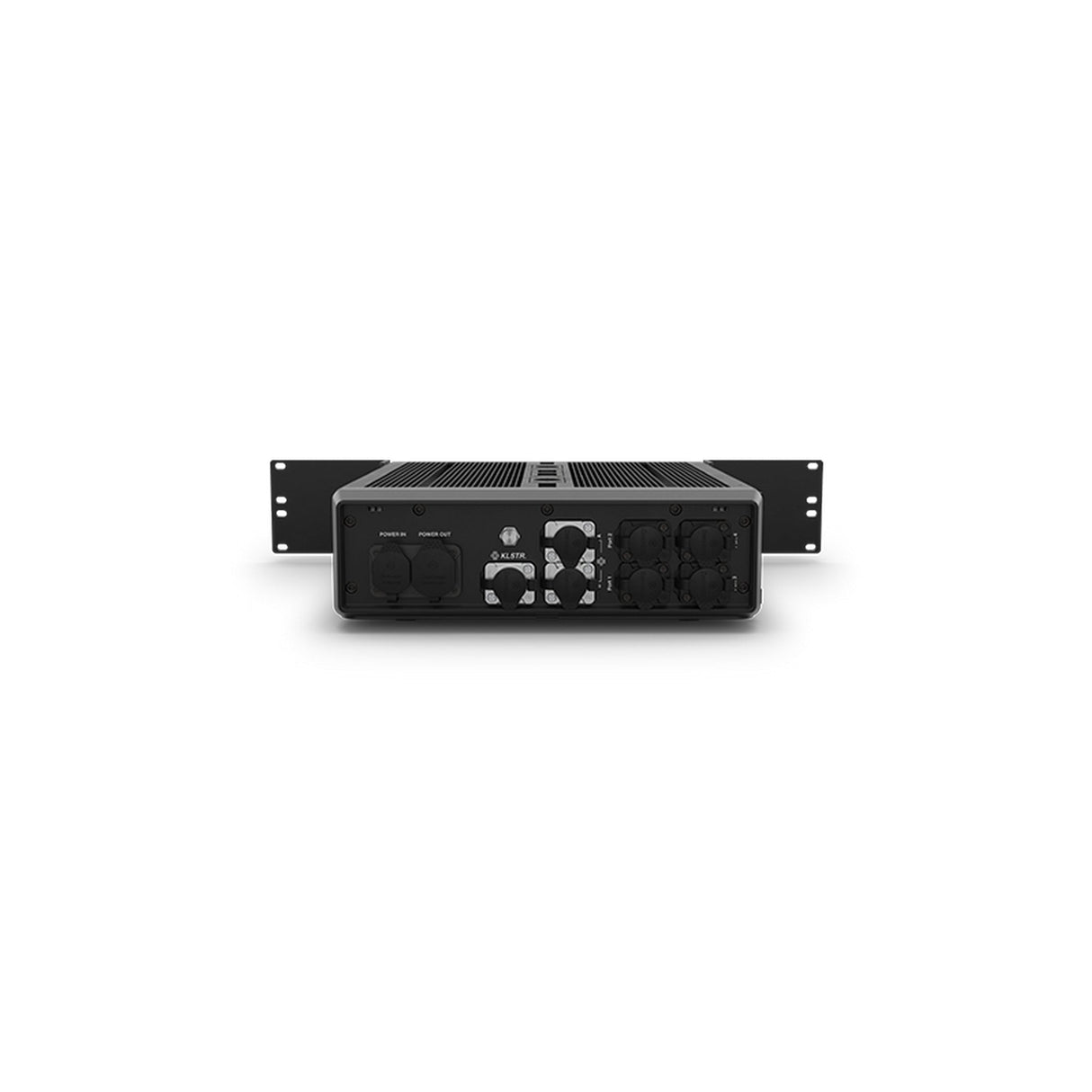

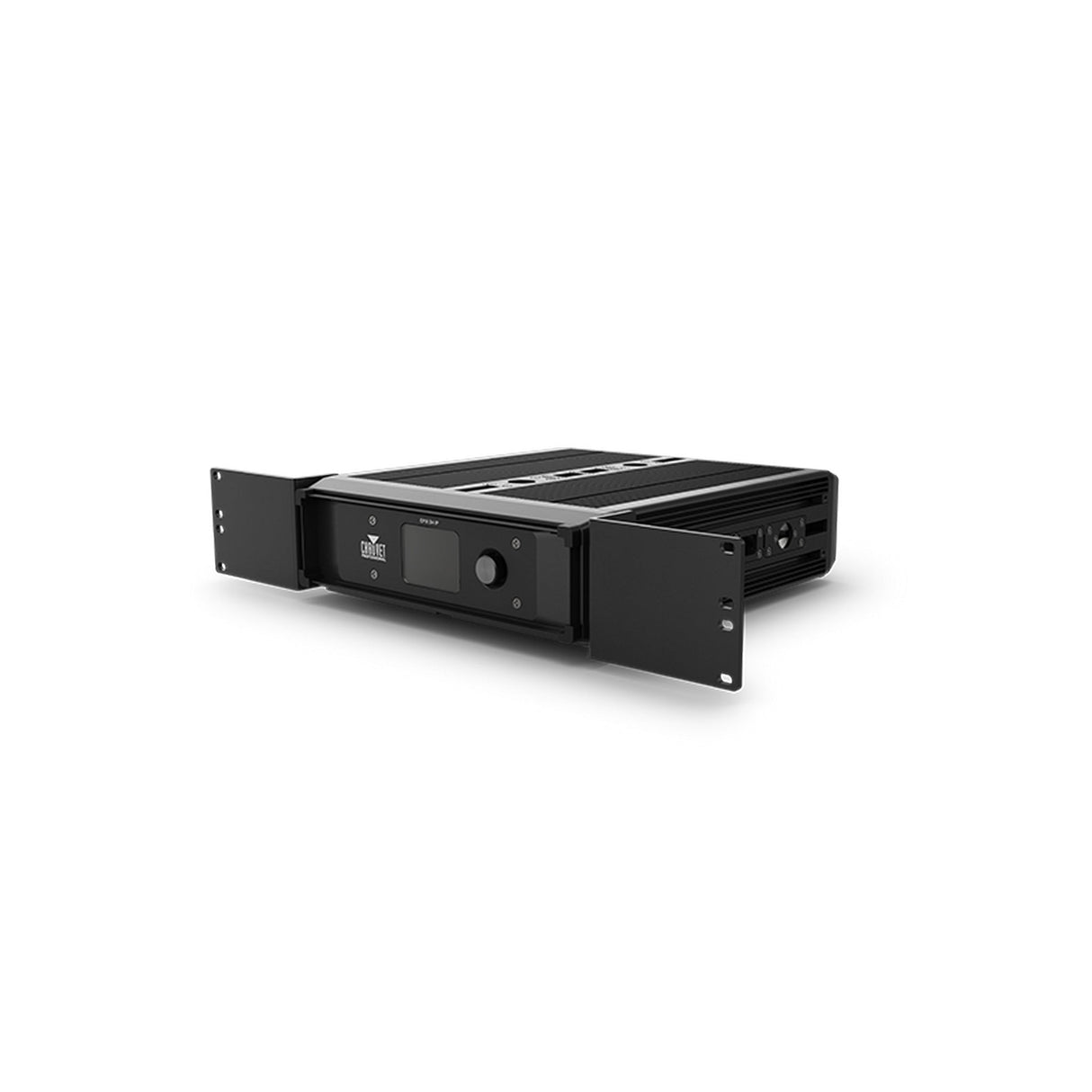

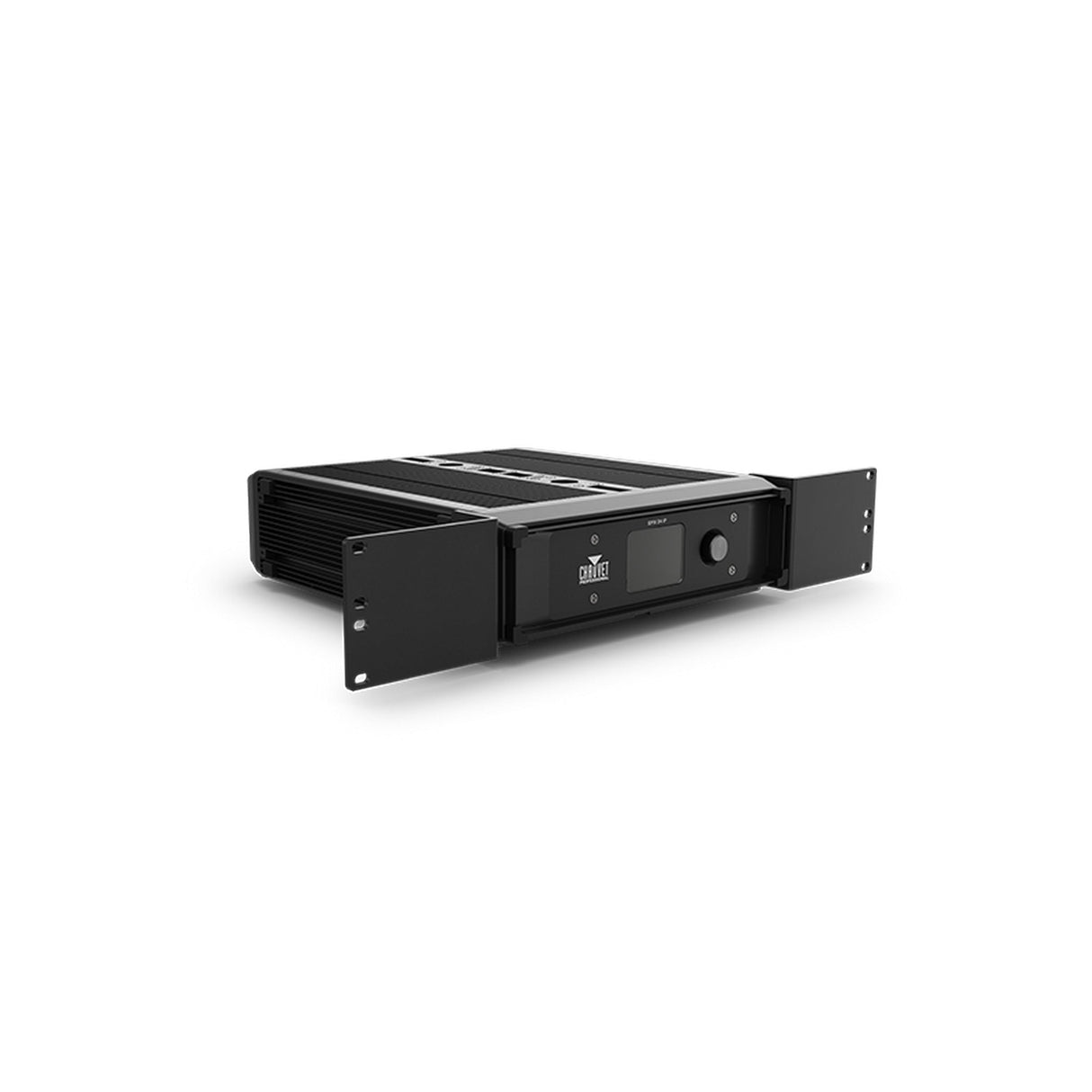

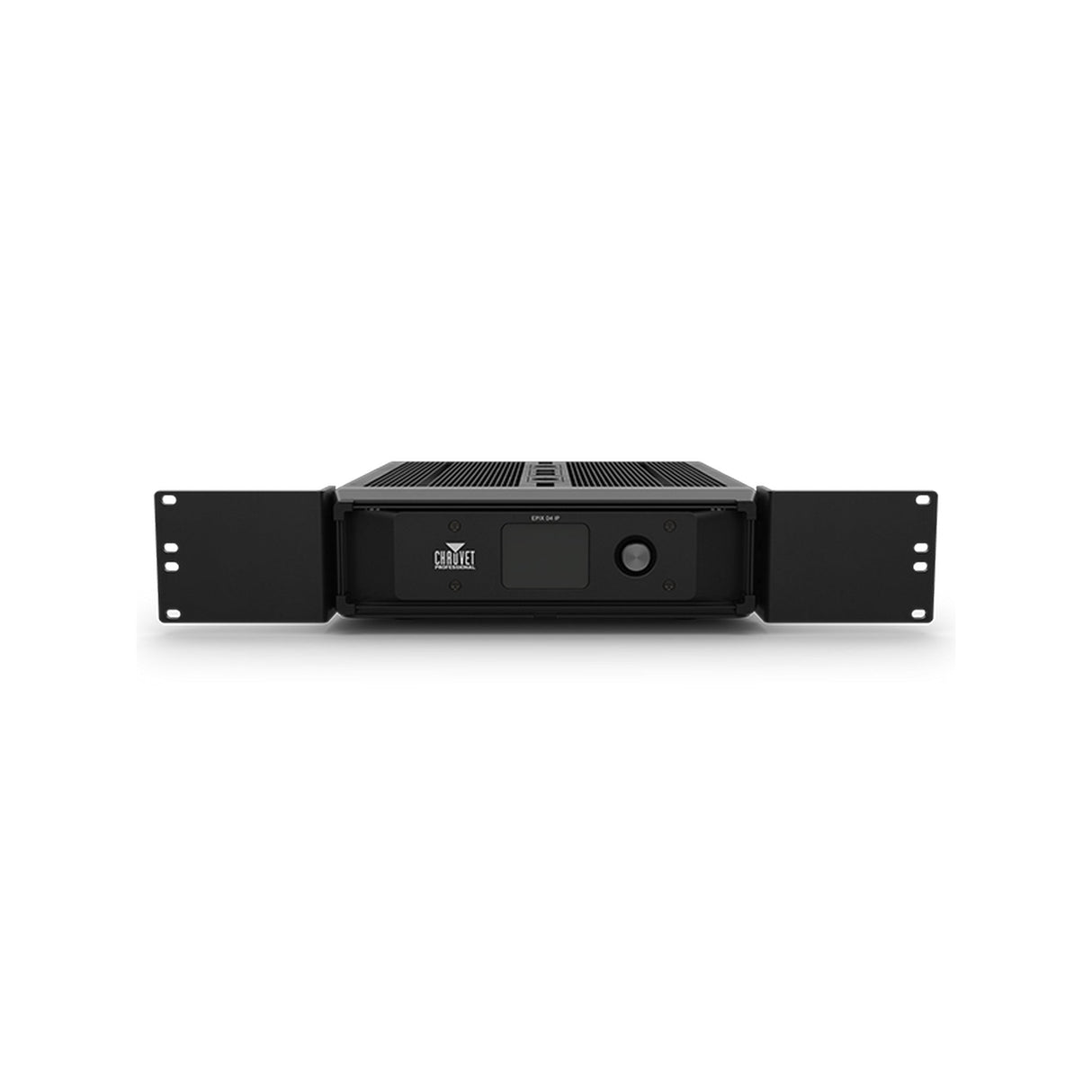

Dimensions (with rackmount brackets): 20.24 x 11.8 x 11.4 in (514 x 300 x 289 mm)
Weight: 15 lb (6.8 kg)
Exterior Color: Black
Housing Material: Aluminum extrusion, Aluminum die cast, rubber
Rackmount: 2U
IP Rating: IP65

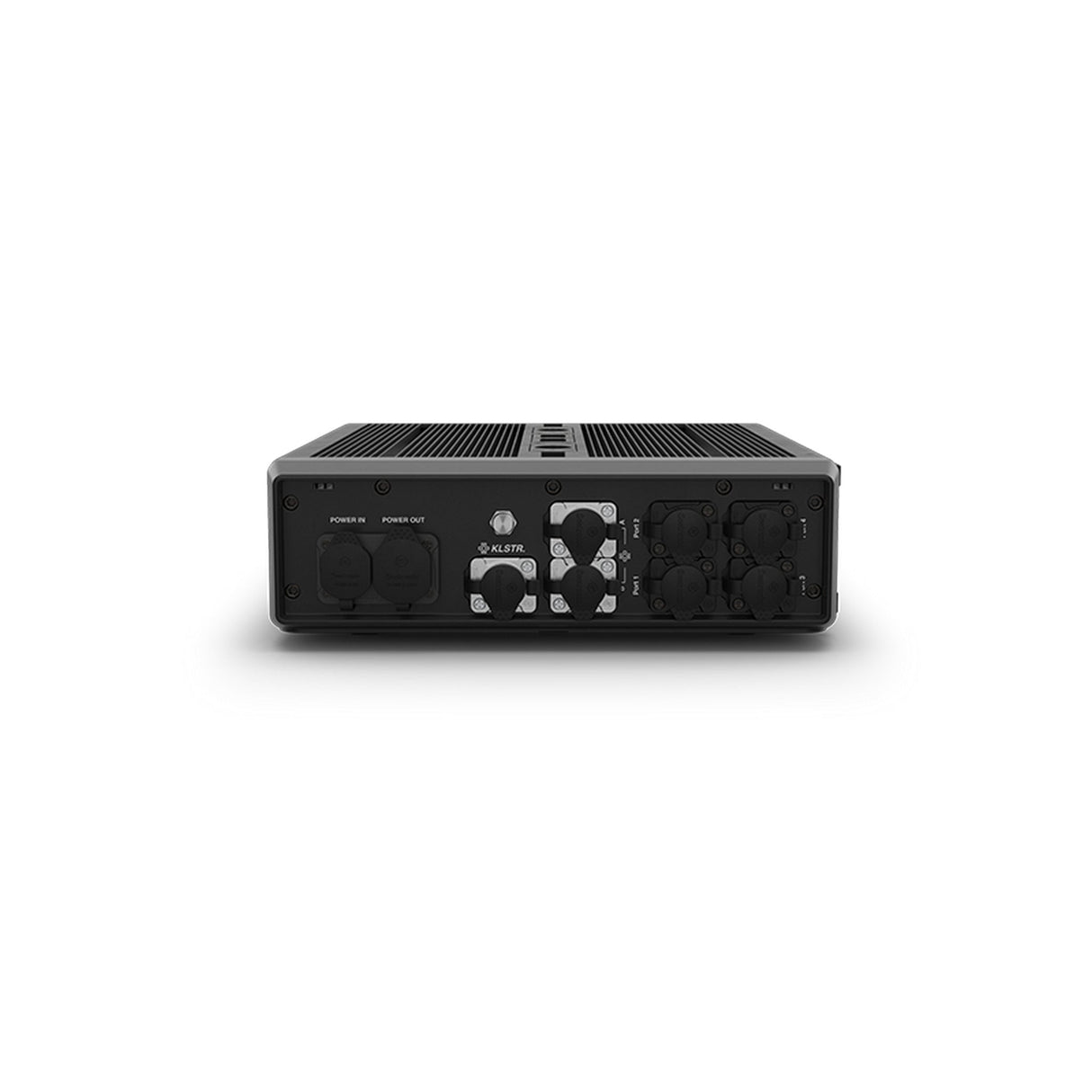

Connections
Power input: Seetronic Powerkon (powerCON Compatible)
Power output: Seetronic Powerkon (powerCON Compatible)
Device output (4): 4 pin XLR (IP65)
Data connectors (3): Seetronic etherKON (etherCON Compatible)
Intended Load: Epix Line 10 IP, Epix Line 10 IP S
Physical Linking (Standard Mode): 10 inline EPIX Line 10 IP
Physical Linking (Hi Power Mode): 6 inline EPIX Line 10 IP
Physical Linking (Standard Mode): 20 inline EPIX Line 10 IP S
Physical Linking (Hi Power Mode): 13 inline EPIX Line 10 IP S
Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between Epix D4 IP and last Epix Line: 210 ft (64 m)
Max. cable length (shielded cables) between Epix D4 IP and first Epix Line: 65 ft (20 m)
Total max. cable length (unshielded cables) between Epix D4 IP and last Epix Line: 300 ft (91 m)
Max. cable length (unshielded cables) between Epix D4 IP and first Epix Line: 150 ft (45 m)
Max. cable length (unshielded cables) between each Epix Line: 100 ft (30 m)

Control
Control Protocol: Art Net, sACN, Art RDM, KLSTR, Epix Mapping System
DMX Channels: 2, 18, Groups of 5 10 255 50, or 300
Video Refresh Rate: 60 Hz

Electrical
Input Voltage: 100 to 240 VAC, 50 60 Hz (auto ranging)
Power Linking: 0 units @ 120 V; 3 units @ 208 V; 3 units @ 230 V; 3 units @ 240 V
Power and Current: 1,200 W, 12 A @ 100 V, 60 Hz
Power and Current: 1,200 W, 10 A @ 120 V, 60 Hz
Power and Current: 1,200 W, 5.77 A @ 208 V, 60 Hz
Power and Current: 1,200 W, 5.22 A @ 230 V, 50 Hz
Power and Current: 1,200 W, 5 A @ 240 V, 50 Hz

Certifications / Qualifications
Compliance: CE, MET, ROHS
Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)

What’s in the Box

(1) Epix D4 IP
(1) Power Cord Seetronic powerKON
(2) Rack Ears with Screws
(1) Omega bracket
