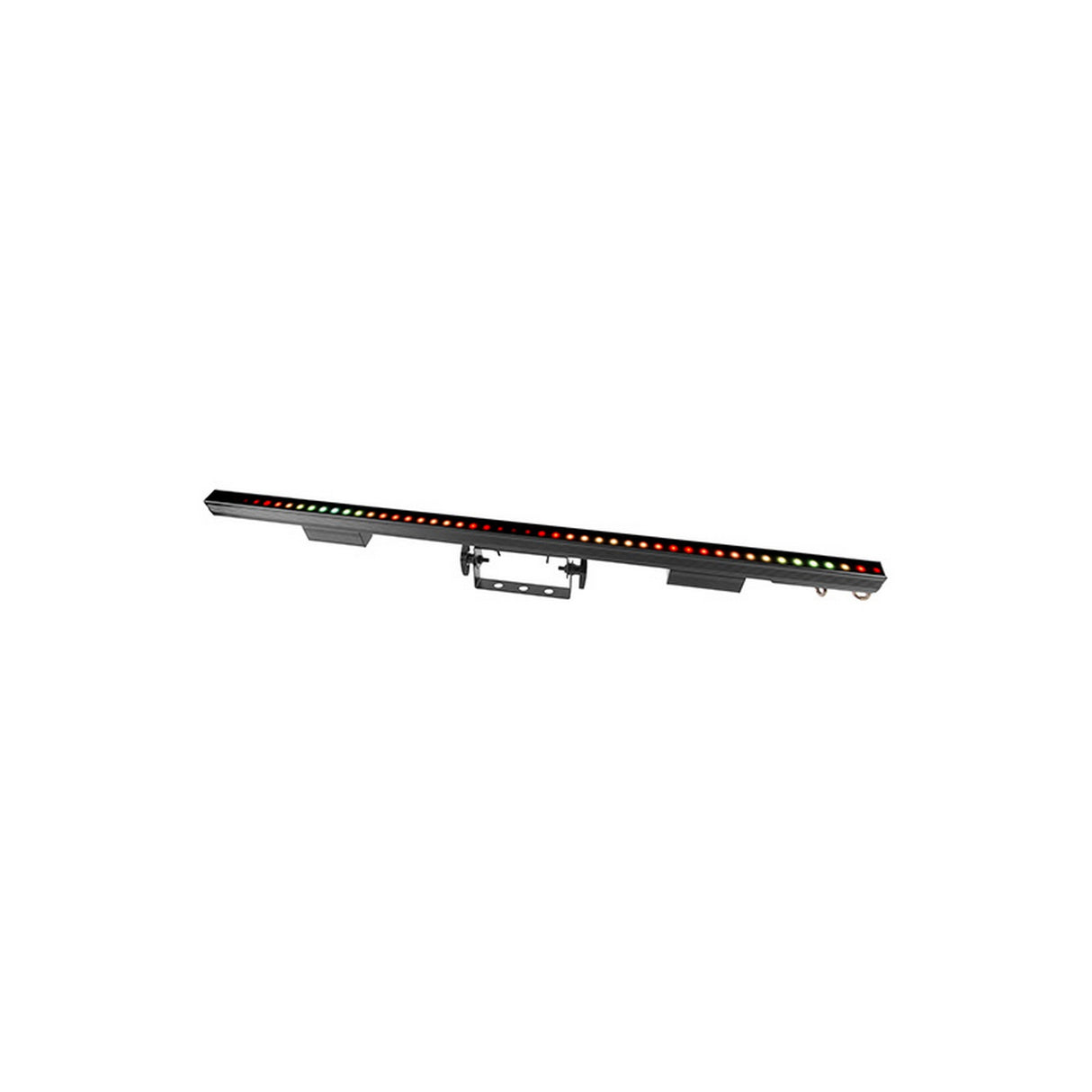

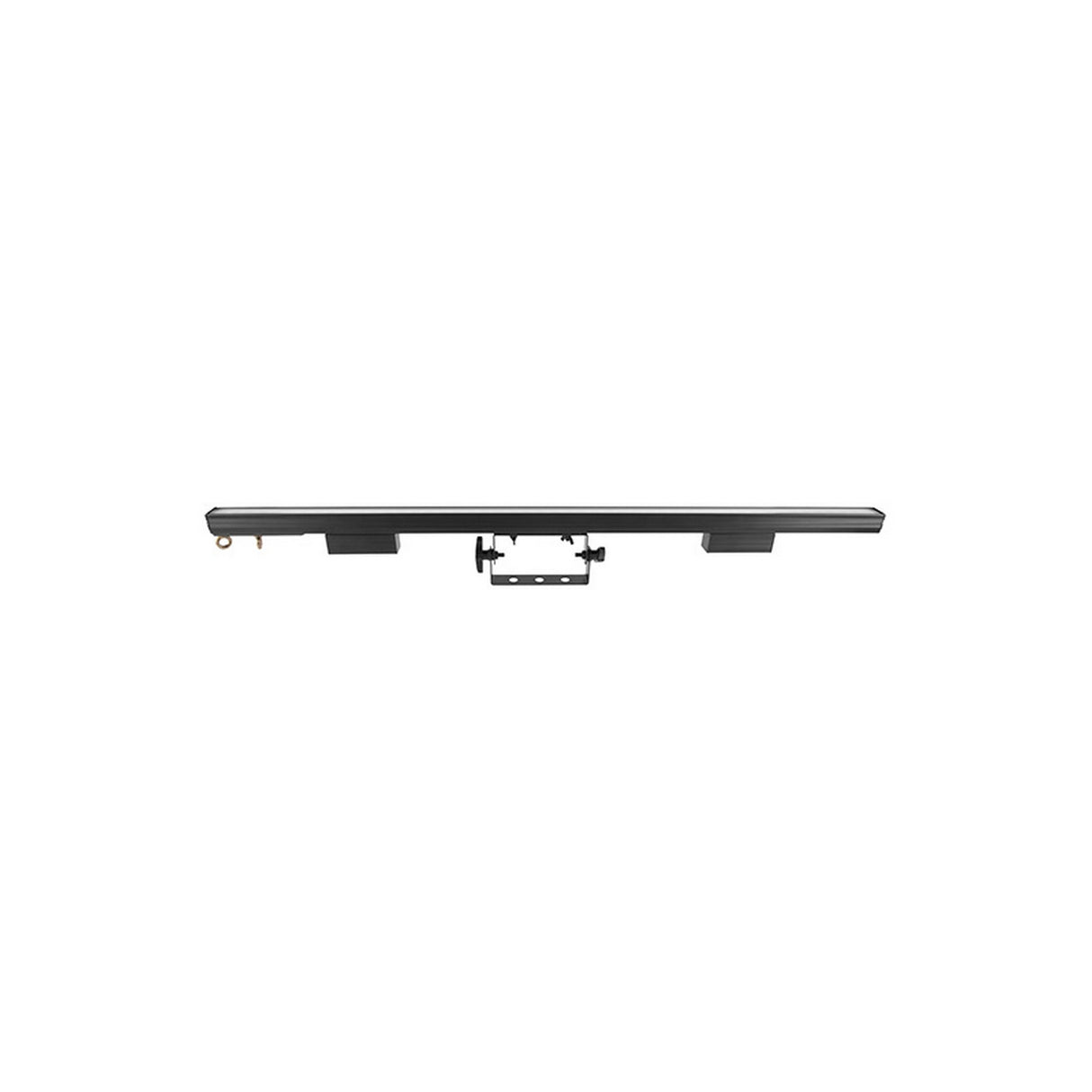

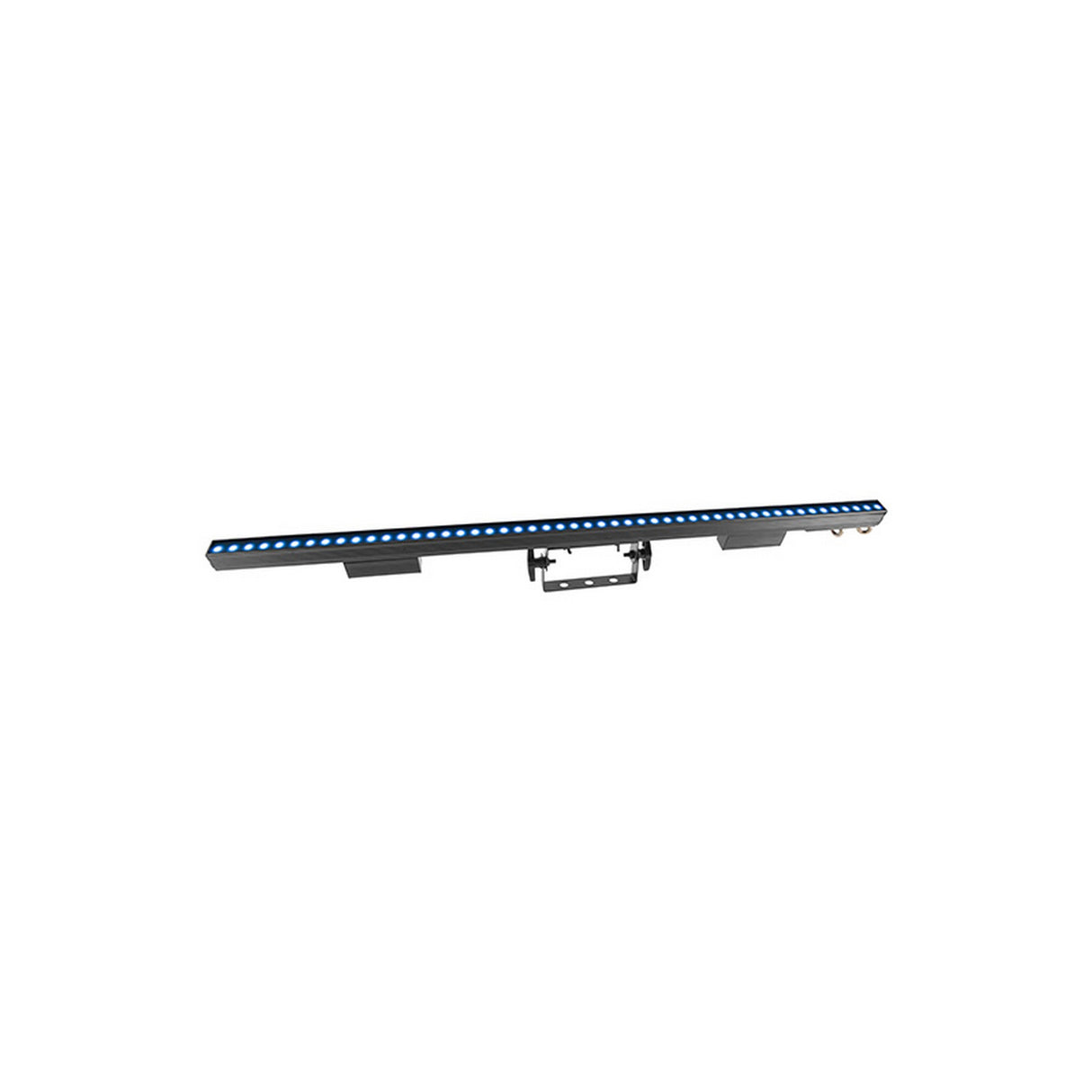

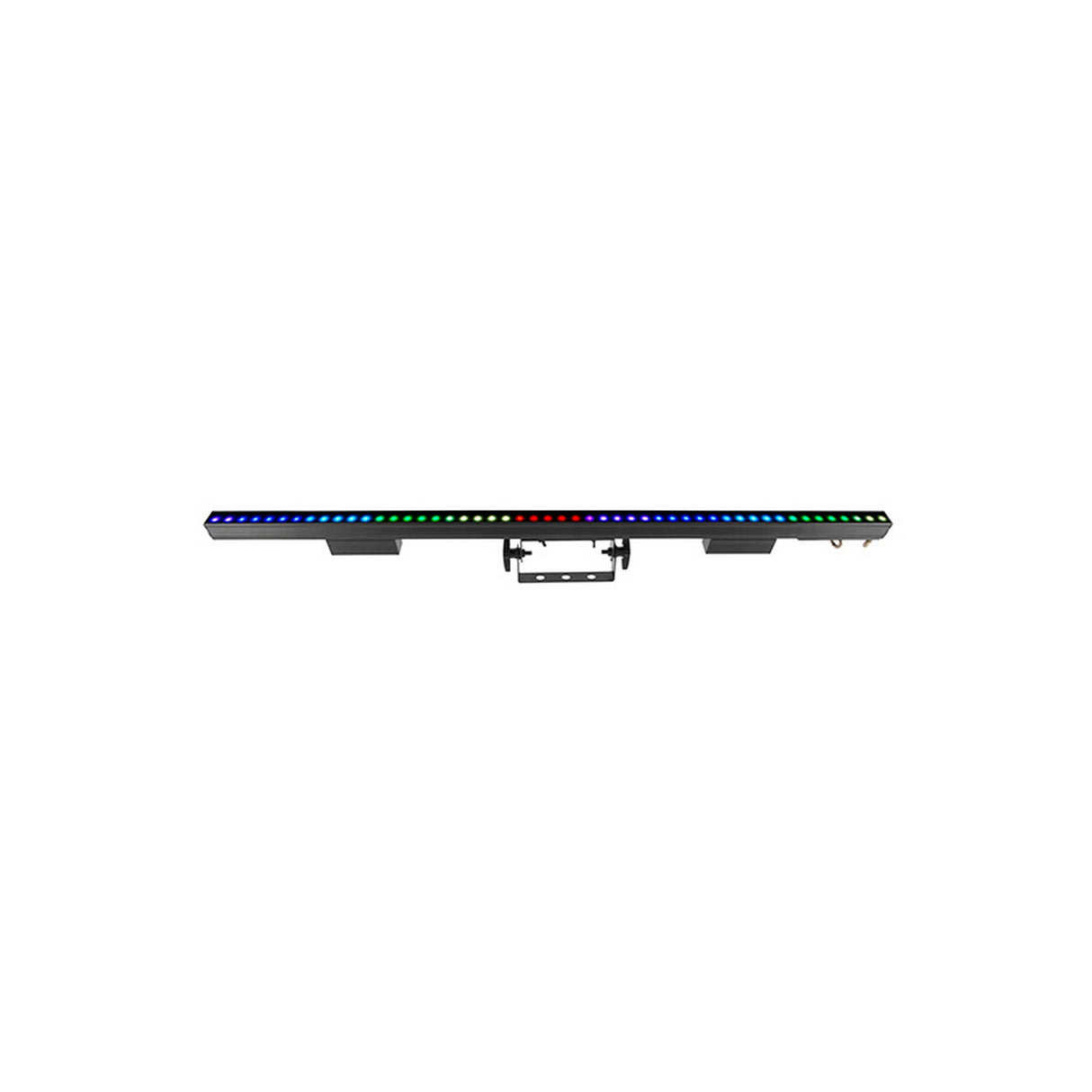

Chauvet Professional Epix Strip Tour Pixel Mapping LED Strip
Chauvet Professional Epix Strip Tour is a 1-meter pixel-mapping LED strip designed for touring, rental, and installation applications that require precise visual effects. Featuring 50 LEDs arranged in a single linear row and a wide 125 degree viewing angle, it is optimized for displaying video content and motion graphics.
This LED strip supports professional control protocols including Art-Net, Kling-Net, and sACN, making it suitable for advanced lighting and media server environments. Power and control are provided through the Epix Drive 900, ensuring consistent performance and seamless integration into existing pixel systems.
The Epix Strip Tour includes two interchangeable optical filters to adapt to different visual requirements. A black stealth filter is pre-installed for high contrast applications, while a white frosted filter is included to maximize output when higher brightness is required.
Key Features
- Pixel Mapping LED Strip: 1-meter linear strip with 50 individually addressable LEDs for video and motion graphics.
- Wide Viewing Angle: 125 degree beam spread for consistent visibility across large viewing areas.
- Interchangeable Filters: Includes black stealth filter for contrast and white frosted filter for higher output.
- Advanced Control Support: Compatible with Art-Net, Kling-Net, and sACN control protocols.
- System Integration: Requires Epix Drive 900 for power and control operation.
Technical Specifications
OpticalLight Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle: 125°
Illuminance - white frost filter (included): 1,094 NITS
Illuminance - black stealth filter (installed): 267 NITS
Pixels: 50 x 1
Pixel Pitch: 20 mm
Refresh Rate: 4,700 Hz
Construction / Physical
Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
Weight: 3.44 lb (1.56 kg)
Exterior Color: Black
Housing Material: Aluminum
Connections
Data Connectors: 4-pin XLR
Physical Linking: 18 inline ÉPIX Strip Tour
Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)
Control
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 150
Electrical
Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz
Cable
4PXLREXT16IN
4PXLREXT5FT
4PXLREXT50FT
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's in the Box
(1) ÉPIX Strip Tour
(1) White Frost Filter
Required Accessories
ÉPIX Drive 900
