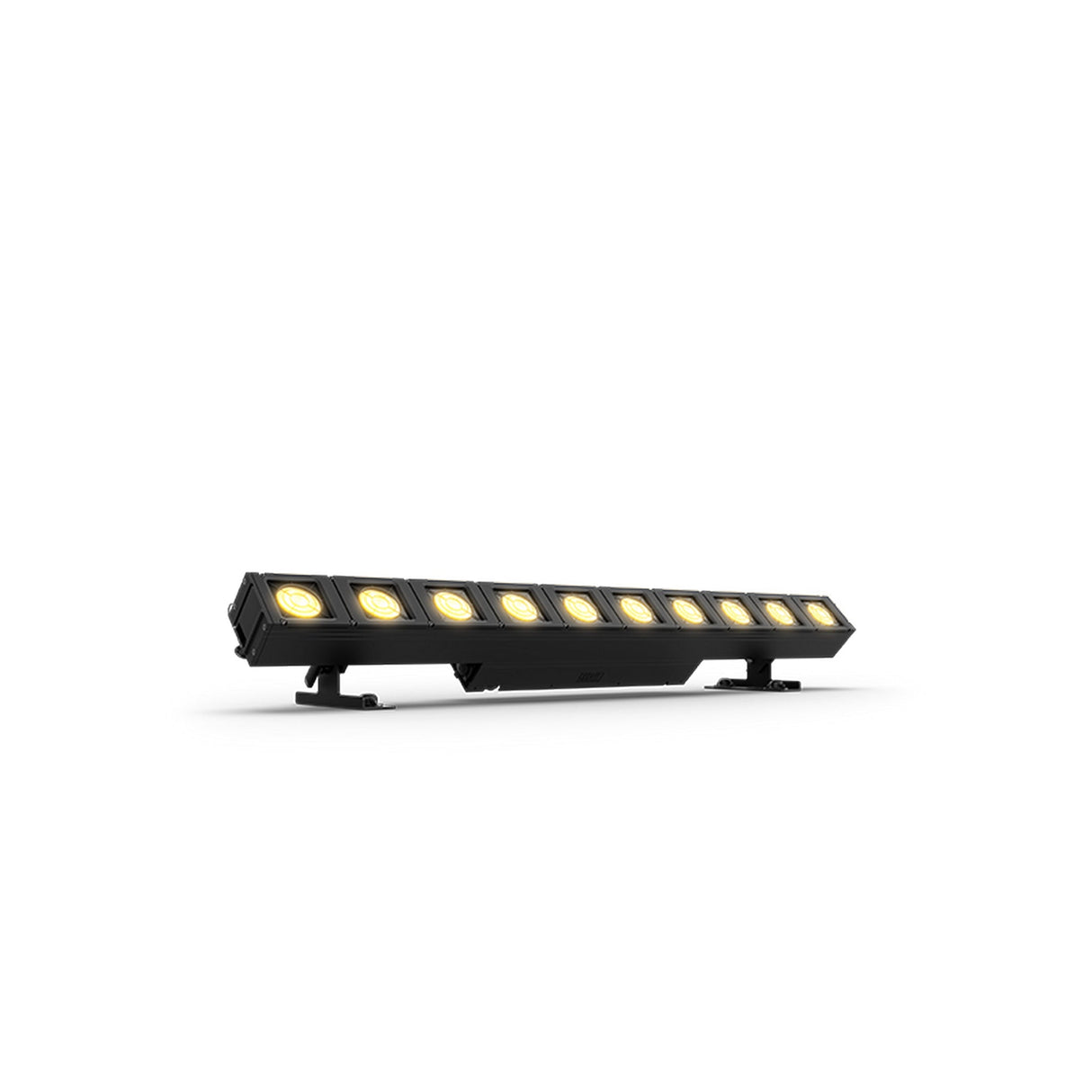

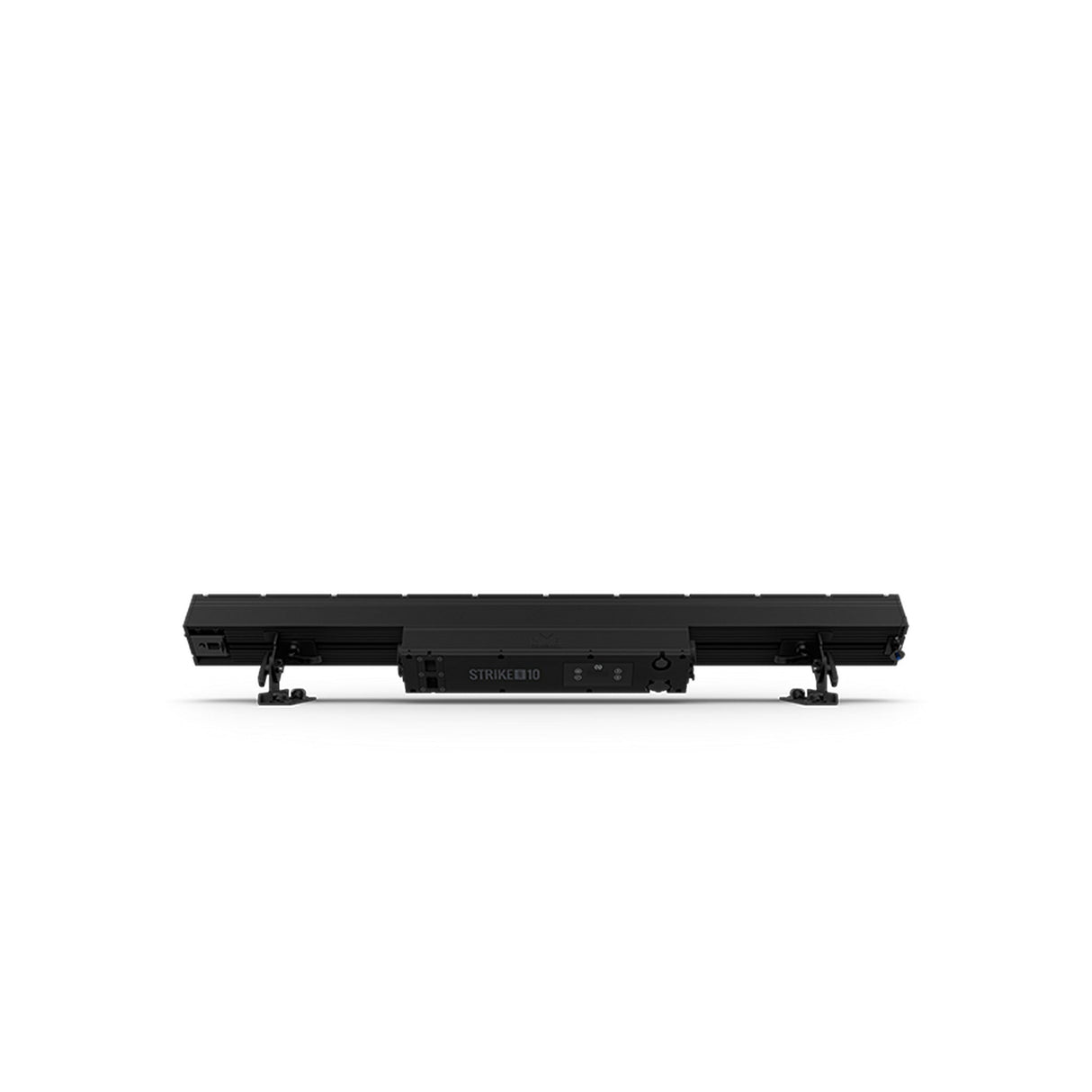

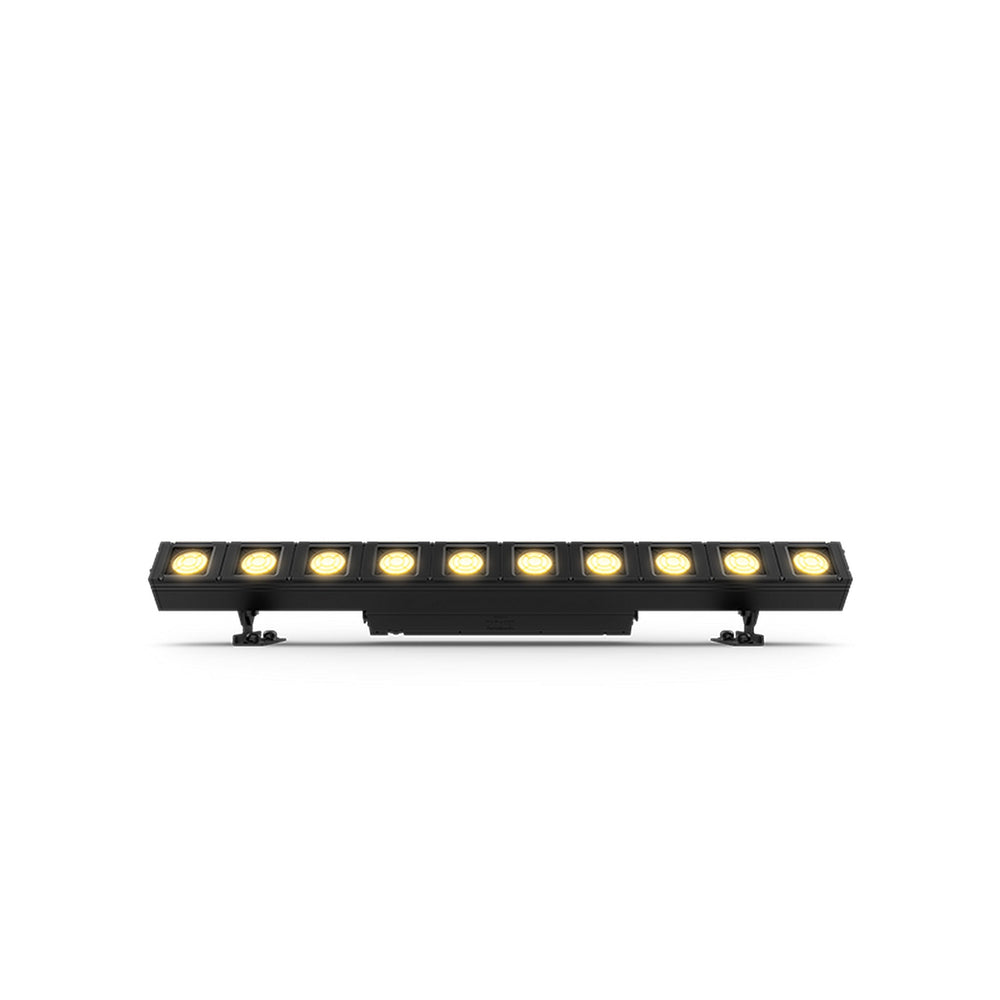

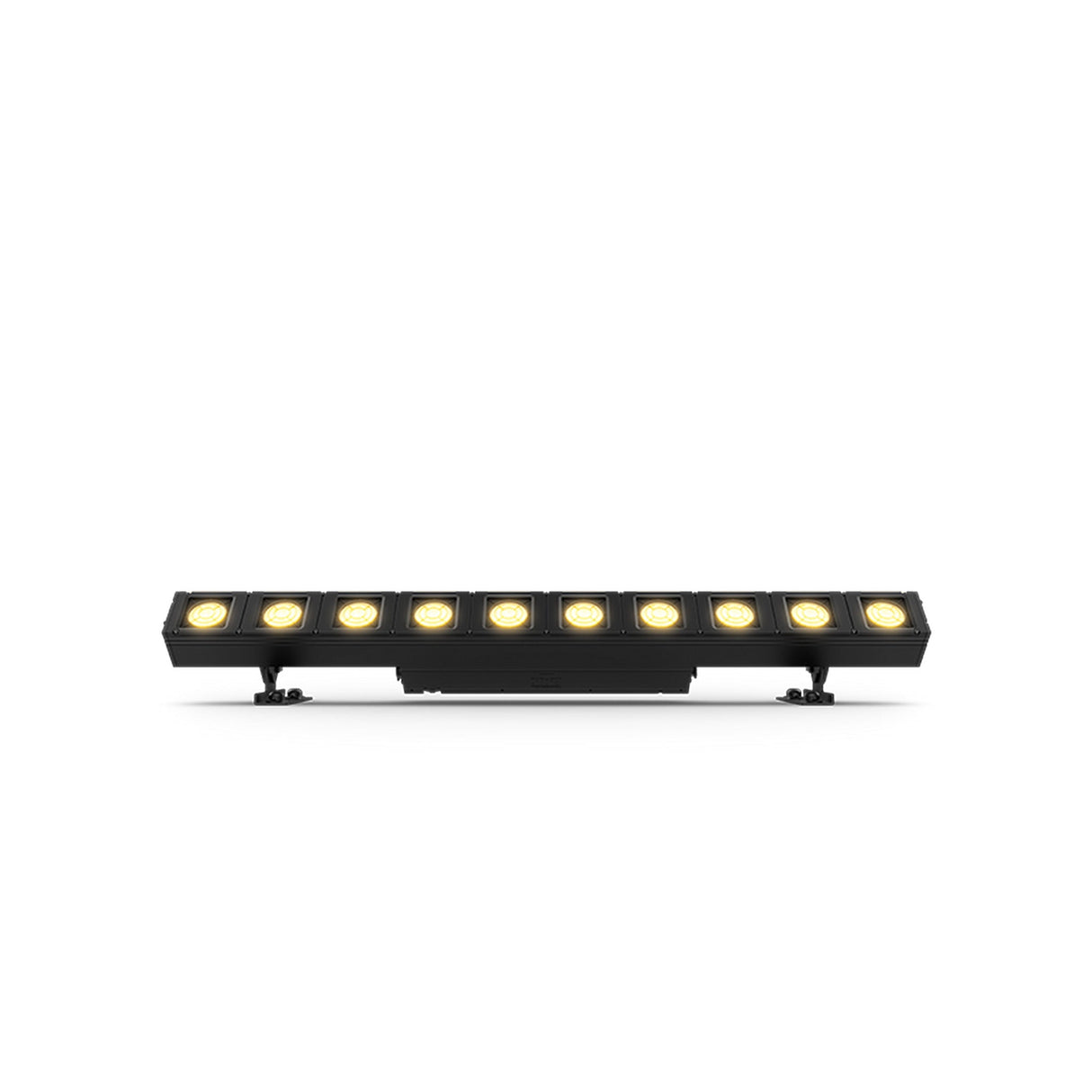

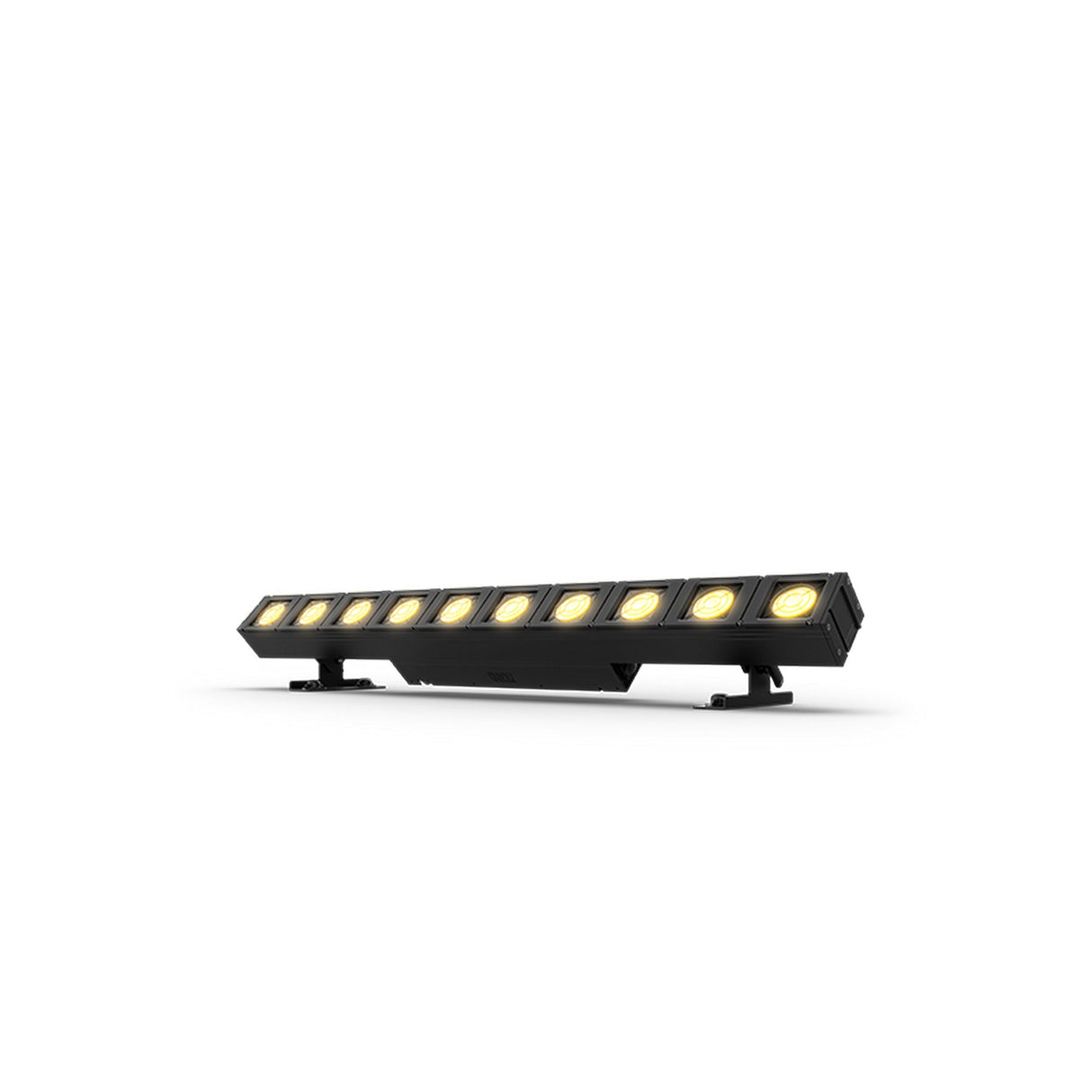

Chauvet Professional STRIKE Saber 10 LED Batten
Chauvet Professional STRIKE Saber 10 is a pixel mappable LED batten designed for blinder, footlight, and warm white wash applications. It enables high output warm white and amber illumination for lighting designers and programmers, supporting touring, rental, and permanent installations. This makes it ideal for environments where incandescent style warmth and smooth dimming behavior are critical.
The fixture delivers tunable warm white output with emulated red shift to replicate the behavior of traditional tungsten sources. Individual cell control supports pixel based chases and strobe effects. Selectable PWM and high resolution dimming support live and on camera use.
This batten is built for demanding indoor and outdoor use with an IP65 rated housing. Its tool free end to end interlocking system supports fast rigging and alignment. Adjustable mounting options allow use as a blinder or footlight across varied production layouts.
Key Features
- Tunable Warm White Output: Delivers warm white and amber light with emulated incandescent red shift.
- Pixel Mappable Design: Supports dynamic chases and segmented strobe effects.
- High Resolution Dimming: 16 bit dimming provides smooth fades and intensity control.
- IP65 Rated Construction: Designed for temporary outdoor and wet use.
- Tool Free Rigging: End to end interlocking system enables fast deployment.
- Flexible Control: Supports DMX and RDM with multiple channel personalities.
Technical Specifications
OpticalLight Source: 10 LEDs (Warm White and Amber)
Color Temperature (at full): 2792 K
CRI: 92.9
TLCI: 91
Beam Angle Vertical: 20.9
Beam Angle Horizontal: 20.9
Field Angle Vertical: 25.1
Field Angle Horizontal: 25.1
Lumens: 5,959
Illuminance: 1686 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Strobe: Electronic
Strobe Rate: 0 to 26.7 Hz
Dim Modes: 4
Built in Automated Programs: Yes
Construction / Physical
Dimensions: 39.3 x 3.08 x 6.18 in (1000 x 78.4 x 157 mm)
Weight: 14.6 lb (8 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die cast
Connections
Power Connection: Edison local plug to Seetronic Tru1
Power Input: Seetronic Tru1
Power Output: Seetronic Tru1
Data Connectors: 5 pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 3, 6, 13, 22, 26Ch1, 26Ch2
Modes Personalities: 6 personalities (1Ch, 3Ch, 6Ch, 13Ch, 22Ch, 26Ch1, 26Ch2)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz auto ranging
Power Linking: 6 units @ 110 V; 16 units @ 208 V; 1 units @ 230 V
Power and Current: 183 W, 1.83 A @ 100 V, 60 Hz
Power and Current: 181 W, 1.52 A @ 120 V, 60 Hz
Power and Current: 178 W, .86 A @ 208 V, 60 Hz
Power and Current: 177 W, .78 A @ 230 V, 50 Hz
Power and Current: 178 W, .75 A @ 240 V, 60 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP65
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What’s in the Box
(1) STRIKE Saber 10(1) Seetronic Powerkon Bare Wire
