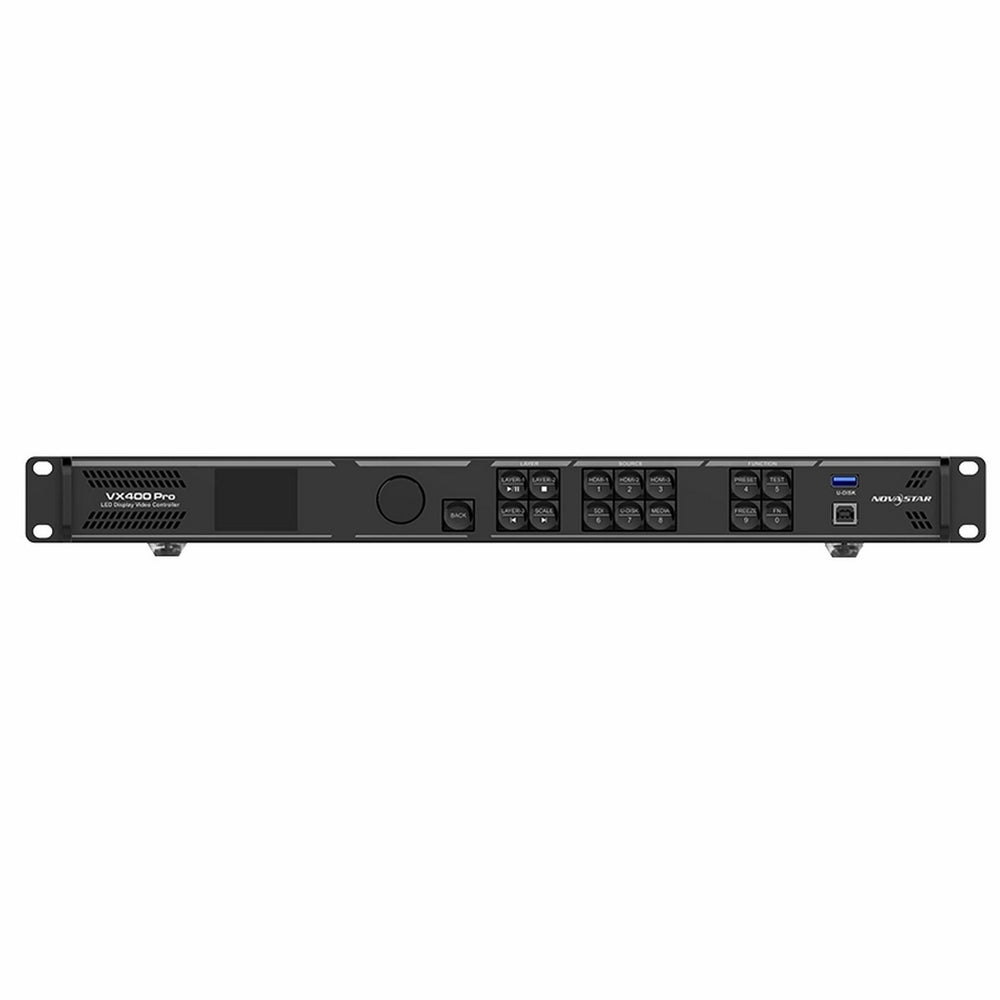

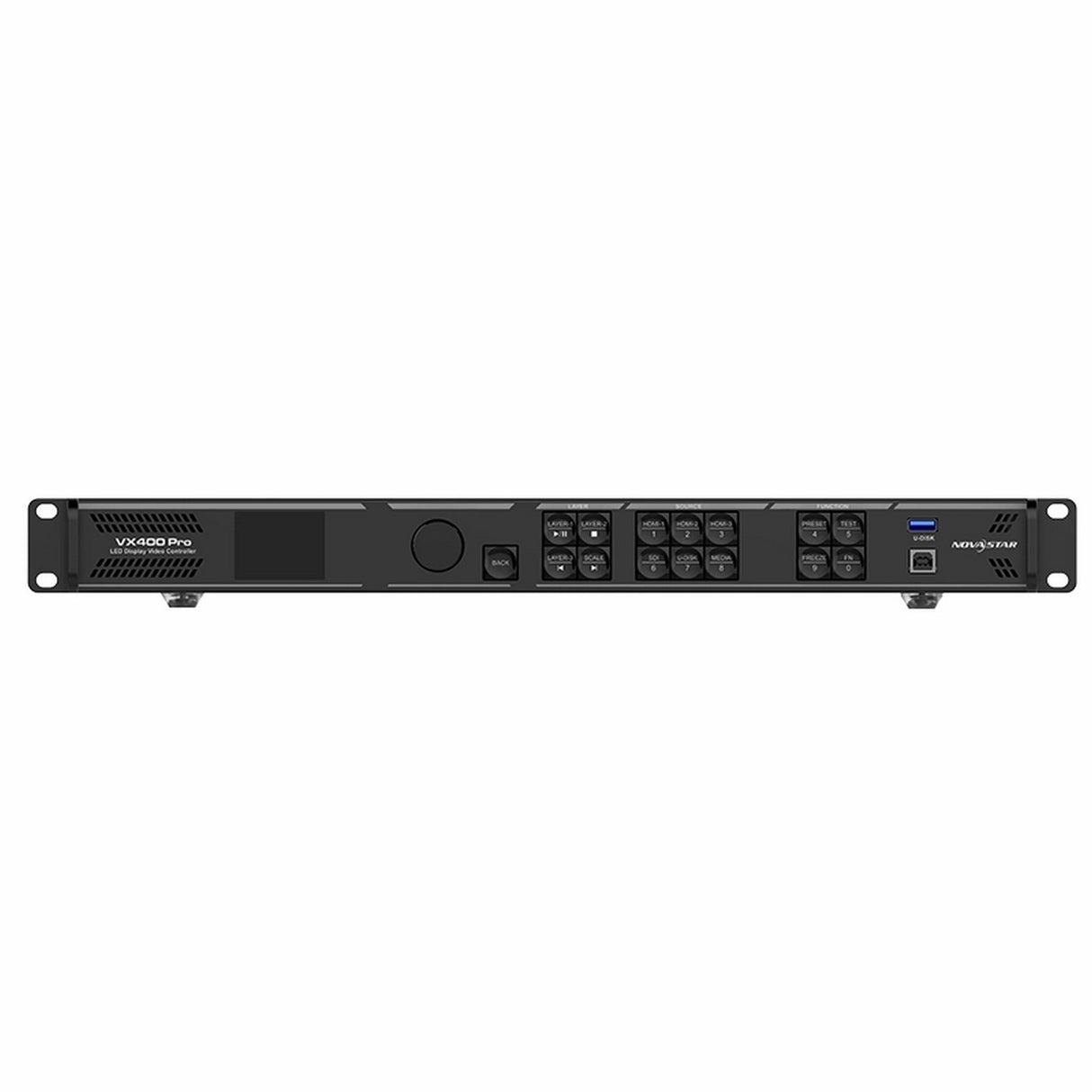

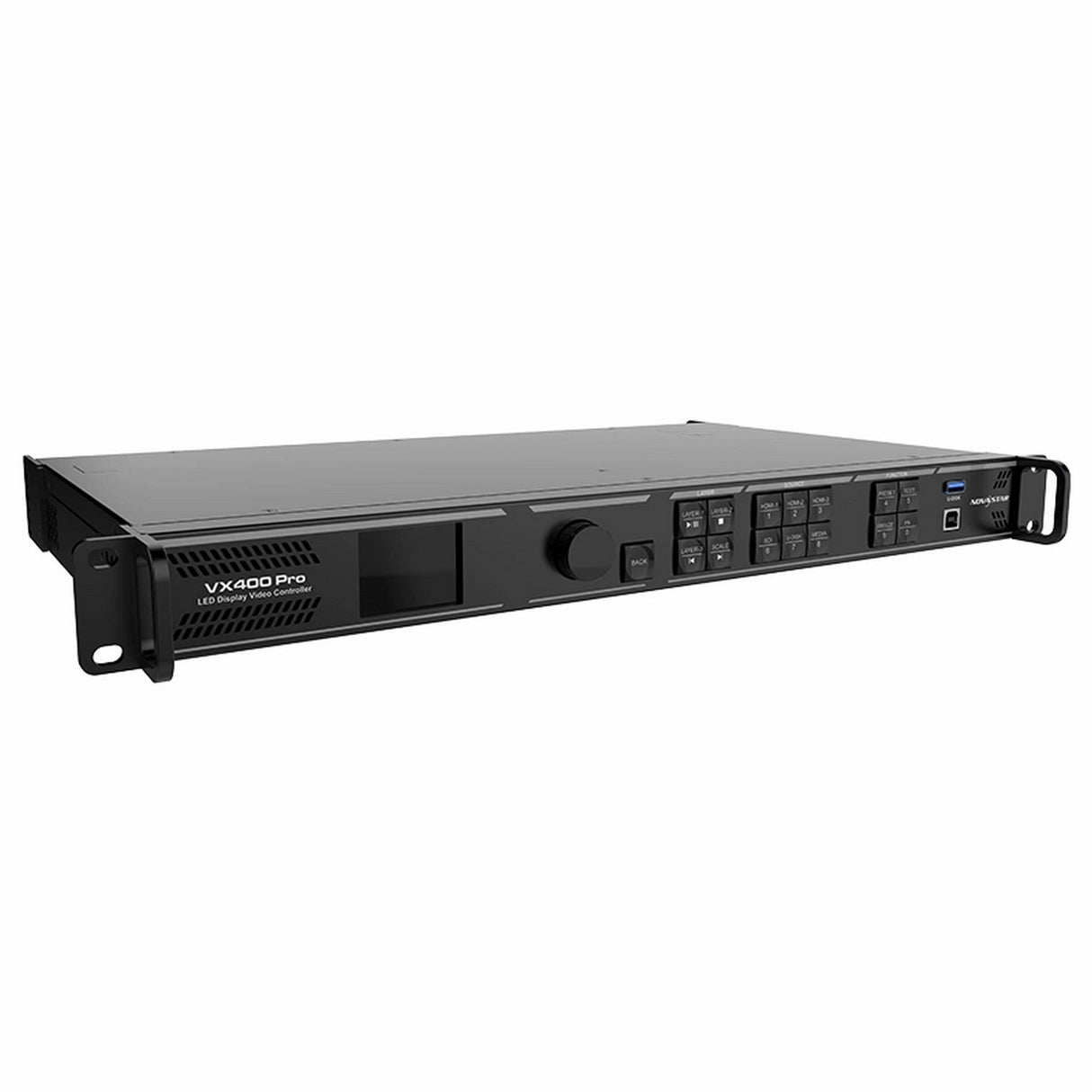

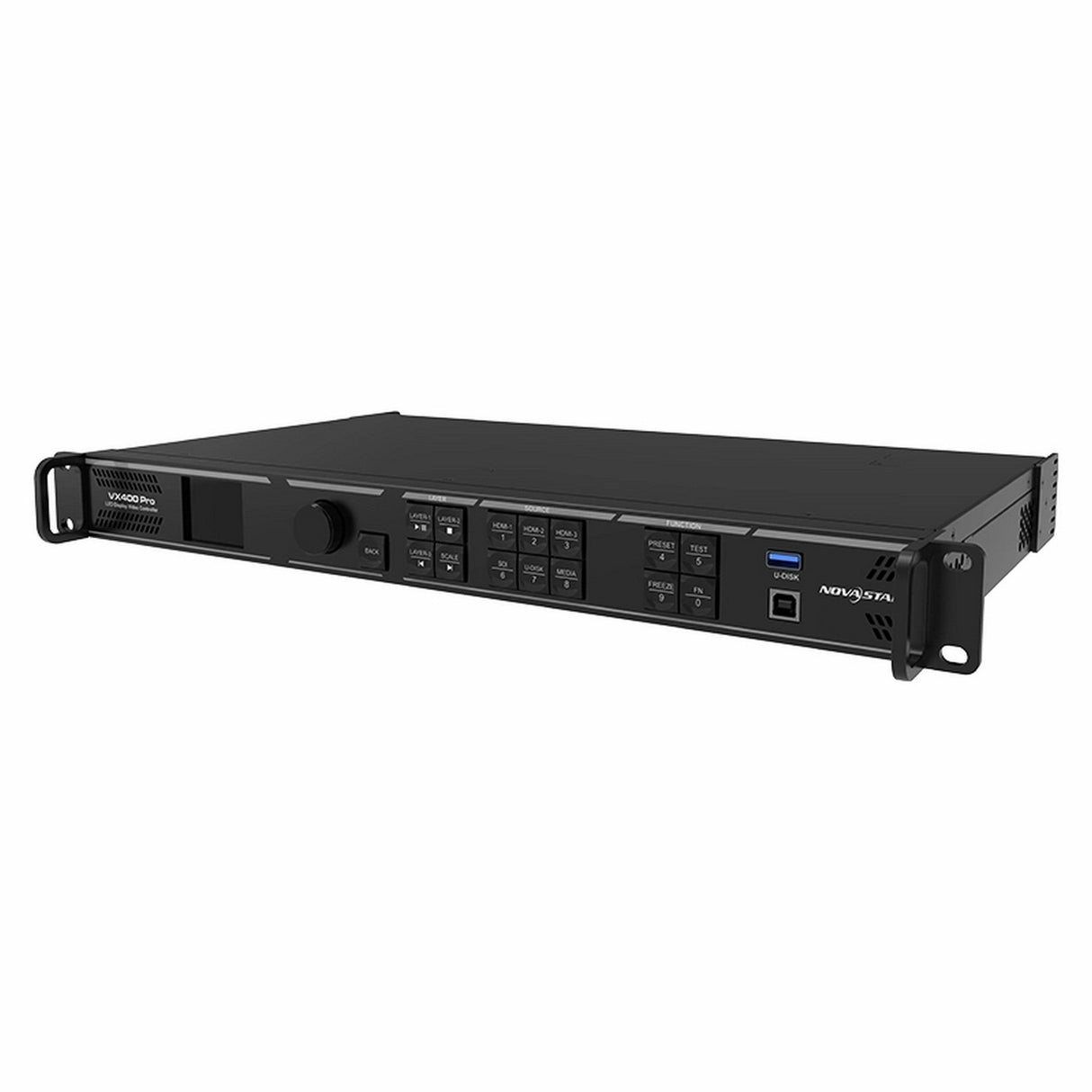

NovaStar VX400 Pro 4K All-in-One LED Video Controller

NovaStar VX400 Pro 4K All-in-One LED Video Controller

The NovaStar VX400 Pro LED Video Controller combines LED display processing and video control in one rackmount unit for rental, stage, and fine-pitch LED systems. Four Gigabit Ethernet outputs handle up to 2.6 million pixels, while the processor supports video inputs up to 4096x2160@60Hz and LED canvases up to 10,240 pixels wide or 8,192 pixels high.

Designed for professional LED wall control, the VX400 Pro accepts HDMI 2.0, HDMI 1.3, 3G-SDI, optical, and USB media sources. Six 2Kx1K layer resources can be allocated as 4Kx2K, 4Kx1K, or 2Kx1K layers, giving production teams flexible composition options. Full-screen, pixel-to-pixel, and custom scaling support unusual canvas formats, while Video Controller, Fiber Converter, and ByPass modes adapt the processor to different signal-chain requirements.

The VX400 Pro also supports low-latency processing, EDID management, output color adjustment, pixel-level brightness and chroma calibration, and multiple backup methods. Operators can control the unit from its front panel, NovaLCT, Unico, or the VICP app. CE, FCC, IC, PSE, RCM, EAC, UL, CB, KC, and RoHS certifications support professional integration requirements.

Key Features

• 2.6 Million-Pixel Capacity: Controls LED displays through four Gigabit Ethernet outputs with support for ultra-wide and ultra-tall screen layouts.
• 4K HDMI 2.0 Input: Accepts video resolutions up to 4096x2160@60Hz with support for custom high-resolution source formats.
• Six Layer Resources: Provides six 2Kx1K resources that can create 4Kx2K, 4Kx1K, or 2Kx1K layers.
• Three Working Modes: Operates as a video controller, fiber converter, or ByPass controller for flexible system deployment.
• Low-Latency Processing: ByPass mode with low latency enabled reduces device delay to zero frames.
• USB Media Playback: Plays supported images, video, and audio directly from USB storage without a separate media player.
• Flexible Scaling: Supports full-screen, pixel-to-pixel, and custom scaling with input cropping and stepless output scaling.
• Professional Backup Functions: Supports device, input source, Ethernet port, optical, and dual receiving card backup workflows.

Technical Specifications

LED Processing and Display Capacity

• Product Type: All-in-one LED video controller and processor
• Maximum Loading Capacity: 2.6 million pixels
• Maximum Output Width: 10,240 pixels
• Maximum Output Height: 8,192 pixels
• Ethernet Outputs: 4 x Gigabit Ethernet
• Maximum Capacity Per Ethernet Port: 650,000 pixels at 8-bit output
• Layer Resources: 6 x 2Kx1K
• Supported Layer Sizes: 4Kx2K, 4Kx1K, and 2Kx1K
• Layer Controls: Adjustable size, position, priority, and aspect ratio
• User Presets: Up to 256
• Scaling Modes: Full screen, pixel-to-pixel, and custom
• Image Processing: SuperView III with stepless output scaling, one-click full-screen display, and input cropping
• Output Color Controls: Brightness, saturation, contrast, and hue
• Calibration: Pixel-level brightness and chroma calibration with compatible NovaStar software
• Test Images: Supported
• OSD: Static text, dynamic text, weather, time, and image OSD
• Static Text OSD Components: Up to 10
• Dynamic Text OSD Components: 1
• Weather OSD Components: Up to 2
• Time OSD Components: Up to 2
• 3D Support: Supported with a compatible 3D emitter and glasses
• 3D Capacity Limitation: Output capacity is halved with Side-by-Side or Top-and-Bottom 3D sources

Operating Modes and Latency

• Working Modes: Video Controller, Fiber Converter, and ByPass
• Video Controller Latency with Low Latency Enabled: 1 to 2 frames
• Video Controller Latency without Low Latency: 2 to 3 frames
• ByPass Latency with Low Latency Enabled: 0 frames
• ByPass Latency without Low Latency: 1 frame
• Fiber Converter Latency: 0 frames
• Output Synchronization: Supports synchronization from an input video source across cascaded units
• EDID Management: Import and export EDID files
• Data Retention: Restores previously saved settings after shutdown or power loss
• Backup Functions: Device, input source, Ethernet port, optical-to-Ethernet, and dual receiving card backup

Video Inputs

• HDMI 2.0: 1 input with loop output
• HDMI 2.0 Maximum Input Resolution: 4096x2160@60Hz
• HDMI 2.0 Custom Maximum Width: 8192 pixels at 8192x1080@60Hz
• HDMI 2.0 Custom Maximum Height: 8188 pixels at 1080x8188@60Hz
• HDMI 2.0 Bit Depth: 8-bit, 10-bit, and 12-bit
• HDMI 2.0 Color Formats: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
• HDMI 2.0 HDCP: HDCP 1.4 and HDCP 2.2
• HDMI 2.0 Loop Capacity: Up to 6 devices in one loop
• HDMI 2.0 Audio: Embedded audio supported
• HDMI 2.0 Interlaced Inputs: Not supported
• HDMI 1.3: 2 inputs
• HDMI 1.3 Maximum Input Resolution: 1920x1080@60Hz
• HDMI 1.3 Custom Maximum Width: 2048 pixels at 2048x1080@60Hz
• HDMI 1.3 Custom Maximum Height: 2048 pixels at 1080x2048@60Hz
• HDMI 1.3 HDCP: HDCP 1.4
• HDMI 1.3 Color Formats: RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2
• HDMI 1.3 Audio: Embedded audio supported
• HDMI 1.3 Interlaced Inputs: Not supported
• 3G-SDI: 1 input with loop output
• 3G-SDI Maximum Input Resolution: 1920x1080@60Hz
• 3G-SDI Standards: ST-424, ST-292, and ST-259
• 3G-SDI Protocols: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A, and SMPTE 425M-B
• 3G-SDI Processing: Deinterlacing supported
• Optical Video Input: OPT 1 self-adapts for video input or output operation
• USB Media Input: 1 x USB 3.0

Input Connector Capacity Modes

• SL Standard Resolution: 1920x1080@60Hz
• SL Custom Maximum Width: 2048 pixels at 2048x1080@60Hz
• SL Custom Maximum Height: 2048 pixels at 1080x2048@60Hz
• DL Standard Resolutions: 3840x1080@60Hz and 3840x2160@30Hz
• DL Custom Maximum Width: 4096 pixels at 4096x1080@60Hz
• DL Custom Maximum Height: 3840 pixels at 1080x3840@60Hz
• 4K Standard Resolutions: 4096x2160@60Hz and 8192x2160@30Hz
• 4K Custom Maximum Width: 8192 pixels at 8192x1080@60Hz
• 4K Custom Maximum Height: 8188 pixels at 1080x8188@60Hz

Video and Optical Outputs

• Gigabit Ethernet Outputs: 4
• Ethernet Output Frame Rates: 23.98, 24, 25, 29.97, 30, 47, 48, 50, 59.94, 60, 71.93, 72, 75, 85, 95, 100, 119.88, 120, and 144Hz
• Optical Ports: 2 x 10G optical fiber
• OPT 1: Self-adaptive for video input or output
• OPT 2: Supports output copy, backup, or loop operation
• Optical Input and Output Mode: OPT 1 accepts video input while OPT 2 copies or backs up the four Ethernet outputs
• Optical Input and Loop Mode: OPT 1 accepts video input while OPT 2 provides loop output
• Optical Output Mode: OPT 1 carries the four Ethernet outputs while OPT 2 copies or backs them up
• Single-Mode Optical Transmission: Up to 10 km with a compatible twin-core optical module
• Multi-Mode Optical Transmission: Up to 300 m with a compatible twin-core optical module
• Monitor Output: 1 x HDMI 1.3
• Monitor Output Resolution: Fixed 1920x1080@60Hz
• HDMI Loop Output: HDMI 2.0 loop output
• SDI Loop Output: 3G-SDI loop output
• 3D Connector: 1

Audio and Control

• Audio Input: 1 x 3.5 mm
• Audio Output: 1 x 3.5 mm
• Audio Sampling Rate: Up to 48 kHz through the dedicated audio connectors
• Output Volume: Adjustable
• Control Ethernet: 2 ports
• USB Control: 1 x USB 2.0
• Device Cascading: Up to 5 devices through USB and Ethernet
• RS232: 1 x 3-pin connector with RX, TX, and ground
• Light Sensor Port: 1 for compatible ambient-brightness sensing
• Control Methods: Front-panel knob, Unico client or web control, NovaLCT, VICP app, and optional remote control
• Firmware Update: Supported through control connections and USB storage
• Log and EDID Transfer: Import and export supported through USB

USB Media Playback

• Supported File Systems: NTFS, FAT32, and exFAT
• USB Drive Requirement: Single-partition drive
• Maximum Media Dimensions: 3840x2160 pixels
• Image Formats: JPG, JPEG, PNG, and BMP
• Maximum Decoded Image Resolution: 3840x2160
• Video Containers: MP4, MKV, MOV, AVI, FLV, M4V, MPG, MPEG, and TS
• Video Codecs: H.264, H.265, MPEG-2, and MPEG-4
• Maximum H.264 Playback: 3840x2160 at 30 fps
• Maximum H.265 Playback: 3840x2160 at 60 fps
• Maximum MPEG-2/MPEG-4 Playback: 1920x1080 at 60 fps
• Maximum H.264/H.265 Bitrate: 100 Mbps
• Maximum MPEG-2/MPEG-4 Bitrate: 50 Mbps
• Audio Codecs: AAC, AC3, DTS, MP3, DVD, DVD_LPCM, MP2, and OPUS
• OPUS Sampling Rates: 24 kHz and 48 kHz
• Other Supported Audio Sampling Rates: 22.05 kHz to 94 kHz
• USB Source Output Resolution: Fixed 1920x1080@60Hz

Electrical and Environmental

• Power Input: 100-240V AC, 50/60Hz, 2A-0.8A
• Rated Power Consumption: 42W
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 5% RH to 85% RH, non-condensing
• Storage Temperature: -10°C to 60°C
• Storage Humidity: 5% RH to 95% RH, non-condensing
• Typical Noise Level: 45 dB(A) at 25°C
• Installation Orientation: Horizontal only

Physical Specifications

• Dimensions: 19" W x 11.9" D x 2" H
• Net Weight: 8.4 lb
• Total Packed Weight: 14.1 lb
• Packing Box Dimensions: 22.2" x 17.7" x 6.9"
• Certifications: CE, FCC, IC, PSE, RCM, EAC, UL, CB, KC, and RoHS

What's In the Box

• NovaStar VX400 Pro All-in-One Controller
• Power Cord
• Ethernet Cable
• HDMI Cable
• 2 x Silicone Dustproof Plugs
• USB Cable
• Phoenix Connector
• Quick Start Guide
• Certificate of Approval
• Safety Manual
