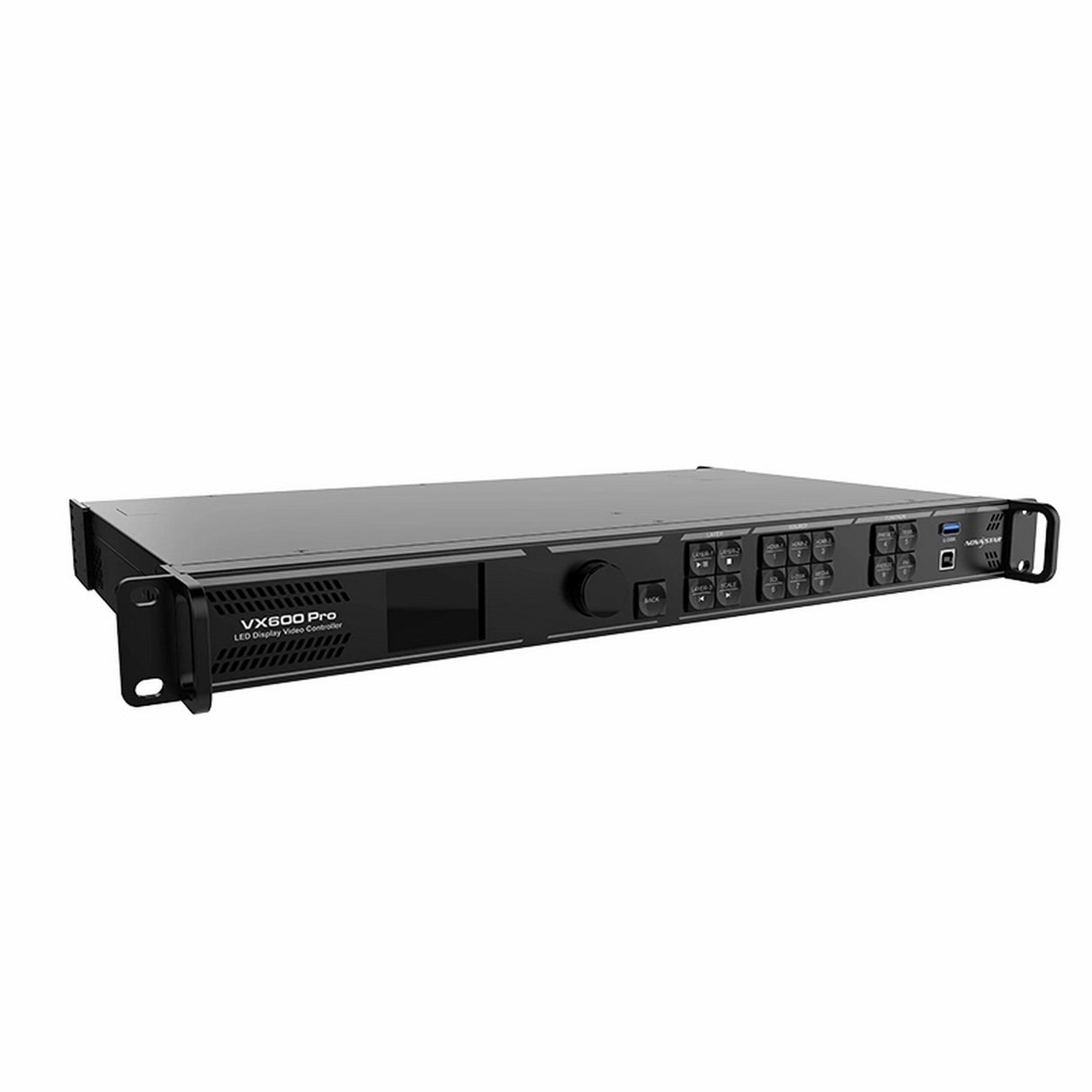

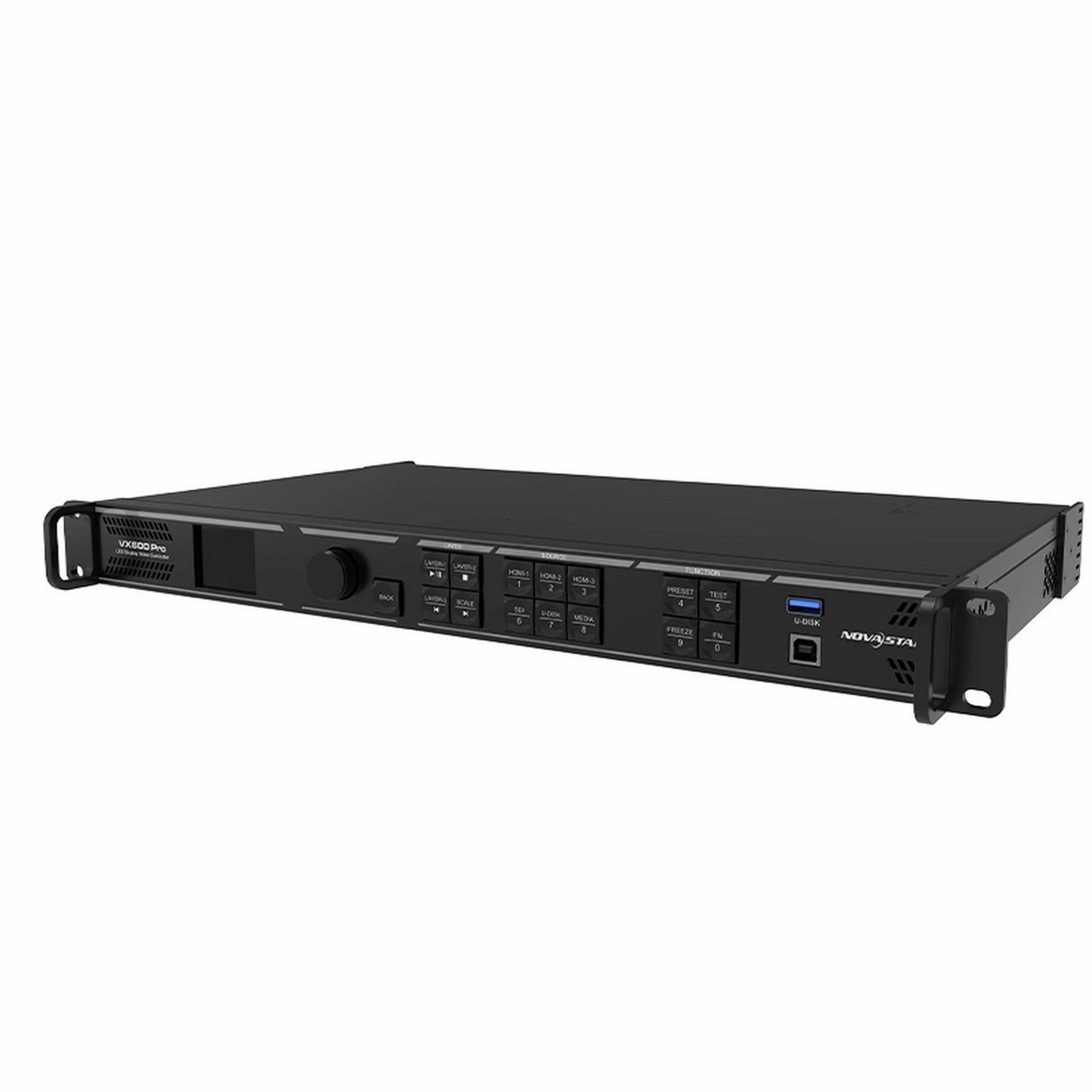

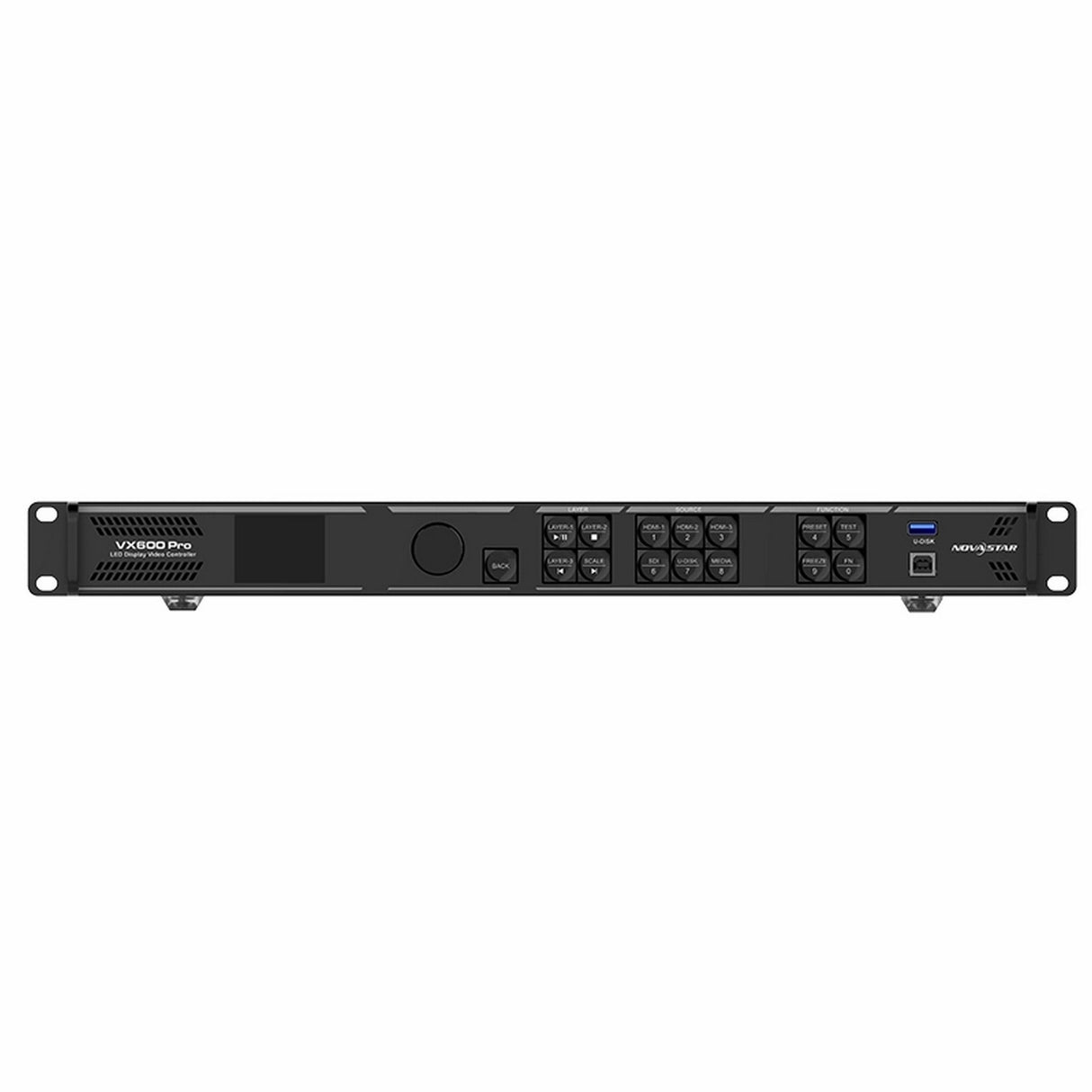

NovaStar VX600 Pro 4K All-in-One LED Video Controller

NovaStar VX600 Pro 4K All-in-One LED Video Controller

The NovaStar VX600 Pro LED Video Controller combines video processing and LED display control in a single rackmount unit for medium-to-high-end rental, stage, and fine-pitch LED applications. It drives up to 3.9 million pixels through six Gigabit Ethernet ports, accepts video inputs up to 4096x2160@60Hz, and supports output canvases as wide as 10,240 pixels.

For production teams that need a 4K LED wall controller with flexible signal routing, the VX600 Pro provides HDMI 2.0, HDMI 1.3, 3G-SDI, optical fiber, and USB media playback. Six 2Kx1K layer resources support configurable 4Kx2K, 4Kx1K, and 2Kx1K layers, while full-screen, pixel-to-pixel, and custom scaling simplify unusual LED canvas layouts. Video controller, fiber converter, and ByPass modes let one processor cover several deployment roles.

The processor supports Genlock synchronization, EDID management, output color adjustment, pixel-level brightness and chroma calibration, and multiple backup methods for professional LED workflows. Control is available from the front panel, Unico, NovaLCT, or the VICP app. CE, FCC, IC, PSE, RCM, EAC, UL, CB, KC, and RoHS certifications provide additional documentation for professional system integration.

Key Features

• 3.9 Million-Pixel Capacity: Drives LED displays through six Gigabit Ethernet outputs with support for canvases up to 10,240 pixels wide or 8,192 pixels high.
• 4K Video Input: HDMI 2.0 accepts resolutions up to 4096x2160@60Hz and supports custom ultra-wide or ultra-tall source formats.
• Six Layer Resources: Provides six 2Kx1K resources that can be allocated to 4Kx2K, 4Kx1K, or 2Kx1K layers.
• Three Operating Modes: Functions as a video controller, fiber converter, or ByPass controller for adaptable LED production workflows.
• Flexible Scaling: Supports full-screen, pixel-to-pixel, and custom scaling with stepless output scaling and input cropping.
• Low-Latency Operation: ByPass with low latency enabled can reduce device processing delay to zero frames.
• Integrated USB Playback: Plays supported image, video, and audio media directly from USB storage without a separate playback computer.
• Professional Backup and Sync: Supports Genlock, device and source backup, Ethernet and optical backup, and dual receiving card backup.

Technical Specifications

LED Processing and Display Capacity

• Product Type: All-in-one LED video controller and processor
• Maximum Loading Capacity: 3.9 million pixels
• Maximum Output Width: 10,240 pixels
• Maximum Output Height: 8,192 pixels
• Ethernet Output Capacity: Up to 650,000 pixels per port at 8-bit output
• Layer Resources: 6 x 2Kx1K
• Supported Layer Sizes: 4Kx2K, 4Kx1K, and 2Kx1K
• Layer Controls: Adjustable size, position, priority, and aspect ratio
• User Presets: Up to 256
• Scaling Modes: Full screen, pixel-to-pixel, and custom
• Image Processing: SuperView III with stepless output scaling, one-click full-screen display, and free input cropping
• Output Color Controls: Brightness, saturation, contrast, and hue
• Calibration: Pixel-level brightness and chroma calibration with compatible NovaStar software
• OSD: Static text, dynamic text, weather, time, and image OSD functions
• 3D Support: Supported through a compatible 3D emitter; output capacity is halved with Side-by-Side or Top-and-Bottom 3D sources

Operating Modes and Latency

• Working Modes: Video controller, fiber converter, and ByPass
• Video Controller Latency: 1 to 2 frames with low latency enabled; 2 to 3 frames without low latency
• ByPass Latency: 0 frames with low latency enabled; 1 frame without low latency
• Fiber Converter Latency: 0 frames
• Output Synchronization: Supports synchronization from a video input source or external Genlock source
• EDID Management: Import and export EDID files
• Data Retention: Restores previously saved settings after a normal shutdown or unexpected power loss
• Backup Functions: Device backup, input source backup, Ethernet port backup, optical-to-Ethernet backup, and dual receiving card backup

Video Inputs

• HDMI 2.0: 1 input with loop output
• HDMI 2.0 Maximum Input Resolution: 4096x2160@60Hz
• HDMI 2.0 Custom Maximum Width: 8192 pixels at 8192x1080@60Hz
• HDMI 2.0 Custom Maximum Height: 8188 pixels at 1080x8188@60Hz
• HDMI 2.0 Bit Depth: 8-bit, 10-bit, and 12-bit
• HDMI 2.0 Color Formats: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
• HDMI 2.0 HDCP: HDCP 1.4 and HDCP 2.2
• HDMI 2.0 Loop: Up to 6 devices can be connected in one loop
• HDMI 1.3: 2 inputs
• HDMI 1.3 Maximum Input Resolution: 1920x1080@60Hz
• HDMI 1.3 Custom Maximum Width: 2048 pixels at 2048x1080@60Hz
• HDMI 1.3 Custom Maximum Height: 2048 pixels at 1080x2048@60Hz
• HDMI 1.3 HDCP: HDCP 1.4
• 3G-SDI: 1 input with loop output
• 3G-SDI Maximum Input Resolution: 1920x1080@60Hz
• 3G-SDI Standards: ST-424, ST-292, and ST-259
• 3G-SDI Protocols: SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 425M-A, and SMPTE 425M-B
• 3G-SDI Processing: Supports deinterlacing
• Optical Input: OPT 1 is self-adaptive for 10G optical video input or output
• USB Media Input: 1 x USB 3.0

Video and LED Outputs

• LED Outputs: 6 x Gigabit Ethernet
• Optical Ports: 2 x 10G optical fiber ports
• OPT 1: Self-adaptive for video input or output
• OPT 2: Supports output copy, backup, or loop operation
• Single-Mode Optical Transmission: Up to 10 km with a compatible twin-core optical module
• Multi-Mode Optical Transmission: Up to 300 m with a compatible twin-core optical module
• Monitor Output: 1 x HDMI 1.3 at fixed 1920x1080@60Hz
• HDMI Loop Output: HDMI 2.0 loop output
• SDI Loop Output: 3G-SDI loop output
• 3D Connector: 1

Audio, Control, and Synchronization

• Audio Input: 1 x 3.5 mm
• Audio Output: 1 x 3.5 mm
• Audio Sampling Rate: Up to 48 kHz through the dedicated audio connectors
• Control Ethernet: 2 ports
• USB Control: 1 x USB 2.0
• Device Cascading: Up to 5 devices through USB and Ethernet
• RS232: 1 x 3-pin connector with RX, TX, and ground
• Genlock: 1 x Genlock IN/LOOP supporting bi-level and tri-level sync signals
• Genlock Frame Rate: 24 to 60Hz
• Light Sensor Port: 1 for automatic screen brightness adjustment with a compatible sensor
• Control Methods: Front-panel controls, Unico client or web control, NovaLCT, VICP app, and optional remote control

USB Media Playback

• Supported File Systems: NTFS, FAT32, and exFAT
• Maximum Media Dimensions: 3840x2160 pixels
• Image Formats: JPG, JPEG, PNG, and BMP
• Maximum Decoded Image Resolution: 3840x2160
• Video Containers: MP4, MKV, MOV, AVI, FLV, M4V, MPG, MPEG, and TS
• Video Codecs: H.264, H.265, MPEG-2, and MPEG-4
• Maximum H.264 Playback: 3840x2160 at 30 fps
• Maximum H.265 Playback: 3840x2160 at 60 fps
• Maximum MPEG-2/MPEG-4 Playback: 1920x1080 at 60 fps
• Maximum H.264/H.265 Bitrate: 100 Mbps
• Maximum MPEG-2/MPEG-4 Bitrate: 50 Mbps
• Audio Codecs: AAC, AC3, DTS, MP3, DVD, DVD_LPCM, MP2, and OPUS
• OPUS Sampling Rates: 24 kHz and 48 kHz
• Other Supported Audio Sampling Rates: 22.05 kHz to 94 kHz
• USB Source Output Resolution: Fixed 1920x1080@60Hz

Electrical and Environmental

• Power Input: 100-240V AC, 50/60Hz, 2A-0.8A
• Rated Power Consumption: 43W
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 5% RH to 85% RH, non-condensing
• Storage Temperature: -10°C to 60°C
• Storage Humidity: 5% RH to 95% RH, non-condensing
• Typical Noise Level: 45 dB(A) at 25°C
• Installation Orientation: Horizontal only

Physical Specifications

• Dimensions: 19" W x 11.9" D x 2" H
• Net Weight: 8.6 lb
• Packed Weight with Paper Box: 14.3 lb
• Packed Weight with Flight Case: 20.3 lb
• Packing Box Dimensions: 22.2" x 17.7" x 6.9"
• Flight Case Dimensions: 20.4" x 18.5" x 3.7"
• Certifications: CE, FCC, IC, PSE, RCM, EAC, UL, CB, KC, and RoHS

What's In the Box

• NovaStar VX600 Pro All-in-One Controller
• Power Cord
• Ethernet Cable
• HDMI Cable
• 2 x Silicone Dustproof Plugs
• USB Cable
• Phoenix Connector
• Quick Start Guide
• Certificate of Approval
• Safety Manual
