StarTech Video Wall Mount for 45" to 70" Displays
Professional-Grade Pop-Out Video Wall Mount
The StarTech.com Video Wall Mount (VIDWALLMNT) is designed for commercial and professional display installations, supporting screens from 45 inches to 70 inches. Built from high-strength steel and aluminum, this mount can securely hold displays up to 154.7 lbs. Its advanced pop-out design and six-point micro-adjustment system allow for seamless alignment, making it ideal for creating stunning video wall configurations in retail, digital signage, control rooms, and other high-visibility applications.
With support for multiple VESA mounting patterns including 600x400 mm, 400x400 mm, and 200x200 mm, the VIDWALLMNT offers excellent flexibility. The mount provides full adjustability with +3° to -5° tilt, ±1.2° swivel, and ±3° rotation. Extendable up to 12 inches from the wall, it enables easy maintenance access while maintaining a sleek, professional look in any environment. Anti-theft features also enhance security in public or unattended installations.
Key Features
- Display Compatibility: Supports 45" to 70" flat-panel displays
- Weight Capacity: Holds up to 154.7 lbs (70 kg)

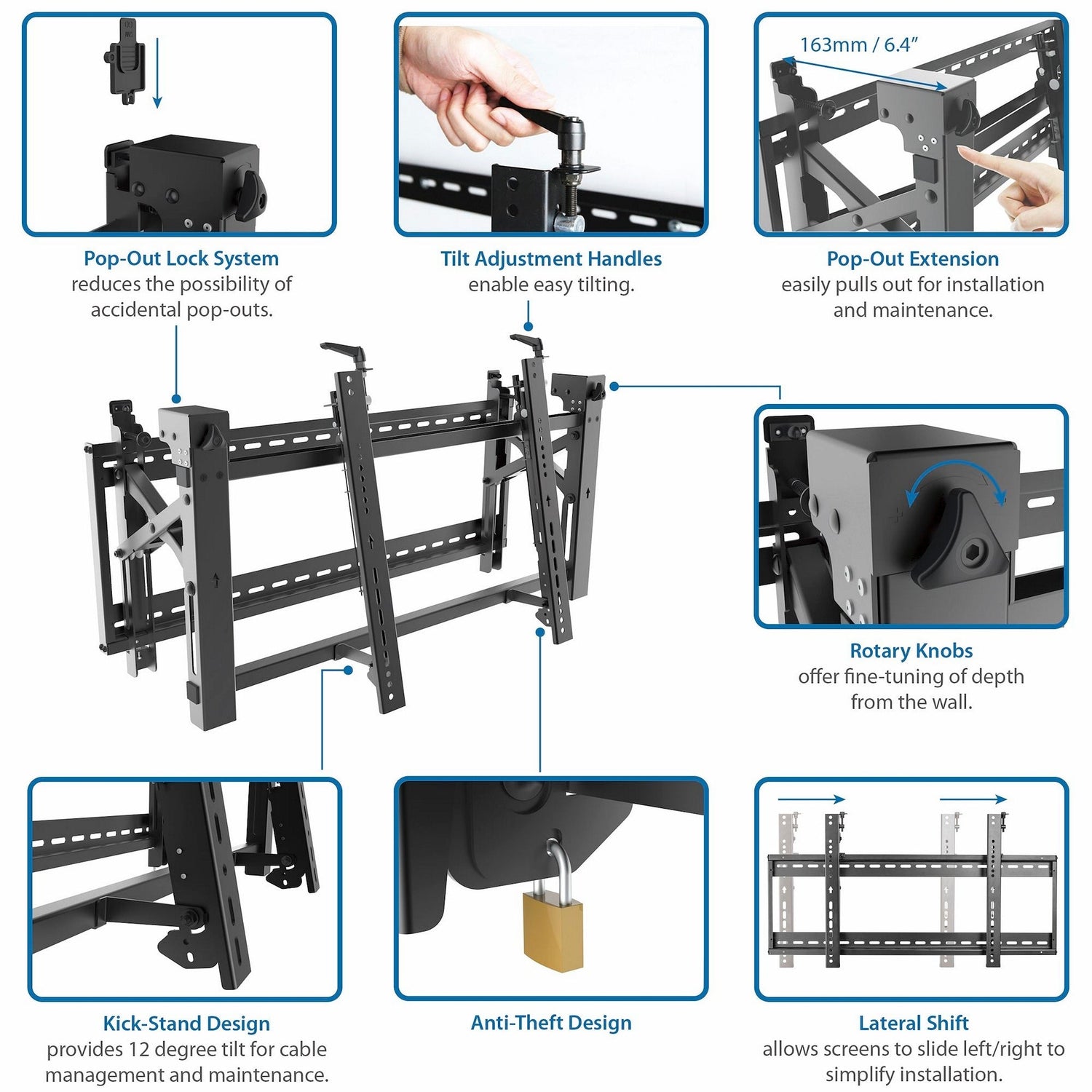

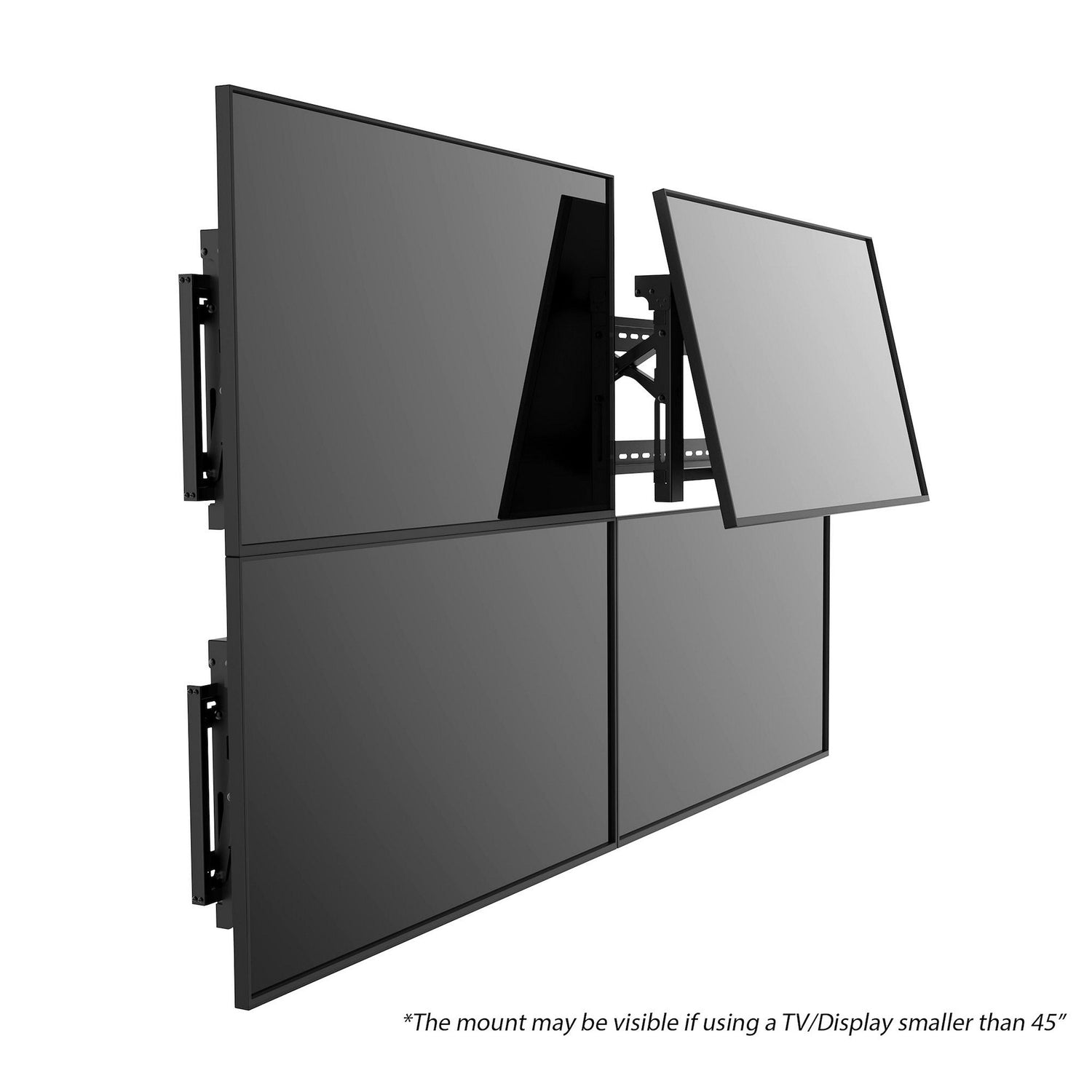

- Pop-Out Design: Enables easy maintenance and precise alignment
- Micro-Adjustment: Six-point adjustment for perfect screen positioning
- Mounting Standard: VESA 600x400, 400x400, 400x200, 300x300, 200x200

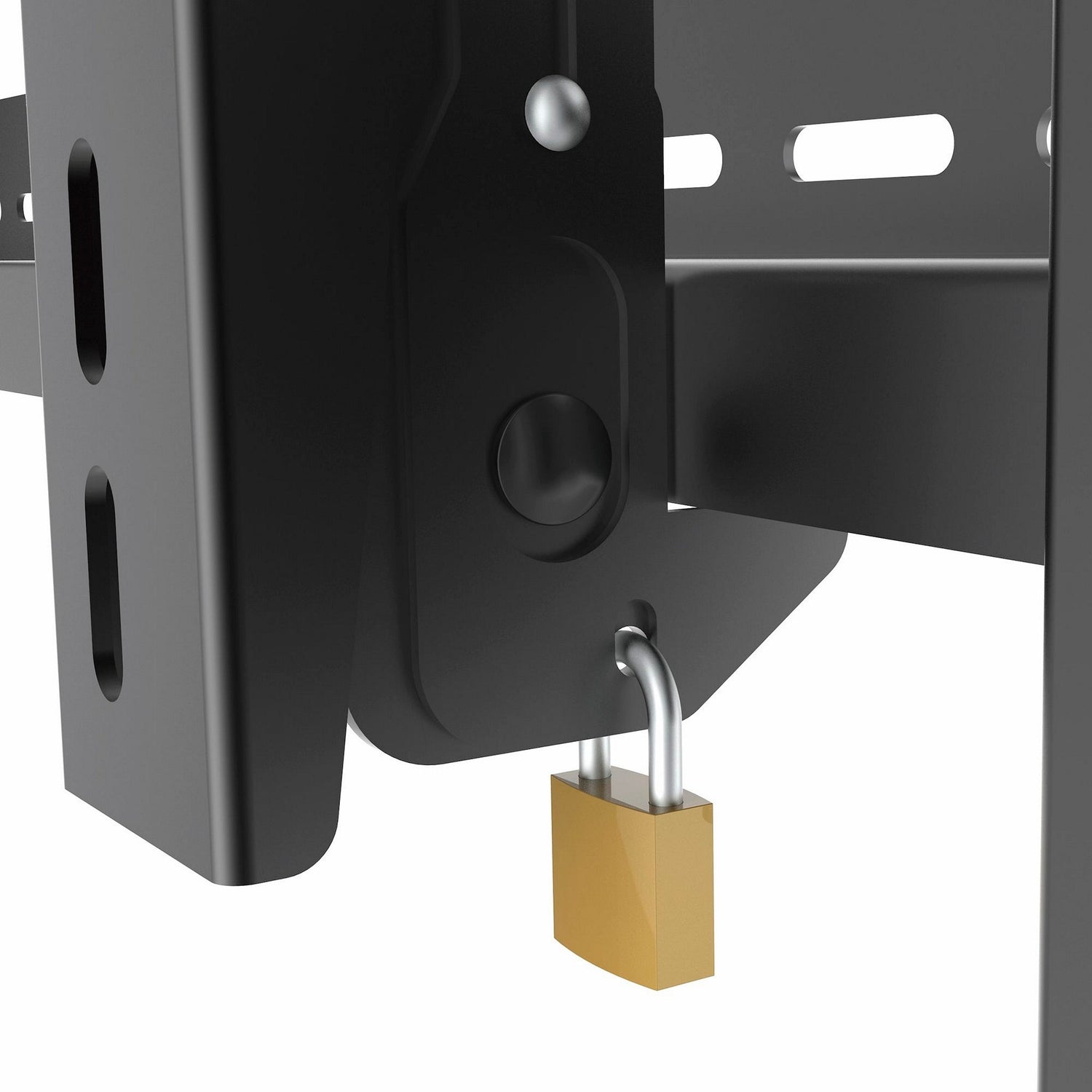

- Security: Built-in anti-theft features with padlock support
- Adjustability: Tilt (+3°/-5°), Swivel (±1.2°), Rotation (±3°)
- Extension: Extends up to 12 inches (306 mm) from wall
- Warranty: Backed by a 5-year warranty and lifetime technical support
Technical Specifications
- Dimensions: 36.8" (L) x 12" (W) x 19" (H)
- Weight: 34.7 lbs (15.7 kg)
- Color: Black
- Material: Steel and aluminum
- Wall Mount Type: Video wall mount with pop-out feature
- Number of Displays Supported: 1
- Compliance: RoHS compliant

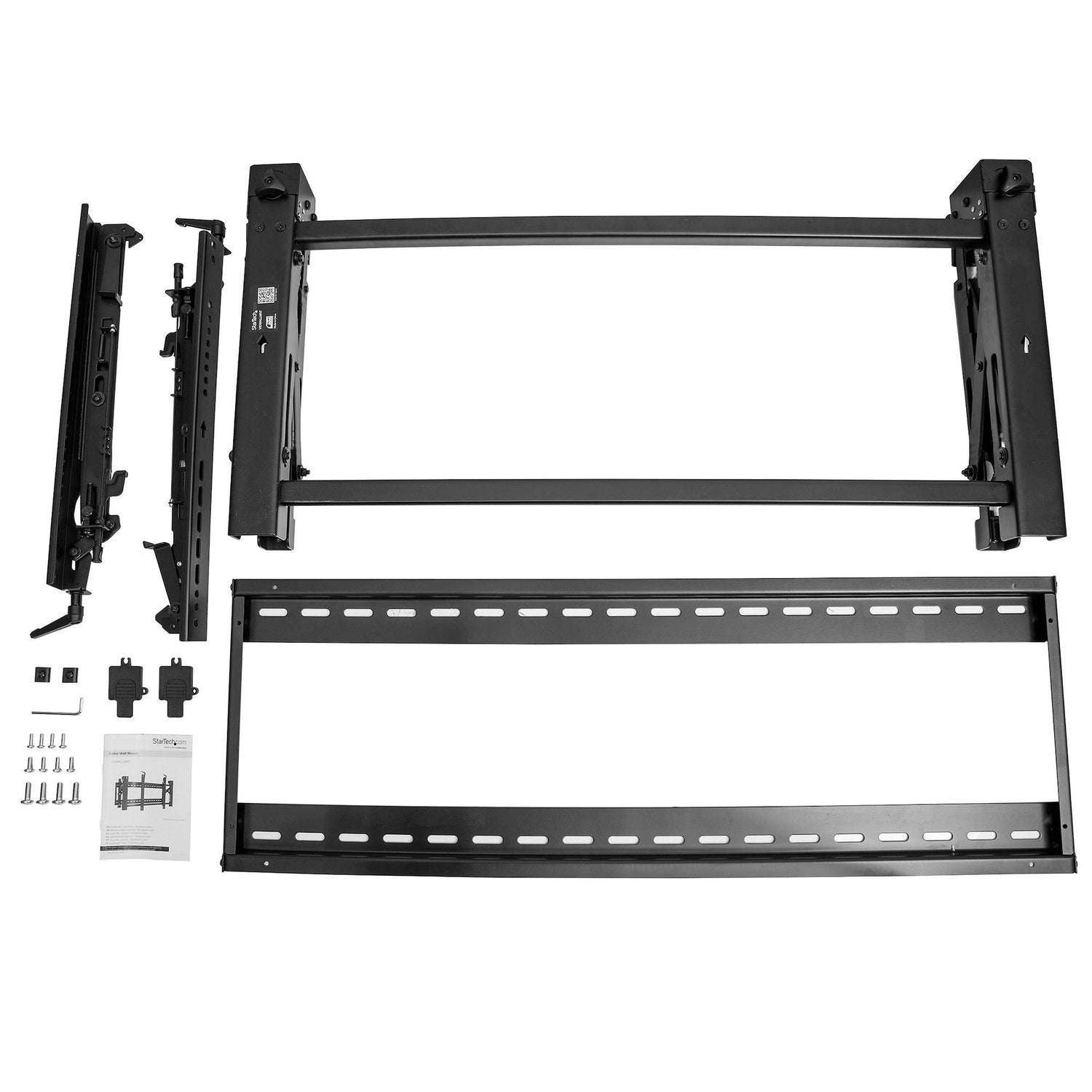

What's Included in the Box
- 1 x Wall Plate
- 1 x Adjustment Module
- 2 x Adapter Brackets
- 2 x Stoppers
- 2 x Plastic Tabs
- 1 x Hex Key
- 4 x M5x14 mm Screws
- 4 x M6x14 mm Screws
- 4 x M6x30 mm Screws
- 4 x M8x20 mm Screws
- 4 x M8x30 mm Screws
- 4 x Rectangular Washers
- 8 x Small Spacers
- 4 x Large Spacers
- 6 x 6.3x55 mm Screws
- 6 x Concrete Anchors
- 6 x Washers
- 1 x Instruction Manual
