Description
Turtle AV Video Wall Matrix and Multiviewer
The Turtle AV Video Wall Series offers a flexible, professional-grade solution for multi-screen video wall, matrix switching, and multiview configurations. With two size options — 4x4 and 8x8 — these units deliver high-resolution 4K60 HDMI video with full 4:4:4 chroma, making them ideal for corporate installations, control rooms, broadcast studios, signage networks, and large-scale AV deployments.
Both the 4x4 and 8x8 Video Wall units support seamless switching, individual source scaling, embedded/de-embedded audio, and advanced EDID and HDCP management. They can operate as video walls, full HDMI matrices, or multiview processors, giving you maximum flexibility with a single device. Built-in Web GUI, front-panel controls, RS-232, and API support make system integration and automation straightforward.
Whether you choose the compact 4x4 model for smaller installations or the high-capacity 8x8 for large video wall arrays, Turtle AV delivers a reliable, scalable, and feature-rich platform for multi-display video systems.
Variants

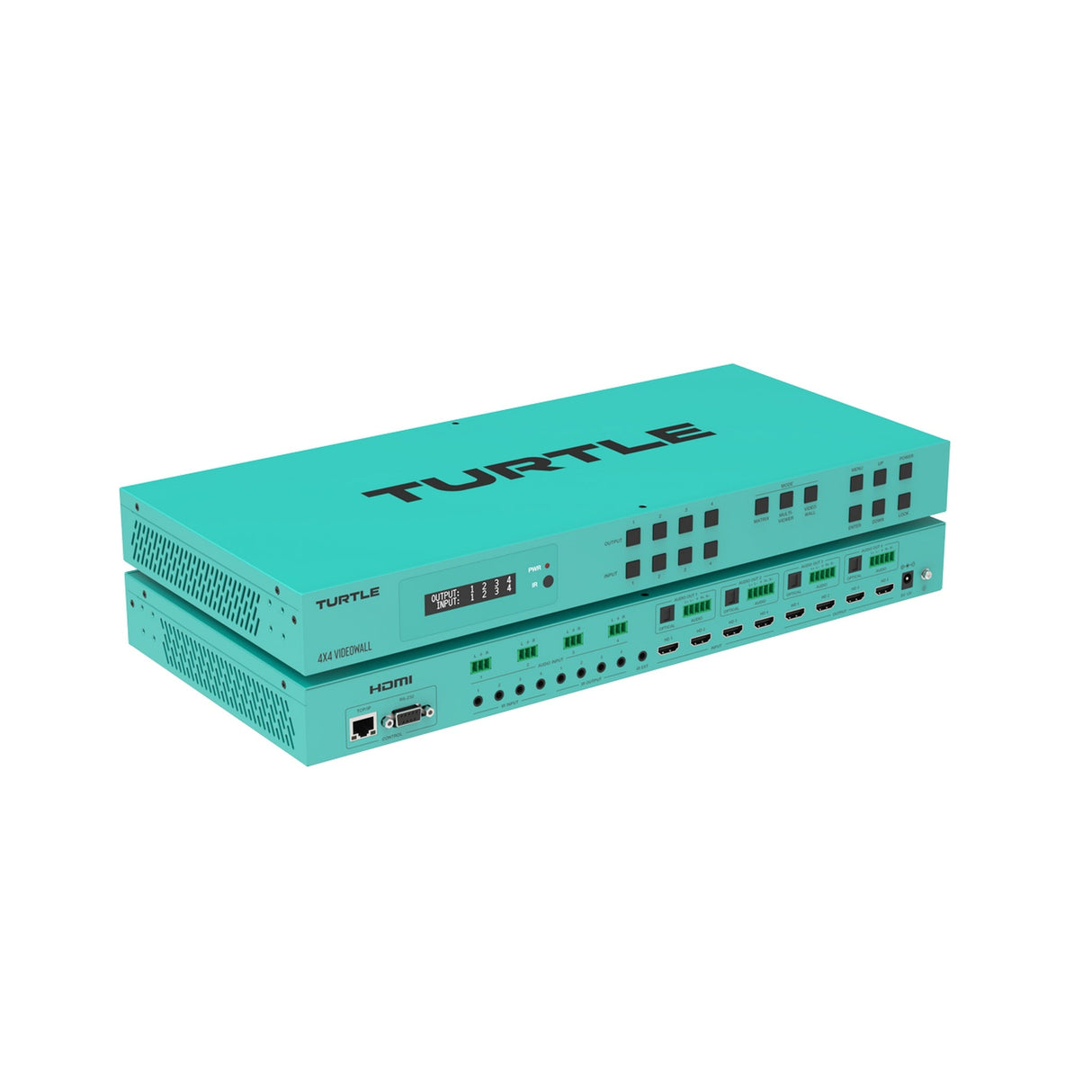

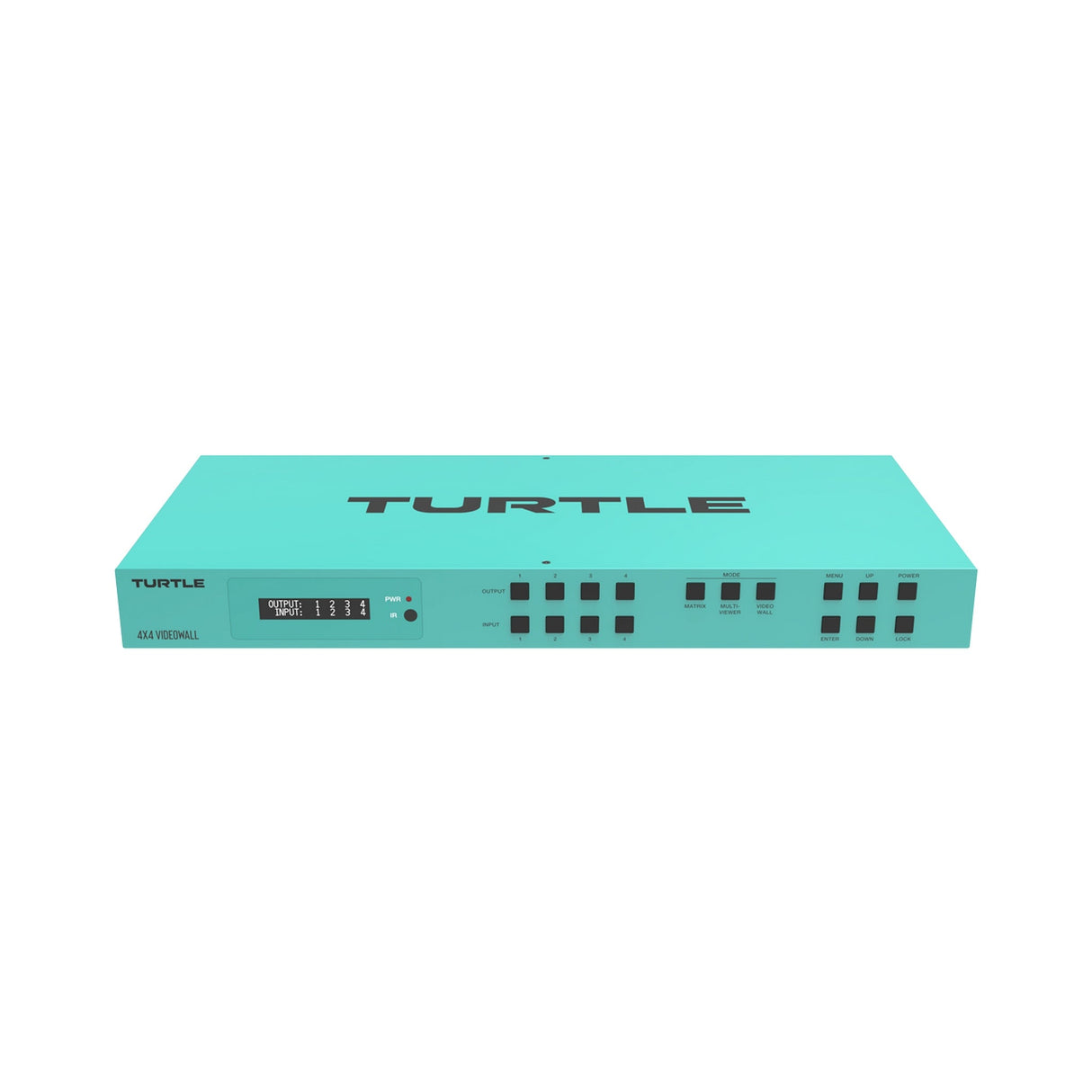

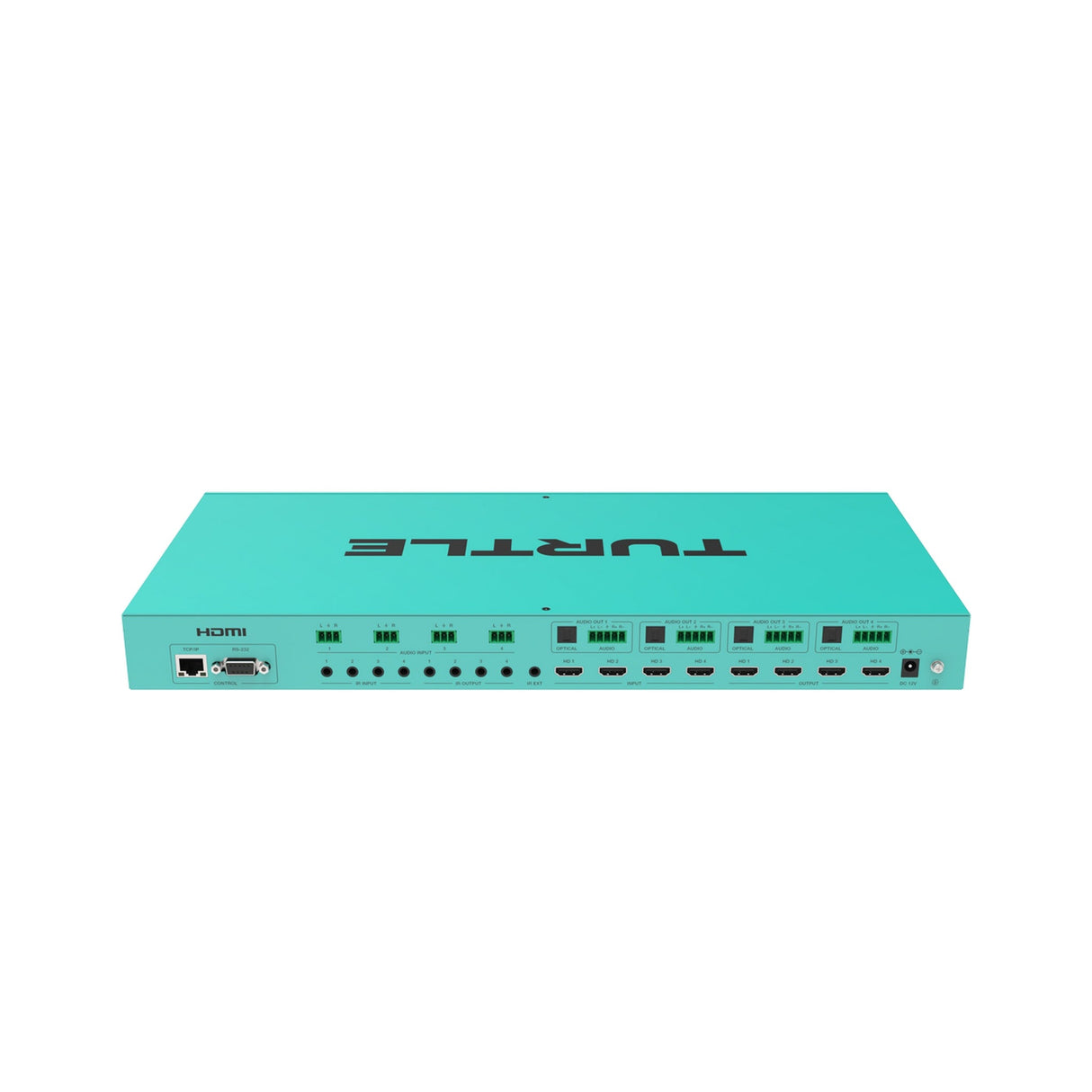

- Video Wall 4x4: 4 HDMI inputs, 4 HDMI outputs — supports 4K60 4:4:4 video, Matrix, Video Wall, and Multiview modes.

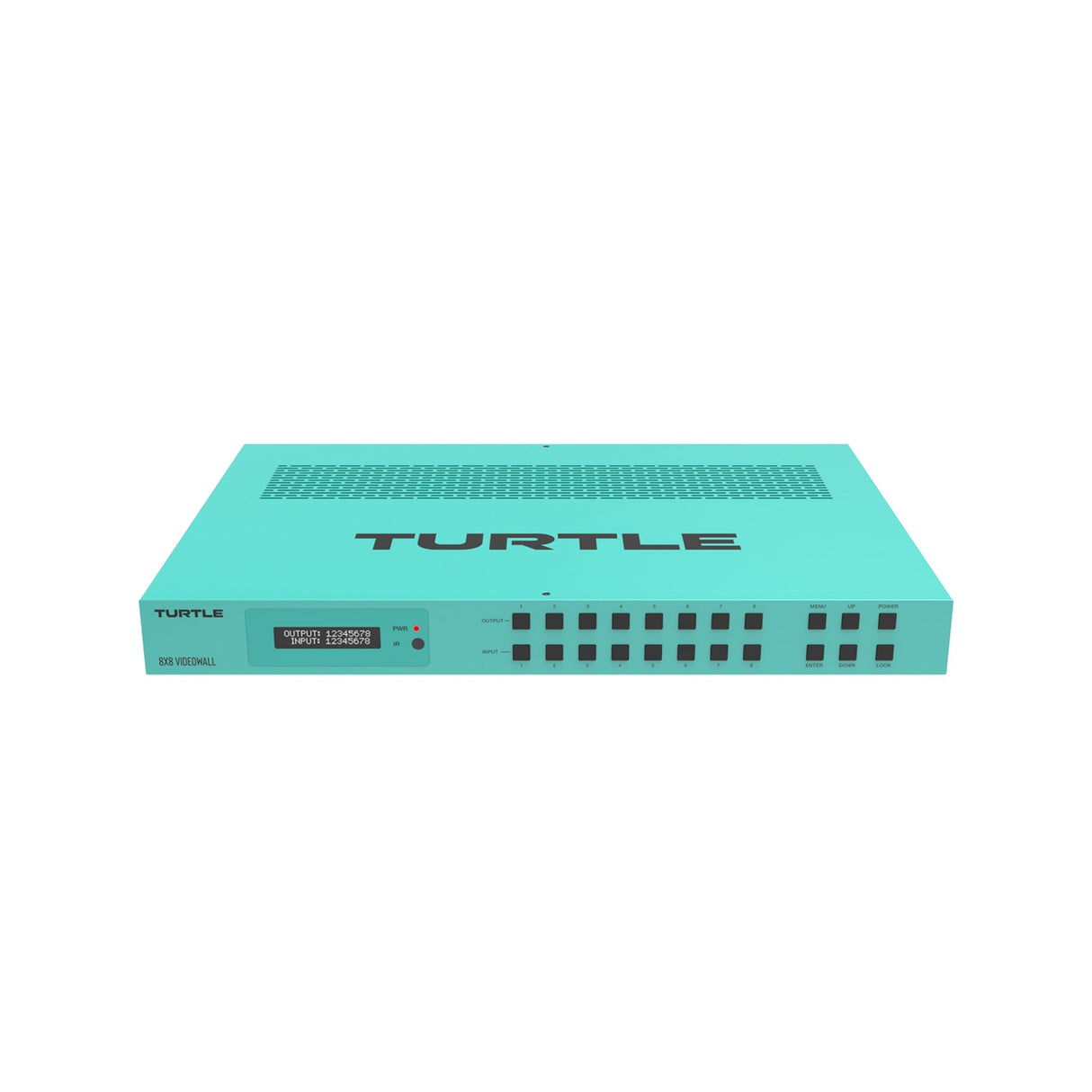

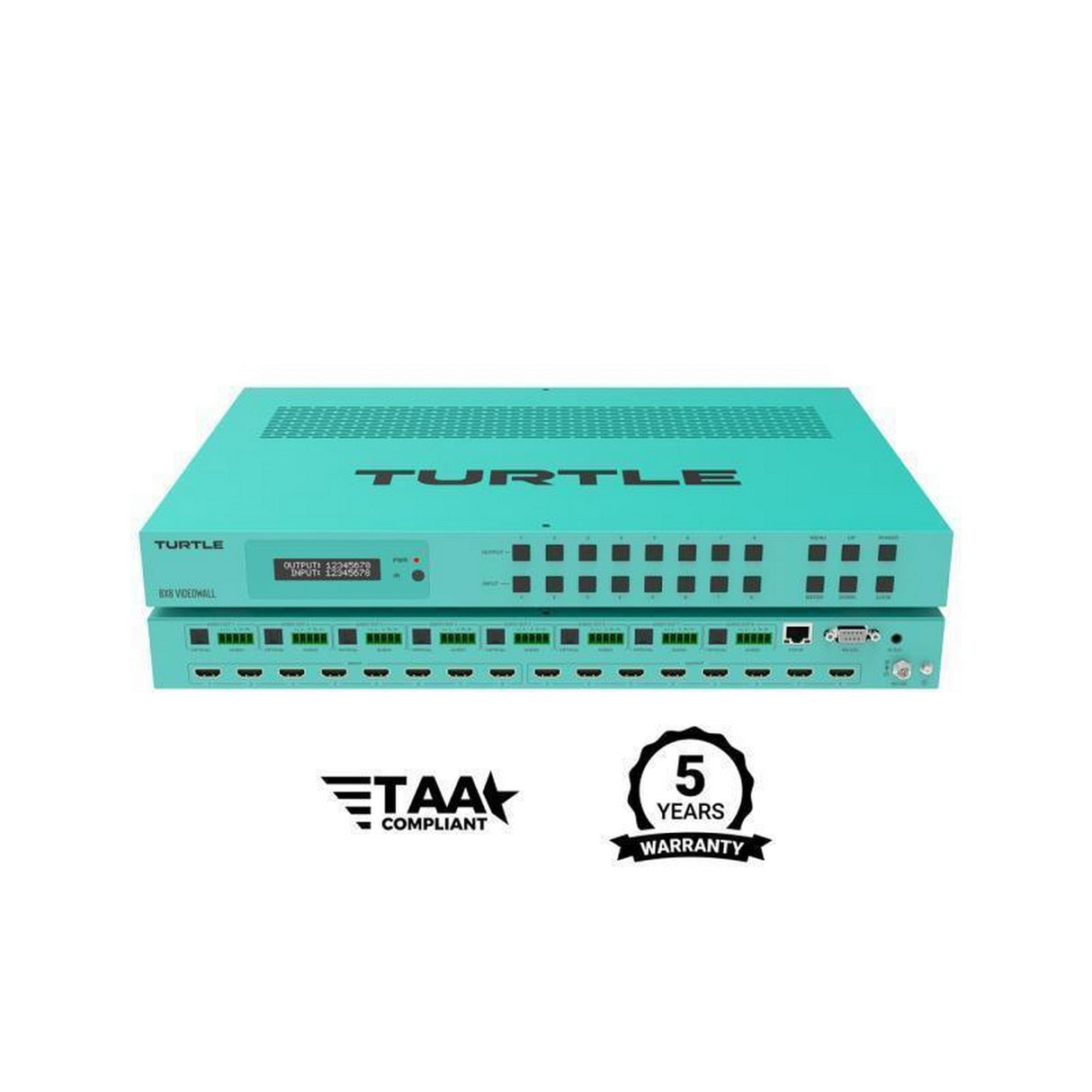

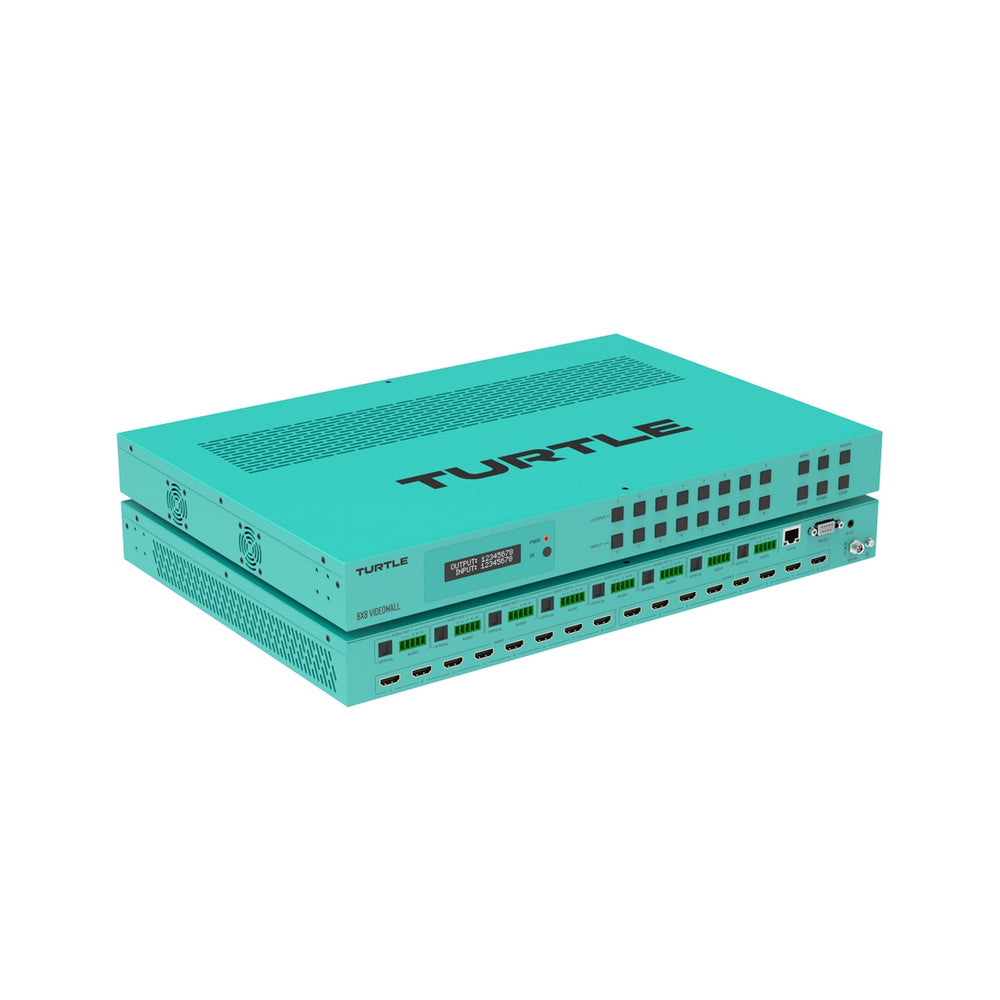

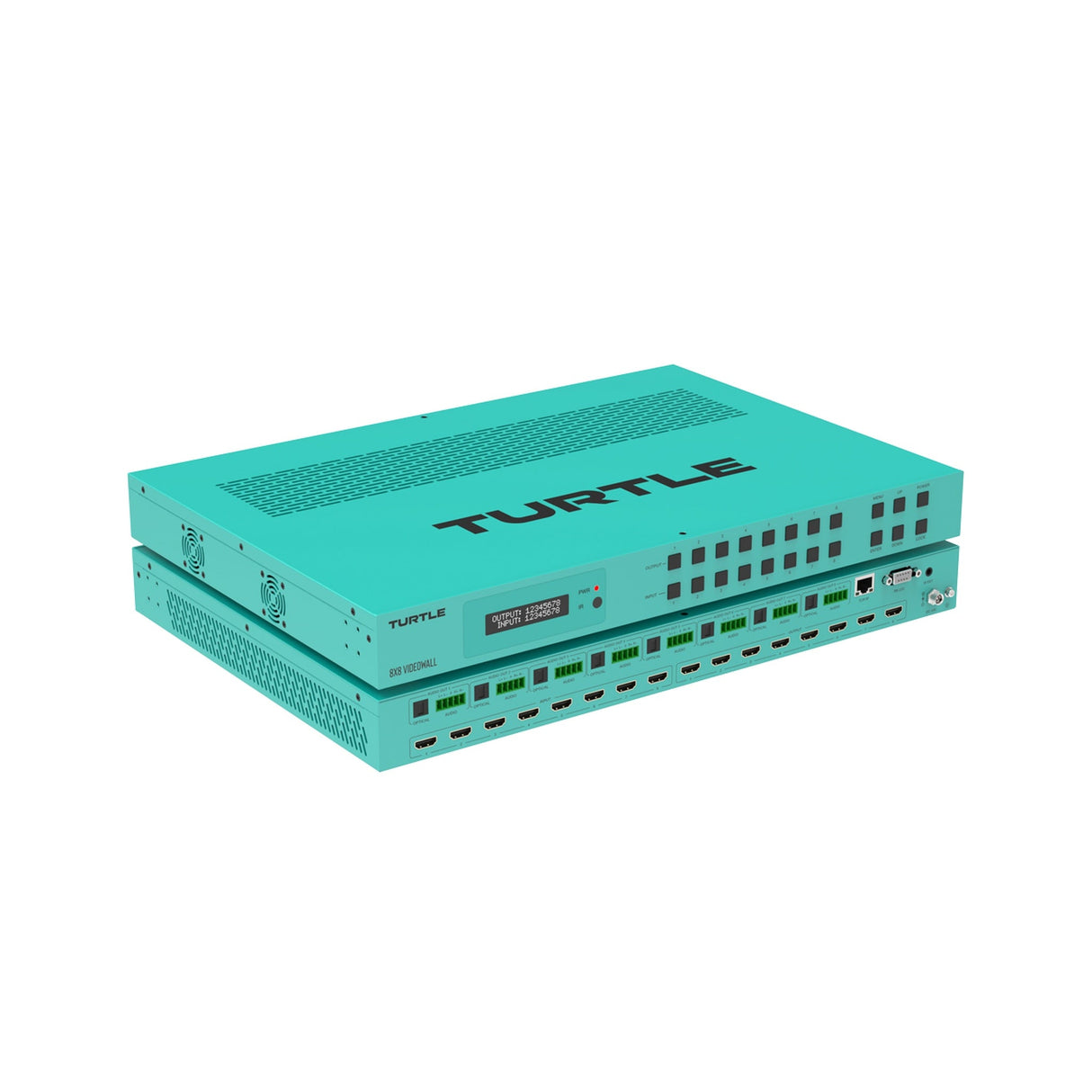

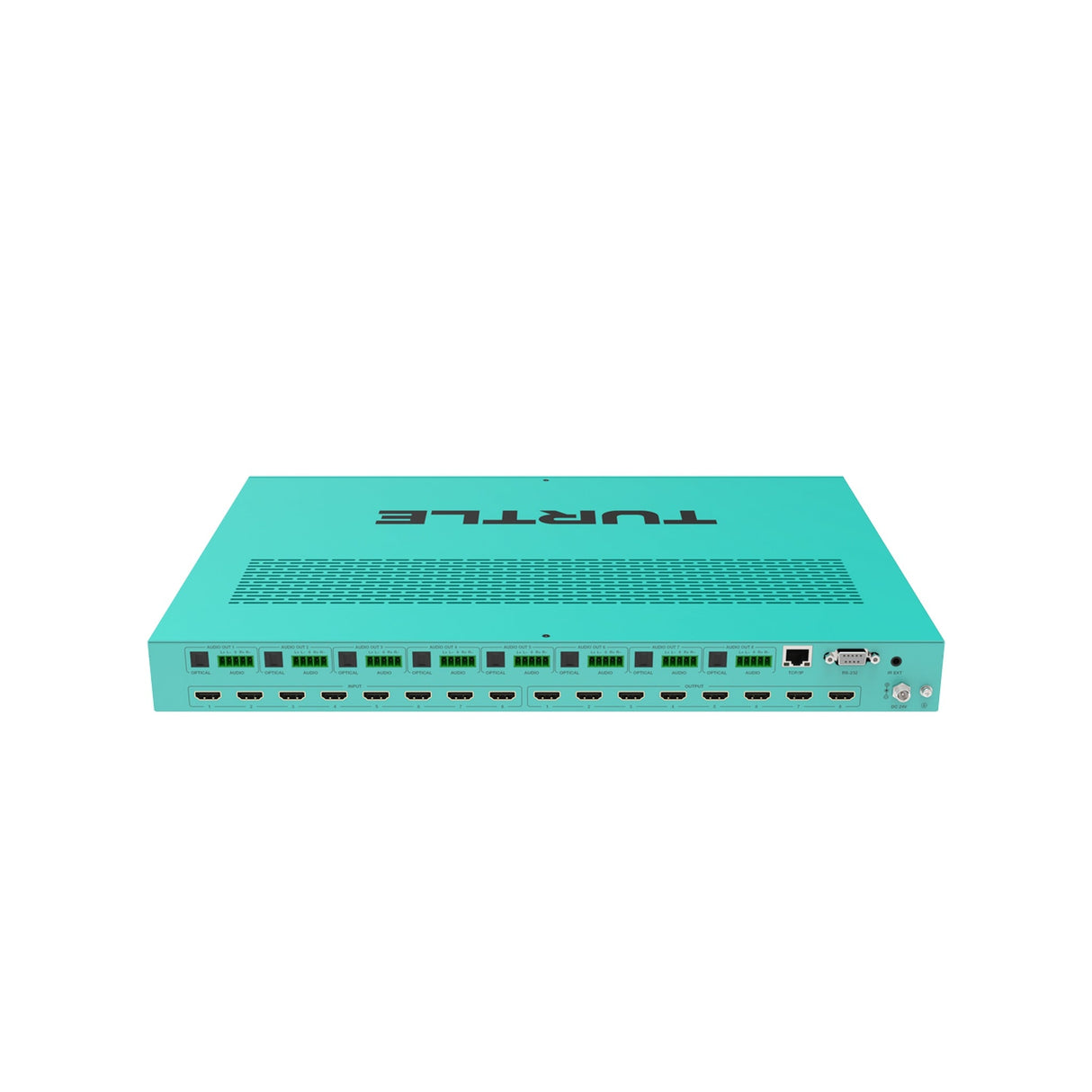

- Video Wall 8x8: 8 HDMI inputs, 8 HDMI outputs — supports 4K60 4:4:4 video, full 8x8 Matrix, Video Wall, and dual-output Multiview modes.
Key Features (Both Variants)
- 4K60 4:4:4 HDMI 2.0 Video: Full HD/UHD video output with rich color fidelity and bandwidth up to 18 Gbps per link.
- Flexible Modes: Operates as Video Wall, Full Matrix Switch, or Multiview Processor depending on configuration needs.
- Seamless Switching & Scaling: Smooth transitions between sources without frame loss, plus per-output scaling and layout control.
- Audio Embedding / De-Embedding: Support for HDMI embedded audio as well as analog / optical audio I/O for downstream audio devices.
- Advanced EDID and HDCP Management: EDID control and HDCP 2.2 compliance ensure compatibility with protected content and a range of displays.
- Multiple Control Interfaces: Front-panel buttons, Web GUI, RS-232, and API support for integration into automation and control systems.
- Metal Chassis: Durable, rack-mountable enclosure suitable for professional AV racks or equipment rooms.
Technical Specifications (Common Traits)
- HDMI Standard: HDMI 2.0, HDCP 2.2 compatible
- Max Video Resolution: Up to 3840 × 2160 at 60 Hz (4K60), 4:4:4 chroma
- Bandwidth per Link: 18 Gbps
- Color Depth (Input): 8-bit / 10-bit / 12-bit
- Color Space Output: RGB 4:4:4 or YCbCr 4:4:4 / 4:2:2 / 4:2:0
- Audio Support: HDMI embedded audio (LPCM, Dolby, DTS, etc.), plus analog or optical audio I/O where available
- Control Interfaces: LAN (PoE capable), RS-232 (Phoenix connector), IR (3.5 mm), Web GUI, API
- Power Supply: AC 100-240V to DC adapter (as per model)
- Form Factor: Standard rack-mount metal enclosure
