VigilLink G904 UHD Video Wall Controller
The G904 is a powerful video processor designed for large-scale display systems, offering unparalleled flexibility and performance for both commercial and professional applications. Equipped with two processing modules, it delivers exceptional video quality and control across multiple screens. The G904 allows for seamless integration with video walls, multi-viewer displays, and other sophisticated setups. Each channel can process independent displays with true 4K pixel-to-pixel content, ensuring crystal-clear visuals in every application. This processor's capabilities include flexible aspect ratio adjustments, video signal processing, and high-definition output to meet the demands of modern visual systems.
With support for a variety of input signals, including interleaved and progressive formats with HDR processing, the G904 ensures compatibility with a wide range of video sources. Its programmable outputs provide resolution flexibility and an array of selectable refresh rates, allowing for precise configuration to suit any environment. The processor also features a comprehensive set of embedded functions, such as image split, cropping, and position adjustment, making it easy to customize display layouts. The G904 excels in multi-display setups, whether you're operating in a digital signage environment, control room, or video production studio.
Beyond its core functionality, the G904 features a robust design built to withstand demanding environments. With ESD protection and the ability to daisy-chain up to 10 units, this processor is well-suited for large-scale installations. Its high-quality scaling engine ensures that images maintain clarity and detail, even when scaling between different resolutions. The G904 is a versatile and reliable choice for those seeking advanced video processing capabilities in professional applications.
Key Features
- Supports 4K UHD resolution with pixel-to-pixel content on each monitor
- Flexible input and output options, including 5x HDMI 2.0b inputs and 2x HDMI 2.0b outputs
- Seamless daisy chaining of up to 10 processing modules for large-scale video wall systems
- HDR support with SMPTE ST-2084, SMPTE ST-2086, and BT.2020 for superior color reproduction
- Advanced image processing with flexible rotation, scaling, and cropping options
- Built-in video wall function for easy configuration of multi-monitor setups
- ESD protection for added durability in high-demand environments
- CE, FCC, and RoHS certified for industry compliance
Technical Specifications
Input & Output:
Input Ports: 5x HDMI 2.0b
Output Ports: 2x HDMI 2.0b, 1x HDMI 2.0b Loop Out
Loop Out Port for Daisy Chain Connection (up to 10 units)
Each Channel has 2x Independent HDMI 2.0b Input Ports
Discrete True 4K Pixel-to-Pixel Content for Each Monitor
Input Signal:
Supports input resolution of 4096x2160 @60Hz, 7680x2160 @30Hz, or 2160x7680 @30Hz in HDMI
Supports interleaved and progressive input signals with 4:4:4 10-bit color under 600 MHz
Supports High Dynamic Range (HDR): SMPTE ST-2084, SMPTE ST-2086, and BT.2020 HDR 10 Input Signal Processing
Supports non-VESA standard input timings
Programmable Output:
1x HDMI 2.0b Output up to 4096x2253/60Hz or 4096x2730/50Hz with Selectable Refresh Rate: 24/30/50/60/100/120Hz
Output Range: 800-7680 (Horizontal), 720-3840 (Vertical)
Preset 17 Output Timing Modes with Selectable 8-bit/10-bit Color Mode
Output Signal: SDR, Progressive Full Color RGB, 4:4:4, 8/10-bits under 600 MHz
HDCP: V2.2/V1.4 in HDMI
Embedded Functions:

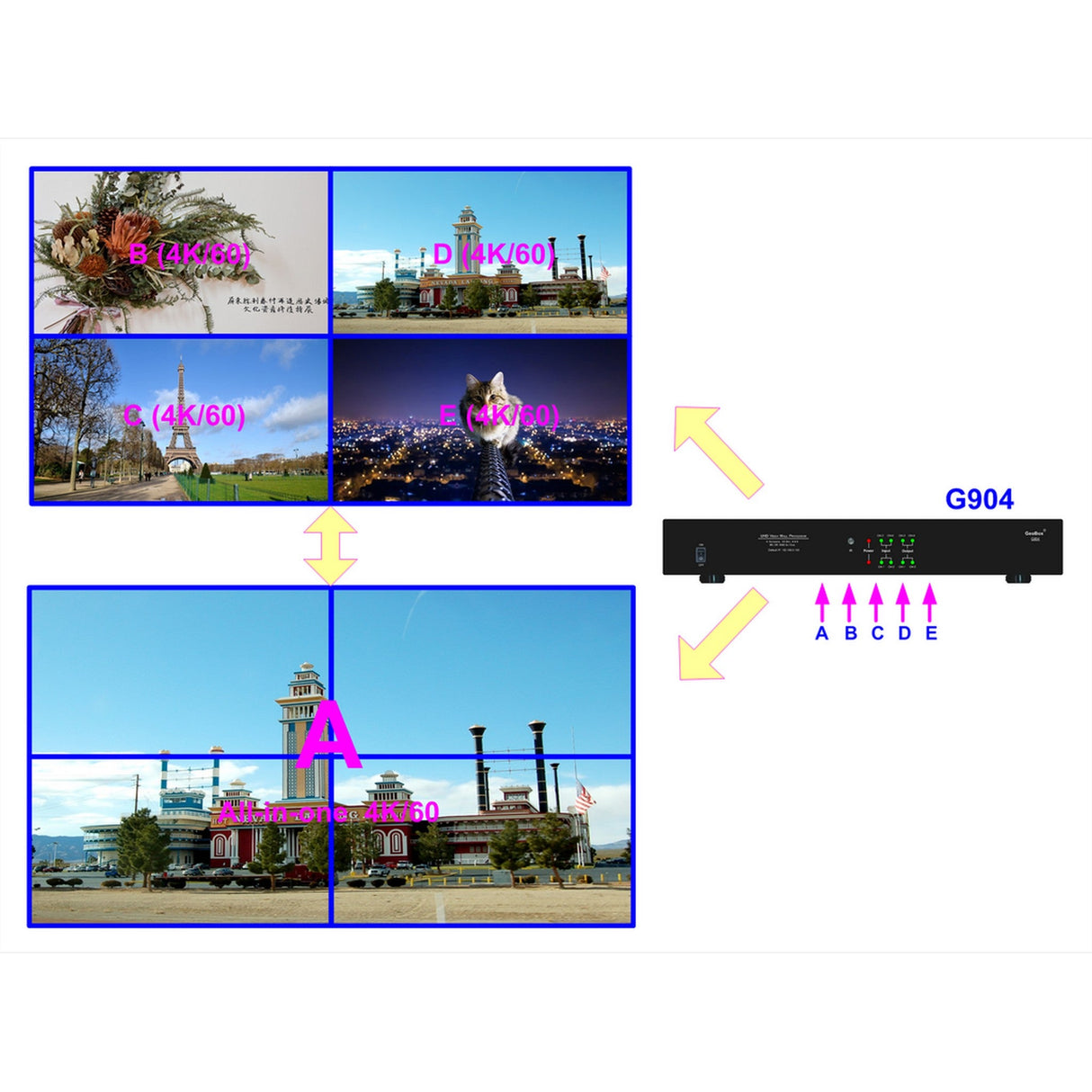

Embedded Video Wall Function for Image Split, Cropping, Location Assignment, and Position Adjustment
Flexible Aspect Ratio Adjustment on Each Edge up to +_ 1800 Pixels
Decode 3D Signal for Passive 3D Display and Convert the 3D Format into Side-by-Side, Top/Bottom, or Frame Sequential Output
OSD Menu Position can be Shifted for Convenient OSD Operation
Each Channel has an Independent PIP/POP Function with PIP Image Size from 320x180 up to 1920x1200 Resolution
Display 4 Types of 3 Split Views on One UHD Monitor, or 4-6 Split Views for One UHD Monitor
Two Input Signals Quick, Seamless Swap in Each Channel via Remote Controller
Color Adjustment in Central and PIP Images
Frame Lock for Multiple Unit Synchronization
10-bit Processor, 3:2/2:2 Cadence, Low Angle Smooth Algorithm, and 3D Motion Adaptive De-interlace
High-Quality Scaling Engine for Image Scaling up and Down from SVGA to UHD
Support xvYCC 8/10/12-bit Comprehensive Color Gamut Input Signal Processing
Individual 90/180/270 Rotation, Flip, Cropping, Scaling & Color Adjustment up to 4K/60 Input in Main & PIP/POP-Image
Embedded HDMI Audio While Implementing PIP/POP; User Can Select Audio from Main or Sub-Image
Selectable and Programmable EDID
ESD Protection:
Ā±15kV (Air-gap discharge), Ā±8kV (Contact discharge)
Power Supply:
AC
Working Environment:
45Ā°C, 10-90% RH
Control:
IR, RS232, USB, Ethernet
10 System Settings Can Be Stored and Backed Up
Dimensions
Dimensions: 17.33" x 6.38" x 2.28"
Weight: 5.31 lbs
Whatās Included
- G904 Video Processor
- AC Power Supply
- Remote Controller
- Quick Start Guide
CE/FCC/RoHS Certified
30-Month Warranty
