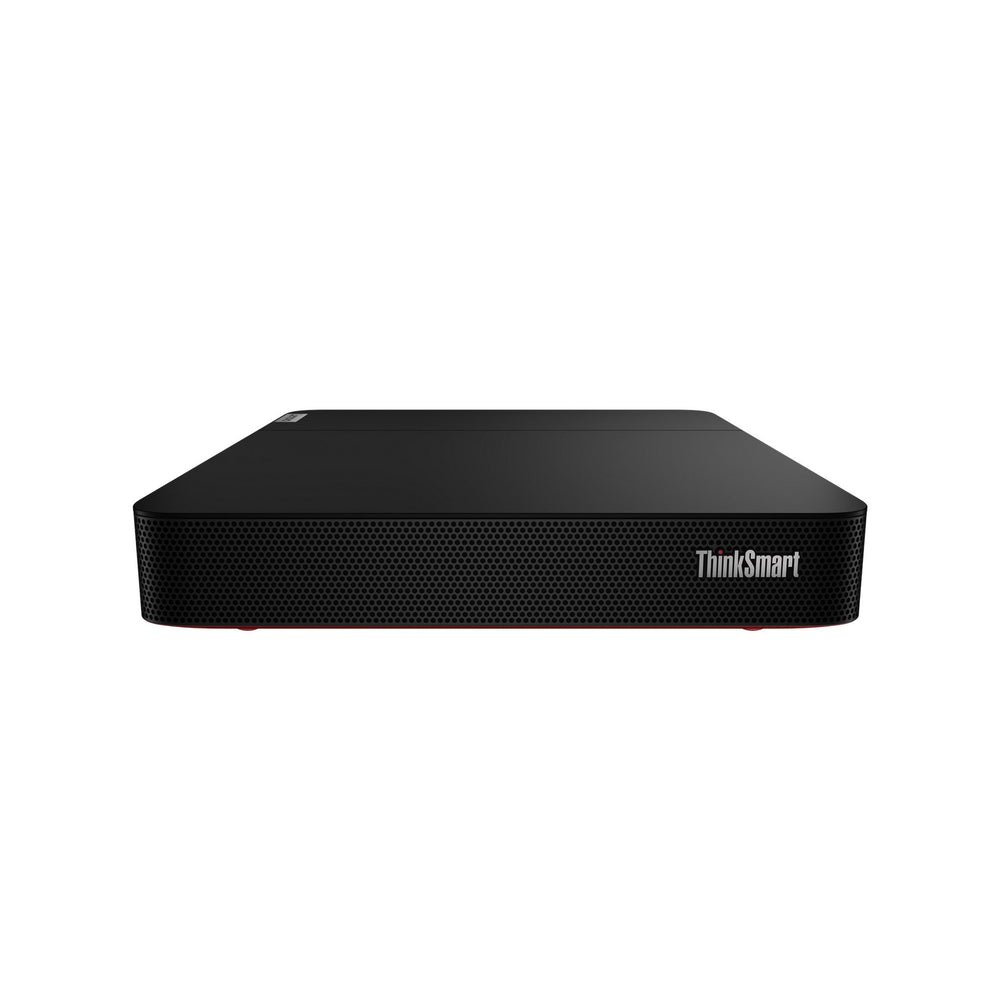

TLenovo ThinkSmart SP Core - Zoom Rooms Appliance with Windows 11 IoT

Introducing the ThinkSmart SP Core, an advanced video conferencing solution designed to enhance your Zoom Rooms experience with the latest Windows 11 IoT technology. This state-of-the-art appliance is crafted to provide seamless integration into your meeting spaces, offering both high performance and ease of use. With its compact yet powerful design, the ThinkSmart SP Core is ideal for both small and large conference rooms, ensuring exceptional video and audio quality for all your virtual meetings.

The ThinkSmart SP Core boasts cutting-edge hardware and software, making it a robust choice for any business looking to improve their video conferencing setup. Its advanced features include powerful Intel Core i5 processing, integrated Intel Iris Xe Graphics, and ample memory and storage options, all housed in a sleek and compact form factor. Whether you're setting up a new Zoom Room or upgrading an existing one, the ThinkSmart SP Core provides the performance and reliability you need to stay connected and productive.

Key Features

• Optimized for Zoom Rooms with seamless integration and performance.
• Powered by Windows 11 IoT for enhanced security and functionality.
• Compact design with high performance, perfect for diverse meeting spaces.
• Includes a range of connectivity options for versatile use.
• Easy setup and management with intuitive controls and features.

Technical Specifications

PERFORMANCE
Processor
Intel Core i5-1145G7E (4C / 8T, 1.5 / 4.1GHz, 8MB)
Graphics
Integrated Intel Iris Xe Graphics
Chipset
Intel SoC Platform
Memory
1x 16GB Soldered DDR4-3200
Memory Slots
Memory soldered to systemboard, no slots, dual-channel
Max Memory
16GB soldered memory, not upgradable
Storage
256GB SSD M.2 2280 PCIe 3.0x4 NVMe
Storage Support
One drive, up to 256GB SSD
Power Supply
90W 89% Adapter

CONNECTIVITY
Ethernet
Integrated 100/1000M
WLAN + Bluetooth
Intel Wi-Fi 6 AX201, 802.11ax 2x2 + BT5.0, vPro
Rear Ports
1x Thunderbolt 4
1x USB-C 3.2 Gen 1
1x USB-C 3.2 Gen 2
1x USB 3.2 Gen 1
2x USB 3.2 Gen 2
1x HDMI-in
2x HDMI-out 1.4
1x Ethernet (RJ-45)
1x power connector

DESIGN
Mounting
Integrated VESA Mount
Component Options
ThinkSmart Core Generic | 1x ThinkSmart Core | - | - | - | -
Controller
None
Audio Bar
None
Microphone Component
None
Camera Component
None
Case Color
Black (ThinkSmart Core Generic)
Dimensions (WxDxH)
ThinkSmart Core | 226 x 200 x 37.5 mm (8.9 x 7.9 x 1.5 inches)
ThinkSmart controller | 265.5 x 13 x 168.1 mm (10.5 x 0.5 x 6.6 inches)
ThinkSmart controller with stand | 265.5 x 83.3 x 168.1 mm (10.5 x 3.3 x 6.6 inches)
ThinkSmart Bar 180 | 650 x 80 x 125 mm (25.6 x 3.1 x 4.9 inches)
Weight
ThinkSmart Bar 180 | Around 2.2 kg (4.85 lb)
ThinkSmart Core | 1.1 kg (2.4 lbs)
ThinkSmart controller | 753.8 g (1.7 lbs)

SECURITY & PRIVACY
Security Chip
Discrete TPM 2.0, TCG certified
Physical Locks
Kensington Security Slot

MANAGEABILITY
System Management
Intel vPro

SERVICE
Base Warranty
First Year Maintenance, 3-year Premier Support Upgrade from 3-year Onsite
Included Upgrade
First Year Maintenance, 3Y Premier Support Upgrade from 3Y Onsite

SOFTWARE
Operating System
Windows 11 IoT Enterprise GAC 64, English
Bundled Software
Zoom Rooms
