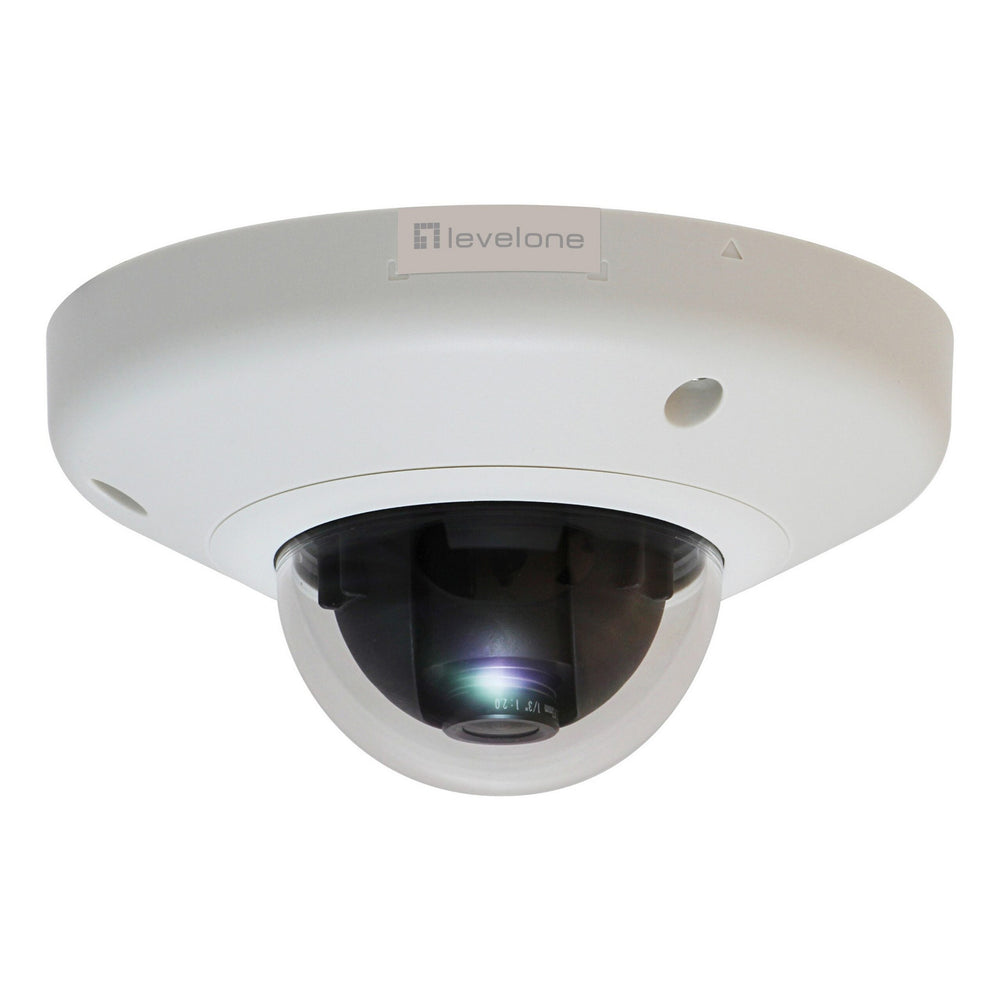

LevelOne FCS-3054 HUBBLE Fixed Dome IP Network Vandalproof Camera,3MP, 802.3af PoE
LevelOne FCS-3054 HUBBLE Fixed Dome IP Network Vandalproof Camera,3...
Free Shipping
LevelOne FCS-3054 HUBBLE Fixed Dome IP Network Vandalproof Camera,3MP, 802.3af PoE
LevelOne FCS-3054 has a built-in micro SDHC/SDXC card slot for local storage, 3-Megapixel high-definition resolution and vandal-proof IK08-rated housing. Video compression: H.264, MJPEG power support: PoE (IEEE 802.3af) Free surveillance and CMS (Central Management System) software packages with 64-channel license.
Key Features
- Built-in Micro SDHC/SDXC card slot for local storage
- 3-Megapixel high-definition resolution
- Vandal-proof IK08-rated housing
- Video compression: H.264, MJPEG
- Power support: PoE (IEEE 802.3af)
- Free surveillance and CMS (Central Management System) software packages with 64-channel license
Technical Specifications
Standards & Protocols
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.1X Network Access Control
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Image Sensor
3-Megapixel 1/3.2" Progressive Scan CMOS
Lens
Fixed focal, Fixed iris, Fixed focus, f2.93mm , F2.0
Ports
1 x RJ-45 10/100 Mbps PoE port
1 x MicroSDHC/ MicroSDXC card slot
Button/Knob
Reset Button
Indicator
Power
Shutter Time
1/5 ~ 1/10,000 sec
Angle of View
83.3
Pan/Tilt/Zoom
Digital Zoom to very high detail available on Software
Video Format
H.264 / MJPEG
Resolution
3M(2048 x 1536)
Output Video Format
RAW
Power Input
802.3af PoE
Power Consumption
PoE Class 1 (IEEE802.3af) / 2.91W
Data Rate
10/100Mbps
Storage Capacity
SD/MicroSD memory card of up to 64GB
Operating Temperature (C)
Operating: -10C ~ 50C
Operating Humidity (Non-condensing)
Operating: 10% ~ 85%
Mount
Wall/Ceiling Mount
Performance
Frame Rate (fps): 15 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
Minimum illumination: Color: 0.1 lux at F2.0
Physical
Dimensions (W x D x H mm)
110 x 58 x 110
Weight (g)
202 g
Approval and Compliance
EMI/EMS
CE, RoHS, FCC, IK08
Environmental Test
Vandal Resistant IK08-reted
Item Includes
x1 FCS-3054
x1 Screw Kit
x1 Quick Installation Guide
x1 Resource CD (User Manual, Utility, QIG)
