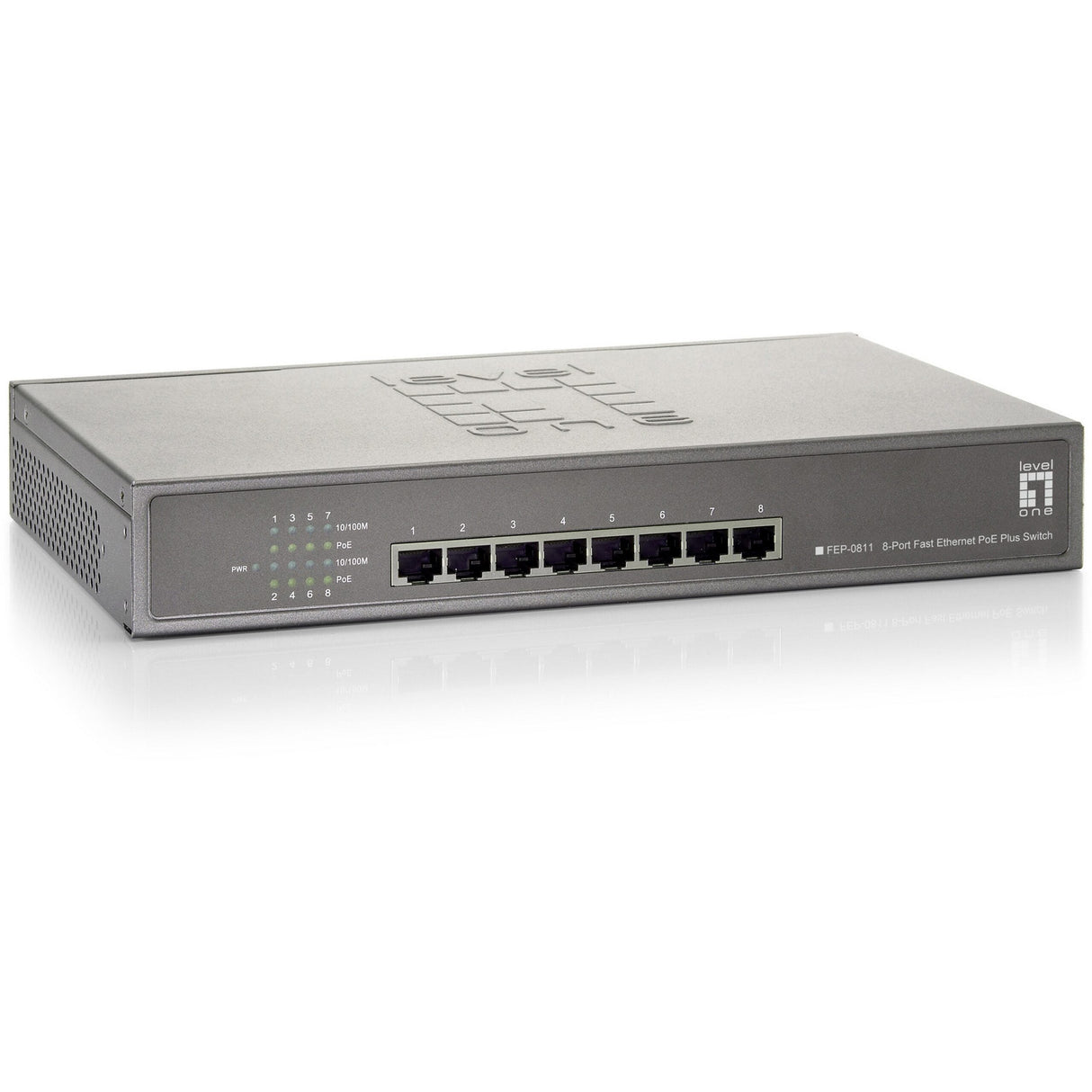

LevelOne FEP-0811 8-Port Fast Ethernet PoE Switch
The LevelOne FEP-0811 series are unmanaged Fast Ethernet PoE switches with 8 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 120/250W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FEP-0811 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.
Key Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- 11-inch metal housing with 19-inch rackmount kit included
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
Technical Specifications
Standards
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
Buffer Memory
64KB
Port
8x 10/100Base-TX RJ-45 PoE Ports
10Base T Cat. 3, 4, 5 UTP/STP
100Base TX Cat. 5 UTP/STP
Button/Knob
Power On / Off Switch
Indicator
Power, Active, 10/100M, PoE
Transmission Method
Store-and-Forward
Power Input
100-240V AC, 50-60 Hz, 2A Internal Power Supply
Power Consumption
<130W (FEP-0811); <250W (FEP-0811W250)
Backplane (Gbps)
1.6Gbps
MAC Address Table
1K
Data Rate
10/100Mbps
Operating Temp
0C to 45C
Storage Temp
-40C to 70C
Humidity
10 to 90% (non-condensing)
Mount
Desktop and 19-inch rack-mountable
PoE
Power Budget
Max. 123.2W (FEP-0811)
Max. 245W (FEP-0811W250)
PoE Standard
IEEE 802.3af/at Power over Ethernet / PSE
PD classification identity
PoE over current protection
PoE circuit sorting protection
PoE Power Output
Per Port 56V DC, Max. 15.4 watts (802.3af) or 30 watts (802.3at)
Power Pin Assignment
1/2(+), 3/6(-)
Packet Forwarding Rate
100Mbps port - 148,000pps; 10Mbps port - 14,880pps
Dimensions (WxDxH)
7.28 x 11.02 x 1.73" (185 x 280 x 44mm)
Weight
3.53Lbs (1600g)
Approval and Compliance
EMI/EMS: FCC, CE, RoHS
Item Includes
x1 FEP-0811
x1 Power Cord
x1 19" Rack Mount Kit
x1 Quick Installation Guide
