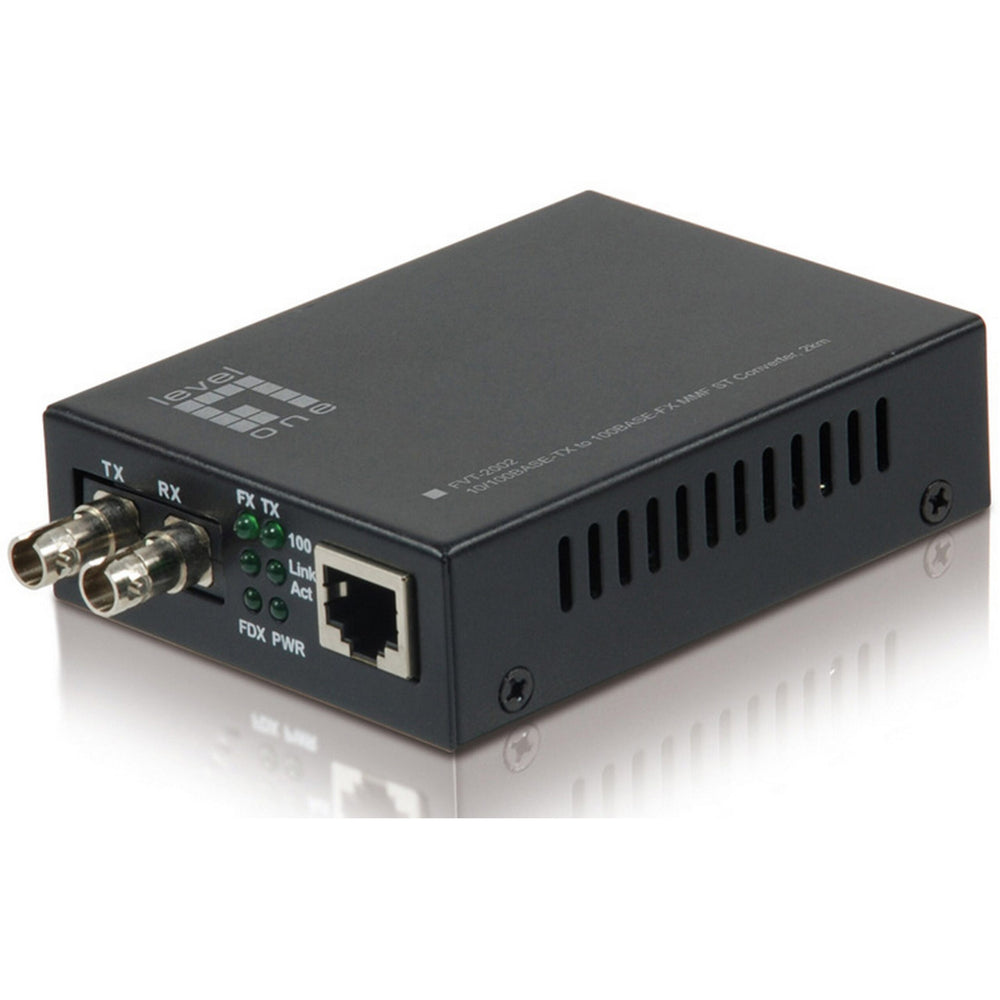

LevelOne FVT-2002 RJ45 to ST Fast Ethernet Media Converter
The LevelOne FVT-2002 MMF ST media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in multi-mode with fibre-optic cabling, this can extend a network range up to 2 km.
Key Features
- Transfers data from 10/100Base-TX copper to fiber interfaces
- Multi-mode fiber with ST connector for transmission of up to 2km
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Dip switches for customized configuration
- Supports low-time lag transmission
- Supports the transmission of extra-long packets up to 1.6KB
- -10C to 55C operating temperature range
Technical Specifications
Standards & Protocols
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)
Port
1 x 100 Base-FX Multi-mode duplex ST
Fiber cable: 50/125um, 62.5/125um
1 x 10/100 Base-TX RJ-45 Port, auto MDI/MDI-X and Auto-Negotiation
Indicator
PWR, TX (FDX, 100, Link/Act), FX (101, Link/Act)
Wavelength (nm)
1310nm
Transmission Method
Store and forward (Default)
Power Input
DC 5V/1A
Operating Temp
14 to 131F (-10 to 55C)
Storage Temp
-40 to 167F (-40 to 75C)
Humidity
5 to 90% (non-condensing)
Mount
Desk, chassis mounted
DIP Switch 1
LFP function
DIP Switch 2
Transmission Mode
DIP Switch 3
Auto/Force the UTP port work mode
DIP Switch 4
10/100M for UTP port
DIP Switch 5
Full/Half Duplex mode for UTP port
DIP Switch 6
Normally close
Operating Distance
2KM
Dimensions (WxDxH)
2.79 x 3.70 x 1.02" (71 x 94 x 26mm)
Weight
0.92Lbs (420g)
Approval and Compliance
EMI/EMS: FCC, CE, RoHS
Item Includes
x1 FVT-2002
x1 Power Adapter
x1 Quick Installation Guide
