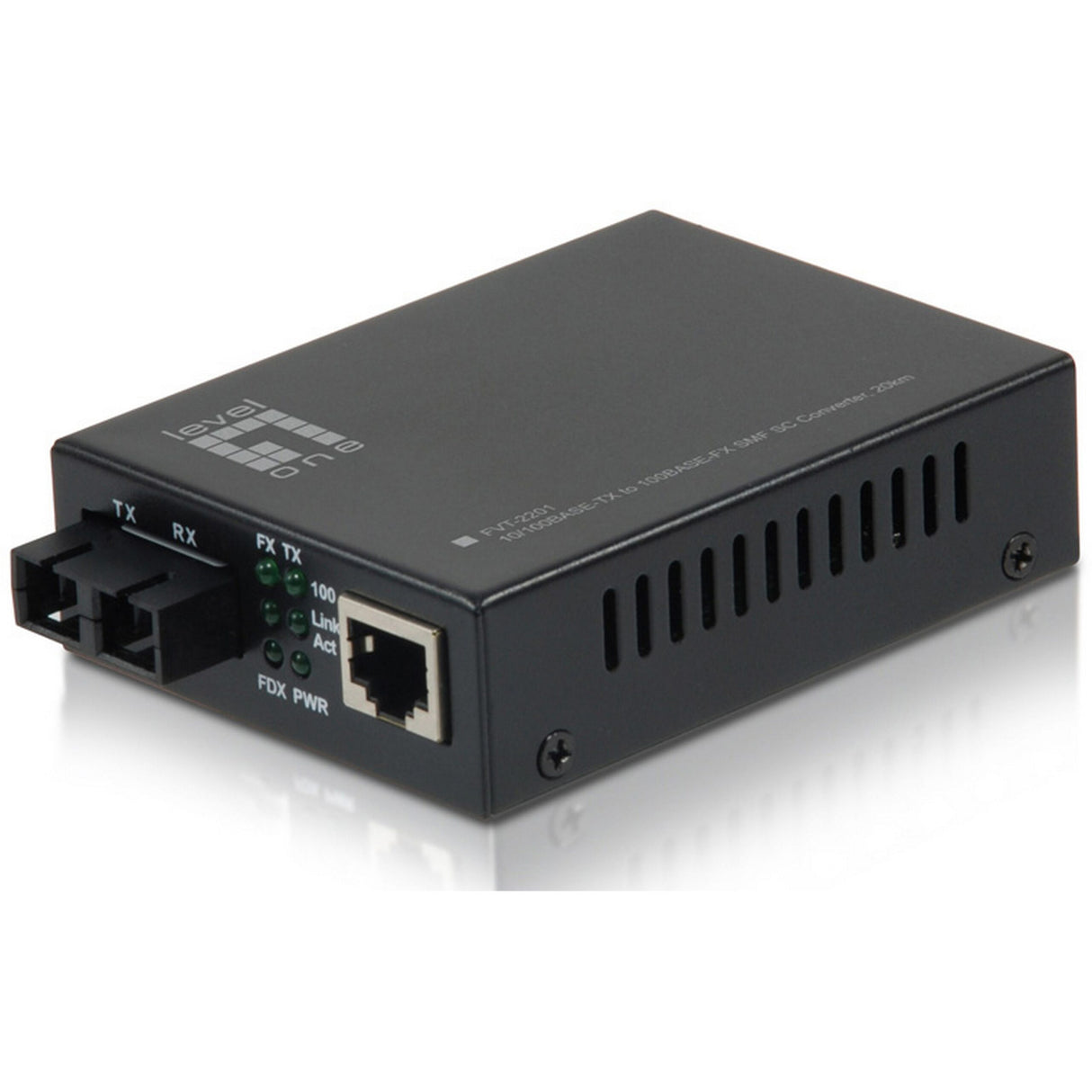

LevelOne FVT-2201 RJ45 to SC Fast Ethernet Media Converter
LevelOne FVT-2201 RJ45 to SC Fast Ethernet Media Converter
LevelOne FVT-2201 RJ45 to SC Fast Ethernet Media Converter
The LevelOne FVT-2201 SMF SC media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a 10/100Base-TX RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T and 100Base-TX auto-sensing. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km.
Key Features
- Transfers data from 10/100Base-TX copper to fiber interfaces
- Single-mode fiber with SC connector for transmission of up to 20km
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Dip switches for customized configuration
- Supports low-time lag transmission
- Supports the transmission of extra-long packets up to 1.6KB
- -10C to 55C operating temperature range
Technical Specifications
Standards & Protocols
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)
Port
1x 100Base-FX Single-mode duplex SC
Fiber cable
8.3/125um, 9/125um, 10/125um
1x 10/100Base-TX RJ-45 Port, auto MDI/MDI-X and Auto-Negotiation
CAT-5 Twisted Pair cable
Indicator
PWR, TX (FDX, 100, Link/Act), FX (102, Link/Act)
DIP Switch 1
LFP function
DIP Switch 2
Transmission Mode
DIP Switch 3
Auto/Force the UTP port work mode
DIP Switch 4
10/100M for UTP port
DIP Switch 5
Full/Half Duplex mode for UTP port
DIP Switch 6
Normally close
Wavelength (nm)
1310nm
Transmission Method
Store and forward (Default)
Power Input
DC 5V/1A
Operating Temp
14 to 131F (-10 to 55C)
Storage Temp
-40 to 167F (-40 to 75C)
Humidity
5 to 90% (non-condensing)
Mount
Desk, chassis mounted
Operating Distance
Fiber connection up to 20km
Dimensions (WxDxH)
2.79 x 3.70 x 1.02" (71 x 94 x 26mm)
Weight
0.92Lbs (420g)
Approval and Compliance - EMI/EMS
EN 55022: 2010/AC:2011
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 55024: 2010/AC:2015/AC:2015
EN 61000-4-2: 2001
EN 61000-4-3: 2006
EN 61000-4-4: 2004
EN 61000-4-5: 2005
EN 61000-4-6: 2006
EN 61000-4-11: 2004
FCC
CE
Environmental Test
RoHS
Item Includes
x1 FVT-2201
x1 Power Adapter
x1 Quick Installation Guide
