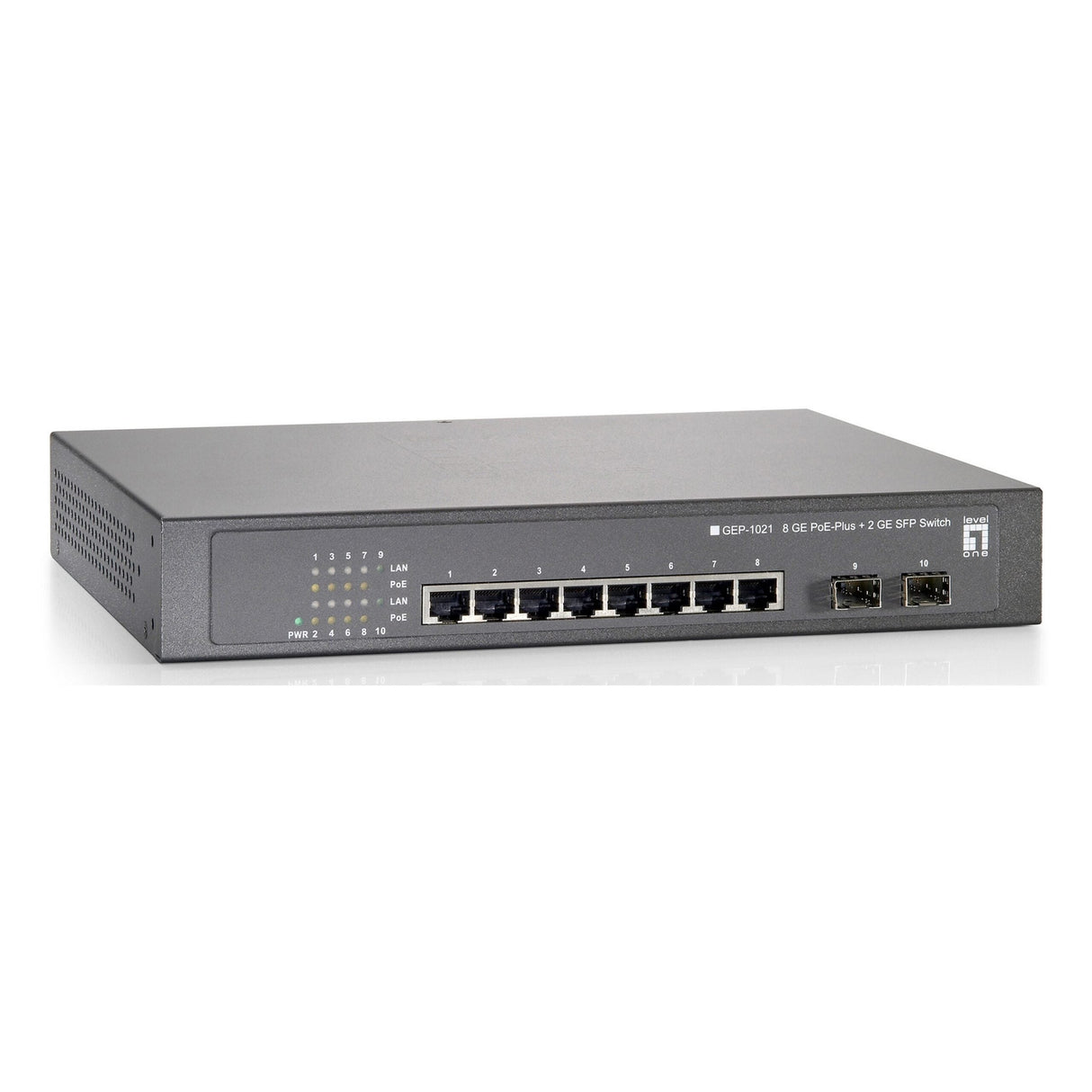

LevelOne GEP-1021 10-Port Gigabit PoE Switch
LevelOne GEP-1021 provides 8 x 10/100/1000Base-T PoE-Plus ports and 2 x 1000Base-X SFP (Small Form Factor Pluggable) slots. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 250W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefers an affordable solution for PoE deploying infrastructure.
Key Features
- 8 Gigabit PoE ports and 2 Gigabit SFP slots
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- Auto-detection and protection of non-standard PoE devices
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- 19-inch rackmount kit included
- Total PoE power budget: 250W, up to 30W per port
Technical Specifications
Standards
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3az Energy-Efficient Ethernet
Buffer Memory
512KB
Port
8x 10/100/1000Base-T RJ-45 PoE-Plus Ports
2x 100/1000Base-X SFP Slots
Indicator
Power; Link/Active; PoE
Transmission Method
Store-and-Forward
Power Input
100-240V AC, 50-60 Hz, Internal Power Supply
Power Consumption
< 250W
Backplane (Gbps)
16Gbps
MAC Address Table
8K
Data Rate
10/100/1000Mbps
Power Saving: IEEE 802.3az Energy Efficient Ethernet
Automatically turns power off on RJ-45 port when detecting link down or Idle of client
Cable length detection: Adjusts the signal strength based on the cable length
Reduces the power consumption for cables shorter
Operating Temp
32 to 104F (0 to 40C)
Storage Temp
-40 to 158F (-40 to 70C)
Humidity
5 to 90% (non-condensing)
Mount
19-inch rack-mountable
Flow Control
Backpressure (Half Duplex), Pause frame(Full Duplex)
PoE
Power Budget
Max. 250W
Power Output
Up to 30W per port
Protection
Circuit protection to prevent power interference between ports
Pin Assignment
1/2(+), 3/6(-)
Packet Forwarding Rate
1000Mbps port - 1,488,000pps
100Mbps port - 148,000pps
10Mbps port - 14,880pps
Jumbo Frame (K)
9KB
Dimensions (WxDxH)
11.02 x 8.46 x 1.73" (280 x 215 x 44mm)
Weight
5.51Lbs (2500g)
Approval and Compliance
EMI/EMS: FCC Part 15 Class A, CE, RoHS
Item Includes
x1 GEP-1021
x1 Power Cord
x1 19" Rack Mount Kit
x1 Quick Installation Guide
