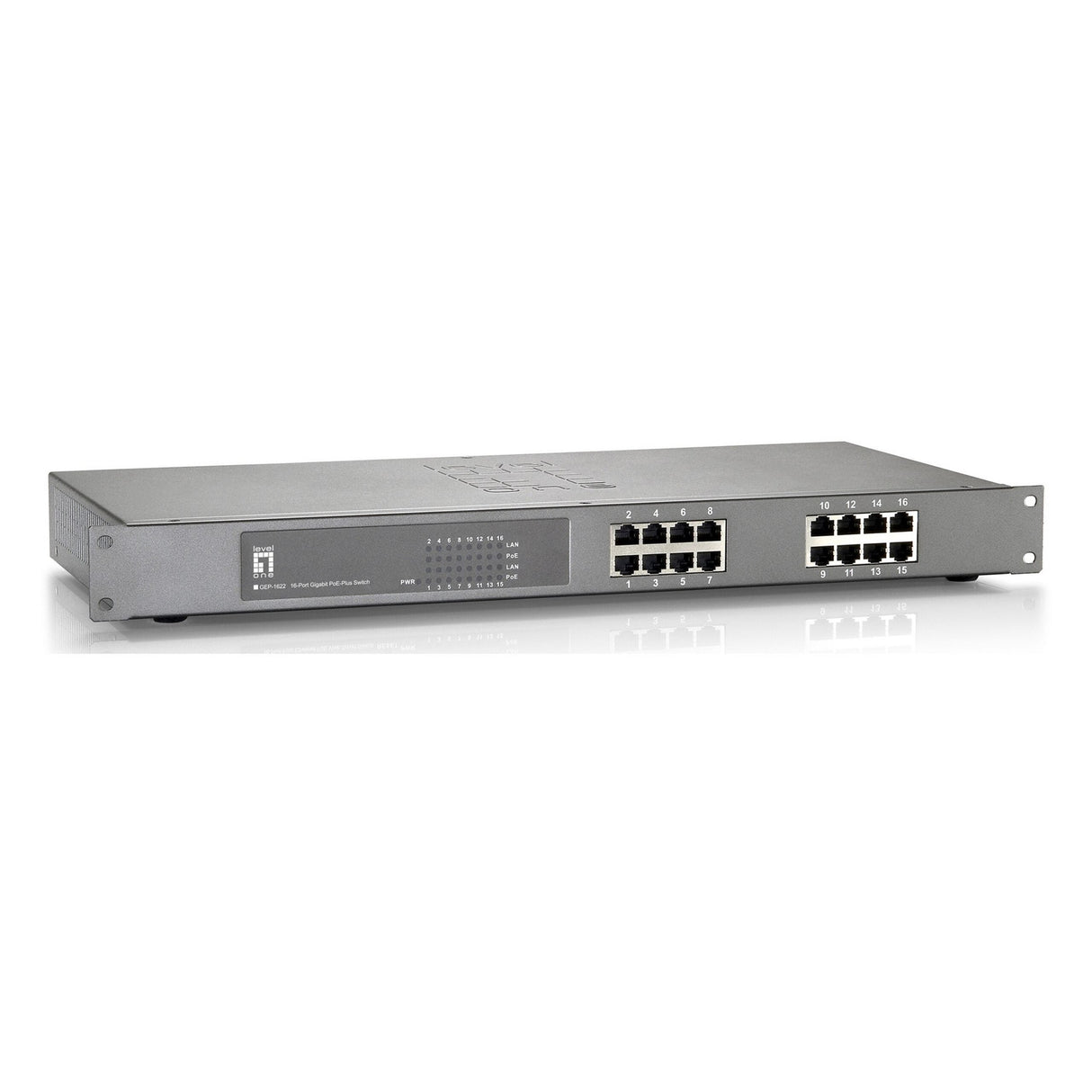

LevelOne GEP-1622 16-Port Gigabit PoE Switch
LevelOne GEP-1622 16-Port Gigabit PoE Switch
Free Shipping
LevelOne GEP-1622 16-Port Gigabit PoE Switch
The LevelOne GEP-1622 is a Gigabit PoE-Plus Switch with 16 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 480W, up to 30W per port. Ideal for desktops, it is also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-1622 is designed for small-to-median businesses that prefers an affordable solution for PoE deploying infrastructure.
Key Features
- 16 PoE-Plus Gigabit Ethernet ports
- 10/100/1000Mbps wire speed transmission and reception
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- Total PoE power budget: 480W, up to 30W per port
Technical Specifications
Standards
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet Plus (PoE+)
IEEE 802.3az Energy-Efficient Ethernet
Buffer Memory
256KB
Port
16 x RJ-45 10/100/1000Base-T PoE-Plus ports
Indicator
Power; Link/Active; PoE
Transmission Method
Store-and-Forward
Power Input
100-240V AC, 50-60 Hz, Internal Power Supply
Power Consumption
500W
Backplane (Gbps)
32Gbps
MAC Address Table
8K
Data Rate
10/100/1000Mbps
Power Saving: IEEE 802.3az Energy Efficient Ethernet
Automatically turns power off on RJ-45 port when detecting link down or Idle of client
Cable length detection: Adjusts the signal strength based on the cable length
Reduces the power consumption for cables shorter
Operating Temp
32 to 122F (0 to 50C)
Storage Temp
-40 to 158F (-40 to 70C)
Humidity
5 to 90% (non-condensing)
Mount
19-inch rack-mountable
General
Flow Control: Half Duplex - Backpressure; Full Duplex - Pause frame
PoE
Power Budget
Max. 480W
Power Output
Up to 30W per port
Protection
Circuit protection to prevent power interference between ports
Pin Assignment
1/2(+), 3/6(-)
Packet Forwarding Rate
1000Mbps port - 1,488,000pps
100Mbps port - 148,000pps
10Mbps port - 14,880pps
Jumbo Frame (K)
9KB
Dimensions (WxDxH)
18.90 x 7.87 x 1.73" (480 x 200 x 44mm)
Weight
7.50Lbs (3400g)
MTBF
42300 hours
Approval and Compliance
EMI/EMS: FCC Part 15 Class A, CE, RoHS
Item Includes
x1 GEP-1622
x1 Power Cord
x1 Quick Installation Guide
