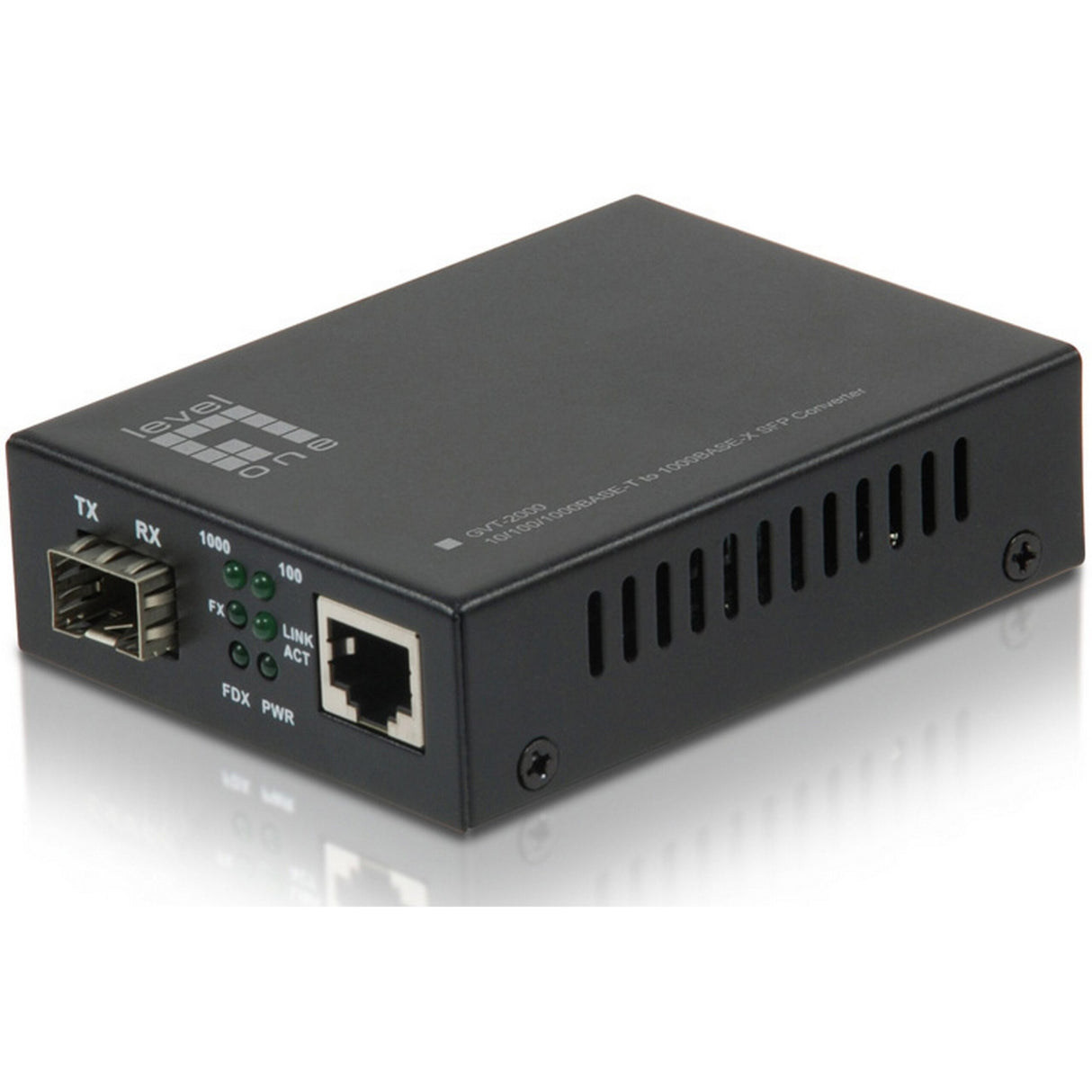

LevelOne GVT-2000 RJ45 to SFP Gigabit Media Converter
LevelOne GVT-2000 RJ45 to SFP Gigabit Media Converter
LevelOne GVT-2000 RJ45 to SFP Gigabit Media Converter
The LevelOne GVT-2000 media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a SFP slot for 1000Base-X Gigabit optic module and a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing.
Key Features
- Transfers data from 10/100/1000Base-T copper to fiber interfaces
- SFP slot supports pluggable Gigabit optic modules that enabling you to choose from a variety of transceiver
- 9K jumbo frames to increase data transfer rates
- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Dip switches for customized configuration
- Supports low-time lag transmission
- Supports the transmission of extra-long packets up to 1.6KB
- -10C to 55C operating temperature range
Technical Specifications
Standards & Protocols
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE802.3z 1000Base-SX/LX
Port
Fiber SFP slot; RJ-45 Port CAT-5/5e Twisted Pair cable Auto MDI/MDI-X (Max to 100m) and Auto-Negotiation
Indicator
PWR,TX (FDX, 100, 1000, Link/Act), FX Link/Act
Wavelength (nm)
depend on SFP module
Transmission Method
Store and forward (Default)
Power Input
DC 5V/2A
Power Consumption
1.2W
Storage Temp
-40 to 167F (-40 to 75 C)
Operating Temp
14 to 131F (-10 to 55 C)
Humidity
5 to 90% (non-condensing)
Mount
Desk, chassis mounted
DIP Switch 1
LFP function
DIP Switch
2 and 3 performance 4 types work mode, 2 and 3 is OFF = Store and forward, 2 is OFF, 3 is ON = Cut through mode, 2 is ON, 3 is OFF = Smart pass through, 2 and 3 is ON = Pass through mode
Operating Distance
Depend on SFP Module
Dimensions (WxDxH)
2.79 x 3.70 x 1.02" (71 x 94 x 26mm)
Weight
0.92Lbs (420g)
MTBF
50000hrs
Approval and Compliance
EMI/EMS: CE, RoHS, FCC
Item Includes
x1 GVT-2000
x1 Power Adapter
x1 Quick Installation Guide
