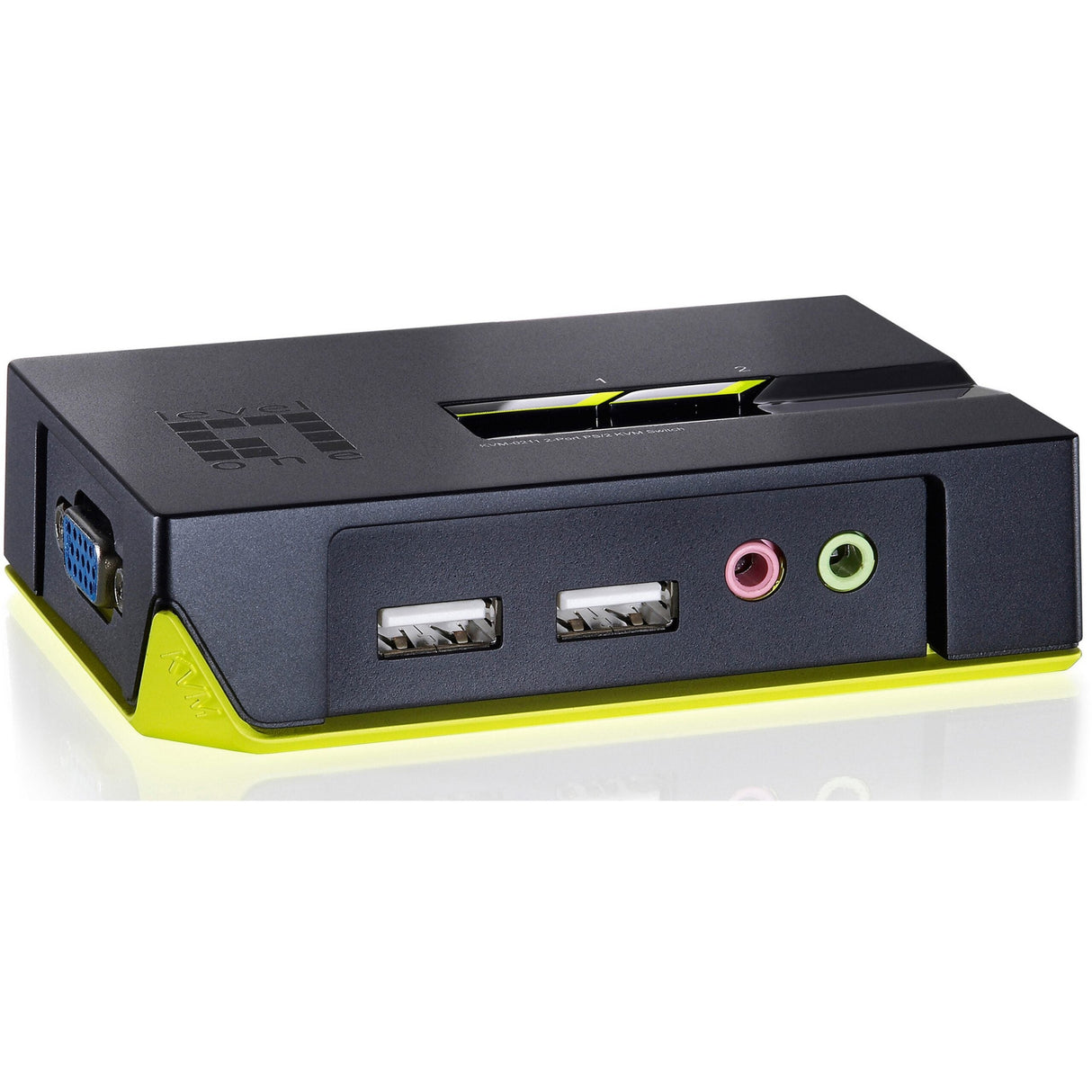

LevelOne KVM-0221 2-Port USB VGA KVM Switch
LevelOne KVM-0221 2-Port USB VGA KVM Switch
LevelOne KVM-0221 2-Port USB VGA KVM Switch
The LevelOne KVM-0221 2-Port USB KVM Switch with Audio from LevelOne offers users with an easy to install KVM switch that can manage two computers from a single monitor, keyboard and mouse. With audio support, users can connect a single set of speakers directly to the KVM switch and enjoy listening to music and watching movies from either computer without switching cables. It allows users to access, control, boot and reboot two USB-enabled multimedia computers using a single USB keyboard, mouse and monitor and a speaker set and microphone.
Key Features
- Control and manage 2 computers by using a single USB keyboard, mouse and monitor
- Supports video resolutions up to 2048 x 1536
- Easy switching between computers with keyboard hotkeys/front panel push button
- Windows and Mac switching software support
- Self powered through USB connection
- Independent/simultaneous switching of PC and audio/mic channel
- Provides auto-scanning features and audio support
Technical Specifications
Console Port
Keyboard
USB x 1
Mouse
USB x 1
Video
HDB 15-pin (Female)
Audio Input/ Output
3.5mm jack x 1
Mic Input/ Output
3.5mm Mic jack x 1
PC Port
USB x 2
HDB 15-pin Female x 2
Audio / Mic Connector x 2
Monitor Supported
VGA / SVGA / QXGA / WUXGA
LEDs
2 LEDs
PC Selection
Push Button / Hot Key / Auto Switching
Power
USB Interface Power
Microphone Supported
V
Cables
USB KVM Combo Cable Sets (1.8m) x 2
Min USB 3.5mm Audio / Mic Cables x 2
Max. Resolution
2048 x 1536
Scanning Interval
10,15,20,25,30,35,40,45,50,55,60 Seconds
Operating Temp.
0~50C
Storage Temp
-20~60C
Humidity
0~80 % RH Non-Condensing
Enclosure
High-impact Plastic
Weight (g)
116
Dimensions (L x W x H)
96mm x 61mm x 24mm
OS Supported
Win & Mac
Item Includes
x1 KVM-0221
