LevelOne KVM-9006 KVM Over Cat.5 Extender
LevelOne KVM-9006 KVM Over Cat.5 Extender
Free Shipping
LevelOne KVM-9006 KVM Over Cat.5 Extender

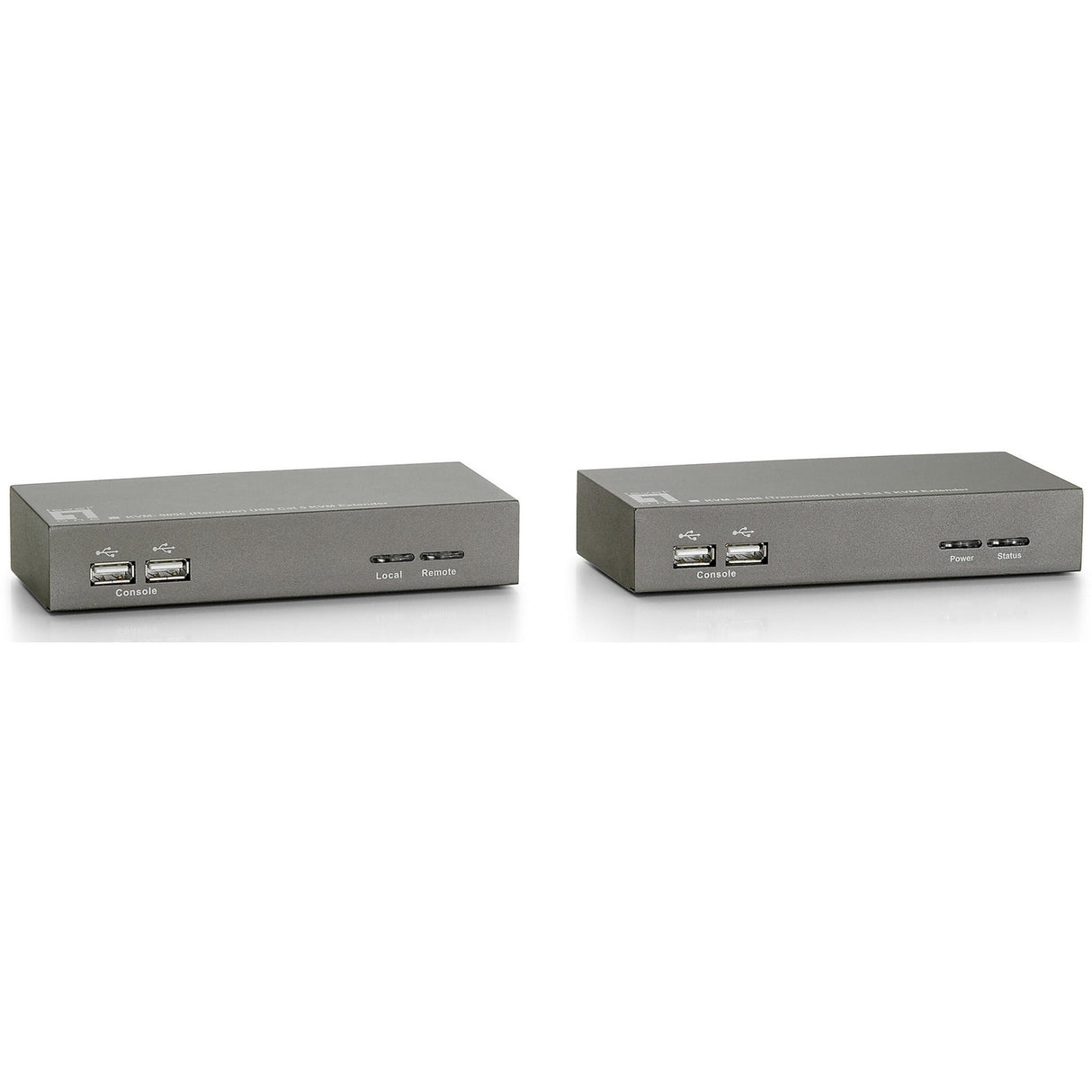

The LevelOne KVM-9006 KVM Cat.5 USB Extender Kit is a pair of devices (Transmitter and Receiver) for highdensity applications where you want full use of the keyboard, mouse, and monitor, but there is no room for a server nearby. It allows users to access a computer, server or KVM switch up to 150m away. Or for applications where you want to put all computers in a safe place, all that is needed on the desktop is a single keyboard, monitor, and mouse.
Key Features
- A single, inexpensive Cat.5 or above UTP cable replaces bulky KVM cables
- Locate Cat.5 console up to 150m away from the KVM switch with superior auto-adjust RGB signals capability
- Collocate computers and servers on one location, ideal for hazardous or unsecured environments
- Switch computers by push button or hotkey commands
- Audible feedback when switching
- LED indicators for computer status or data transmission
- 3-in-1 space saving design
- Work with PS/2 or USB computer
- Easy to install and use with plug-and play functionality
Technical Specifications
KVM-9006 T (Transmitter)
Connector
2 USB2.0 connectors for keyboard and mouse
VGA Connector
2 HDDB 15 connectors (one for VGA monitor , one for connecting 3-in-1 VGA cables to local computer)
RJ-45
8P8C
LEDs
2 (Power and Status)
Port selection
N/A
Keyboard Emulation
USB2.0
Mouse Emulation
USB2.0
VGA Resolution (Local Host)
1920 x 1440
VGA Resolution (Remote Host)
1280 x 1024
Housing
Metal
Power Adapter
DC 12V, 1A
Operation Temp.
0~50C
Storage Temp.
-20C~60C
Humidity
0~80%, Non-Condensing
Dimension
157.5 x 71.6 x 29mm
Weight (g)
390g
KVM-9006 R (Receiver)
Connector
2 USB connectors for keyboard and mouse
VGA Connector
2 HDDB 15 connectors (one for VGA monitor , one for connecting 3-in-1 VGA cables to local computer)
RJ-45
8P8C
LEDs
2 (Local and Remote)
Port selection
Hotkey, Push Buttom
Keyboard Emulation
USB2.0
Mouse Emulation
USB2.0
VGA Resolution (Local Host)
1920 x 1440
VGA Resolution (Remote Host)
1280 x 1024
Housing
Metal
Power Adapter
DC 12V, 1A
Operation Temp.
0~50C
Storage Temp.
-20C~60C
Humidity
0~80%, Non-Condensing
Dimension
157.5 x 71.6 x 29mm
Weight (g)
390g
