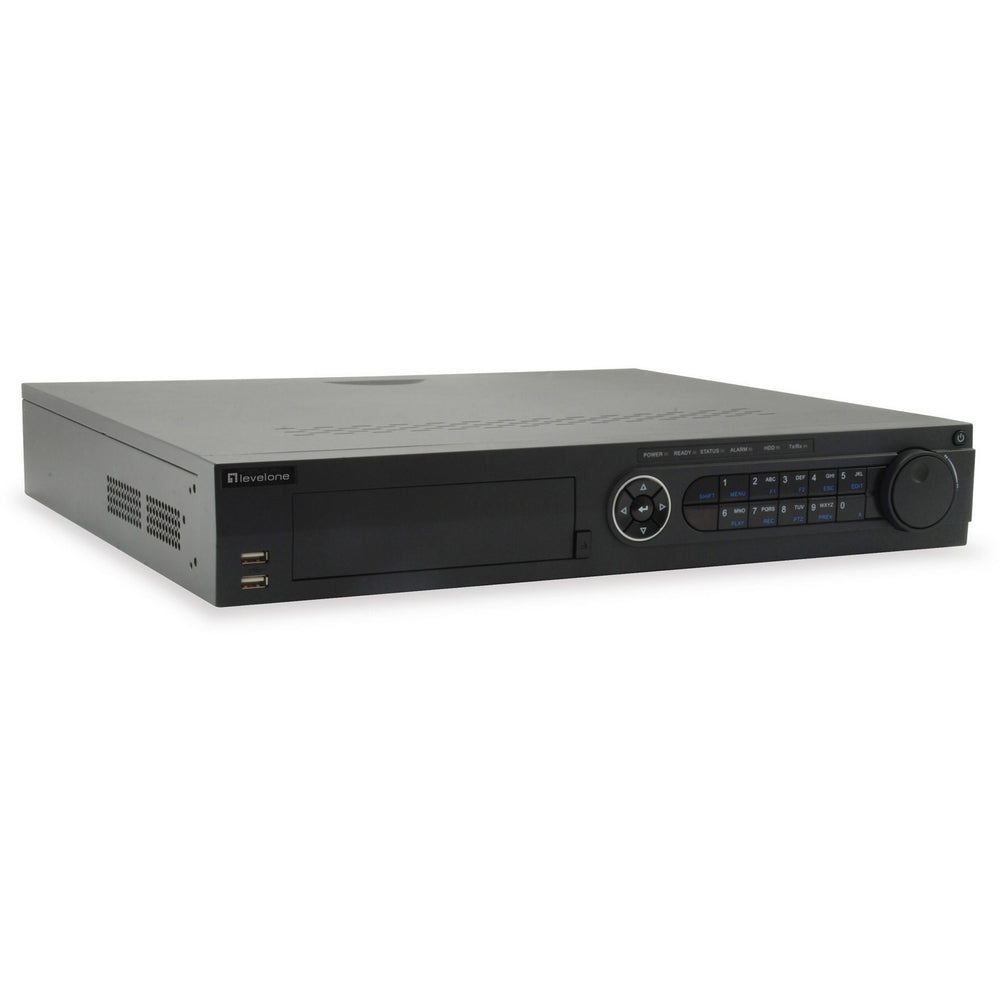

LevelOne NVR-0437 GEMINI 32-Channel Network Video Recorder
LevelOne NVR-0437 GEMINI 32-Channel Network Video Recorder
Free Shipping
LevelOne NVR-0437 GEMINI 32-Channel Network Video Recorder
The LevelOne NVR-0437 NVR enables live view, recording and playback for up to 32 IP network cameras at the same time, featuring up to 6-megapixel resolution and H.264/H.264+ video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app.
Key Features
- Display mode: Live view/playback/full screen
- Supports video resolutions up to 6 megapixels
- Supports smart camera search and 2-way audio
- Supports PTZ/preset point/preset sequence
- Supports iPhone/Android phone remote viewing over the Internet
- 4 x 3.5" HDD bays support disk capacity of up to 6TB
Technical Specifications
Standards & Protocols
TCP, UDP, IPv4, IPv6, Http, Https, SMTP, NTP, SNTP
Embedded System
Linux based
Port
1x 10/100/1000 Mbps LAN Network Interfaces
10/100 Mbps x 16 PoE (IEEE 802.3af/at)
1x Audio Out
1x Audio In
1x HDMI Interface
1x USB3.0 Interface
2x USB2.0 Interface
1x RS-232 Serial Interface
1x VGA Interface
1x RS-485 Serial Interface
16x Alarm In
8x Alarm Out
Power Input
100 to 240VAC
Button/Knob
Power, shift, Menu, F1, F2, Rsc, Edit, Play, Rec, PTZ, Prev
Indicator
Power, Ready, Status, Alarm, HDD, TxRx
Video Format
H.264/H264+
Resolution
Record Up to 6-Megapixel resolution
Power Input
100-240V AC
Power Consumption
20 Watt without hard disk
Storage Capacity
4 SATA interfaces for 4 HDDs; Up to 6TB capacity for each HDD
Operating Temperature
14 to 131F (-10 to 55C)
Humidity
10 to 90% (non-condensing)
PoE
16 port PoE (IEEE 802.3 af/at)
Total 200 Watt
Video
Decoding
Live view / Playback resolution: 6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/CIF/QCIF
Synchronous playback: 16-ch
Capability: 6-ch @ 1080p,12-ch-@720P,16-ch@ 4CIF
Number of Clients
128
Network Throughput
Outgoing bandwidth
80Mbps
Incoming bandwidth
160Mbps
Dimensions (WxDxH)
17.5"+ 15.3" + 2.8" (445 + 390 +70mm)
Weight
8.82Lbs (4kg)
Approval and Compliance
EMI/EMS: CE/FCC,uL Others: RoHS
Others
Manufactured in ISO-9001 and ISO-14001 certified factory
Supported Browsers
Internet Explorer 9.0 or above
Compatibility
Onvif Camera
Item Includes
x1 NVR-0437
x1 Power Cord
x1 Resource CD (User Manual, QIG)
x1 RJ45 Network Cable
