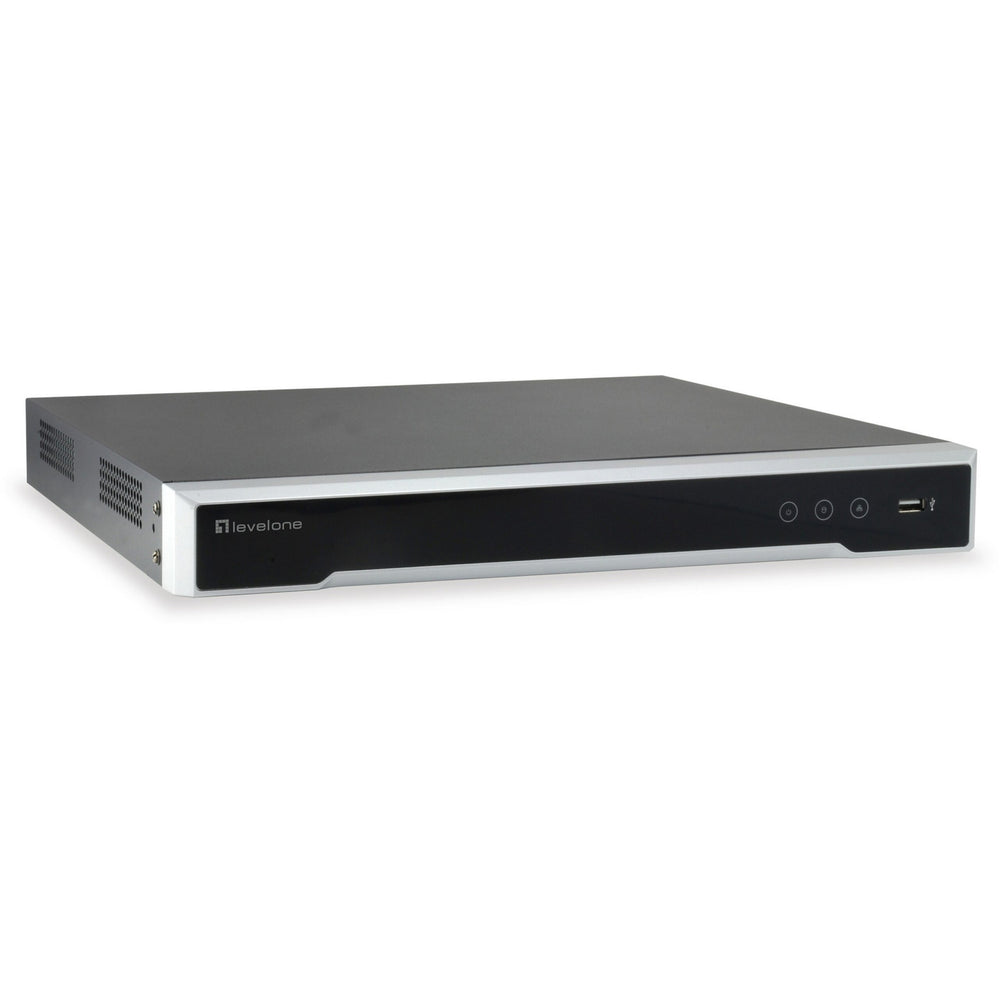

LevelOne NVR-0508 GEMINI 8-Channel PoE Network Video Recorder,8 PoE Outputs
LevelOne NVR-0508 GEMINI 8-Channel PoE Network Video Recorder,8 PoE...
Free Shipping
LevelOne NVR-0508 GEMINI 8-Channel PoE Network Video Recorder,8 PoE Outputs
The LevelOne NVR-0508 NVR enables live view, recording and playback for up to 8 IP network cameras at the same time, featuring up to 8-megapixel resolution and H.265/H.264+/H.264/MPEG4 video compression. Operation is easy and intuitive via the web browser interface (IE), enabling remote monitoring and functionality. Mobile device operations are also supported (iOS/Android), with remote viewing via the LevelOne NVR app.
Key Features
- Supports video resolutions up to 8 megapixels
- Supports 4k2k HDMI local display
- Built-in 8 PoE ports for PoE devices
- 2 x 3.5" HDD bays support disk capacity of up to 6TB
- Video compression: H.265, H.264, MPEG4
- Free CMS (Central Management System) software with 64-channel license
Technical Specifications
Standards & Protocols
TCP,UDP,IPv4,IPv6,Http,Https,SMTP,NTP,SNTP,SNMP,RTSP,FTP,DHCP,DDNS, PPPoE, SSL, RTP
Embedded System
Linux based
Port
8x 10/100 Mbps PoE
1x AUDIO IN
1x AUDIO OUT
1x VGA Interface
1x HDMI Interface
2x USB 3.0
10/100/1000 Mbps network interface
DI/DO
Button/Knob
Power Switch
Indicator
Power, Alarm, H.D.D.
Video Format
H.265/H.264/H.264+/MPEG4 video formats
Resolution
Recording at up to 8MP resolution
Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/CIF/QCIF
Capability
2-ch @ 4K, or 8-ch @ 1080p
HDMI Video Output
up to 4K (3840 +2160) Resolution
Power Input
110to230 VAC
Power Consumption
Total:180 W
PoE
120W
Storage Capacity
2 SATA each Up to 6TB capacity for each disk
Operating Temperature
14 to 131F (-10 to 55C)
Humidity
10 to 90% (non-condensing)
Number of Clients
64
Network Throughput
Incoming bandwidth
80 Mbps
Outgoing bandwidth
160 Mbps
Dimensions (WxDxH)
15.2 x 12.4 x 2.0" (385 x 315 x 52mm)
Weight
6.6Lbs (3kg)
Approval and Compliance
EMI/EMS: CE/FCC,uL
Others
Manufactured in ISO-9001 and ISO-14001 certified factory
Supported Browsers
Internet Explorer 9.0 or above
Compatibility
Onvif camera
Item Includes
x1 NVR-0508
x1 Power Adapter
x1 Power Cord
x1 Resource CD (User Manual, Utility)
