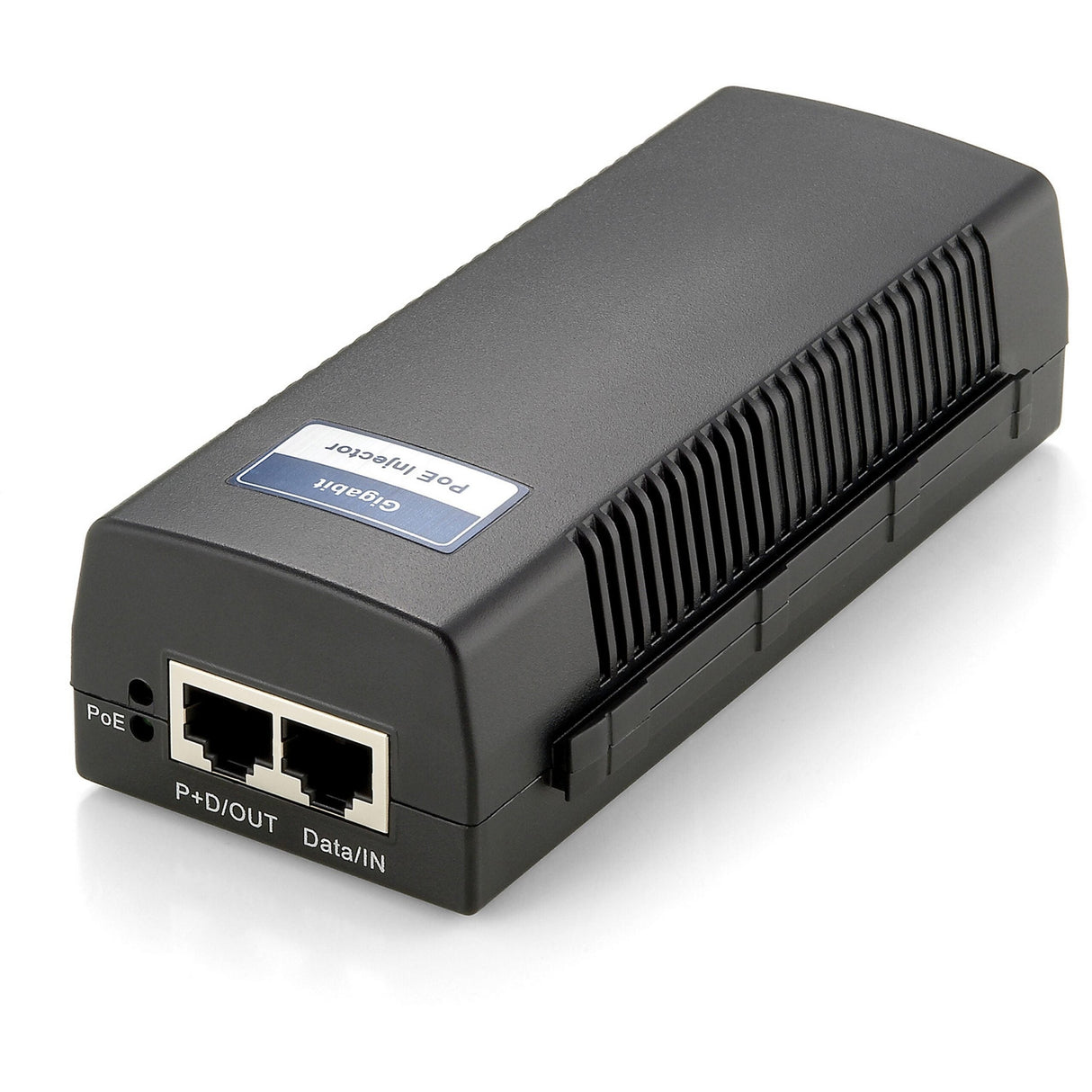

LevelOne POI-2001 Gigabit PoE Injector, 802.3af PoE
LevelOne POI-2001 Gigabit PoE Injector, 802.3af PoE
LevelOne POI-2001 Gigabit PoE Injector, 802.3af PoE
The LevelOne POI-2001 is a single port, PoE PSE solution for remote PoE PD devices. Generating up to 15.4W, the POI-2001 supplies remote power for new applications such as wireless access points, IP cameras and videophones. It complies with the IEEE 802.3af PoE standard. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. With all the functions featured in POI-2001, people can get the benefit of flexible network installation at lower cost and less downtime. It also provides a high-bandwidth pipe to the network.
Key Features
- 10/100/1000Mbps wire speed transmission and reception
- IEEE 802.3af PoE PSE with 15.4W power budget
- Auto-detection and protection of non-standard PoE devices
- Unique interlocking feature for easy installation
Technical Specifications
Standards Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-Tx Fast Ethernet
IEEE 802.3 af Power over Ethernet
Connector
RJ-45 10/100/1000 Mbps
PoE Power Output
Pin Assignment and Polarity
1/2(+), 3/6 (-)
Output Power Voltage
52 Vdc Maximal
Power
15.4 Watts Maximal
Input Power AC Input Voltage
100~240 VAC
Requirements AC Input Current
0.8A@ 100-240 VAC
AC Frequency
50~60 Hz
Dimensions (L x W x H) / Weight
143mm x 51mm x 38mm (5.62in x 20in x 1.49in)
350g (0.77lbs)
