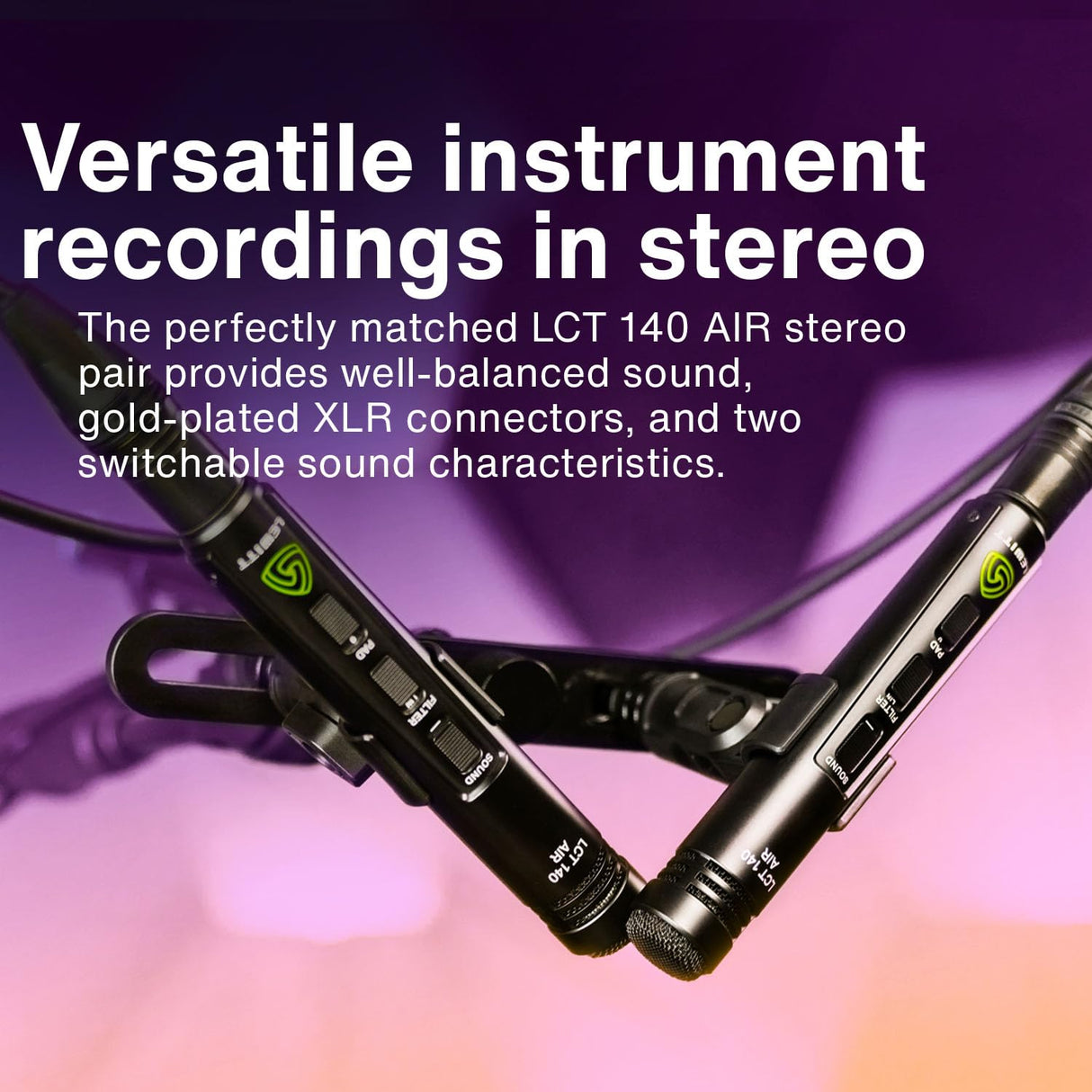

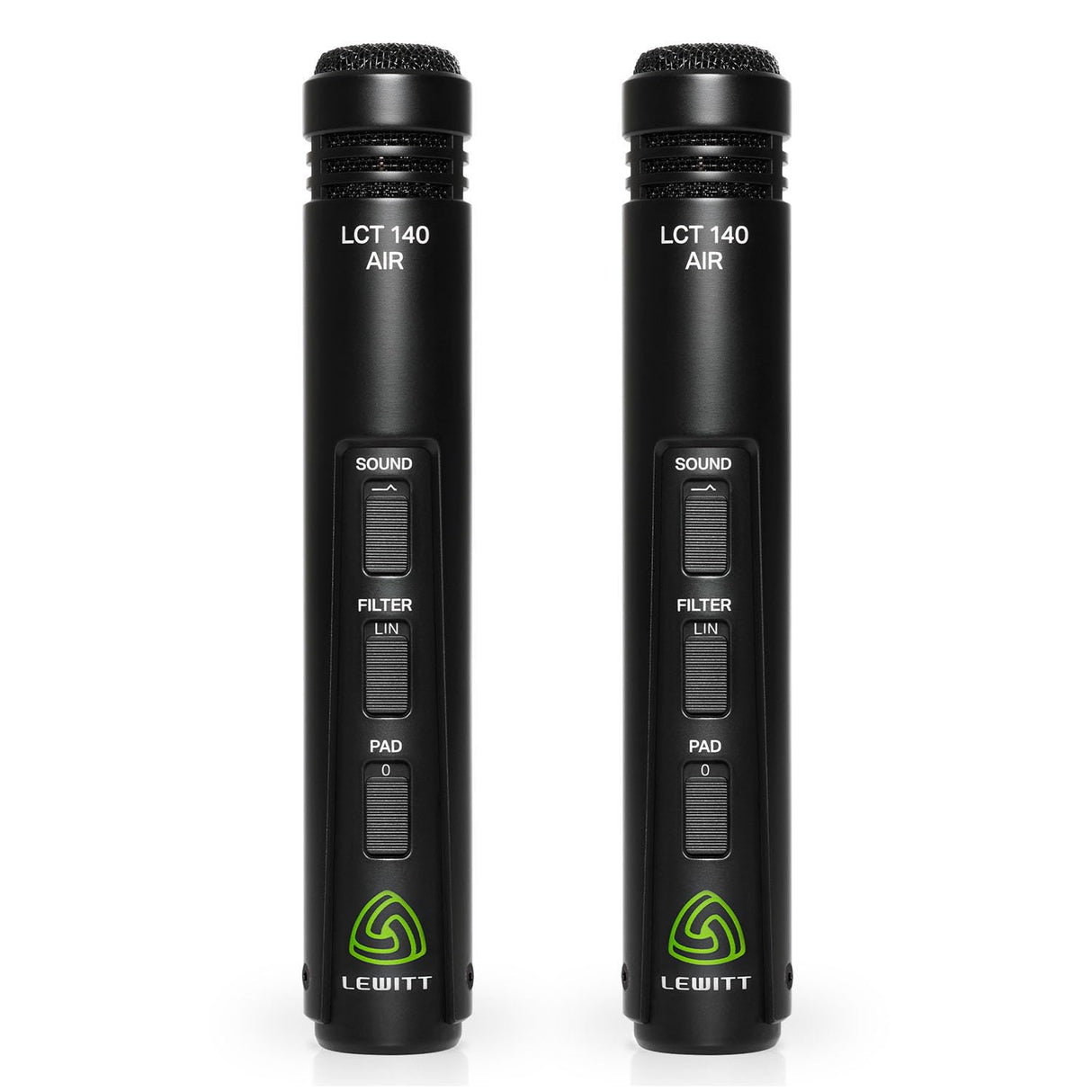

Lewitt LCT 140 AIR Stereo Matched Cardioid Microphone Pair

The LCT 140 AIR stereo pair lets you switch between two sound characteristics - AIR for a record-ready sound and FLAT for highly authentic recordings. By using automated production processes, you get perfectly matched stereo pairs without paying extra. This is the only stereo pair of pencil mics you will need - 2 sound modes, low-cut and pre-attenuation, lightweight, professional studio sound. The rumors are true. It's the best in its class. AIR delivers an open, sparkling character. It's the right choice if you need great sound without spending time on post-production. FLAT provides a linear frequency response for authentic recordings of drums, strings, acoustic guitars, and choirs. It is perfect if you aim for realistic sonic images. Check out the sound samples and hear for yourself. We measure the frequency response and sensitivity of every single microphone we produce. Our measurement system controls the polarization voltage of the capsule to adjust the sensitivity, so it is the same for all LCT 140 AIR. Then, an algorithm compares the measured frequency response of each microphone and finds perfect pairs.

Key Features

• Perfectly matched stereo pair
• Choose between two sound characteristics
• Made for acoustic instrument recording
• Low-cut and PAD
• Cardioid polar pattern

Technical Specifications

Type
Condenser, permanently polarized
Acoustical operating principle
Pressure gradient transducer
Transducer
17 mm, 0.67 in
Polar pattern
Cardioid
Sensitivity
14.6 mV/Pa, -36.7 dBV/Pa
Equivalent noise level
20 dB (A), cardioid
Max. SPL for 0.5 % THD
135 dBSPL
Dynamic range
115 dB (A)
Pre-attenuation pad
0 dB
-12 dB
Low-cut filter
linear
80 Hz (12 dB/oct)
Internal impedance
173
Rated load impedance
1000
Supply voltage
48 V ± 4 V
Current consumption
7.2 mA
Connector
Gold plated 3-pin XLR
Microphone dimensions
24 dia. x 140 mm, 0.9 dia. x 5.5 in
Microphone net weight
66 g, 2.3 oz
