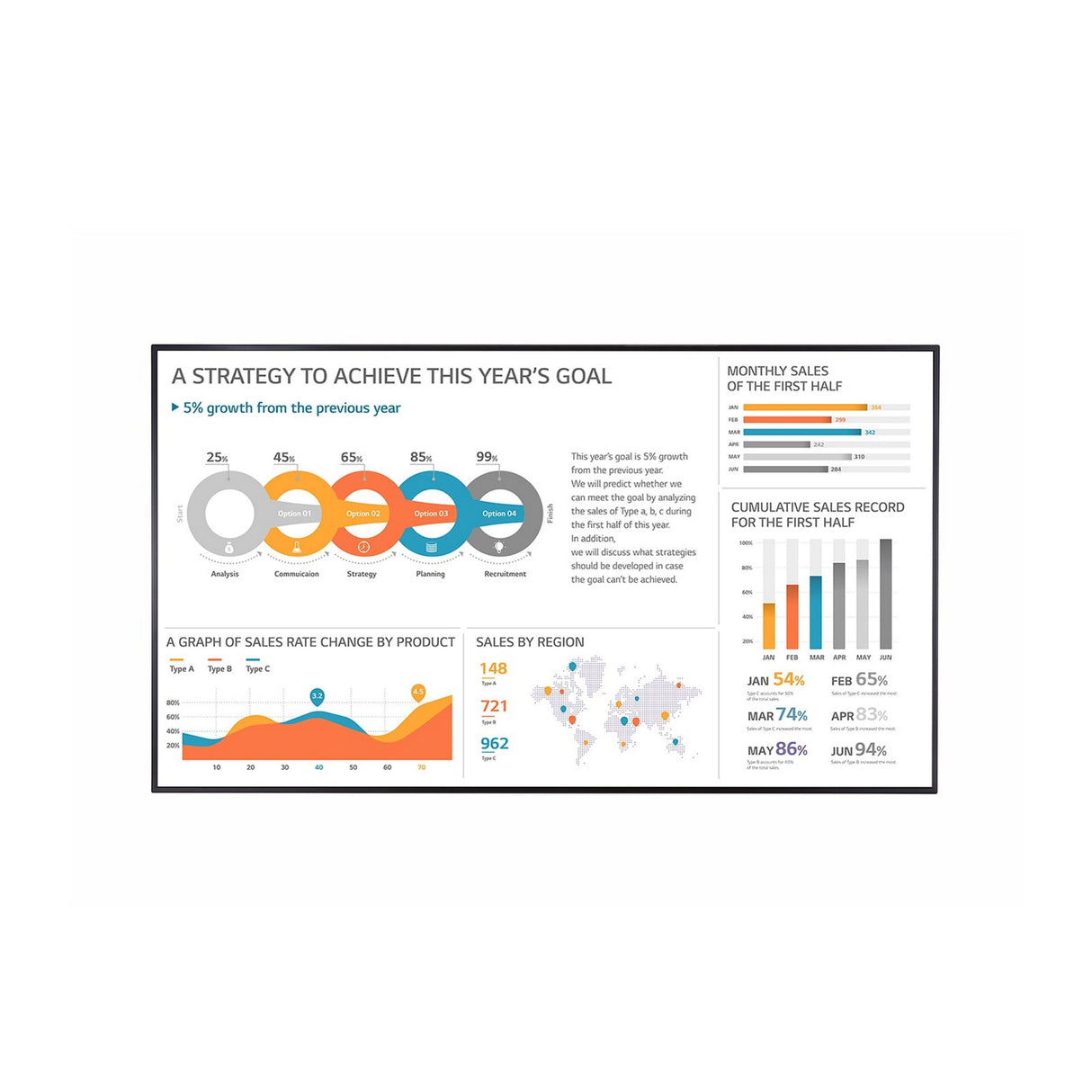

LG 86UH5F-H 86 Inch UH5F-H Series Slim UHD IPS Digital Signage
LG 86UH5F-H 86 Inch UH5F-H Series Slim UHD IPS Digital Signage
LG 86UH5F-H 86 Inch UH5F-H Series Slim UHD IPS Digital Signage
Viewers can be annoyed by unnecessary reflections when watching a screen under brightly lit conditions. The UH5F-H series has resolved such inconveniences by increasing the level of haze, which enhances visibility and text readability. With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents with no distortion. Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
Key Features
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- With its 86” screen size and 500 Nit brightness, this digital signage system is perfect for displaying high-impact information in hotels, eateries, and other businesses
- Experience luminescent visual images with LCD display
- Features a 4k Ultra HD 3840 x 2160 resolution
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- 2160p 4K UHD - Regardless of wherever or whenever the content is watched and no matter how detailed it is, this signage system is made to impress its viewers
Technical Specifications
PANEL
Screen Size
86”
Native Resolution
3,840 × 2,160 (UHD)
Contrast Ratio
1,000 : 1
Color gamut
NTSC 72%
Color Depth
1.07 Billion Colors (10 bit)
Surface Treatment
Haze 28%
Portrait / Landscape
Yes / Yes
Panel Technology
IPS
Brightness(Typ.,cd/m²)
500
Dynamic CR
1,000,000 : 1 *The luminosity ratio of Full Black / Full White color on video input condition.
Viewing Angle (H x V)
178 x 178
Response Time
8ms(G to G)
Operation Hours (Hours / Day)
24 / 7
CONNECTIVITY
Input
HDMI (2, HDCP 2.2/1.4), HDMI (1, HDCP 1.4), DP (1, HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio, USB 2.0 Type A (2)
MECHANICAL
Bezel Color
Black
Weight (Head)
49.0 kg
Bezel Width
14.3 mm (Even Bezel)
Monitor Dimension (W × H × D)
1,926.2 × 1,097.2 × 60.6 mm (Without Handle and LG Logo)
VESA Standard Mount Interface
600 x 400 mm
