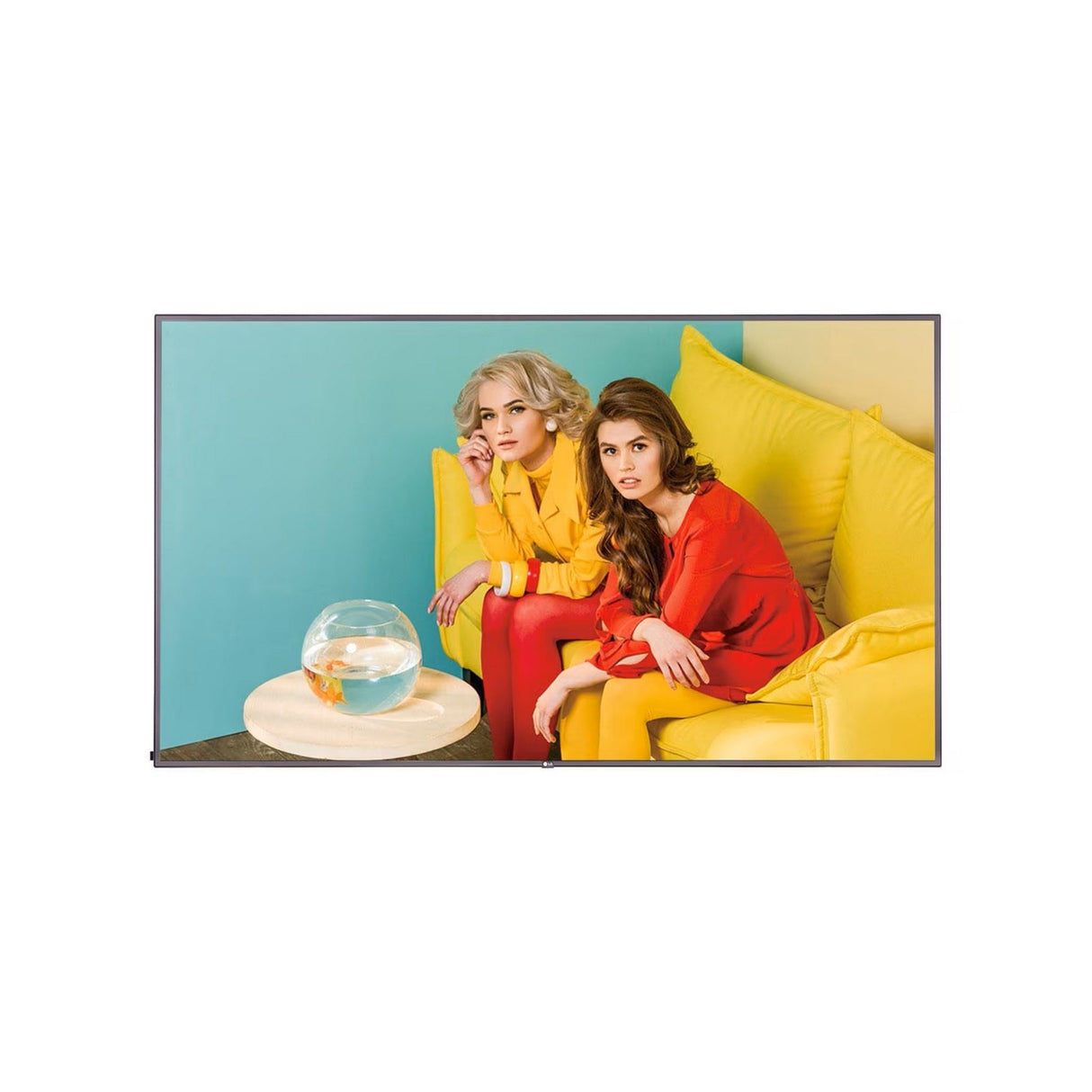

The LG UH5E 86-Inch 4K UHD Digital Signage Display is designed to deliver impactful presentations and grab attention with ease.

Unmatched Visual Quality
True-to-Life Colors: LG IPS panels ensure vibrant colors and clear content from almost any viewing angle.
Ultra HD Resolution: Sharp details with 4 times the resolution of Full HD.
Slim Design: Maintains a sleek look while offering a large display for immersive viewing.

Effortless Content Management
Built-in CMS: Create and schedule content playlists using internal/external sources without a separate PC.
Simple Group Management: Control and distribute content to multiple displays on your network.
Real-Time Monitoring: Monitor the status of your displays remotely through the web.

Advanced Features for Businesses

Wireless Content Sharing: Wirelessly share content between devices for effortless collaboration.
Wireless Access Point: The display acts as a virtual router for mobile devices.
AV/Video Conference Compatibility: Seamless integration with professional control systems and Cisco Spark Room Kits for a better conferencing experience.
Optional ConnectedCare Service: Receive maintenance and troubleshooting support remotely, minimizing downtime.

Additional Benefits
Reduced Overall Costs: No need for additional software or media players for creating value-added signage solutions.
Detachable Logo & Built-in Speakers: Customize the display orientation and add sound to enhance your message.
Multi Screen Mode: Display multiple content sources simultaneously with Picture-by-Picture and Picture-In-Picture options.

Ideal for
Retail stores
Corporate offices
Educational institutions
Hospitality venues
Public transportation areas
Any location where you need to effectively communicate with an audience.

Technical Specifications

Screen Size
86"
Panel Technology
IPS
Resolution
3840 x 2160 (UHD)
Contrast Ratio
Mon Feb 19 00:01:00 KST 1900
Response Time
6ms (G to G)
Brightness
500 nits
Viewing Angle (H x V)
178°/178°
Orientation
Landscape & Portrait
Lifetime (Typ.)
50,000 Hrs
Operation Hours
24 Hrs
Surface Treatment (Haze)
Haze 3%
Limited Warranty
3-Year Limited Warranty
Input
HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
Output
DP, Audio (Off/Fixed/Variable), External Speaker (98" Only)
External Control
RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
Features
Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Image Customization, Failover, Content Sync (RS232C, Local Network), Screen Share, Play via URL, OSD Rotation, Content Rotation, PIP/PBP(4), Tile Mode Setting (Max 15x15), Setting Data Cloning, Firmware Update by Network, SNMP 1.4, ISM Mode, Crestron Connected1, Cisco Compatibility 2, Beacon, HDMI-CEC 3, SI Server Setting, webRTC
Operating Temperature Range
32°F to 104°F / 0°C to 40°C
Operating Humidity Range
10% to 80%
Power Supply
100-240V, 50/60Hz
Power Type
Built-in Power
Power Consumption (Smart Energy Saving)
215 W / 280 W
Power Consumption (Typ./Max)
215 W / 280 W
Bezel Color
Black
Bezel Width
14.9mm (Even, Off-Bezel)
Packed Weight
134.7 lbs / 61.1 kg
Monitor Dimension (W x H x D)
(W x H x D) (without handle, with LG logo) 75.8 x 43.2 x 2.4 in / 1,926.2 x 1,097.2 x 60.6 mm
Weight (Head)
108 lbs / 49 kg
VESA TM Standard Mount Interface
600 x 400 mm
Carton Dimensions (W x H x D)
81.6" x 49.6" x 11.5" / 2,073 x 1,260 x 292 mm
Handle
Yes
Safety
CB / NRTL
EMC
FCC Class "A"/CE/KC
ErP
Yes (EU Only)
Content Management Software
SuperSign CMS
Control and Monitoring Software
SuperSign Control/Control+
OPS Type Compatible
Yes
Optional
OPS Kit (KT-OPSF), Wall Mount (LSW640A/B), Touch Overlay(KT-T75E)
Basic
Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender
Speaker
None
