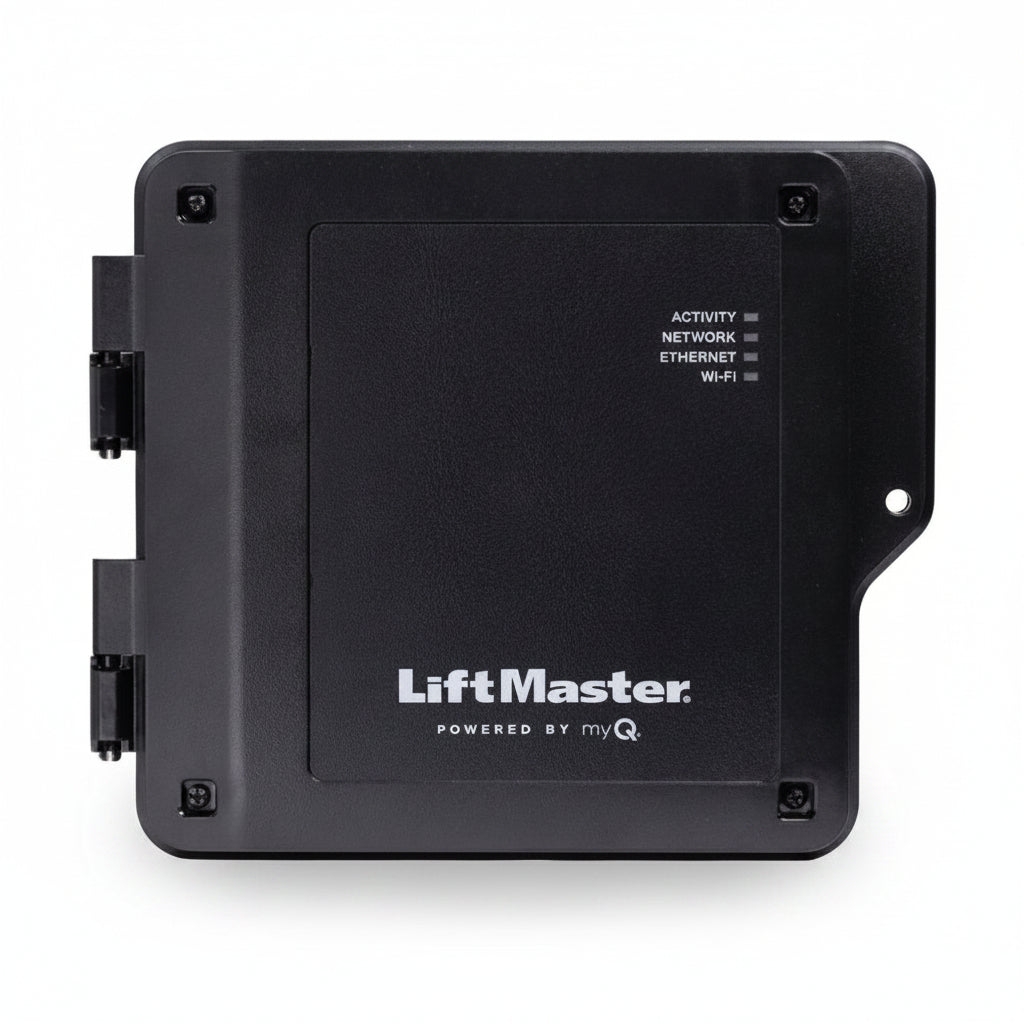

LiftMaster CAP4AP Smart Access Controller

LiftMaster CAP4AP Smart Access Controller

The LiftMaster CAP4AP Smart Access Controller is a cloud-connected access control panel for managing up to two doors or four access points. Designed for outdoor installations, it combines reader interfaces, four configurable relay outputs, Ethernet, Wi-Fi, and Power over Ethernet connectivity with centralized management through the myQ Community platform.

The CAP4AP suits gated communities, multifamily properties, commercial entrances, and distributed access points where installers need flexible placement without a separate indoor controller cabinet. Two Wiegand reader inputs and support for four OSDP readers accommodate common credential technologies, while encrypted OSDP communication helps provide tamper-resistant reader-to-controller data transmission. An outdoor-rated enclosure simplifies installation near controlled entrances.

Property teams can manage credentials and access activity through the myQ Community Web Portal and compatible smartphone app. The controller stores up to 50,000 local users and provides status indicators for faster system diagnostics. IP54 environmental protection and an IK07 impact rating support exterior deployment, while either 24 VDC power or PoE gives integrators multiple power and network design options.

Key Features

• Flexible Entry Control: Configure the controller for up to two doors or four access points to match different property layouts.
• OSDP Reader Support: Connect up to four OSDP readers with encrypted communication for secure credential transmission.
• Wiegand Compatibility: Two Wiegand inputs support integration with compatible legacy readers and keypads.
• Four Configurable Relays: Relay-to-input mapping can be configured through advanced settings in the myQ Community Web Portal.
• Cloud-Based Management: myQ Community provides centralized credential, access, and controller management through web and mobile interfaces.
• Ethernet and Wi-Fi Connectivity: Multiple network options provide installation flexibility across existing and new access-control infrastructure.
• PoE Power Option: Power over Ethernet can reduce dedicated cabling requirements when the installation infrastructure supports it.

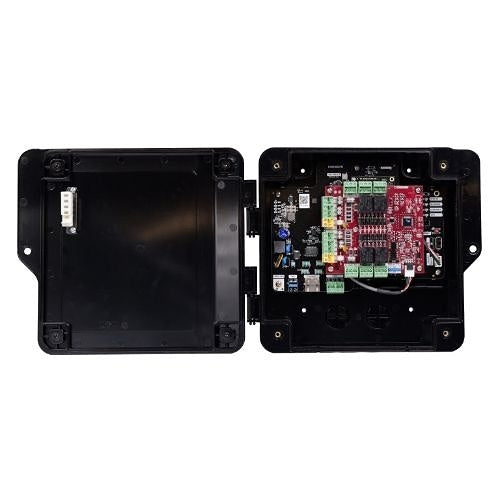

• Outdoor-Rated Enclosure: IP54 and IK07 protection helps the controller withstand environmental exposure and physical impact.

Technical Specifications

• Manufacturer: LiftMaster
• Manufacturer Part Number: CAP4AP
• Product Type: Smart Access Controller
• Maximum Control: 2 doors or 4 access points
• Local User Capacity: 50,000
• OSDP Reader Support: Up to 4 readers
• Wiegand Inputs: 2
• Relay Outputs: 4 configurable relays
• Wiegand Data Format: 26-bit credentials or passthrough
• Management Software: myQ Community Web Portal and smartphone app
• Network Connectivity: Ethernet and Wi-Fi
• Power: 24 VDC power adapter or Power over Ethernet
• Outdoor Rating: IP54
• Impact Rating: IK07
• Operating Temperature: -4°F to 122°F
• Dimensions: 9.3" H x 10.3" W x 2.6" D
• Weight: 4.8 lb
• Warranty: 2-year parts and hardware warranty
