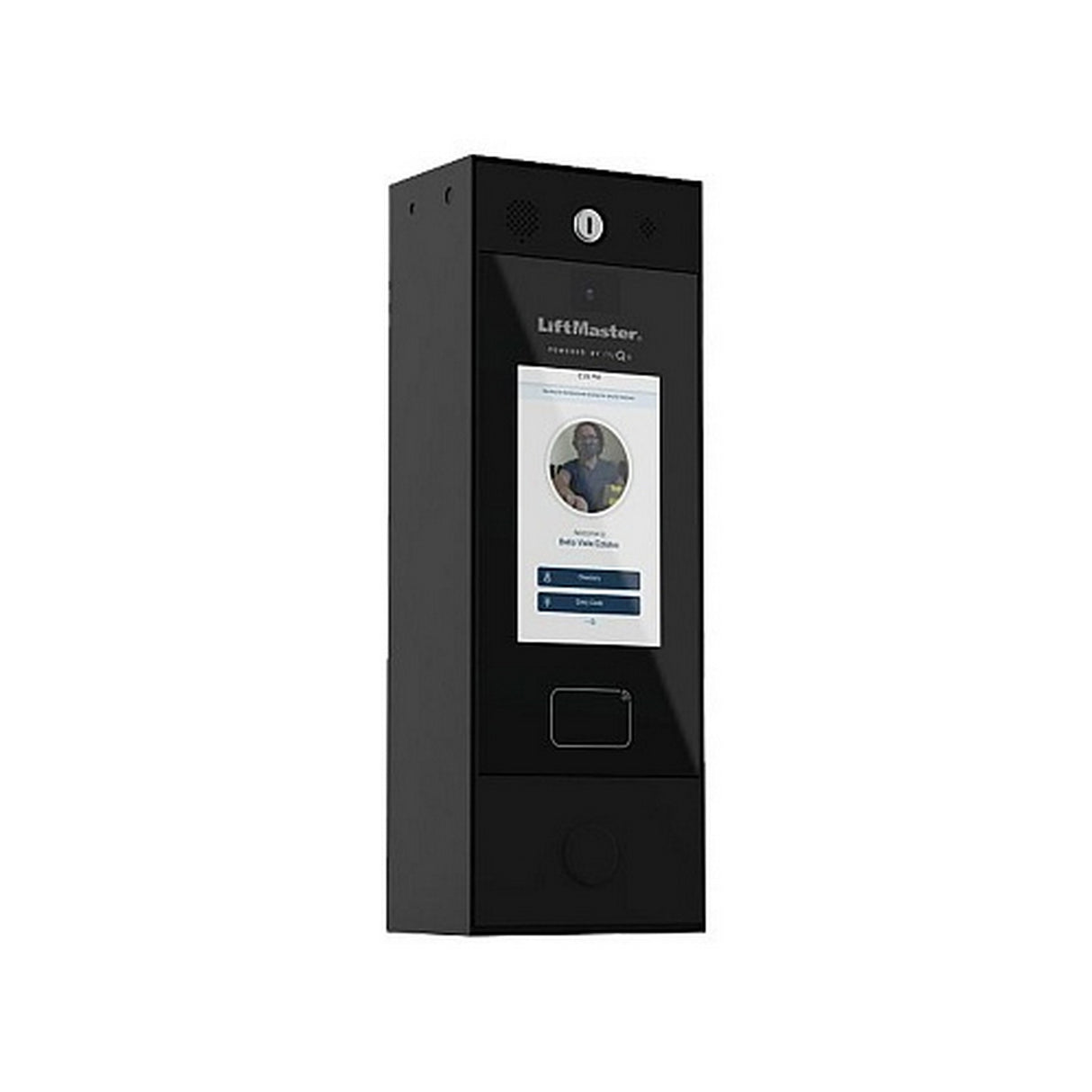

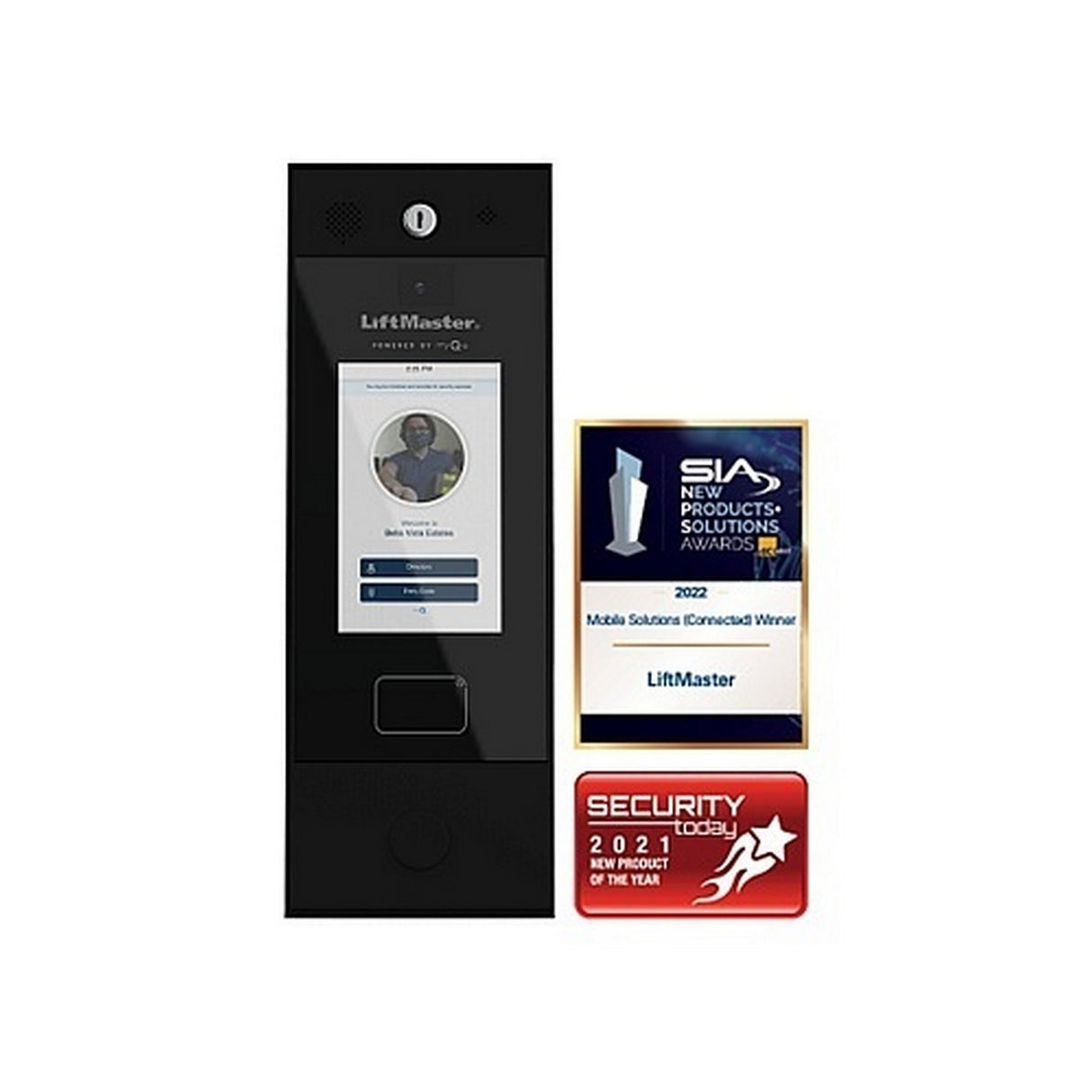

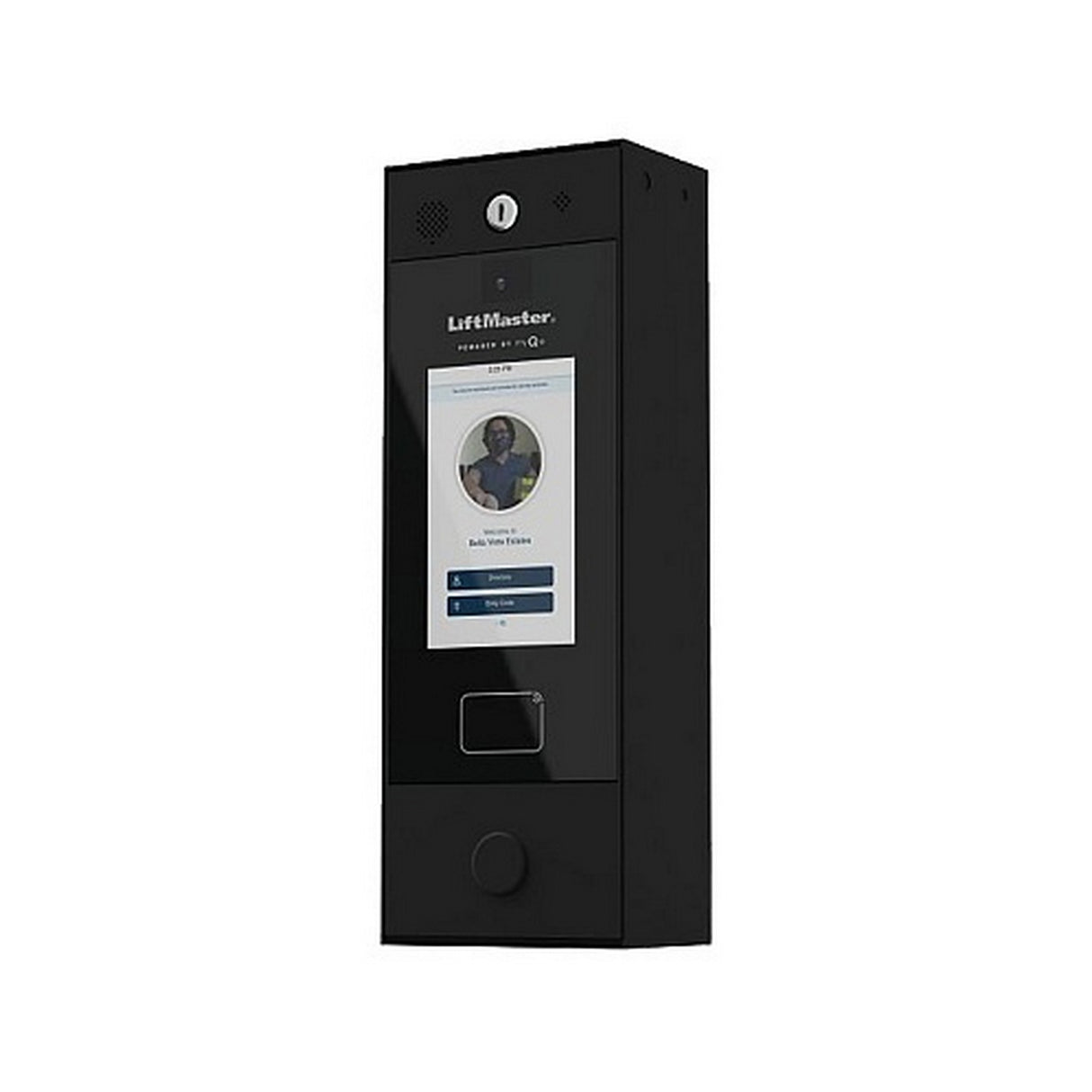

LiftMaster CAPXMMC Smart Video Intercom-M with 7-Inch Touchscreen

LiftMaster CAPXMMC Smart Video Intercom-M

The LiftMaster CAPXMMC Smart Video Intercom-M is a cloud-managed video entry and access control system for multifamily buildings, gated communities, and controlled entrances. It combines a 7-inch HD touchscreen, integrated 1080p camera, resident video calling, and access management for up to two gates or doors through the myQ Community platform.

Designed for medium-scale community access applications, the CAPXMMC gives property managers one interface for resident management, entrance permissions, event monitoring, and configurable notifications. Residents can use the myQ Community app to visually identify visitors, communicate with guests, grant or deny entry, and unlock authorized entrances from compatible smartphones. A 135-degree camera viewing angle and night-vision capability help capture a broader view of the entrance in changing light conditions.

The system supports wired Ethernet and Wi-Fi network connections, two Wiegand reader inputs, and four relay outputs for integration with access-control hardware. Compatible LiftMaster UL 325 gate operators can also communicate wirelessly when supported by the appropriate operator generation and firmware. The CAPXMMC supports up to 50,000 local residents per unit and requires a myQ Community subscription for cloud-based system operation.

Key Features

• 1080p Wide-Angle Camera: Integrated video camera provides a 135-degree viewing angle for live and recorded entrance monitoring.
• 7-Inch HD Touchscreen: 720p fade- and glare-resistant color display provides intuitive navigation with picture-in-picture viewing.
• Two-Entrance Control: Manages access for up to two gates and/or doors from one intercom system.
• myQ Community Integration: Cloud-based management supports resident administration, entrance permissions, event monitoring, and smartphone access.
• Resident Video Calling: The myQ Community app lets residents view visitors and grant or deny access remotely.
• Flexible Access Integration: Two Wiegand inputs and four relay outputs support connection with compatible readers and controlled entrances.
• Network Connectivity: Supports 10/100 Ethernet or Wi-Fi for VoIP and myQ Community communications.
• Large Resident Capacity: Supports up to 50,000 local residents per unit for multifamily and gated-community installations.

Technical Specifications

• Manufacturer Part Number: CAPXMMC
• Product Family: CAPXM Smart Video Intercom-M
• Product Type: Cloud-Based Smart Video Intercom and Access Control System
• Controlled Entrances: Up to 2 gates and/or doors
• Resident Capacity: Up to 50,000 local residents per unit
• Display: 7-inch 720p high-definition color touchscreen
• Display Features: Fade-resistant, glare-resistant, picture-in-picture
• Camera Resolution: 1080p
• Camera Viewing Angle: 135 degrees
• Camera Features: HD video and night-vision functionality
• Smartphone Control: myQ Community app
• Management Software: myQ Community
• Wiegand Inputs: 2
• Relay Outputs: 4 total; 2 primary and 2 auxiliary
• Ethernet: 10/100; DHCP or static configuration
• Wi-Fi: Supported; DHCP configuration
• Voice Communication: VoIP over network connection
• Wireless Gate Communication: Compatible with supported LiftMaster UL 325 gate operators manufactured after October 2017
• Operating Temperature: -20°F to 130°F
• Dimensions: 17" H x 6.1" W x 4" D
• Subscription: myQ Community subscription required
• Warranty: 2 years
