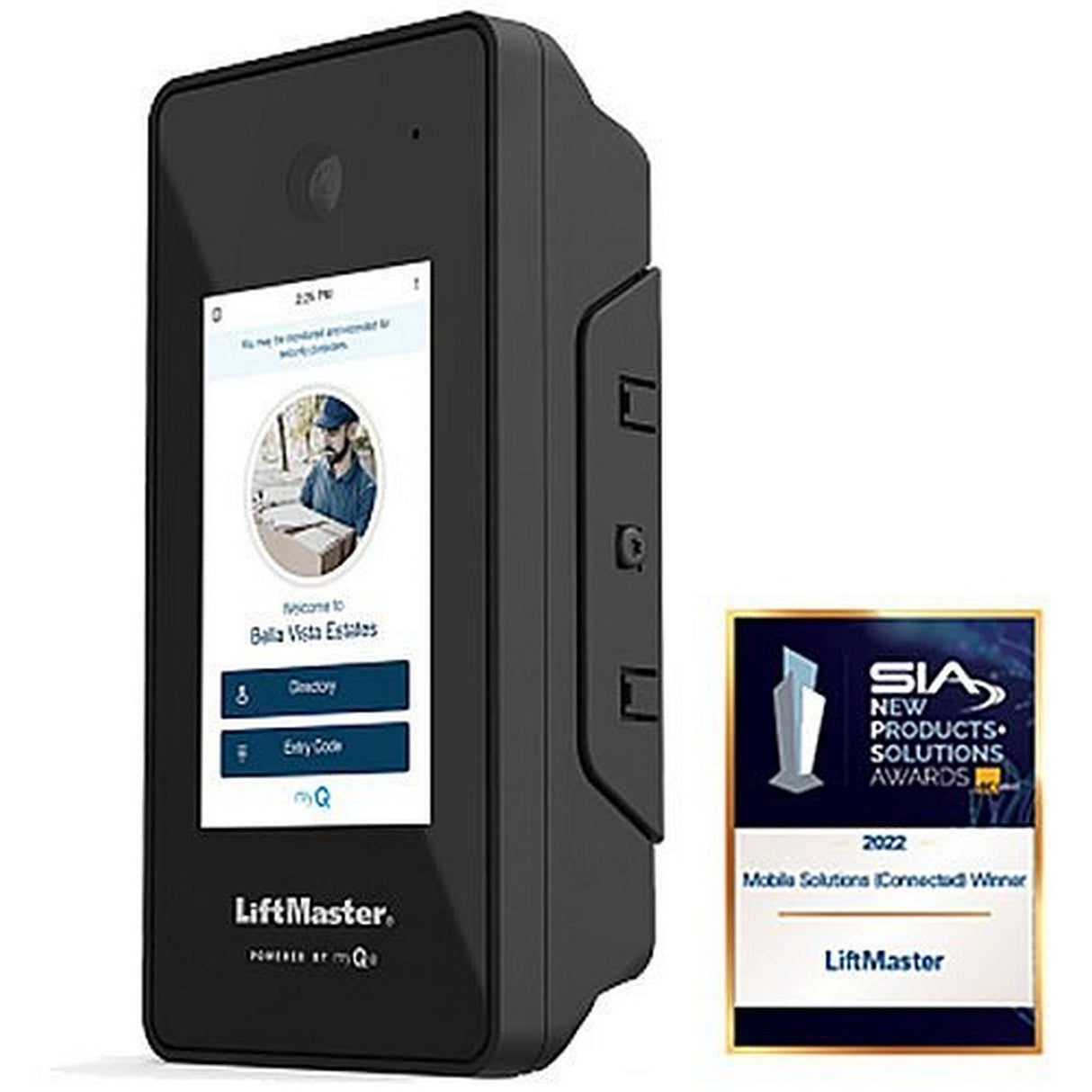

LiftMaster CAPXS Smart Video Intercom-S with 5-Inch Touchscreen

LiftMaster CAPXS Smart Video Intercom-S

The LiftMaster CAPXS Smart Video Intercom-S is a cloud-based video entry and access control system designed for smaller multi-tenant properties and gated homes. It combines a 5-inch HD touchscreen, integrated 1080p wide-angle camera, visitor communication, and single-entrance control with remote management through the myQ Community platform.

Residents can use the myQ Community app to see visitors before granting entry, communicate through the intercom, and manage access without relying solely on physical keys. For property managers seeking a smart intercom for small apartment buildings, a video entry system for gated homes, or cloud-managed single-door access control, the CAPXS provides a compact surface-mount solution with Ethernet and Wi-Fi connectivity.

The system supports one controlled gate or door, one Wiegand reader input, and two relay outputs for compatible access hardware. Its 5-inch 720p touchscreen uses picture-in-picture navigation, while the integrated camera provides a 135-degree field of view. IP54 weather protection and an IK07 impact rating support exposed installations, and LiftMaster specifies operation from -4°F to 122°F.

Key Features

• 1080p Video Camera: Integrated wide-angle camera provides a 135-degree field of view for identifying visitors at the entrance.
• 5-Inch HD Touchscreen: 720p color capacitive display provides directory navigation and picture-in-picture viewing in a compact enclosure.
• Single-Entrance Control: Manages one gate or door, with auxiliary relay capability for supported vestibule configurations.
• myQ Community Management: Cloud-based administration gives property managers remote control over residents, access permissions, schedules, and event activity.
• Resident Video Entry: Compatible residents can view visitors and manage entrance access through the myQ Community app.
• Ethernet and Wi-Fi: Dual network options provide flexibility when connecting the intercom to cloud services and VoIP communications.
• Weather and Impact Protection: IP54 environmental protection and an IK07 impact rating help protect the intercom in exterior entry applications.
• Compact Mounting: Supports surface and gooseneck mounting for pedestrian entrances, gates, and smaller building installations.

Technical Specifications

• Manufacturer: LiftMaster
• Manufacturer Part Number: CAPXS
• Product Name: Smart Video Intercom-S
• Product Type: Cloud-Based Video Intercom and Access Control System
• Applications: Smaller multi-tenant buildings, gated homes, gated communities, building entrances, and controlled gates
• Controlled Gates/Doors: 1
• Vestibule Capability: Supported using auxiliary relay configuration
• Local User Capacity: 500 users per unit
• Local Event History: 3,000 events per unit
• Display: 5-inch 720p high-definition color capacitive touchscreen
• Display Features: Picture-in-picture, fade-resistant touchscreen
• Camera Resolution: 1080p
• Camera Field of View: 135 degrees
• Data Connectivity: Ethernet and Wi-Fi
• Voice Communication: Ethernet and Wi-Fi
• Calling Connectivity: VoIP
• Programming: Cloud-based through myQ Community
• Remote Programming: Supported
• Event Monitoring: Real-time monitoring with configurable email notifications
• Wiegand Inputs: 1
• Wiegand Data Formats: 26-bit, 37-bit HID, 37-bit Transcore, and 32-bit MiFare
• Relay Outputs: 2; 1 primary and 1 auxiliary
• Mounting Options: Surface or gooseneck
• Outdoor Rating: IP54
• Impact Rating: IK07
• CAPXS DC Input: 16 VDC, 10 W maximum
• Included Power Supply Input: 120 VAC, 60 Hz, 1 A maximum
• Included Power Supply Output: 16 VDC, 2.5 A, 40 W
• Operating Temperature: -4°F to 122°F
• Dimensions: 8" H x 4" W x 2" D
• Color: Black
• Smartphone Control: Requires myQ Community app and applicable subscription
• Warranty: 2 years
