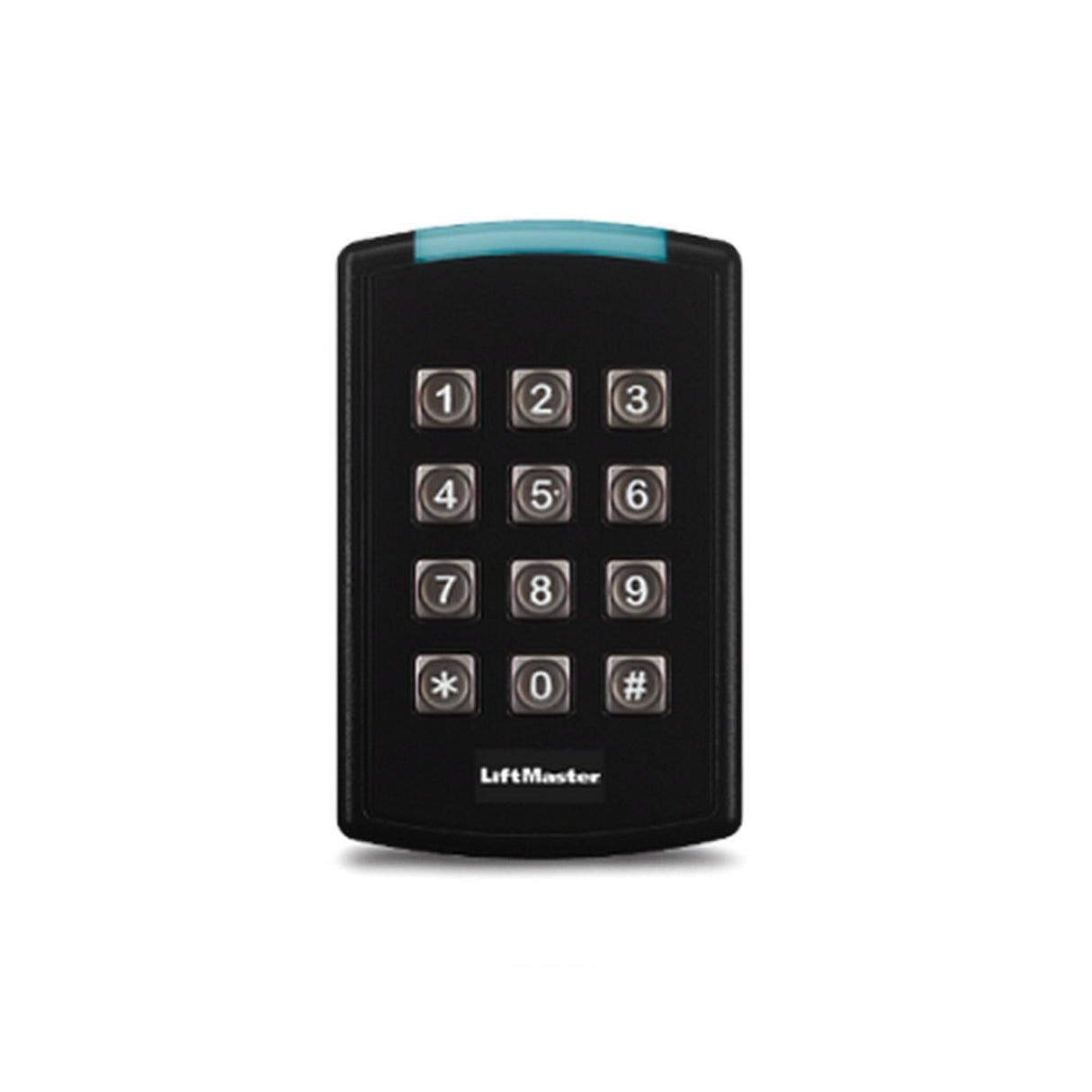

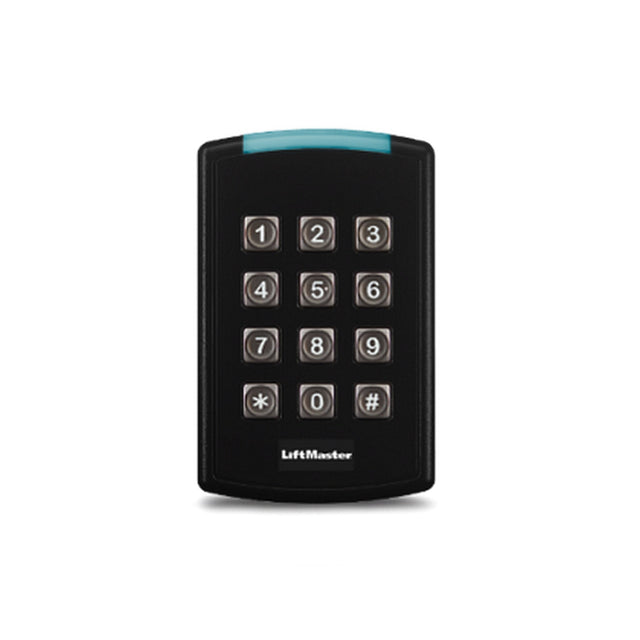

LiftMaster SRDRKP Multi-Technology Smart Reader with 10-Key Keypad

LiftMaster SRDRKP Multi-Technology Smart Reader with 10-Key Keypad

The LiftMaster SRDRKP Multi-Technology Smart Reader combines a 10-key access keypad with 125 kHz proximity, 13.56 MHz smart-card, and Bluetooth Low Energy credential support. Designed for controlled entrances, it gives multifamily and gated-community installations one reader for PIN codes, physical credentials, and myQ Community mobile access.

The integrated keypad supports one-time and guest PIN applications, while residents can use compatible smartphones for Tap, Touch, or Alert entry modes. This makes the SRDRKP suitable for apartment entrances, gyms, mail rooms, parking areas, elevators, and other access points where both mobile and traditional credential options are needed. Single-gang or surface mounting also supports new construction and retrofit installations.

The reader operates with compatible LiftMaster access controllers and intercoms, including CAPXLV-family systems, CAPXM, CAPXS, and CAP2D. Wiegand and OSDP communication options support professional access-control integration, while an IP55 environmental rating and conformally coated electronics accommodate indoor or outdoor placement. Accelerometer-based tamper detection adds another layer of installation monitoring for managed entrances.

Key Features

• 10-Key Access Keypad: Supports PIN-based entry, including guest and one-time access codes when used with compatible myQ Community systems.
• Multi-Technology Reader: Accepts 125 kHz proximity, 13.56 MHz smart credentials, and BLE mobile credentials.
• myQ Mobile Access: Supports Tap, Touch, and Alert entry methods through the myQ Community app.
• Flexible Installation: Single-gang and surface-mount compatibility suits both retrofit and new access-control projects.
• Wiegand and OSDP Integration: Connects with compatible professional access-control hardware using common reader communication methods.
• Outdoor Protection: IP55 environmental protection and water-resistant conformal coating support exposed entrance installations.
• Tamper Detection: An integrated accelerometer can identify physical tampering with the installed reader.
• Status Feedback: Tri-state LED indication and an audible beeper provide visual and audible access feedback.

Technical Specifications

• Manufacturer: LiftMaster
• Manufacturer Part Number: SRDRKP
• Product Type: Multi-Technology Smart Reader with Keypad
• User Interface: 10-key keypad
• Identification Methods: Key code, proximity credentials, smart credentials, and BLE mobile credentials
• RF Technologies: 125 kHz, 13.56 MHz, and Bluetooth Low Energy
• 125 kHz Credential Formats: 26-bit, 30-bit, 36-bit LiftMaster, and 37-bit
• 13.56 MHz Credential Formats: 32-bit MiFare and 56-bit LiftMaster
• Dual-Technology Format: LiftMaster 36-bit at 125 kHz and 56-bit at 13.56 MHz
• Mobile Platform: myQ Community
• Mobile Entry Modes: Tap, Touch, and Alert
• Tap Range: Smartphone presented within approximately 3 inches of reader
• Touch Range: Smartphone within approximately 2 feet while user touches reader
• Alert Range: Smartphone notification within approximately 10 feet of reader
• Reader Communication: Wiegand and OSDP
• Compatible Controllers: CAPXLV-family systems, CAPXM, CAPXS, and CAP2D
• Power Supply Voltage: 5-16 VDC
• Power Supply: Not included
• Average Current: 145 mA
• Peak Current: 195 mA
• Mounting: Single-gang or surface mount
• Environmental Rating: IP55
• Operating Temperature: UL tested from -31°F to 150°F
• EN Temperature Testing: -40°F to 158°F at up to 95% humidity
• Construction: Reader electronics conformally coated with a silicone water-resistant coating
• Tamper Detection: Accelerometer-based
• User Feedback: Tri-state LED light bar and audible beeper
• Dimensions: 5.1" H x 3.3" W x 0.7" D
• Color: Black
• Indoor/Outdoor Use: Indoor and outdoor
• Regulatory Certifications: FCC, IC, CE, UL 294, EN 302291, EN 301489, EN 300330, EN 50130-4, IP55, BIS IS 13252
• Country of Origin: United States
• Warranty: 1 year

What's In the Box

• Integrated back plate
• Wall plate
• Mounting hardware
