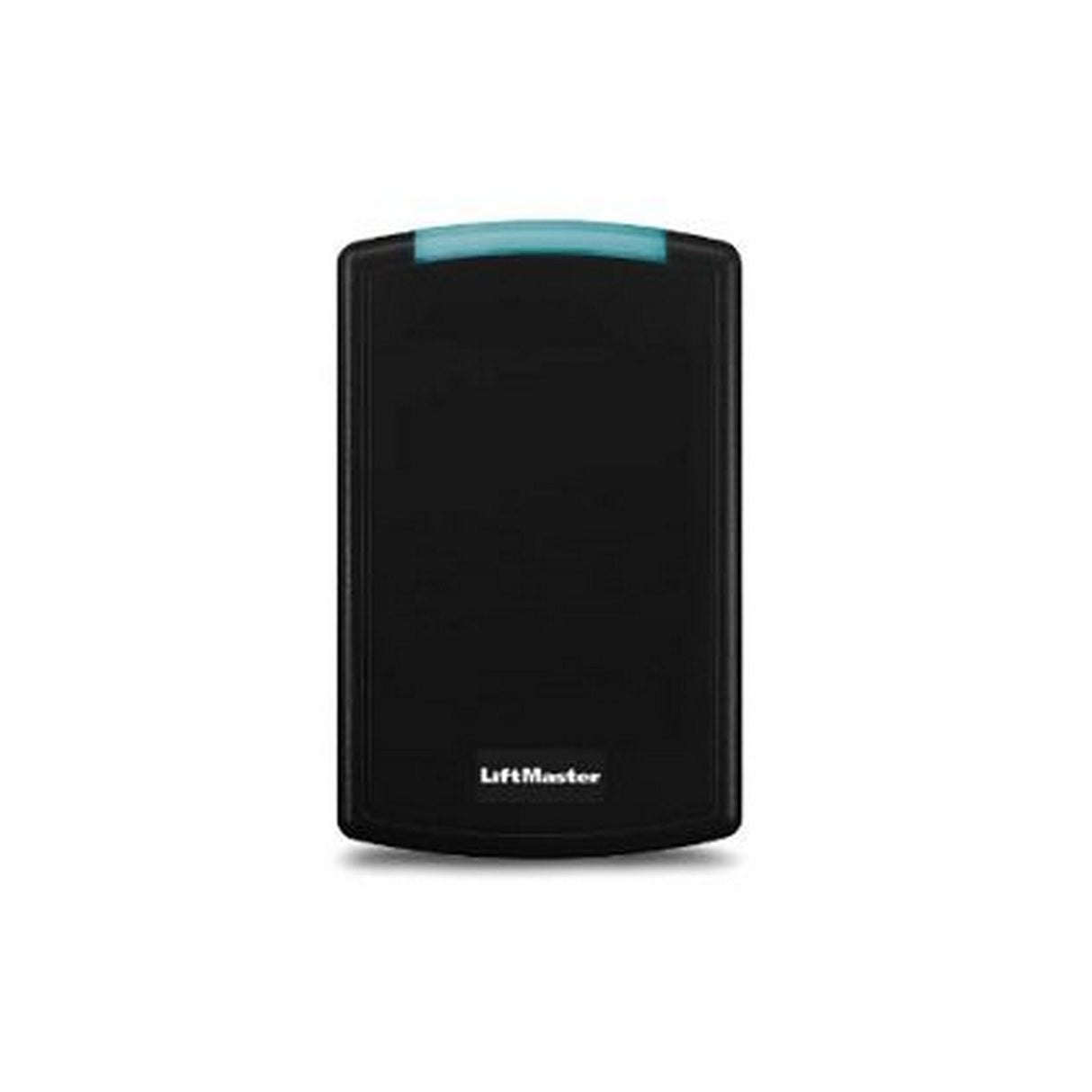

LiftMaster SRDRST Multi-Technology Smart Reader with BLE

LiftMaster SRDRST Multi-Technology Smart Reader

The LiftMaster SRDRST Multi-Technology Smart Reader is an indoor/outdoor access control reader that accepts 125 kHz proximity credentials, 13.56 MHz smart credentials, and Bluetooth Low Energy mobile credentials. It integrates with the myQ Community ecosystem so residents can use supported smartphones for controlled entry at doors, gates, elevators, parking areas, and shared spaces.

Designed for multifamily buildings, gated communities, and commercial access points, the SRDRST gives integrators a migration path from traditional cards and fobs to encrypted mobile credentials. Users can access supported entrances through Tap, Touch, or Alert interactions in the myQ Community app. Wiegand connectivity supports existing access-control infrastructure, while OSDP capabilities provide an option for compatible secure reader communication.

The single-gang reader is suitable for new installations and retrofit projects, with IP55 environmental protection for indoor or outdoor placement. Its electronics use a conformal silicone water-resistant coating, and the reader operates from 5-16 VDC. Supported credential formats include multiple proximity, MiFare, LiftMaster, and dual-technology formats for flexible deployment across managed properties.

Key Features

• Multi-Technology Credential Support: Reads 125 kHz proximity, 13.56 MHz smart credentials, and BLE mobile credentials from one reader.
• myQ Mobile Credentials: BLE communication enables compatible smartphone access through the myQ Community app.
• Three Mobile Entry Modes: Supports Tap, Touch, and Alert interactions for convenient resident access.
• Wiegand and OSDP Connectivity: Integrates with compatible access-control hardware while supporting modern secure reader communication.
• Indoor/Outdoor Installation: IP55 environmental protection supports entrances exposed to typical outdoor conditions.
• Single-Gang Mounting: Compact design works with standard single-gang installations and includes mounting components.
• Broad Credential Compatibility: Supports multiple proximity, MiFare, LiftMaster, and dual-technology bit formats.
• Wide Operating Range: Rated for operation from -31°F to 150°F under the specified UL-tested temperature range.

Technical Specifications

• Manufacturer: LiftMaster
• Manufacturer Part Number: SRDRST
• Product Type: Multi-Technology Smart Card Reader
• Applications: Gated communities, large buildings, controlled doors, and shared access points
• Identification Method: Contactless RFID, proximity, smart credential, and BLE mobile credential
• RF Technologies: 125 kHz and 13.56 MHz
• Mobile Communication: Bluetooth Low Energy
• Mobile Platform: myQ Community app
• Mobile Access Modes: Tap, Touch, and Alert
• Host Interface: Wiegand
• OSDP: Supported with compatible access-control hardware
• 125 kHz Proximity Formats: Standard 26-bit, 30-bit, and 37-bit
• 13.56 MHz Smart Formats: 32-bit MiFare and 56-bit LiftMaster
• Dual-Technology Format: LiftMaster 36-bit at 125 kHz and 56-bit at 13.56 MHz
• Power Supply Voltage: 5-16 VDC; power supply not included
• Current Draw: 120 mA average, 170 mA peak
• Mounting: Single gang
• Construction: Reader electronics conformally coated with a silicone water-resistant coating
• Environmental Rating: IP55
• Operating Temperature: -31°F to 150°F
• Dimensions: 5.1" H x 3.3" W x 0.7" D
• Color: Black
• Regulatory Certifications: FCC, IC, CE, UL 294, EN 302291, EN 301489, EN 300330, EN 50130-4, IP55, BIS IS 13252
• Country of Origin: United States

What's In the Box

• Integrated back plate
• Wall plate
• Mounting hardware
