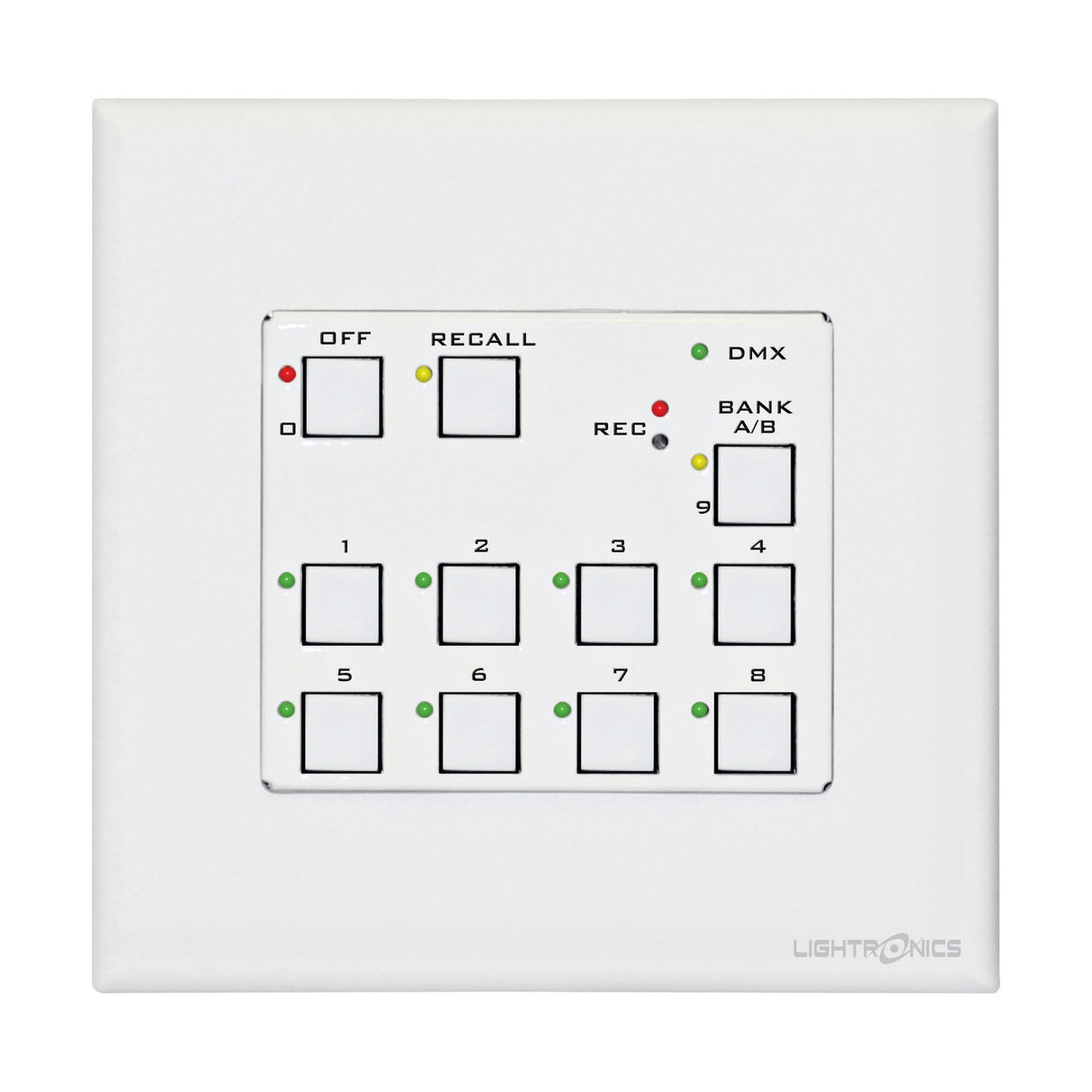

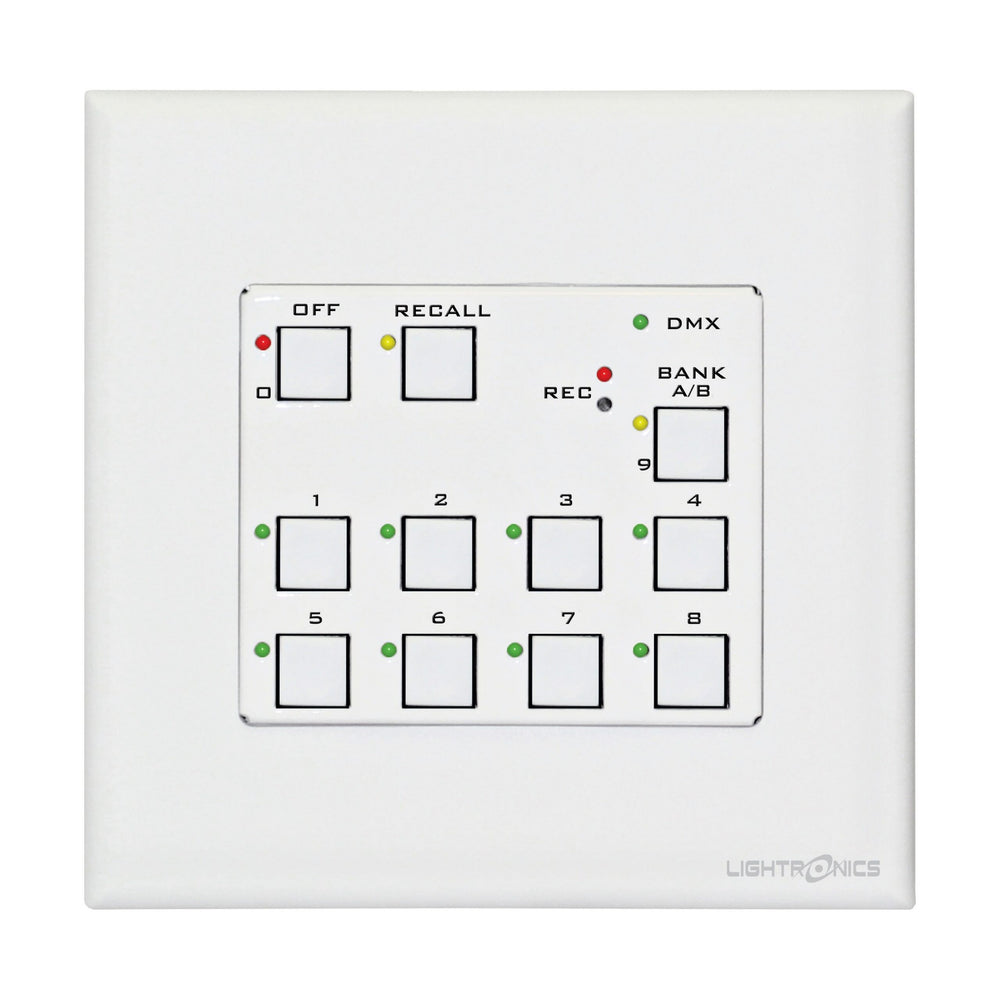

Lightronics SR516W Unity Architectural Controller
With our NEW inexpensive SR516 Unity Architectural Controller, adding Remote Wall Station Control to your existing DMX Dimming System has never been easier. The SR516 provides control of your house and stage lights from multiple locations. Additional SR516 features include: Show Mode Station Lockout via DMX, Emergency Bypass Relay, Retain previous Scenes from Power Off, Non-volatile Scene Memory, Mutually Exclusive Scene Grouping, Last Scene Recall, Record from Live DMX, 3 Configurable Contact Closures, 2 Gang Wall Box Installation.
Key Features
- DMX-512 Pile-On Operation
- 16 Scenes w/ Fade Times to 99 Minutes
- Multiple Remote Station Control
- Show Mode Station Lockout via DMX
- SCENE GROUPING - mutually exclusive
- Last Scene Recall
- 3 Configurable Contact Closures
- 2 Gang Wall Box Installation
Technical Specifications
Protocol
USITT DMX-512
Dimmer Channels
512
Total Number of scenes
16 (2 banks of 8 scenes each)
Scene fade times
Up to 99 min. User settable per scene
Controls and Indicators
8 Scene Select, Bank Select, Blackout, Record, Recall. LED indicator for all functions and DMX status.
Recording
“Snapshot” from live console input
Record Lockout
Global Recording Lockout
Memory
Non volatile with a minimum 10 year data retention.
Memory Type
Flash
Power
12 - 16 VDC
Connectors
Plug in screw terminal
Remotes Cable Type
2 pair, low capacitance, shielded data cable (RS-485).
Remotes Communication
RS-485, 62.5 Kbaud, bidirectional, 8 bit, micro controller network.
Power Supply
12 VDC supplied by wall adapter
Dimensions
3.7” W X 1.5“ D X 4” H
Weight
1 Pound
