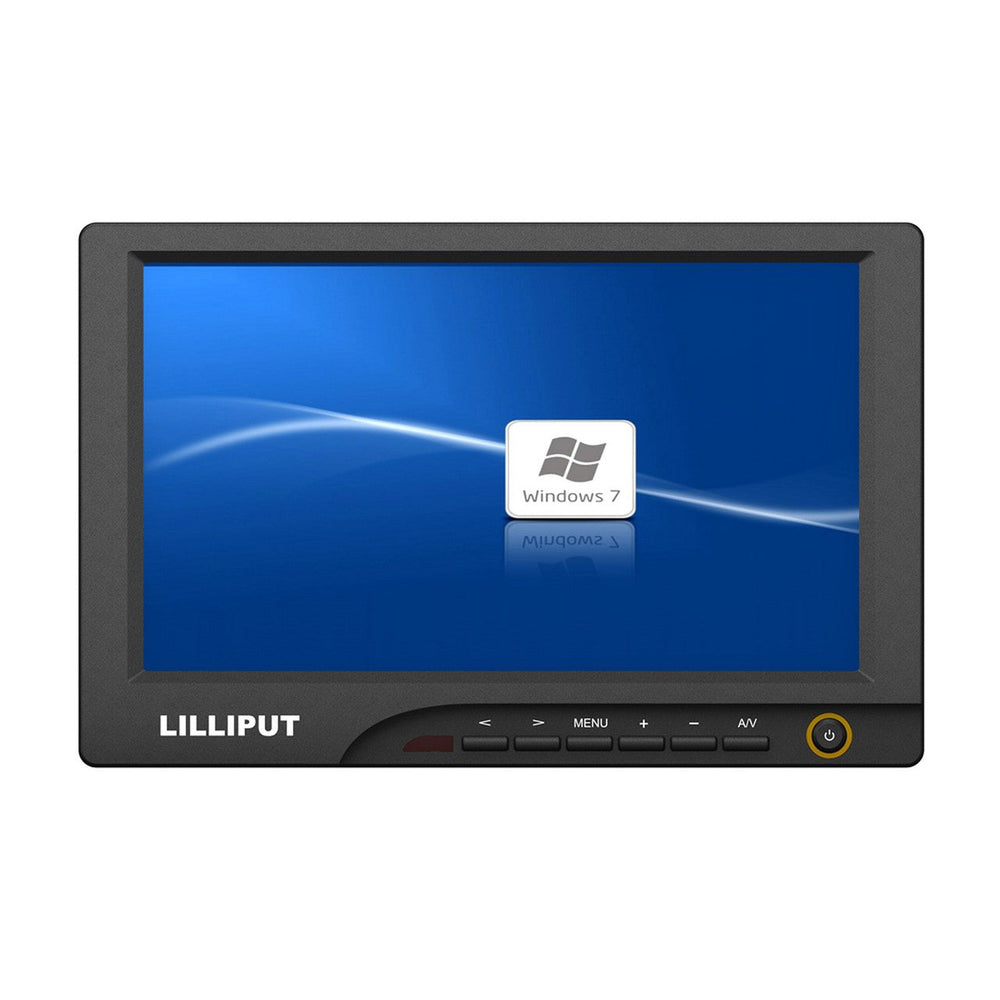

Lilliput 869GL-80NP/C/T 8 Inch LED HDMI VGA AV Touch Screen Monitor

Lilliput 869GL-80NP/C/T 8 Inch LED HDMI VGA AV Touch Screen Monitor

Wide viewing angles

The 869GL is Lilliput's only eight inch monitor with a widescreen 16:9 aspect ratio making ideal for use in situations where space is tight but a larger screen is still needed, points of sale for example.

Touch screen model available

The 869GL is available with an optional 4-wire resistive touch screen so customers can make a choice that best suits their application. Touch screen versions can be found in interactive media installations, particularly in point of sale and interactive digital signage displays.

Complete range of AV inputs

Customers don't need to worry about if their video format is supported, the 869GL has HDMI/DVI, VGA and composite inputs. No matter what AV device our customers are using, it will be compatible, whether that be a computer, Blu-ray player, CCTV camera or DLSR camera. The customer can be certain their device will connect to our monitor!

A Multitude of Mounting Options

With VESA 75, ¼ inch BSW thread and vertical slot mount mounting options, there is an option for every application. This makes the 869

Key Features

• High resolution: 800×480
• High brightness: 300cd/m2 (optional: 500cd/m2)
• High contrast: 300:1
• 4-wire resistive touch panel (optional: 5-wire)
• VGA, HDMI, AV input,
  DVI & YPbPr input for optional

Technical Specifications

Display Screen: 8" LED
Resolution: 800 x 480, suport up to 1920 x 1080
Touch Panel: 4-wire resistive (optional: 5-wire resistive)
Contrast Ratio: 300:1
Brightness: 300cd/m2 (optional: 500cd/m2)
Viewing Angle: 130°/110°(H/V)
Input Signal: VGA, AV1, AV2, HDMI, DVI(optional), YPbPr(optional)
Audio Output: 1W
Input Voltage: DC 12V
Power Consumption: 8W
Dimension(LWD): 211×136×30.5 mm
Weight: 504g
