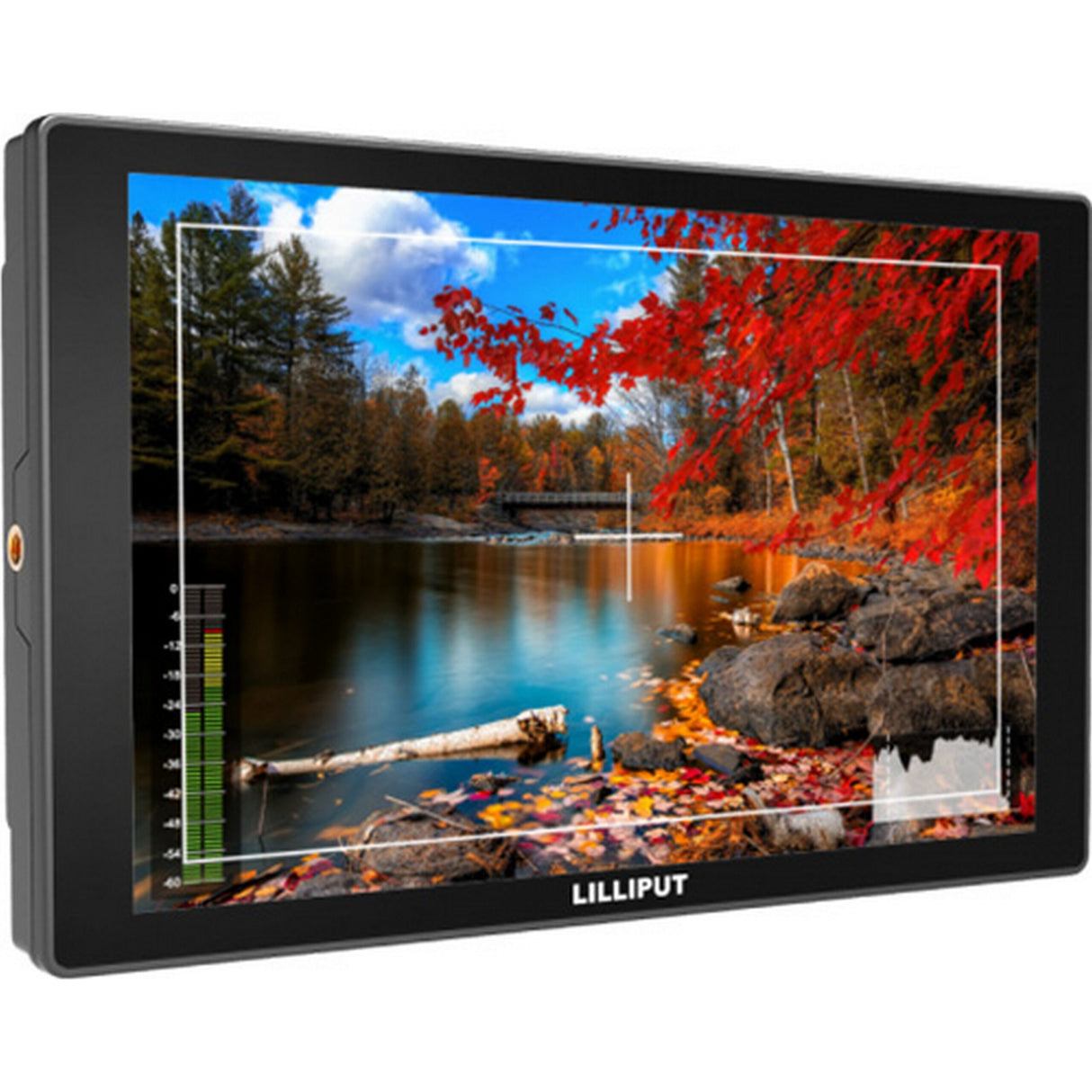

Lilliput A11 4K HDMI and 3G-SDI Monitor with L-Series Battery Plate, 10.1-Inch

Lilliput A11 is a 10.1” 4K compatible monitor with a 1920 x 1200 px panel, and HDMI 1.4b + SDI connectivity. The Lilliput A11 has been designed for the video and film industry professional and is ideally suited for directors and camera operators operating 4K capable equipment.

The Lilliput A11 matches with world-famous 4K / FHD camera brands to assist camera operators in acquiring better photography and gives a much more satisfying experience for variety of applications, i.e., filming on site, broadcast live action, moviemaking and post-production, etc.

The Lilliput A11 has a 1920x1200 native resolution, 10.1-inch 8-bit LCD panel - which allows for a level of detail far beyond what the human retina can identify. Features include 1000:1, 320 cd/m2 brightness and a 175 Degrees Viewing angle.

With full lamination technology you can see every detail in massive Full HD visual quality. The Built in HDMI 1.4b port supports 4K 30Hz signal input, while the 3G-SDI BNC port supports 3G-SDI, HD-SDI and SD-SDI signal inputs. A Universal VGA port is also included which allows for more legacy usage environment.

The Lilliput A11 also features unique Glass+Glass (G+G, G&G) technology, creating a smooth appearance for its outer body. It facilitates the best view possible and allows the user to achieve the best photography that they can.

The Lilliput A11 provides plenty of auxiliary functions for taking photos and making movies. Highlights include Peaking, False color, Histograms and Audio Level Meters.

Key Features

• 10.1-inch 8bit IPS
• 1920x1200 resolution
• 16:10 aspect ratio
• 175 Degrees / 175 Degrees viewing angle
• 1x 3G-SDI, 1x VGA, 1x HDMI (4k 30Hz support), 1x Mini USB Inputs
• 1x 3G-SDI Loop, 1x HDMI (4k 30Hz support), 1x Speaker, 1x Earjack Outputs
• FHD Resolution
• 4k HMDI/3G-SDI
• G+G Technology
• VESA 75mm mount design

Technical Specifications

Screen Size (diagonal)
10.1” - (25.65 cm) 8bit IPS
Aspect Ratio
16:10
Native Resolution
1920x1200
Dimensions
252mm x 157mm x 25mm
HDMI Formats
4K 30hz // 1080p // 1080i // 720p // 576p // 576i // 480p // 486i
Power Consumption
<= 13 W
Viewing Angle (degrees)
175 Degrees / 175 Degrees
Brightness Ratio (cd/m2)
320
Video Inputs
3G-SDI (input) x1 // HDMI 1.4b x1 (supports 4K 30 Hz) // VGA x1
Video Outputs
3G-SDI Loop (Output) x1 // HDMI 1.4b x1 (supports 4K 30 Hz)
Audio Outputs
Audio Speaker x1 // Audio Ear Jack x1
Input Power
12V 1A // Compatible with DC 24V
Operating Temperature
0 Degrees c - 50 Degrees c
Mounting Options
Hot Shoe Mount (Supplied) // V-Mount / Anton Bauer mount (Optional) // Gimbal Bracket (Optional) // VESA 75 Stand (Optional)
Weight (g)
550g
Storage Temperature
-20 Degrees c to +60 Degrees c
Item Includes
1x Lilliput A11 4K HDMI and 3G-SDI Monitor with L-series Battery Plate - 10.1 Inch
1x Sony L-Series Type Battery Plate
1x AC Adapter
