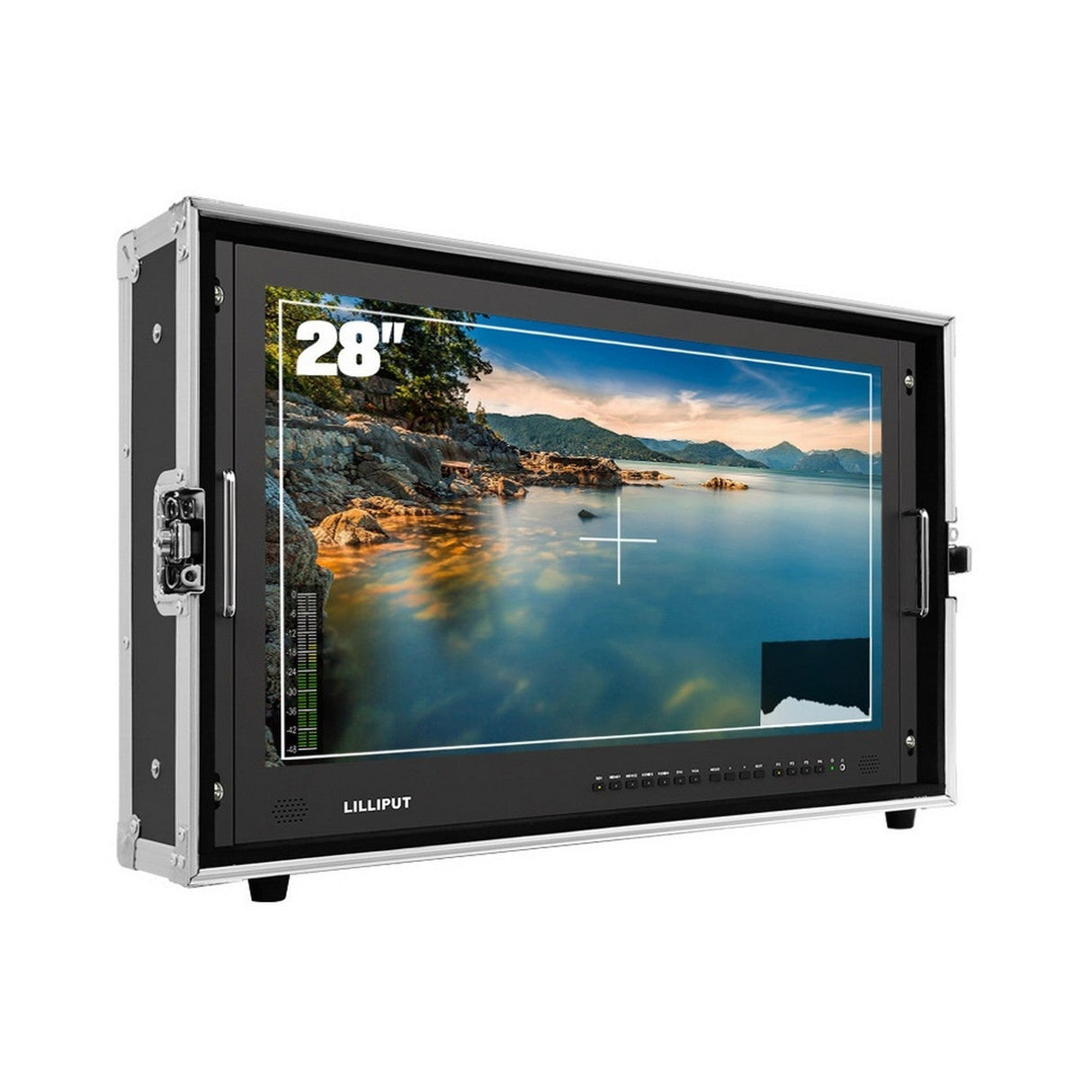

Lilliput BM280-4KS-VBP 28-Inch 4K HDR Broadcast Director Monitor
Lilliput BM280-4KS-VBP 28-Inch 4K HDR Broadcast Director Monitor
Lilliput BM280-4KS-VBP 28-Inch 4K HDR Broadcast Director Monitor
This Lilliput BM280-4KS-VBP is a 4K (3840*2160) Ultra-HD native resolution monitor with 3G-SDI, HDMI 2.0, DVI, VGA, and AV input. The 28-inch monitor is the perfect travel size, fitting right into your suitcase. This monitor has a 178 Degrees ultra-high viewing angle, a high contrast ratio of 1000:1 as well as a peaking, false color and a time code option.
The Lilliput BM280-4KS-VBP will give you sharper images, richer colors and even greater detail. This user-friendly monitor even offers a wider color gamut range to make precise color reproduction of Rec. 709 color space with built-in 3D LUT that features 3 user logs.
The Lilliput BM280-4KS-VBP also allows you to add optional wireless HDMI which has a 50-meter (164') transmission distance that can support up to 1080p 60Hz. One transmitter can work with one or more receivers.
Key Features
- 4K (3840*2160) Ultra-HD native resolution
- 28” perfect size for both suitcase
- HDR, 3D-LUT & Color space
- Peaking, False color & Time code
- High contrast: 1000:1
- 178° Ultra high viewing angle
- Rich interfaces: 3G-SDI, HDMI 2.0, DVI, VGA, AV input
- Wide voltage: DC12-24V
Technical Specifications
Display
Display Screen
28” 8bit
Physical Resolution
3840x2160, 4K
Aspect Ratio
16:9
Brightness
300cd/m2
Contrast
1000:1
Viewing Angle
170°/160°(H/V)
Inputs
3G-SDI
1
Wireless HDMI
1 (optional)
HDMI
HDMI 2.0x1 (4K@60Hz) HDMI 1.4x3 (4K@30Hz)
DVI
1
VGA
1
USB
1 (3D-LUT)
Audio
2 (L/R)
TALLY
1
Outputs
3G-SDI
1
Audio
Speaker
2
Ear Phone Slot
1
Power
Current
3.4A (15V)
Input Voltage
DC 12-24V (XLR)
Battery Plate
V-mount / Anton Bauer mount
Power Consumption
≤51W
Environment
Operating Temperature
32 to 140 Degrees F
Storage Temperature
-4 to 140 Degrees F
Dimension (LxWxD) (without case)
26.38 x 16.73 x 1.77”
Dimension (LxWxD) (with case)
29.96 x 18.66 x 6.81”
Weight (without case)
20.72 lbs
Weight (with case)
46.30 lbs
SDI Format
SMPTE-125M
480i (59.94)
SMPTE-274M
1080i (60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-292M
1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE-296M
720p (60/59.94/50/30/29/25/24/23.98) 720p (60/59.94/50)
SMPTE-372M
1080i (29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98)
SMPTE-425M
1080p (60/59.94/50)
ITU-RBT.656
576i (50)
HDMI Format
4K
4096x2160/ 3840x2160
Other
1080p, 1080i, 720p, 720i, 480p
