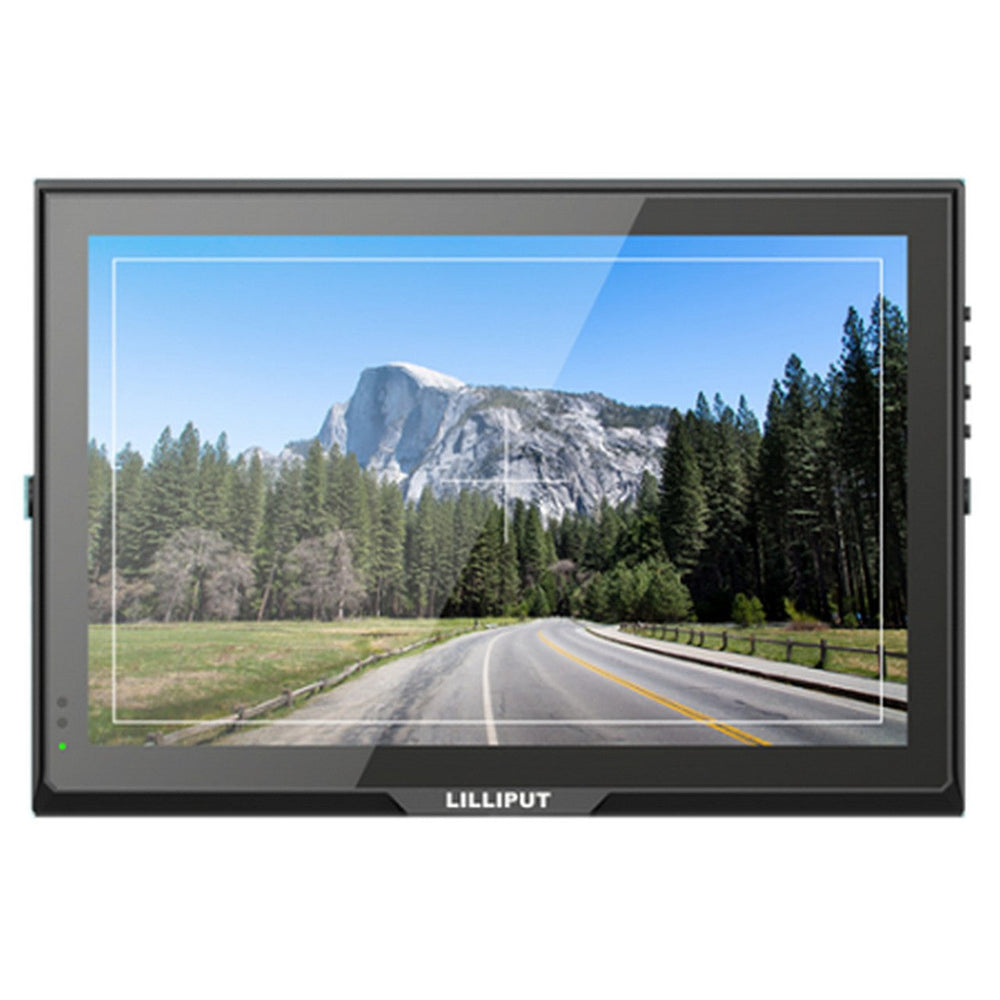

Lilliput FA1014/S 10.1 Inch LED HDMI VGA 3G SDI Camera Monitor
Lilliput FA1014/S 10.1 Inch LED HDMI VGA 3G SDI Camera Monitor
Free Shipping
Lilliput FA1014/S 10.1 Inch LED HDMI VGA 3G SDI Camera Monitor
Wide Viewing Angles (IPS Panel)
170 horizontal & 170 vertical wide viewing angles, it's available for people viewing from different angles with the same visual effect.
Bigger size, larger view.
10.1" IPS display panel with 1280-800 native resolution, twice viewing area than 7 display.
Lux Auto Brightness (optional)
A light sensor designed to detect ambient lighting conditions adjusts the panel's brightness automatically, which makes viewing more conveniently & saves more power.
Integrated dustproof front panel
FA1014-NP/C/T front panel adopts integrated front panel, which can prevent the screen from mild droplets & dust. It also available for outdoor environment.
I/O control interface
The interface has functions such as connecting with reverse trigger line in car reversing system, and control computer host to switch on/off, etc. Functions also can be customized to meet different demands.
Key Features
- High contrast: 800:1
- High brightness: 350cd/m
- Lux auto brightness
- Integrated dustproof front panel
- I/O control interface
- 3G-SDI, HDMI, DVI, VGA & AV inputs
Technical Specifications
Display Screen: 10.1" LED IPS
Resolution: 1280 - 800, suport up to 1920 x 1080
Aspect Ratio: 16:9
Contrast Ratio: 800:1
Brightness: 350cd/m2
Viewing Angle: 170/170 (H/V)
Input Signal: 3G-SDI, HDMI, VGA, AV & DVI (optional)
Output Signal: 3G-SDI, HDMI (optional)
I/O port: 1
Speaker: 1
Input Voltage: DC 7-24V
Battery: External (optional)
Current: 800mA
Power Consumption: 12W
Audio Output: 1W
Operating Temperature: 0 Degrees Celsius~50 Degrees Celsius
Storage Temperature: -20 Degrees Celsius~60 Degrees Celsius
Dimension(LWD): 250-170-32.3 mm
Weight: 660g
