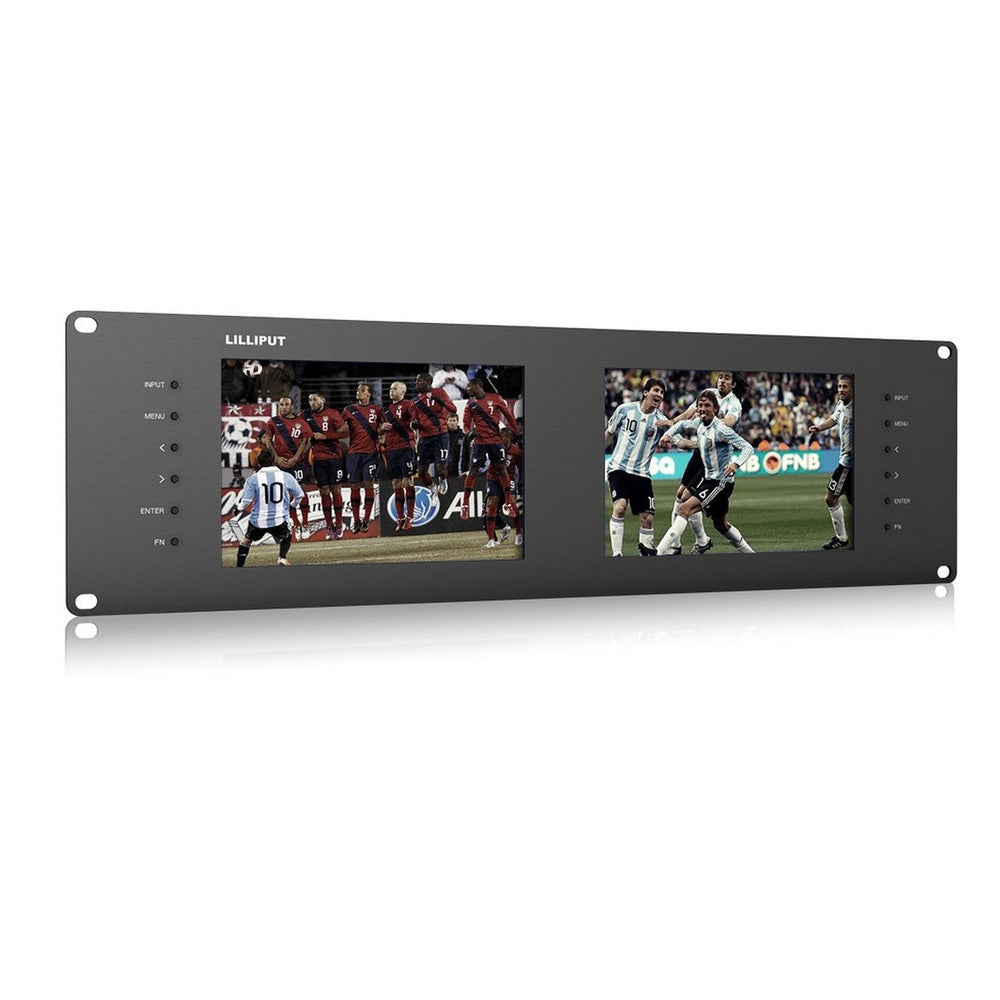

Lilliput RM-7028/S 7 Inch IPS HDMI LAN 3G SDI Rack Monitors

2 x 7 inch monitor with wide screen aspect ratio

The RM-7028S features 2 x high definition IPS screens for amazing picture quality at an affordable price

178 degree viewing angle

Wide angle viewing allows the operator to see both monitors from one position, and opens up the rest of the technical team chance to see the show too

400 cd/m brightness

High brightness panels let you view the screens comfortably in daylight. Perfect for gigs in the open air such as festivals

800:1 Contrast Ratio

Crisp deep colours are possible with high contrast ratio monitors, letting you see accurately what is happening on your colour

Multiple connectivity options

Check out the specification for the up to date information on the range of input options available on the product

Key Features

• IPS panel 178 wide viewing angles
• High resolution: 1280-800
• High brightness: 400cd/m2
• High contrast: 800:1
• Faster response time
• Dual 3G-SDI inputs
• Metal housing
• Slim & portable design
• TALLY interface with indicating light

Technical Specifications

Display
Panel: Dual 7" IPS
Physical Resolution: 1280X800, support up to 1920-1080
Aspect Ratio: 16:9
Brightness: 400cd/m2
Contrast: 800:1
Viewing Angle: 178/178(H/V)
Input
3G-SDI: 1-2
HDMI: 1-2
YPbPr: 3(BNC)-2
Composite: 1-2
Tally: 1-2
LAN: 1
USB 2.0: 1(mini)
Output
3G-SDI: 1-2
HDMI: 1-2
YPbPr: 3(BNC)-2
Composite: 1-2
Power
Current: 1500mA
Input Voltage: DC 7-24V
Power Consumption: 18W
Environment
Operating Temperature: -20 Degrees Celcius-60 Degrees Celcius
Storage Temperature: -30 Degrees Celcius-70 Degrees Celcius
Dimensions
Dimension (LWD): 482.5-133.5-25.3mm
Weight: 2885g
