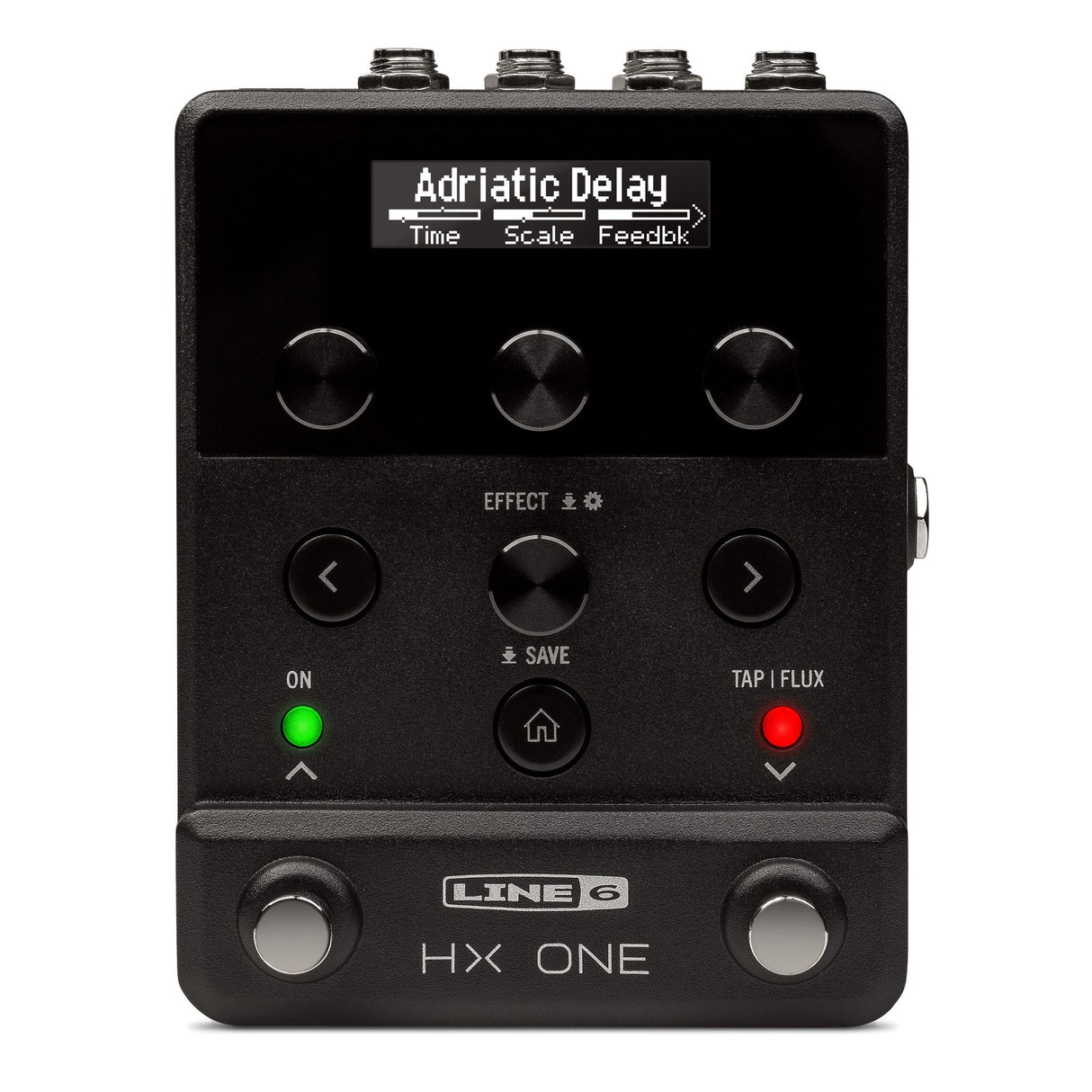

Line 6 HX One Stereo Effect Pedal

HX® One is a powerful stereo effect pedal with intuitive controls that fits onto any pedalboard. Select one of 250+ effects taken from the acclaimed HX family processors and easily adjust the parameters displayed on the OLED screen using the three corresponding knobs. You can also automate parameter changes via the unique Flux controller and trigger them with the Tap/Flux footswitch. Connect an optional expression pedal or two external footswitches for additional control. HX One also provides adjustable input impedance; a choice of True Bypass or buffered DSP Bypass; MIDI In and Out/Thru connectors; 128 Presets; and a USB-C port for firmware updates and use with the HX® One Librarian application. HX One may be powered using the included 9V power supply or most third-party power supplies, making it easy to add to your pedalboard.

Key Features

• 250+ Effects taken from the HX family processors
• Intuitive controls make selecting and editing effects easy
• Flux Controller for automating parameter changes
• Adjustable input impedance to match your instrument
• Connect an optional expression pedal or 2 external footswitches
• MIDI In, Out/Thru connectors (receives PC and CC messages)
• Stereo I/O with choice of True Bypass or buffered DSP Bypass
• 128 Preset slots
• USB-C port for firmware updates and use with HX® One Librarian
• 9V Power supply included

Technical Specifications

Effect Models
250+
Presets
128
Footswitches
2 with separate RGB LEDs
Looper Types
1 Switch, Shuffling
Looper Memory (Full Speed)
60 sec mono/30 sec stereo
Looper Memory (1/2 Speed)
120 sec mono/60 sec stereo
1/4” Inputs
Stereo L/R
1/4” Outputs
Stereo L/R
MIDI
In, Out/Thru + USB
Chassis
Cast aluminum
1/4" Exp Pedal Inputs
EXP Pedal
(shared with Footswitch 3/4)
USB
USB-C
Bypass
True, Buffered
Power
500mA DC center-negative
(Included)
Product Height (in/mm)
2.4/62
Product Width (in/mm)
4.9/125
Product Depth (in/mm)
3.8/96
Product Weight (lb/kg)
.99/.45
